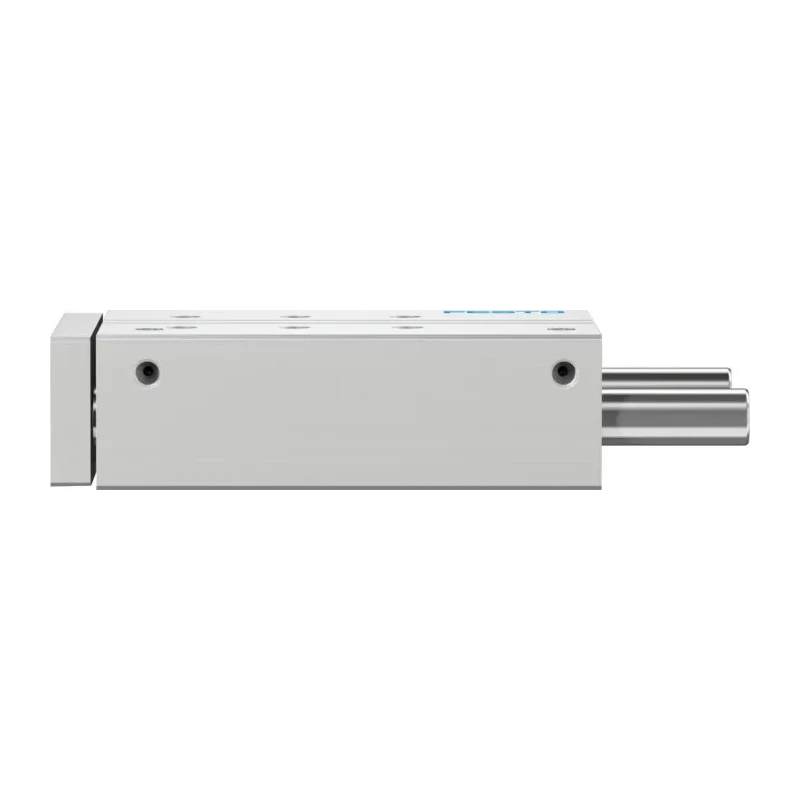

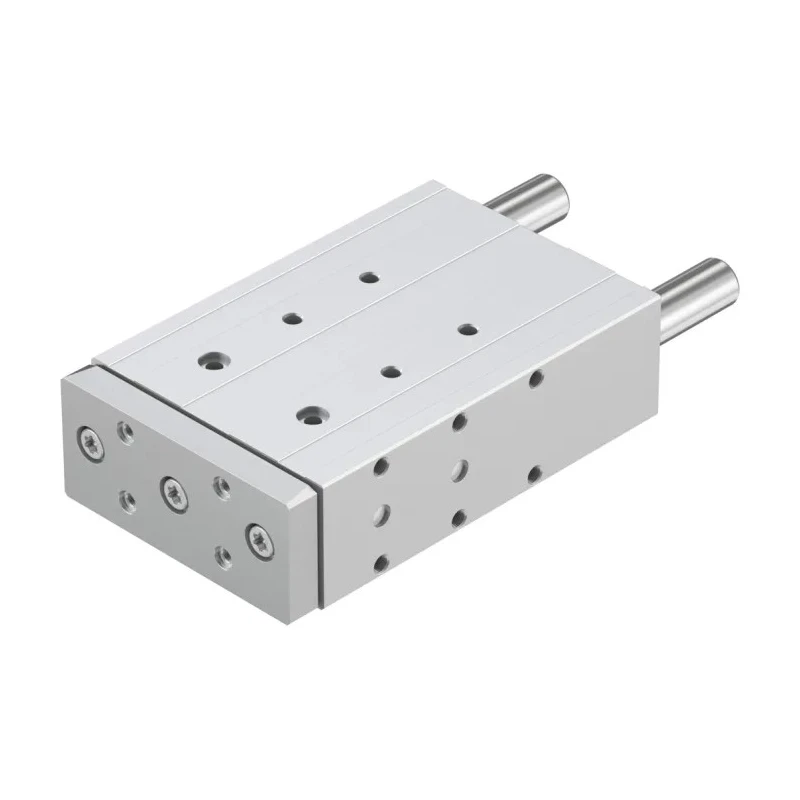

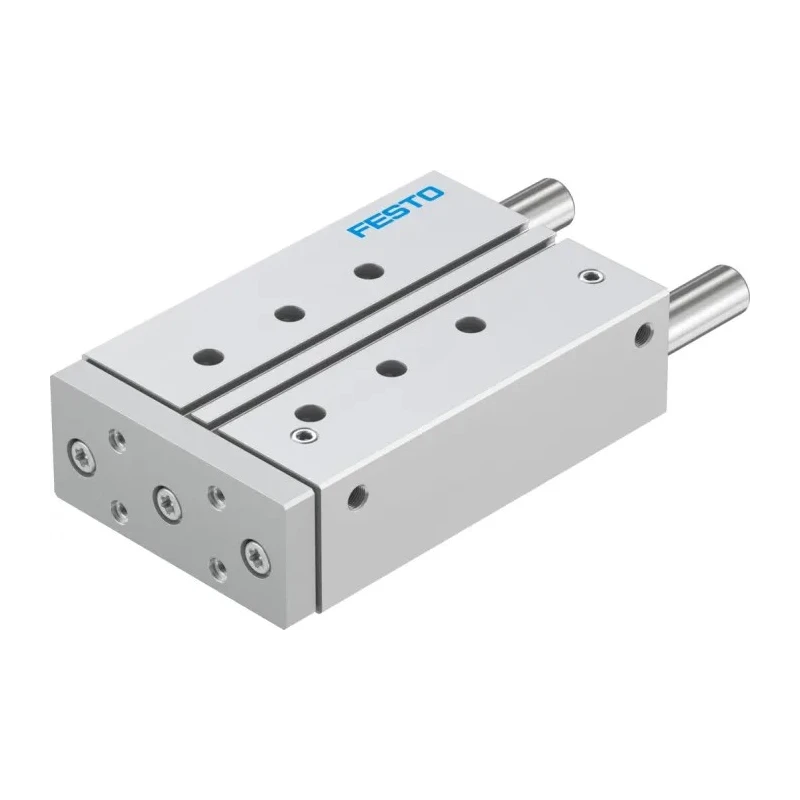

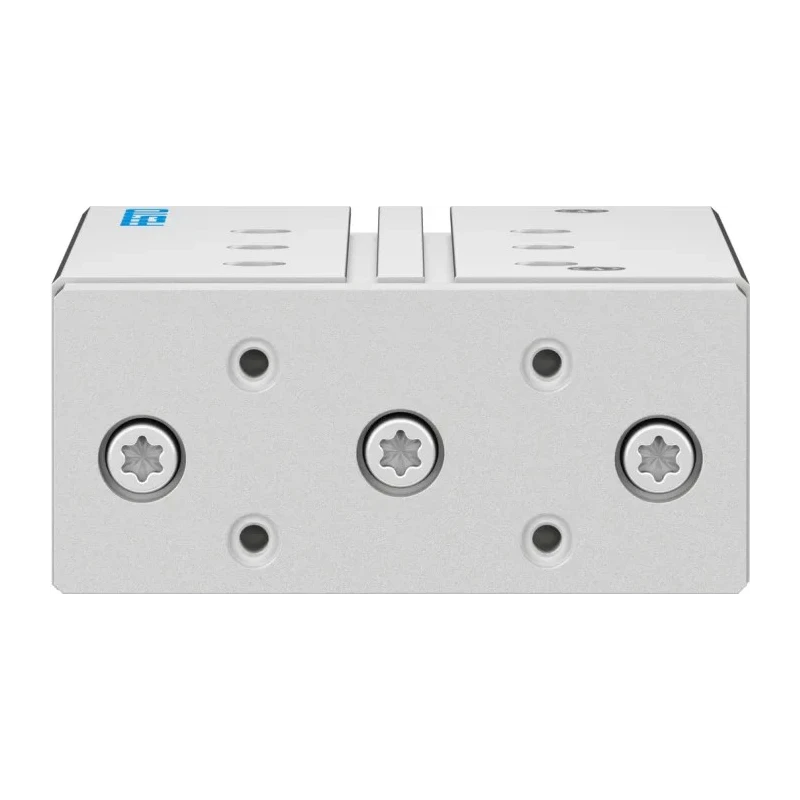

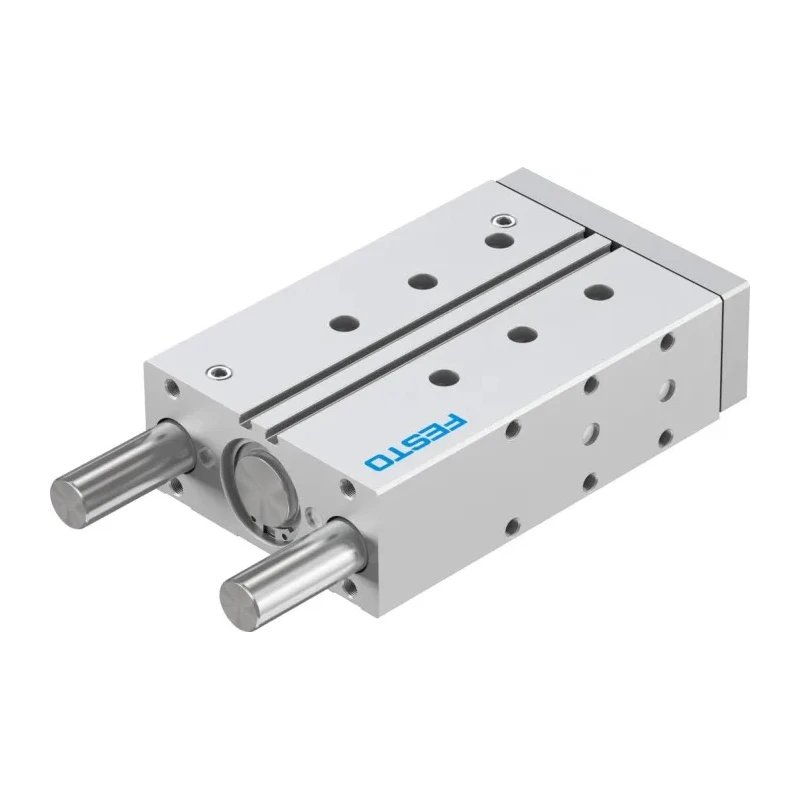

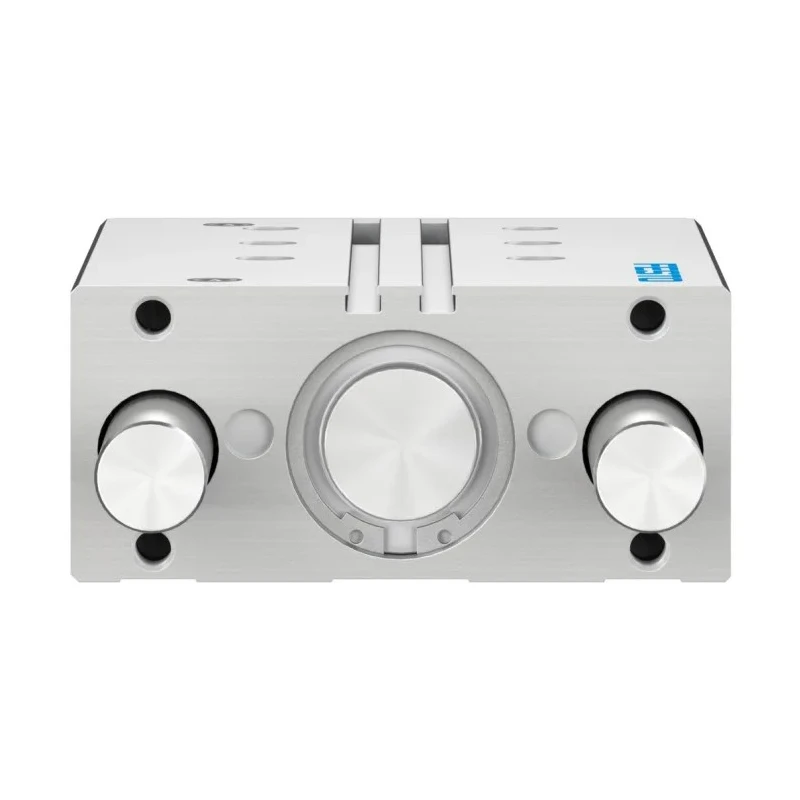

Festo Pneumatic Guided Cylinder 40mm Bore, 125mm Stroke, Double Acting, Through Hole Mount, NBR Body DFM-40-125-P-A-GF

Festo DFM-40-125-P-A-GF pneumatic guided cylinder combines advanced guiding technology with robust construction to deliver precise and reliable actuation in industrial automation applications. It features a 40mm bore and a 125mm stroke length, designed for double acting, single rod applications requiring guided load control.

The cylinder employs ball bearing and plain bearing guides that distribute radial loads effectively, maintaining alignment under side loads. Elastomer cushioning provides smooth deceleration at the end of the stroke, protecting equipment and improving cycle reliability. Its body is made from nitrile rubber (NBR), which offers resistance to wear and environmental conditions.

Designed for through hole mounting, this cylinder integrates easily into frames or plates, providing stable attachment points in compact production setups. The piston rod thread adheres to ISO 1179-1 and ISO 228-1 standards, facilitating standardized connections. Operating pressure is rated up to 10 bar with a maximum piston speed of 0.8 mm/s, making it suitable for controlled and high-precision movements in automated manufacturing environments.

With a working temperature range from -20°C to 80°C, the cylinder accommodates diverse workplace conditions. Its compact dimensions (length 244mm, width 120mm, height 54mm) and gross weight of 3.9kg make it compatible with robotic and gantry systems where dynamic response and payload considerations are essential.

Common industrial applications include precision assembly stations in electronics manufacturing, guided transfer units in automated handling systems, controlled indexing on production conveyors, and end-of-arm tooling stabilization in pick-and-place devices. This product supports high-accuracy positioning tasks in laboratories, HVAC automation, manufacturing lines, and water treatment processes.

Double acting pneumatic guided cylinder with 40mm bore and 125mm stroke length. Through hole mount provides secure and stable installation. Ball bearing and plain bearing guides enhance load control and alignment. Elastomer cushioning delivers smooth deceleration at stroke endpoints.

Rated for maximum operating pressure of 10 bar. Operates between -20°C and 80°C for versatile environments. Piston rod threads comply with ISO 1179-1 and ISO 228-1 standards. Maximum piston speed limited to 0.8 mm/s for precision control.

Nitrile Rubber (NBR) body material resists wear and environmental factors. Suitable for industrial automation, assembly, and material handling applications. Explore the full range of Pneumatic Guided Cylinders and related automation components at EnvMart for efficient and reliable industrial solutions.
