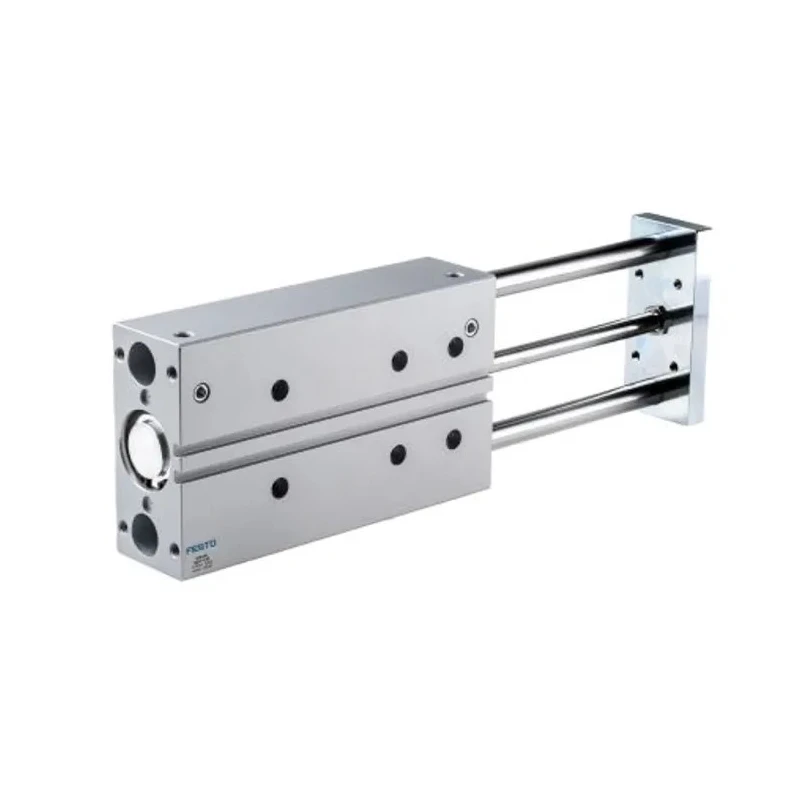

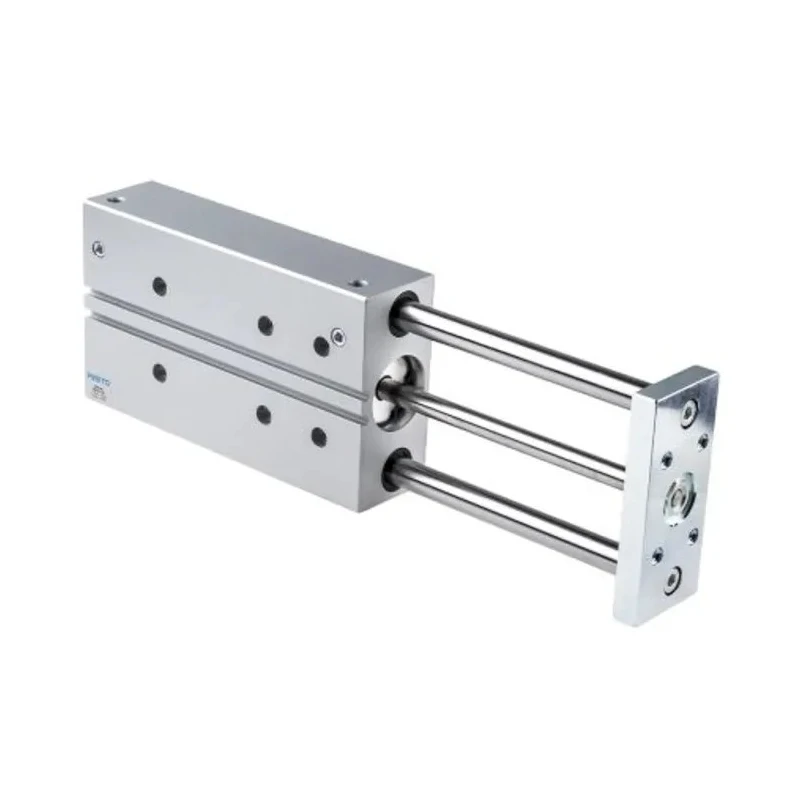

Festo Pneumatic Guided Cylinder 40mm Bore 200mm Stroke Double Acting Anodised Aluminium DFM-40-200-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Anodised Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 54mm |
| Length | 319mm |
| Model | DFM-40-200-P-A-KF |
| Gross Weight | 4.8kg |
| Width | 120mm |
| Mount Type | Through Hole, Flat, Side |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 200mm |
| Bore Diameter | 40mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing, Plain Bearing |
| Piston Rod Thread Standard | ISO 1179-1, ISO 228-1 |
| Standards/Approvals ISO 1179-1, ISO 228-1, ISO 8573-1 | 2010 (7:4:4), RoHS |
Key Features
- Drive and guide unit integrated in a single housing for compact and rigid construction.
- Recirculating ball bearings provide excellent resistance to torque loads and lateral forces.
- Flexible cushioning plates reduce noise and extend service life.
- Mounting options include through hole, flat, and side mounts suitable for versatile installations.
- Elastomer cushioning type ensures smooth operation at maximum pressure of 10 bar.
- Piston rod thread conforms to ISO 1179-1 and ISO 228-1 standards.
- Maximum piston speed rated at 0.8 mm/s for controlled movement.
- Body made from anodised wrought aluminium alloy combining strength and lightweight design.
Product Description
Festo DFM-40-200-P-A-KF pneumatic guided cylinder is a precision engineered double acting actuator combining the drive and guide unit within a single robust housing. Featuring a 40mm bore and 200mm stroke length, this cylinder is designed to handle high load pneumatic applications with excellent reliability.
The guided actuator incorporates recirculating ball bearings which provide high resistance to torque and lateral external forces, making it ideal for clamping, stopping, lifting, and material handling tasks in industrial, manufacturing, and construction settings. The aluminium body is anodised for enhanced durability and lightweight operation, maintaining stability and precision during demanding cycles.
Flexible elastomer cushioning plates effectively reduce noise and extend the component's lifespan, while integrated slots facilitate the use of proximity sensors to measure piston movement accurately. The cylinder also offers flexible mounting options including through hole, flat, and side mounts for adaptable installation. Operating pressure can safely reach up to 10 bar with a maximum piston speed of 0.8 mm/s.
The piston rod uses ISO standard threaded connections (ISO 1179-1, ISO 228-1) for compatibility and ease of integration within pneumatic systems. Operating temperature ranges from -5°C to 60°C, allowing application in varied environments.
Drive and guide unit in a single, compact housing. Recirculating ball bearings for torque load resistance. Flexible cushioning plates for noise reduction and longer service life. Versatile mounting options including through hole, flat, and side.
Elastomer cushioning for smooth operation. ISO standard piston rod thread. Maximum operating pressure of 10 bar. Durable anodised wrought aluminium alloy body. Suitable for industrial pneumatic applications. Designed for clamping, lifting, and stopping operations.
Originating from Germany, this Festo Pneumatic Guided Cylinder is manufactured to meet stringent quality and performance standards including ISO 1179-1, ISO 228-1, ISO 8573-1:2010 (7:4:4), and RoHS compliance. It represents a reliable component choice for industrial, laboratory, HVAC, and manufacturing pneumatic actuator needs.
Discover more pneumatic cylinders and guided actuators on EnvMart for your industrial automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 10 bar.
This unit has a height of 54 mm, a length of 319 mm, and a width of 120 mm.
The stroke length is 200 mm, and the bore diameter is 40 mm.
It utilizes elastomer cushioning for smooth operation and noise reduction.
The cylinder supports mounting options including through hole, flat, and side mounts.
The piston rod thread conforms to ISO 1179-1 and ISO 228-1 standards.
The operating temperature range is from -5°C to 60°C.
The gross weight of this model is 4.8 kg.
It is suitable for clamping, lifting, stopping, and material handling tasks in industrial settings.
The body is made from anodised wrought aluminium alloy, providing strength and lightweight design.
It incorporates recirculating ball bearings for high resistance to torque and lateral forces.
This pneumatic guided cylinder originates from Germany.
