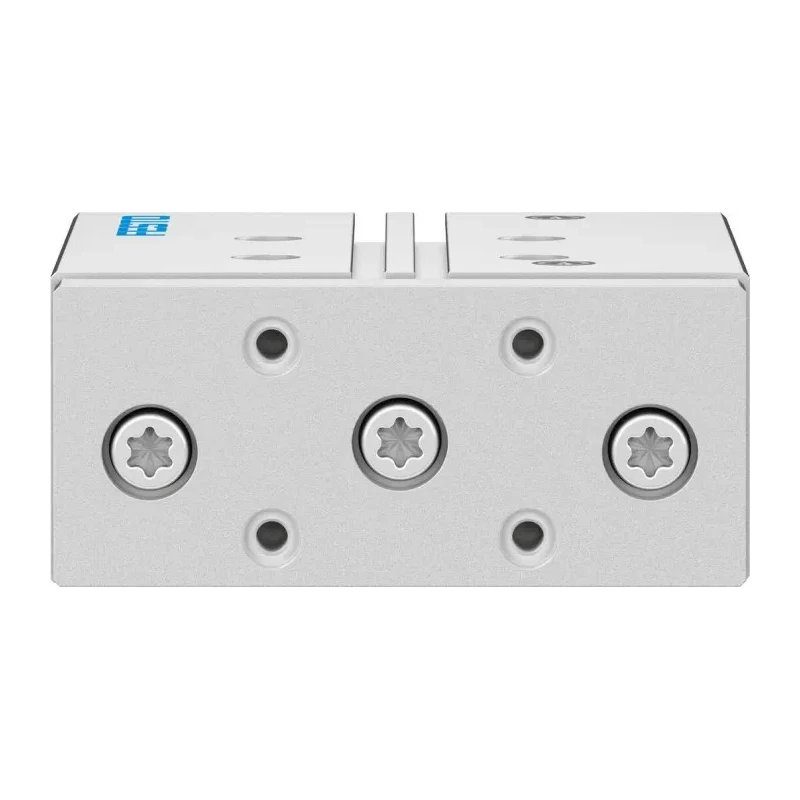

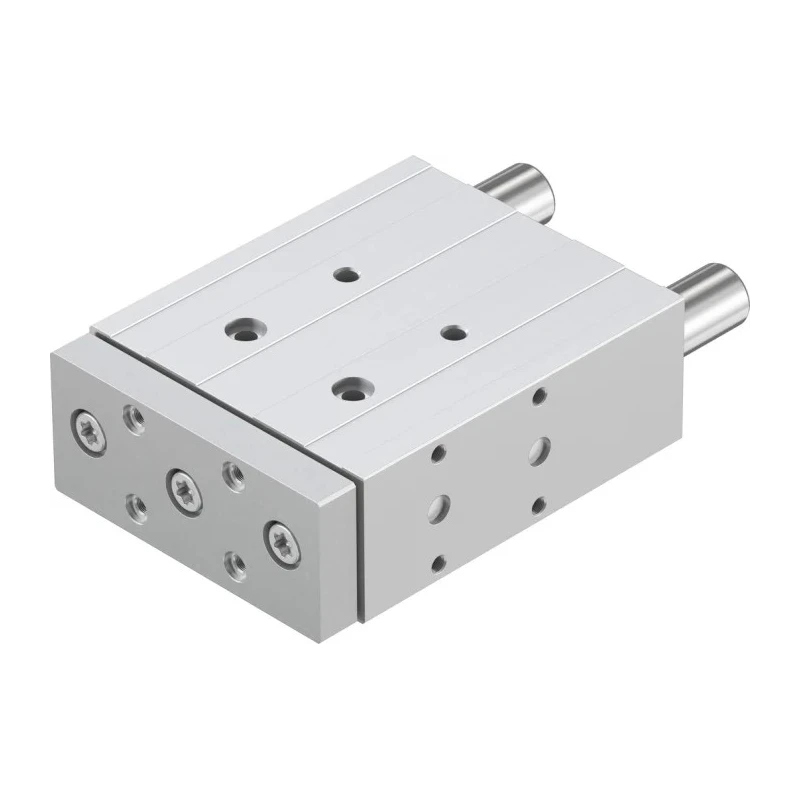

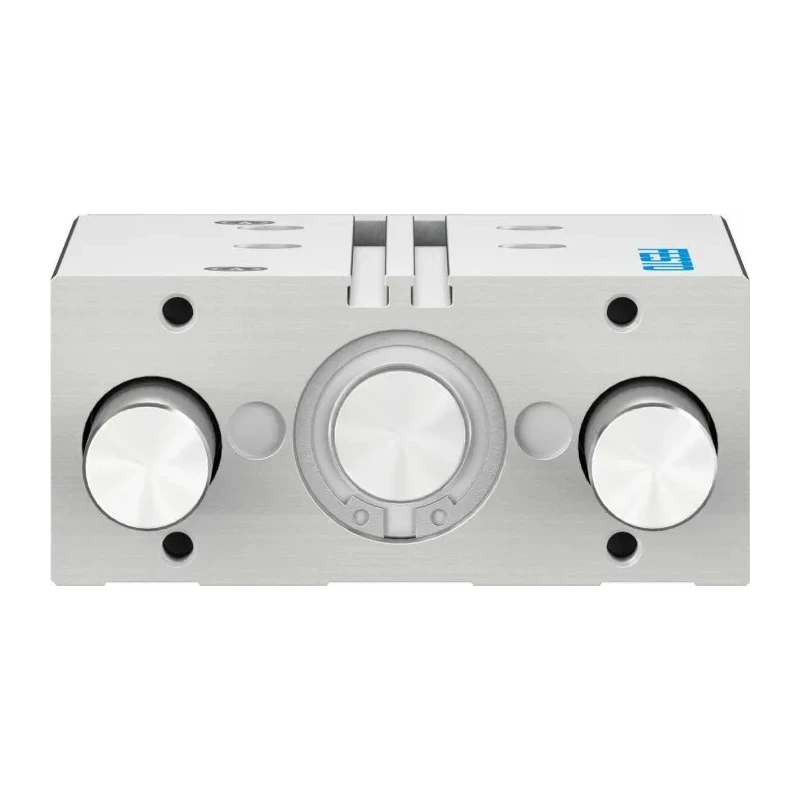

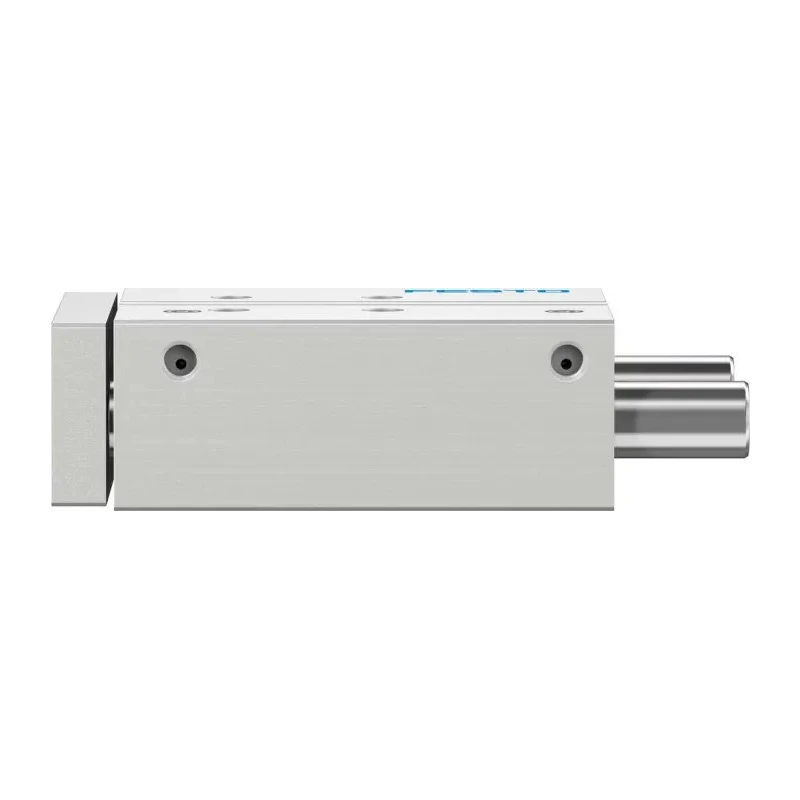

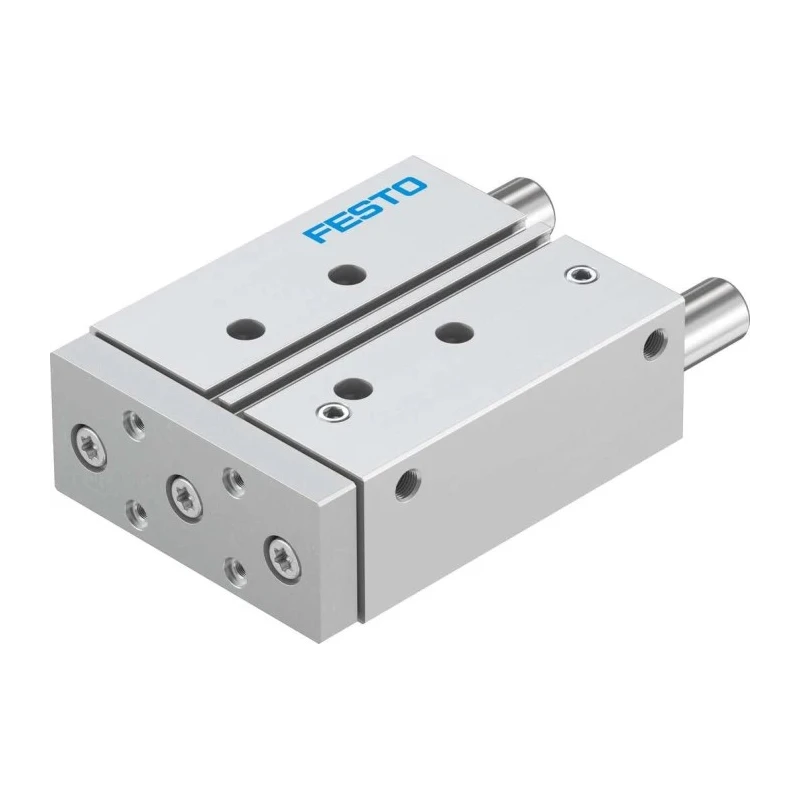

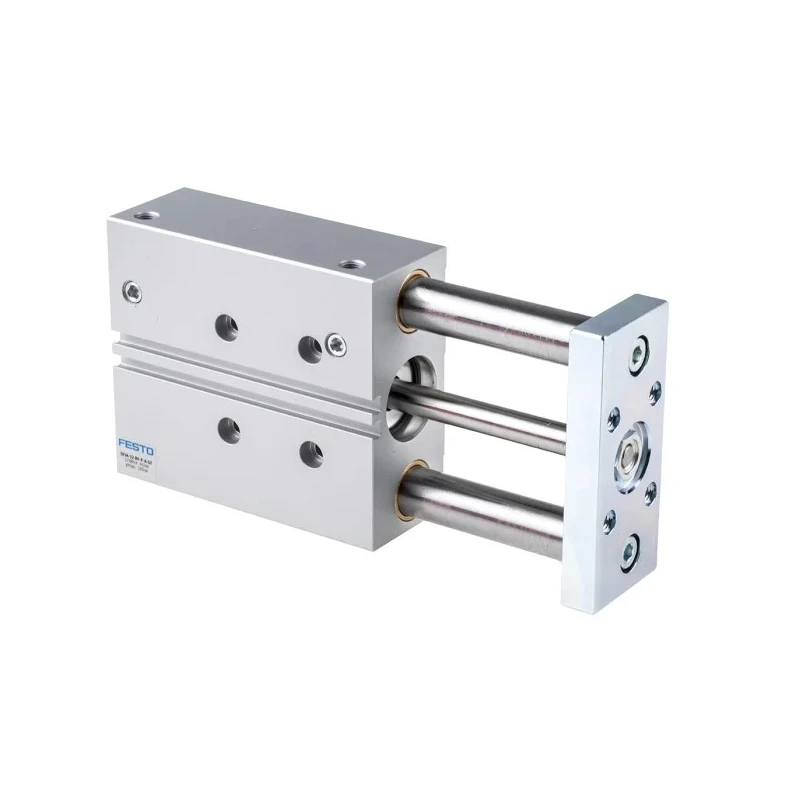

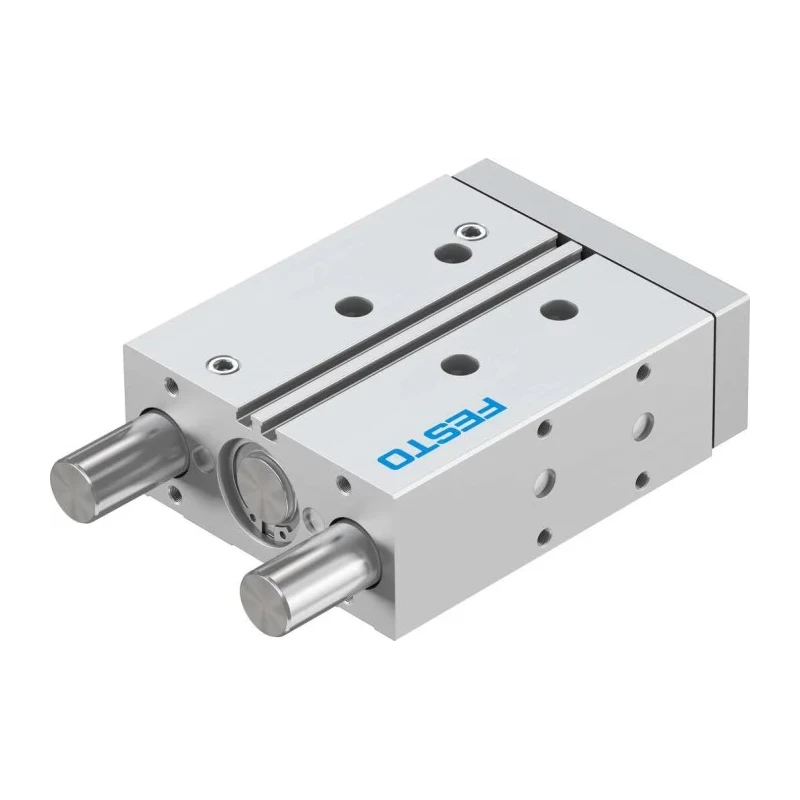

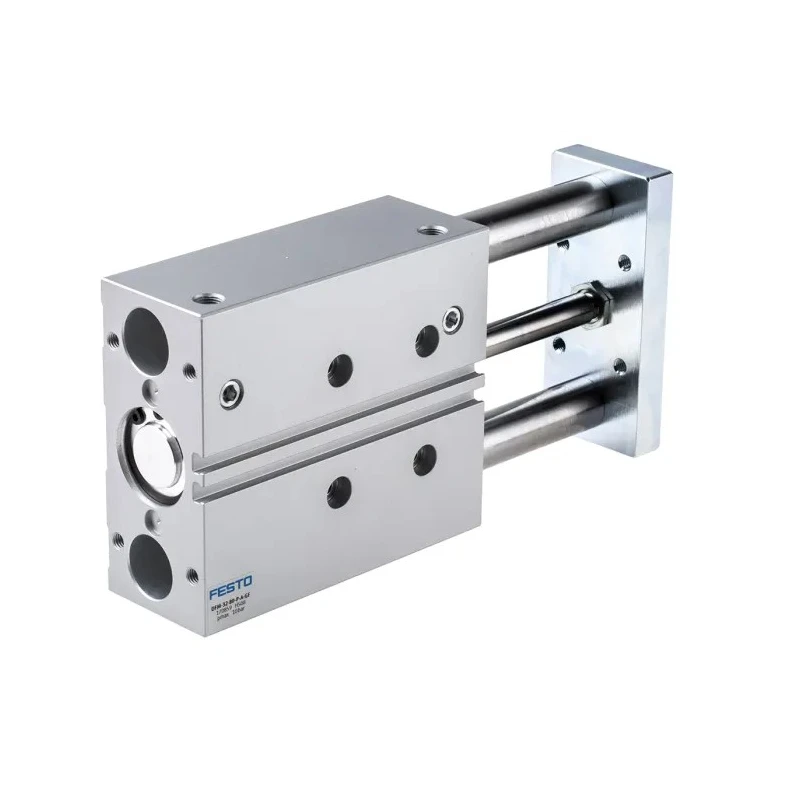

Festo Pneumatic Guided Cylinder Double Acting 32mm Bore 80mm Stroke Length DFM-32-80-P-A-GF

Festo DFM-32-80-P-A-GF pneumatic guided cylinder is a high-quality double acting actuator designed for precise and reliable operation in industrial automation systems. Featuring a 32mm bore diameter and 80mm stroke length, this cylinder supports rapid movement with piston speeds reaching 0.8 m/s and can operate effectively across a wide temperature range from -20°C up to 80°C. Its construction combines durable materials such as high alloy stainless steel piston rods and a housing made from wrought aluminium alloy, providing resistance to impact and corrosion in demanding environments.

The elastic cushioning mechanism reduces operational noise and minimizes wear, enhancing the lifespan of the cylinder. The pneumatic guided cylinder incorporates both ball bearing and plain bearing guides for superior stability and smooth motion control. It is mounted using a through-hole configuration and works under a maximum operating pressure of 10 bar. The piston rod thread size is G1/8 and complies with ISO 1179-1 and ISO 228-1 standards, ensuring compatibility with standard pneumatic fittings and systems.

This pneumatic guided cylinder is well-suited for various industrial uses such as material handling, food and beverage processing, packaging machinery, and pharmaceutical manufacturing, where precision and durability are critical. The combination of nitrile rubber (NBR) seals, polyurethane, and tempered steel enhances the sealing efficiency and corrosion resistance, reducing the risk of leaks and maintenance needs.

The compact size with length of 179mm, width of 110mm, height of 49mm, and a weight of 2.8 kg makes installation and integration into automated processes straightforward. Double acting pneumatic guided cylinder enables rod extension and retraction for two-directional movement.

Features an elastic cushioning system that dampens impact to reduce noise and wear. Constructed with high alloy stainless steel, nitrile rubber (NBR), polyurethane, tempered steel, and wrought aluminium alloy for durability.

Suitable for operation in temperature range from -20°C to 80°C. Maximum operating pressure of 10 bar with a piston speed of up to 0.8 m/s for rapid actuation. Equipped with ball bearing and plain bearing guides for precise and smooth motion.

Standard G1/8 piston rod thread size with ISO 1179-1 and ISO 228-1 compliance. Compact dimensions: length 179mm, width 110mm, height 49mm; weighs 2.8 kg. Ideal for industrial applications including material handling, food and beverage processing, packaging machinery, and pharmaceutical manufacturing.
