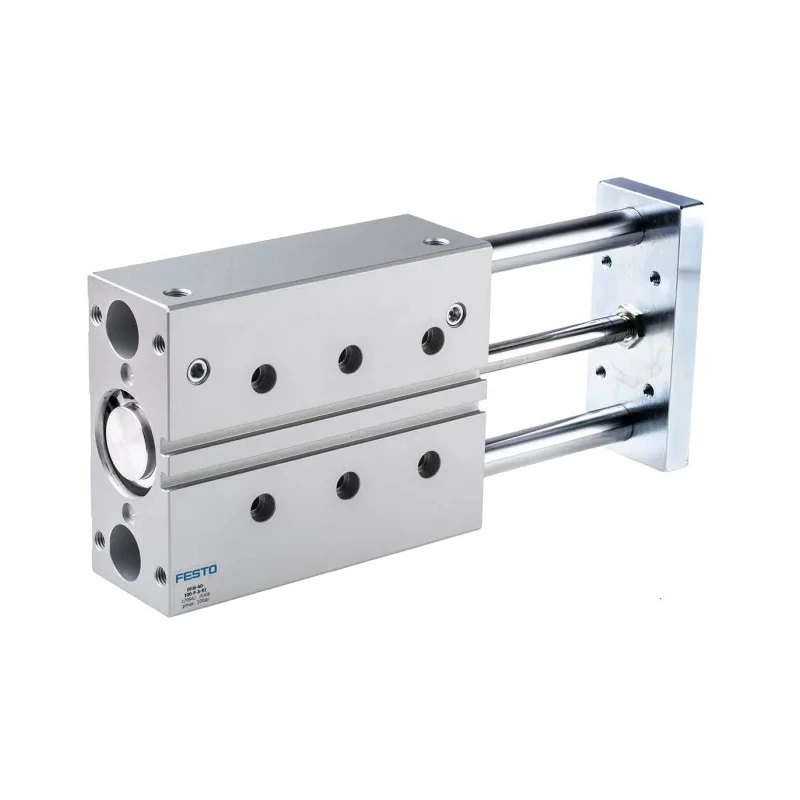

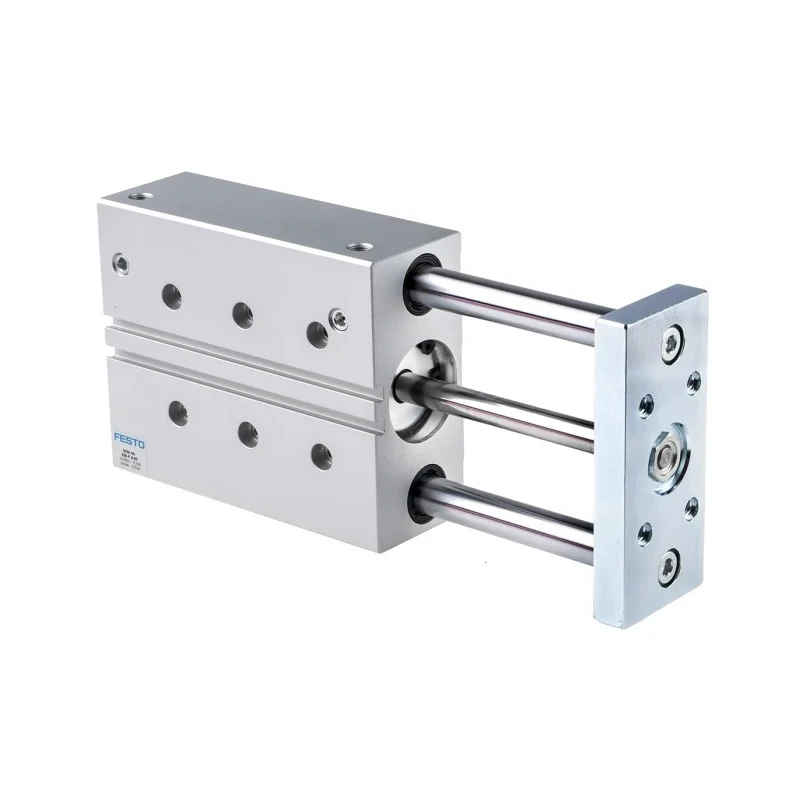

Festo Pneumatic Guided Cylinder DFM Series Double Acting 40mm Bore 100mm Stroke DFM-40-100-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 54mm |
| Length | 199mm |
| Model | DFM-40-100-P-A-KF |
| Gross Weight | 3.2kg |
| Width | 120mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 100mm |
| Bore Diameter | 40mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
Key Features
- Combines drive and guide units in a single compact housing.
- Recirculating ball bearings provide smooth operation under torque loads.
- Constructed from robust wrought aluminium alloy for durability and resistance.
- Equipped with elastomer cushioning plates to reduce noise and extend service life.
- Offers maximum operating pressure of 10 bar and temperature range from -5°C to 60°C.
- Mounting via through-hole design for secure installation.
- Flexible air supply ports allow top or side mounting configuration.
- Ideal for clamping, stopping, material handling, and lifting industrial applications.
Product Description
Festo DFM-40-100-P-A-KF Pneumatic Guided Cylinder is a precision-engineered pneumatic actuator combining the driving and guiding functions in one compact aluminium alloy housing. Featuring a 40mm bore and 100mm stroke, this double acting cylinder is engineered for demanding industrial uses where torque loads and lateral forces are involved.
The unit includes recirculating ball bearings that support guide rods to ensure smooth motion and high load capacity, making it suitable for clamping, lifting, stopping, and material handling tasks. The rugged aluminium construction is maintenance-free and resistant to torque and external lateral forces.
Made in Germany, the cylinder incorporates elastomer cushioning plates that reduce operational noise and enhance the service life of the equipment. Its through-hole mounting design and supply ports on both the top and side enable versatile mounting options tailored to specific application needs.
The operating temperature range extends from -5°C to 60°C, and it supports a maximum operating pressure of 10 bar, accommodating a variety of industrial environments. Combines drive and guide unit in a single housing for compactness.
Recirculating ball bearings for smooth operation under torque load. Durable wrought aluminium alloy body construction. Elastomer cushioning for noise reduction and longevity. Double acting functionality with flexible mounting options.
Maintenance-free and high resistance to lateral forces. Operating temperature from -5°C up to 60°C. Maximum operating pressure of 10 bar. Flexible air supply ports on top and side of the cylinder.
This pneumatic guided cylinder is ideal for industrial automation tasks such as clamping components, dynamic lifting of loads, and reliable stopping of heavy masses up to 150 kg. Its sturdy, precise construction makes it suitable for industrial, manufacturing, and material handling applications requiring accurate guided linear motion.
Discover more Pneumatic Guided Cylinders and pneumatic actuators in the Industrial Tools & Equipment category at EnvMart for your pneumatic automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic guided cylinder is 10 bar.
This model has a height of 54mm, a width of 120mm, and a length of 199mm.
It features a stroke length of 100mm and a bore diameter of 40mm.
The body is constructed from wrought aluminium alloy, providing durability and resistance.
The operating temperature range extends from -5°C to 60°C.
It features a through-hole mounting design for secure installation.
It is equipped with elastomer cushioning plates that help reduce noise and extend service life.
This pneumatic guided cylinder operates with a double acting action type.
The gross weight of this unit is 3.2kg.
It is ideal for clamping, stopping, material handling, and lifting tasks in industrial applications.
It utilizes a ball bearing guide type for smooth motion and high load capacity.
The cylinder complies with RoHS standards.
