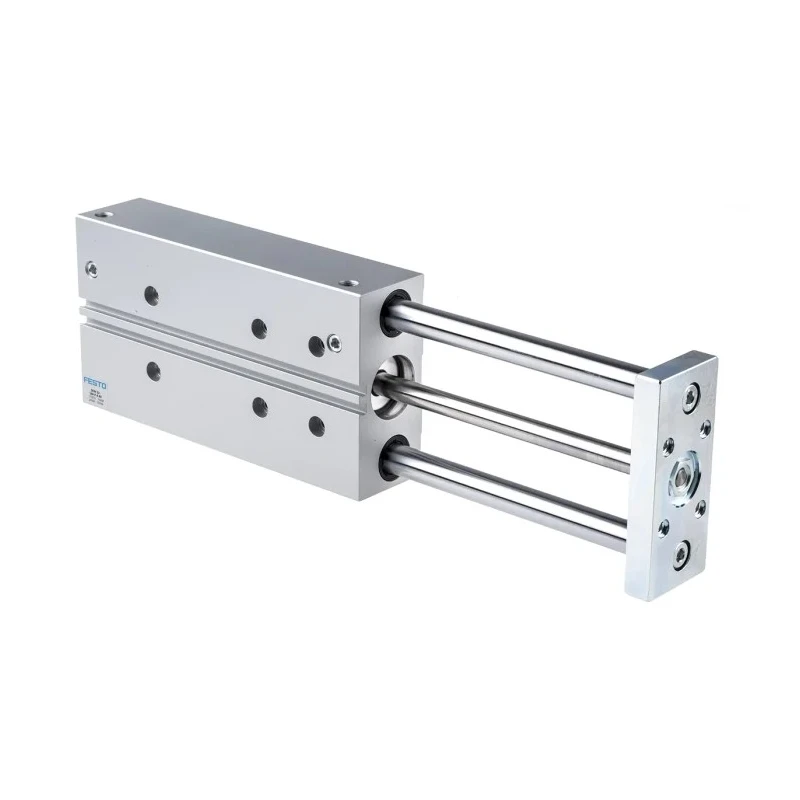

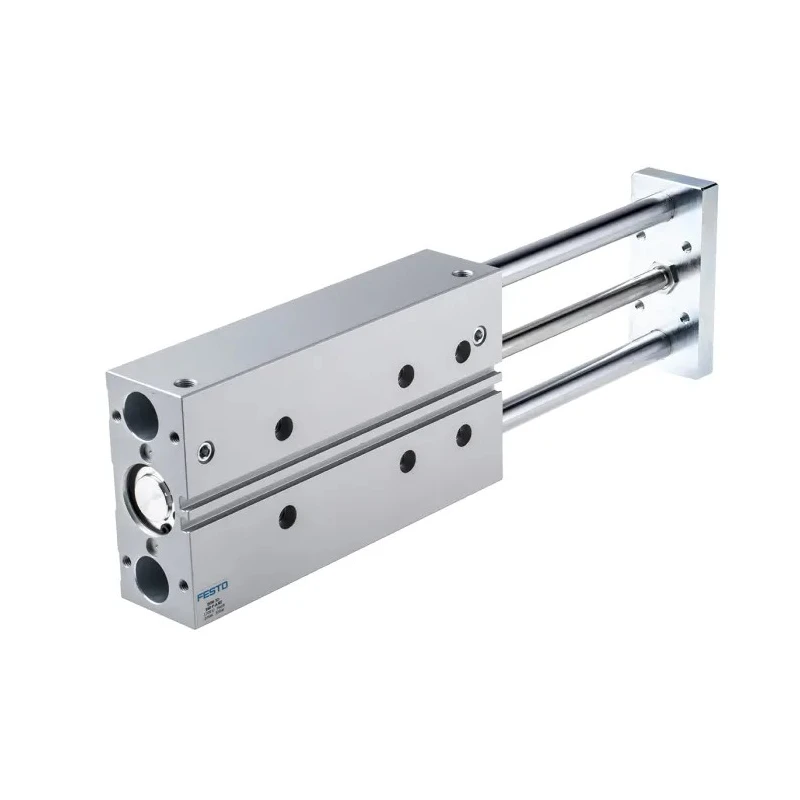

Festo Pneumatic Guided Cylinder DFM Series 32mm Bore Double Acting 160 mm Stroke DFM-32-160-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 49mm |
| Length | 279mm |
| Model | DFM-32-160-P-A-KF |
| Gross Weight | 3.9kg |
| Width | 110mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 160mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS, ISO 228-1, ISO 1179-1 |
| Cushioning Type | Elastomer |
| Guide Type | Plain Bearing, Ball Bearing |
Key Features
- The unit integrates drive and guide functions in a single housing for enhanced rigidity.
- Recirculating ball bearings allow handling of torque loads efficiently and ensure smooth operation.
- Compact aluminium construction provides high resistance to torque and lateral forces while being maintenance free.
- Flexible cushioning plates reduce operational noise and extend service life.
- Supply ports located on both top and side offer versatile mounting options.
- The guided cylinder is ideal for clamping, stopping, material handling, and lifting industrial applications.
- Designed to operate reliably from -5°C to 60°C temperature range.
- Manufactured in Germany and complies with RoHS, ISO 228-1, and ISO 1179-1 standards.
Product Description
Festo DFM-32-160-P-A-KF Pneumatic Guided Cylinder is a precision double acting cylinder combining the drive and guide unit within a single robust housing. Featuring a 32mm bore diameter and a 160 mm stroke length, it is engineered for demanding pneumatic applications requiring precise control and durability.
The cylinder incorporates recirculating ball bearings on the guide rods, enabling superior performance under torque loads and lateral forces. Constructed from durable aluminium, the compact design ensures maintenance-free operation and high resistance to external mechanical stresses.
Flexible elastomer cushioning plates are integrated to minimize noise during operation and increase the component's lifespan. The dual air supply ports located at the top and side of the cylinder provide flexible installation options to suit various industrial setup requirements.
Typical use cases include clamping components securely for processing, dynamic lifting and transporting of loads, and reliable stopping with the capacity to handle loads up to 150 kg. The cylinder’s operation spans a temperature range from -5°C up to 60°C, making it suitable for various industrial environments.
This model complies with relevant standards including RoHS, ISO 228-1, and ISO 1179-1, confirming its quality and compatibility with industrial pneumatic systems. Manufactured in Germany, it meets rigorous quality and performance criteria expected in professional industrial applications.
The unit integrates drive and guide functions in a single housing for enhanced rigidity. Recirculating ball bearings allow handling of torque loads efficiently and ensure smooth operation. Compact aluminium construction provides high resistance to torque and lateral forces while being maintenance free.
Flexible cushioning plates reduce operational noise and extend service life. Supply ports located on both top and side offer versatile mounting options. Ideal for industrial clamping, lifting, stopping, and material handling applications.
Operates within a temperature range of -5°C to 60°C. Manufactured in Germany following RoHS, ISO 228-1, and ISO 1179-1 standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 10 bar.
This pneumatic guided cylinder features a stroke length of 160 mm.
The bore diameter of this unit is 32 mm.
It is designed to operate reliably within a temperature range of -5°C to 60°C.
This model utilizes a double acting action type.
The dimensions of this unit are 279 mm in length, 110 mm in width, and 49 mm in height.
It features elastomer cushioning to minimize operational noise and extend service life.
The gross weight of this model is 3.9 kg.
It complies with RoHS, ISO 228-1, and ISO 1179-1 standards.
The supply ports are located on both the top and side, allowing for versatile mounting options.
This model is ideal for clamping, stopping, material handling, and lifting applications in industrial settings.
It incorporates recirculating ball bearings on the guide rods, allowing for efficient handling of torque loads and ensuring smooth operation.
