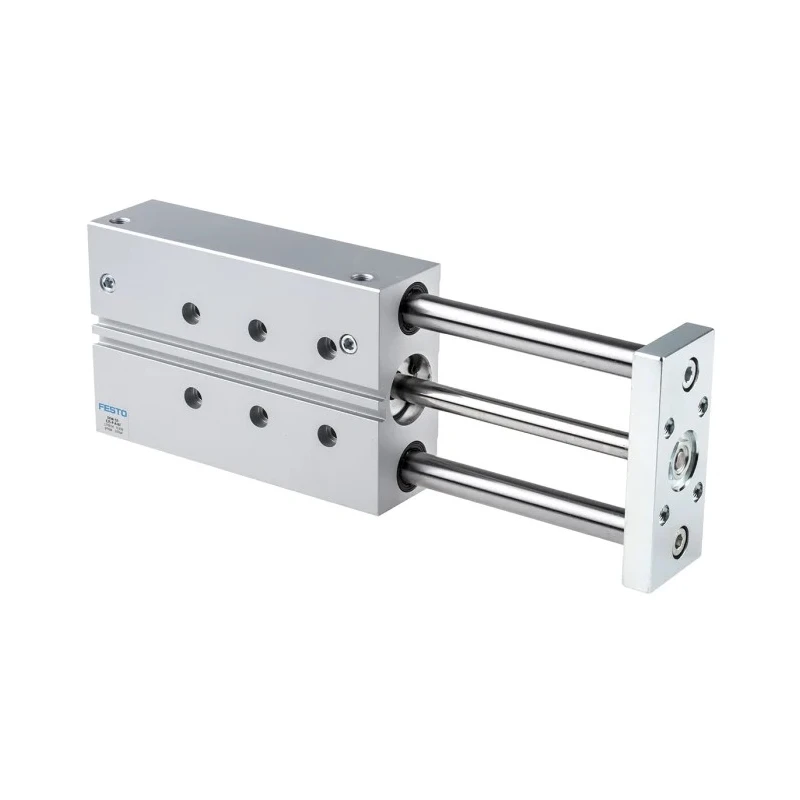

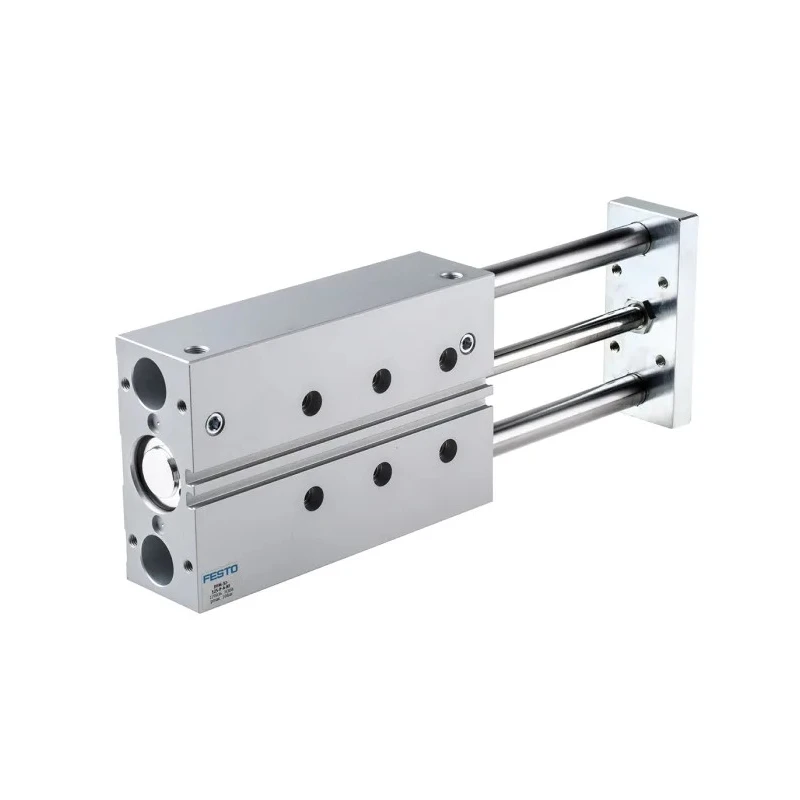

Festo Pneumatic Guided Cylinder DFM Series Double Acting 32mm Bore 125mm Stroke DFM-32-125-P-A-KF

Festo DFM-32-125-P-A-KF pneumatic guided cylinder is a double acting guided actuator with a 32mm bore and 125mm stroke length. This cylinder integrates the drive and guidance units into a single compact housing, using recirculating ball bearings to manage torque loads effectively. The robust aluminium construction offers excellent resistance to lateral external forces and torque, making it maintenance free and durable for industrial usage.

This DFM series pneumatic guided cylinder features flexible cushioning plates to reduce operational noise and prolong service life. The actuator body includes integrated slots designed for proximity sensors to accurately measure the piston's linear movement. Flexible air supply ports located at the top and side enhance mounting versatility to fit various installation needs.

Engineered for demanding applications such as clamping components, lifting loads, stopping heavy items (up to 150 kg), and dynamic material handling, this cylinder excels in industrial environments including manufacturing, automation, and processing plants. The cylinder maintains operation within a temperature range of -5°C to 60°C and supports a maximum operating pressure of 10 bar.

The body comprises durable materials such as anodised and tempered steel, high alloy stainless steel, nitrile rubber, polyurethane, and wrought aluminium alloy, ensuring longevity and robust performance under heavy-duty conditions. The piston rod uses ISO standard threading (ISO 228-1, ISO 1179-1) for compatibility.

Key mechanical dimensions include a height of 49mm, width of 110mm, and length of 244mm. The gross weight is approximately 3.6kg. Manufactured in Germany, this Festo pneumatic guided cylinder adheres to ISO 1179-1 and ISO 228-1 standards, and complies with RoHS directives.

Recirculating ball bearings enable effective torque handling in clamping and stopping applications. Rigid and compact aluminium housing resists external forces and prolongs lifespan. Flexible cushioning plates reduce noise and increase durability during operation.

Dual supply ports provide flexible mounting configurations for various industrial setups. The design supports integration of proximity sensors for precise piston position feedback.

This Festo Pneumatic Guided Cylinder is ideal for industrial tasks requiring precise and robust pneumatic actuation. Explore the range of pneumatic cylinders and guided actuators on EnvMart to find suitable components for your automation and manufacturing needs.
