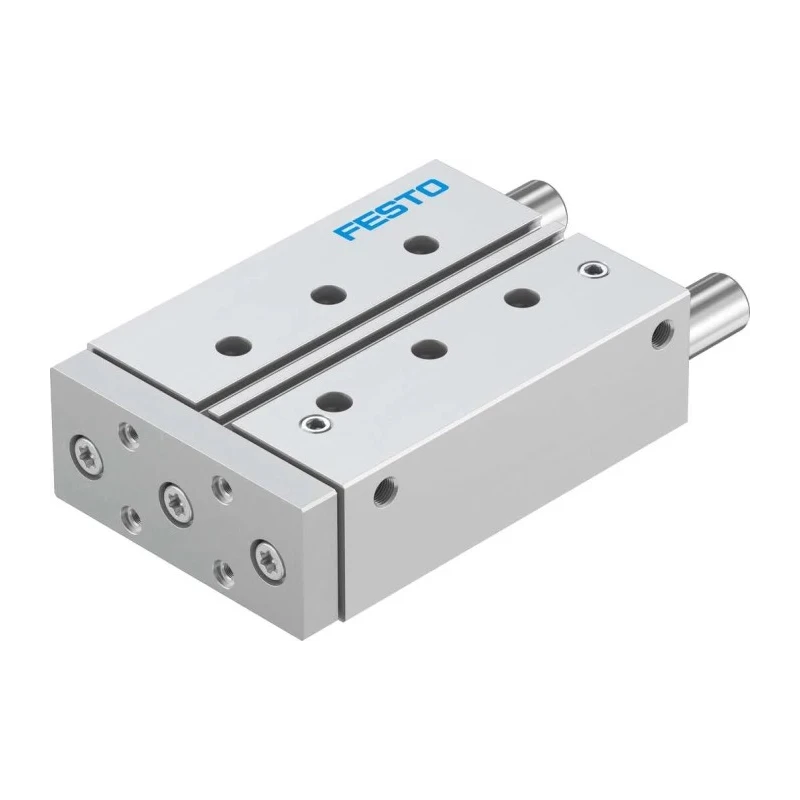

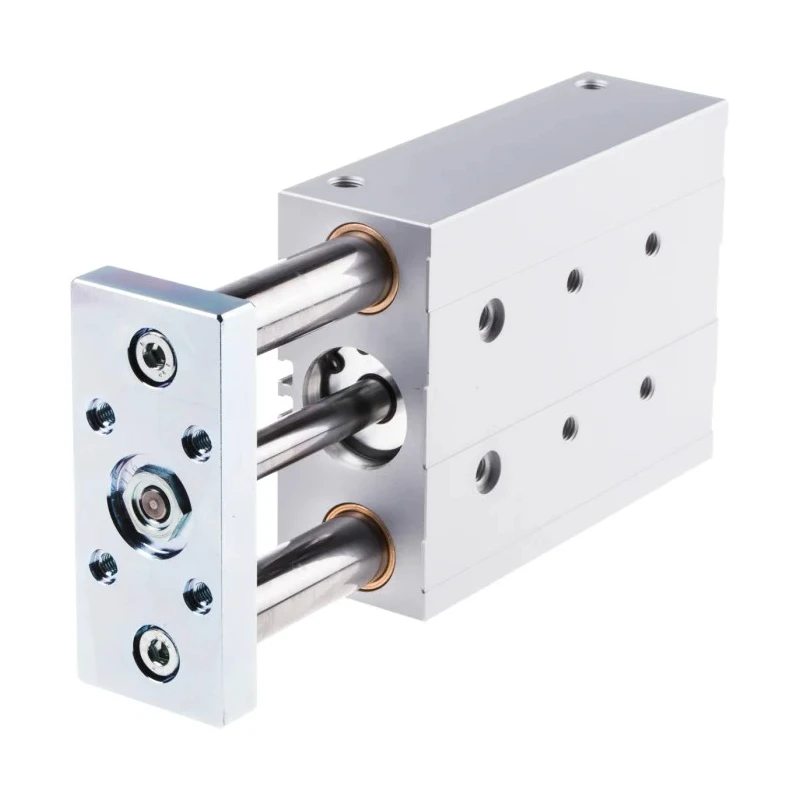

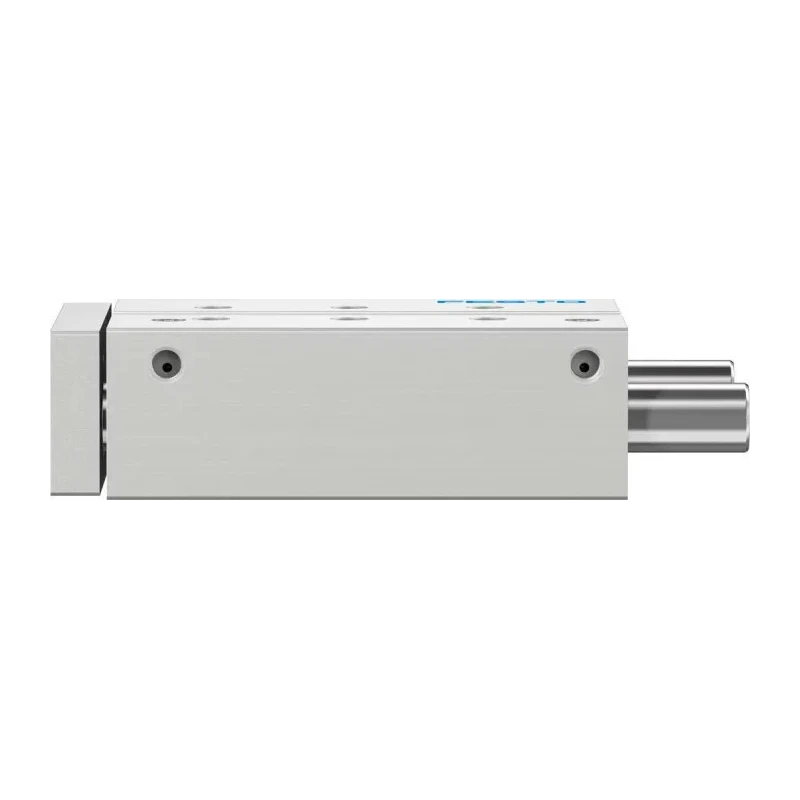

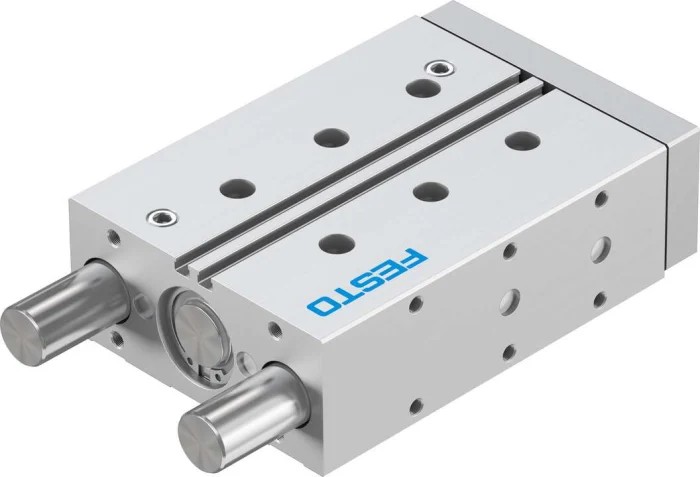

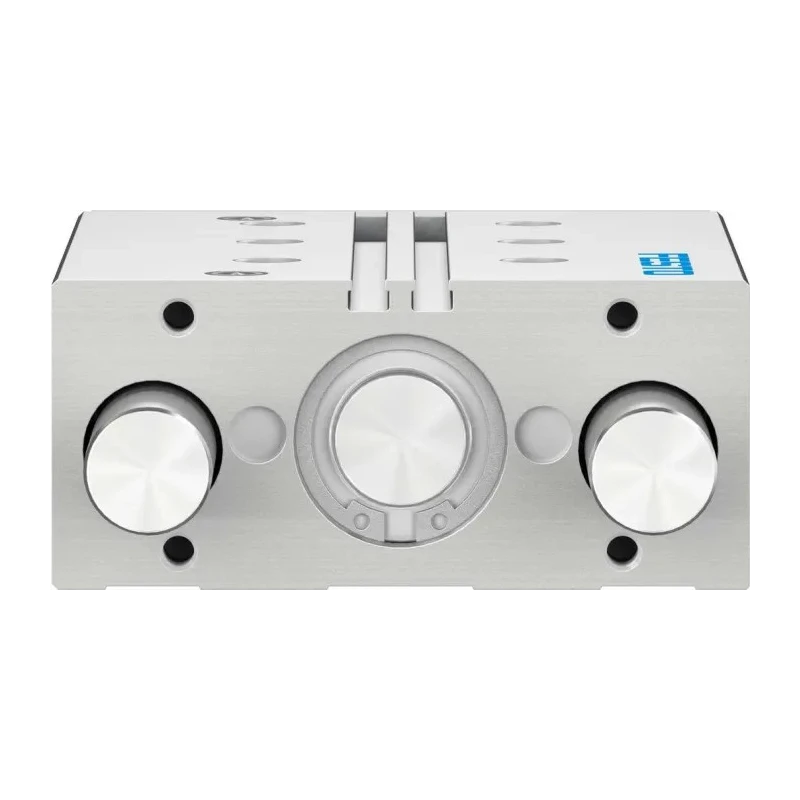

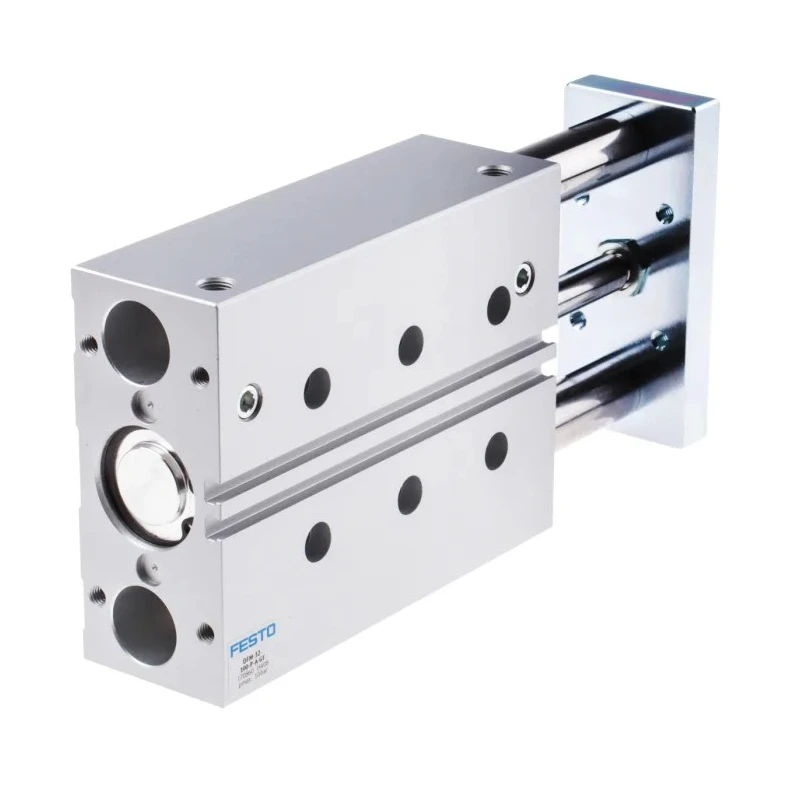

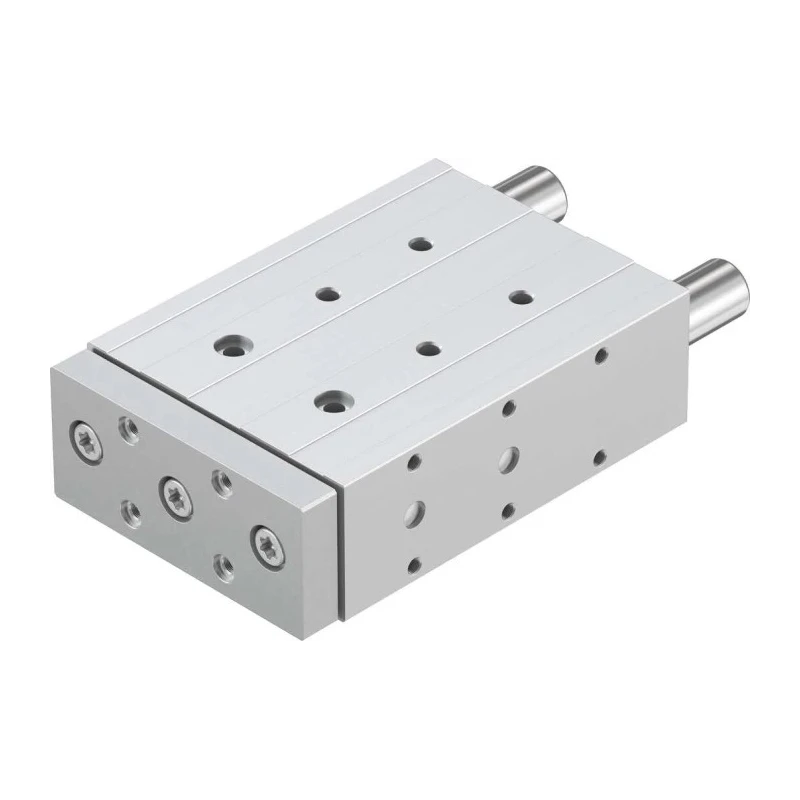

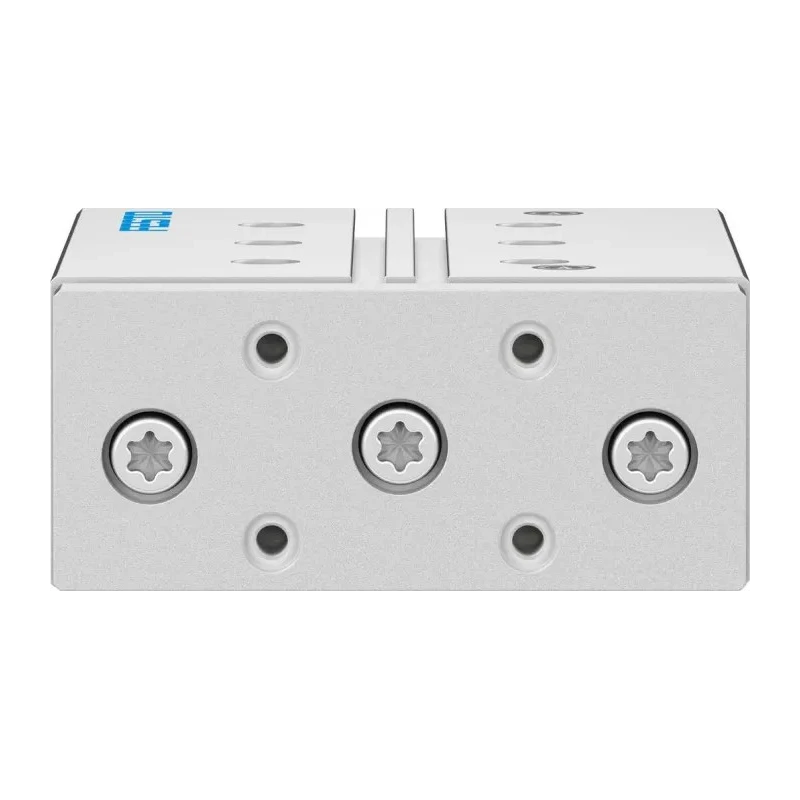

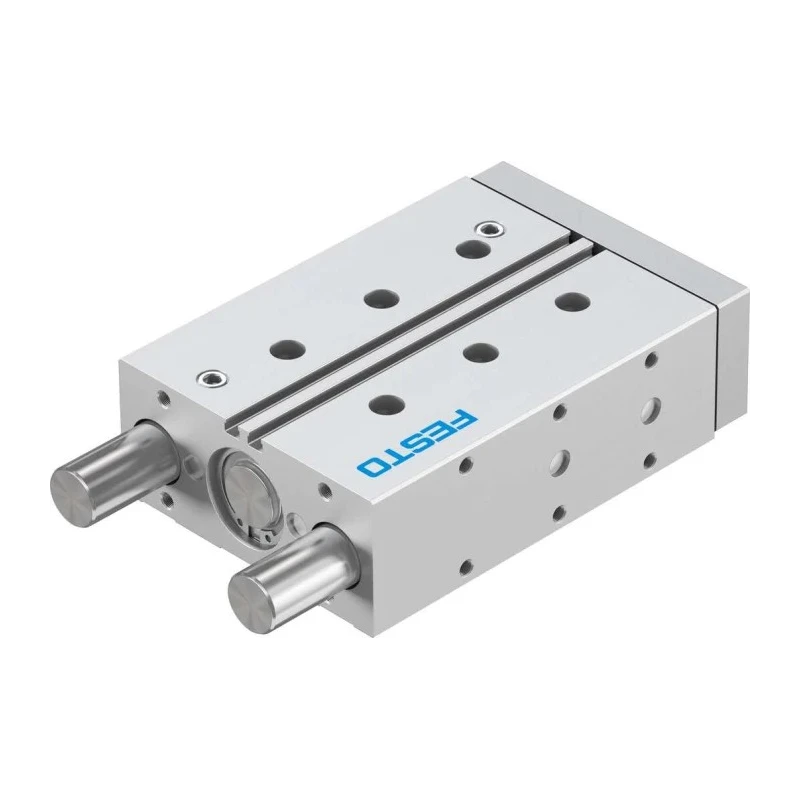

Festo Pneumatic Guided Cylinder 32mm Bore, Double Acting, Through Hole Mount, 100mm Stroke, DFM Series DFM-32-100-P-A-GF

Festo DFM-32-100-P-A-GF Pneumatic Guided Cylinder is designed for industrial applications requiring precise and robust linear actuation. This 32mm bore cylinder from the DFM series is double acting, enabling both pushing and pulling movements using compressed air. It features a through hole mount for straightforward and secure installation, suitable for automated machinery and handling systems.

The cylinder body is manufactured from high-quality wrought aluminium alloy with tempered steel, polyurethane components, nitrile rubber seals, and high alloy stainless steel that guarantee durability and long service life. Elastomer cushioning rings integrate noise reduction and impact dampening, enhancing operational smoothness.

Operating temperatures range from -20°C to 80°C, making it suitable for a wide array of industrial environments, including manufacturing, material handling, semiconductor production, and food processing. The single rod with ball bearing guide reduces lateral movement and wear, providing consistent performance under dynamic loads.

Equipped with a standard G1/8 thread size piston rod and designed to handle a maximum operating pressure of 10 bar, this pneumatic guided cylinder achieves maximum piston speeds of up to 0.8 m/s. The stroke length of 100mm enables effective movement within a compact form factor, featuring dimensions of 199mm length, 110mm width, and 49mm height, with an overall weight of 3.1 kg.

This cylinder supports proximity switches, such as the model 121-5836, for position feedback, allowing seamless integration into automation and control systems. Its versatility and robust construction make it ideal for demanding industrial tasks where reliability, precise motion control, and durability are essential.

Constructed with durable wrought aluminium alloy, tempered steel, polyurethane, nitrile rubber and high alloy stainless steel for extended service life. Features elastomer cushioning to reduce noise and vibrations during operation.

Capable of operating within a wide temperature range from -20°C to 80°C for versatile application. Single rod type with ball bearing guide for smooth linear motion and resistance to lateral forces. Supports proximity switch for easy position monitoring and control integration.

Maximum operating pressure of 10 bar ensures robust performance for demanding tasks. Compact dimensions of 199mm length, 110mm width, and 49mm height facilitate easy installation in limited spaces.

This Pneumatic Guided Cylinder is widely used in industries such as material handling, food production, semiconductor manufacturing, and various automation processes. Its precision and durability are suited for industrial, manufacturing, and laboratory pneumatic applications. Explore Festo's range for reliable pneumatic components tailored to diverse industrial needs.
