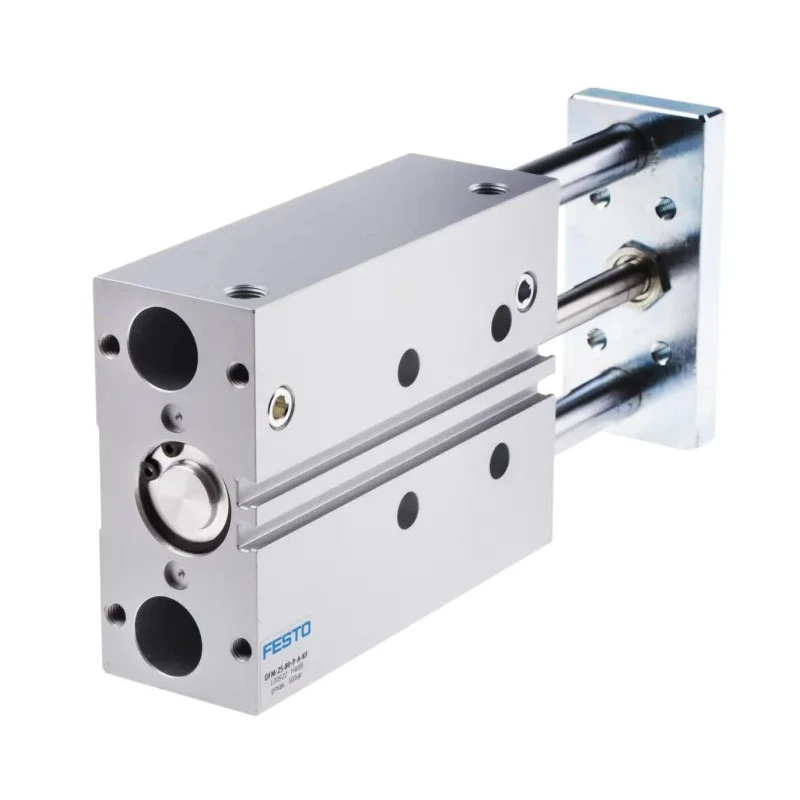

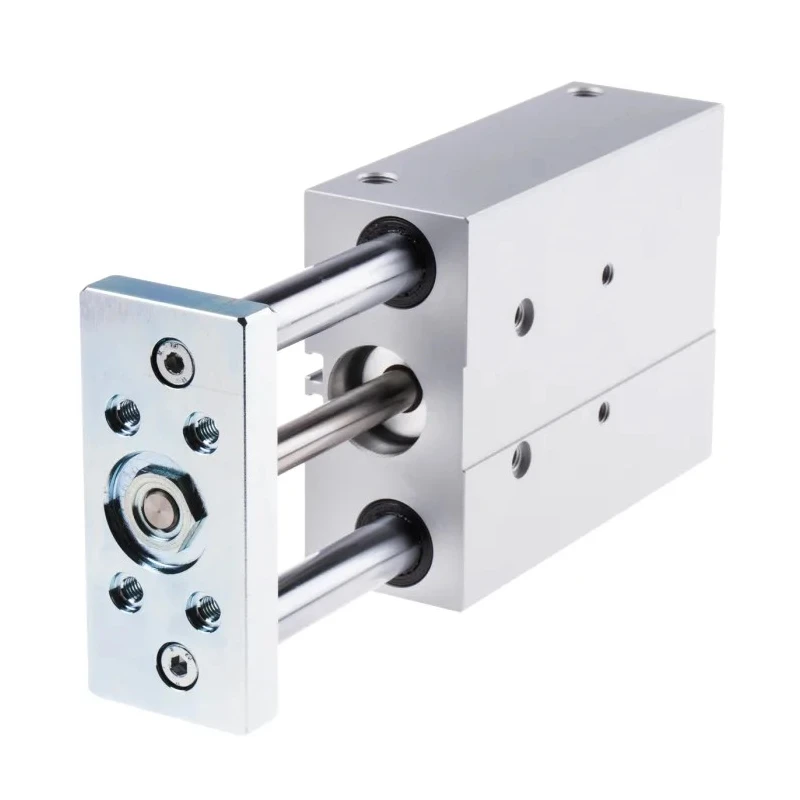

Festo Pneumatic Guided Cylinder Double Acting 25 mm Bore 80 mm Stroke Anodised Aluminium 10 bar DFM-25-80-P-A-KF

Festo DFM-25-80-P-A-KF pneumatic guided cylinder is a double acting actuator with a 25 mm bore diameter and 80 mm stroke length constructed from anodised wrought aluminium alloy. Designed for demanding pneumatic applications, this cylinder integrates both drive and guide functions in a single compact unit, making it highly resistant to torque and lateral external forces.

The unit features recirculating ball bearings on the guide rods, allowing it to handle torque loads effectively. Its compact and rigid construction ensures maintenance-free operation, while flexible cushioning plates help reduce noise during use and extend the service life.

The cylinder is equipped with supply ports on the top and side for versatile positioning and through hole mounting for flexible installation. It is engineered to operate reliably within a temperature range of -5°C to 60°C and withstands a maximum operating pressure of 10 bar.

Ideal for industrial, mechanical, and manufacturing applications such as clamping, lifting, stopping, and material handling, this cylinder offers precise linear motion and durability. Integrated slots allow proximity sensors to monitor piston movement for enhanced control.

The DFM series guided cylinders come with certifications including RoHS, ISO 1179-1, and ISO 228-1, reflecting quality and compliance with industry standards. Weighing 1.9 kg and measuring 163 mm in length, 95 mm in width, and 44 mm in height, the cylinder supports efficient space utilization in system design.

The cylinder features an anodised aluminium alloy body for corrosion resistance. Double acting Pneumatic Guided Cylinder with ball and plain bearing guide types for torque load resistance. Supports maximum operating pressure of 10 bar for high load applications.

Flexible cushioning plates reduce noise and increase service life. Through hole mount for easy installation and flexible supply ports. Operating temperature range from -5°C to 60°C suitable for varied environments. Maintenance-free design minimizes downtime in industrial settings.

Compact design integrates piston rod as part of the guide body for rigidity. Includes slots for proximity sensors to monitor piston motion. Discover more pneumatic cylinders and actuators on EnvMart to enhance your industrial automation and material handling systems.
