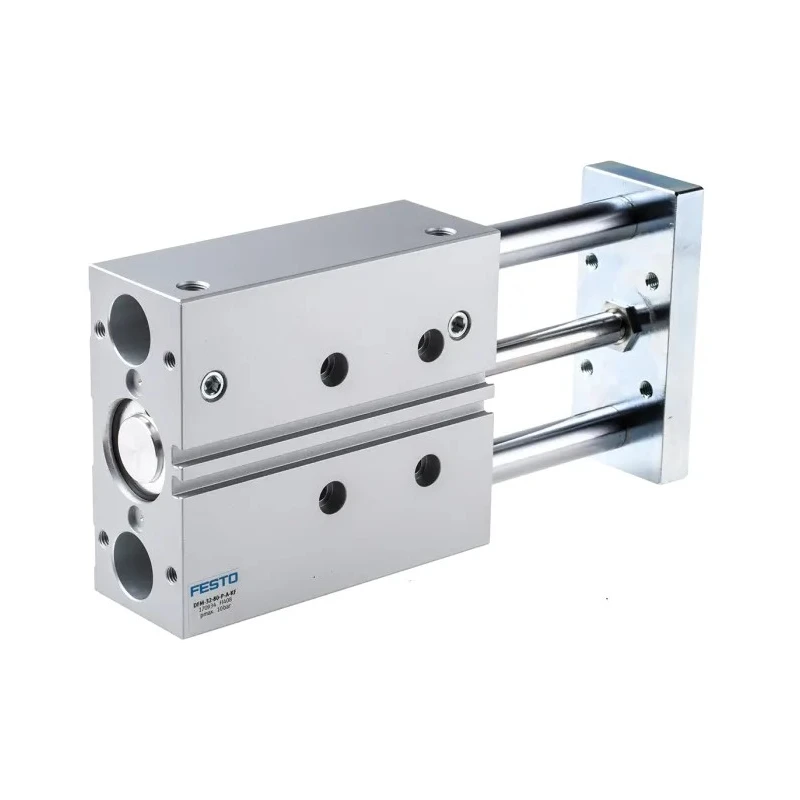

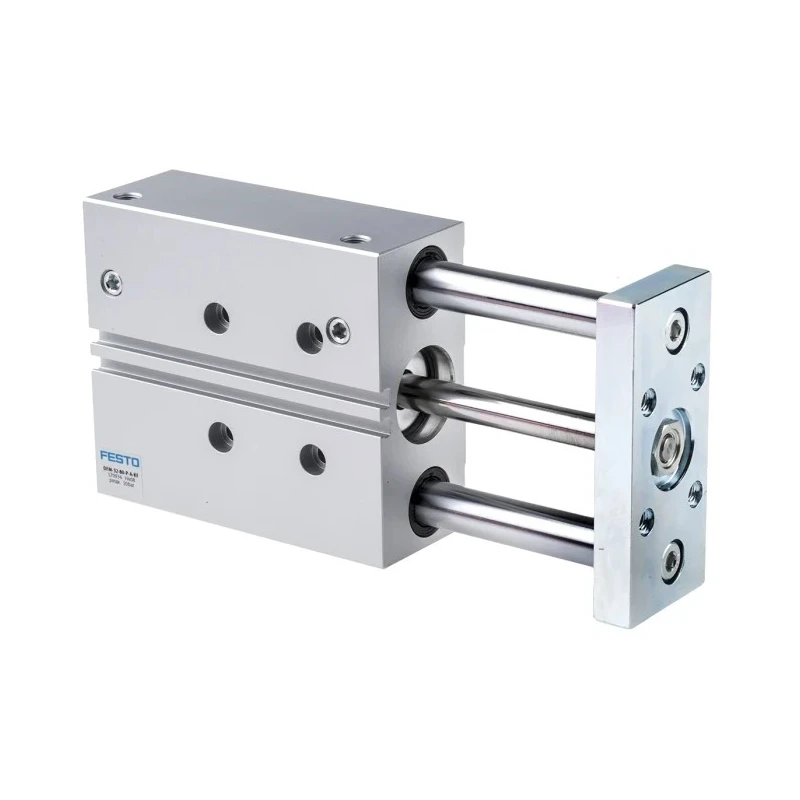

Festo Pneumatic Guided Cylinder DFM Series 32 mm Bore, 80 mm Stroke, Double Acting, Anodised Aluminium DFM-32-80-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Anodised Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 49mm |
| Length | 179mm |
| Model | DFM-32-80-P-A-KF |
| Gross Weight | 2.4kg |
| Width | 110mm |
| Mount Type | Flat, Side, Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 80mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 1179-1, ISO 228-1, RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing, Plain Bearing |
Key Features
- Integrated drive and guide unit in a single compact housing for enhanced performance.
- Recirculating ball bearings enable effective handling of torque loads.
- Operating pressure up to 10 bar suitable for high load pneumatic applications.
- Flexible cushioning plates reduce noise and extend service life.
- Flexible mounting with supply ports on top and side of the cylinder.
- Constructed from anodised wrought aluminium alloy for durability and corrosion resistance.
- Wide temperature range operation from -5°C to 60°C.
- Application suited for clamping, stopping, material handling, and lifting.
Product Description
Festo DFM-32-80-P-A-KF pneumatic guided cylinder is a double acting actuator from the DFM series featuring a 32 mm bore diameter and an 80 mm stroke length. Designed with an integrated drive and guide unit, it combines a compact rigid aluminium construction with recirculating ball bearings, making it ideal for applications involving torque and lateral forces.
This cylinder delivers high reliability for industrial, manufacturing, and automation uses such as clamping, material handling, stopping, and lifting operations. The body is made of anodised wrought aluminium alloy ensuring lightweight durability and resistance to corrosion. Flexible cushioning plates incorporated reduce noise during operation and increase the service life of the actuator.
Operating within a temperature range of -5°C to 60°C and maximum pressure of 10 bar, the cylinder offers versatile mounting options with supply ports available on both the top and side. Its maintenance-free design enables dependable performance in demanding pneumatic applications.
Drive and guide unit integrated into a single housing for compactness and precision. Ball bearing and plain bearing guides handle torque loads effectively. Elastomer cushioning for quieter operation and longevity. Mount types include flat, side, and through hole for flexible installation.
Compact build with dimensions Height: 49 mm, Width: 110 mm, Length: 179 mm. Weight approximately 2.4 kg supporting robustness without unnecessary bulk.
This Festo DFM series pneumatic guided cylinder originates from Germany and complies with ISO 1179-1, ISO 228-1, and RoHS standards. It is suitable for a wide range of industrial, laboratory, and manufacturing uses where precise, durable pneumatic actuation is required.
Browse our catalog for more industrial Pneumatic Guided Cylinders from leading brands like Festo.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar, making it suitable for high load pneumatic applications.
This cylinder features an 80 mm stroke length, allowing for effective actuation in various applications.
The bore diameter of this model is 32 mm, which contributes to its performance in pneumatic applications.
It is constructed from anodised wrought aluminium alloy, providing durability and corrosion resistance.
The operating temperature range for this cylinder is from -5°C to 60°C, allowing it to function in various environments.
This pneumatic guided cylinder supports flat, side, and through hole mounting options for flexible installation.
It utilizes elastomer cushioning, which helps reduce noise during operation and extends the service life of the actuator.
This model has a gross weight of approximately 2.4 kg, supporting its robust design without unnecessary bulk.
It features both ball bearing and plain bearing guides, enabling effective handling of torque loads.
This model complies with ISO 1179-1, ISO 228-1, and RoHS standards, ensuring it meets industry requirements.
It is suited for applications such as clamping, stopping, material handling, and lifting operations in industrial settings.
This pneumatic cylinder is a double acting actuator, allowing for versatile operation in various applications.
