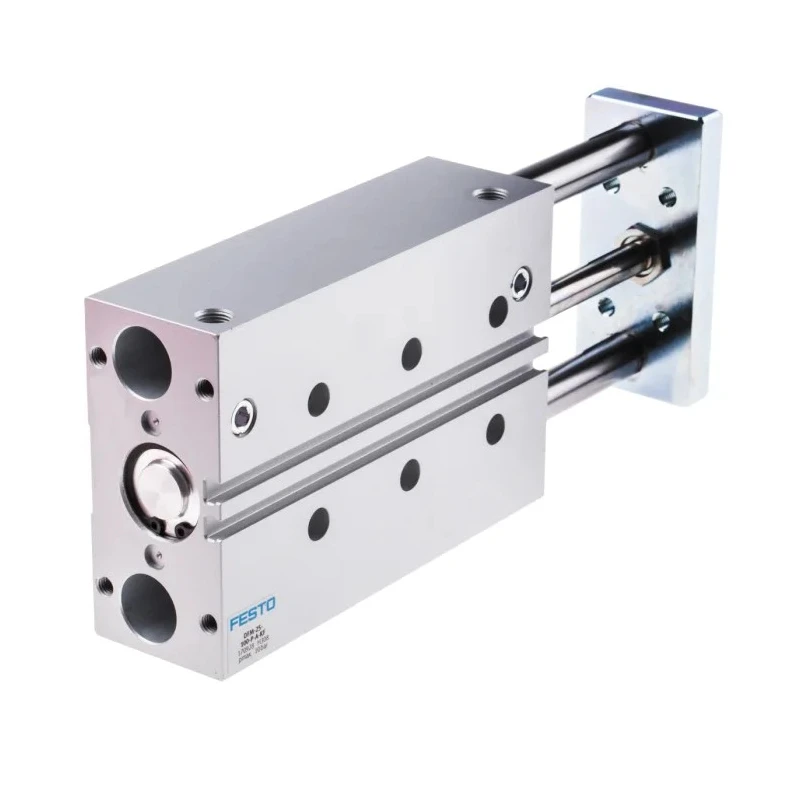

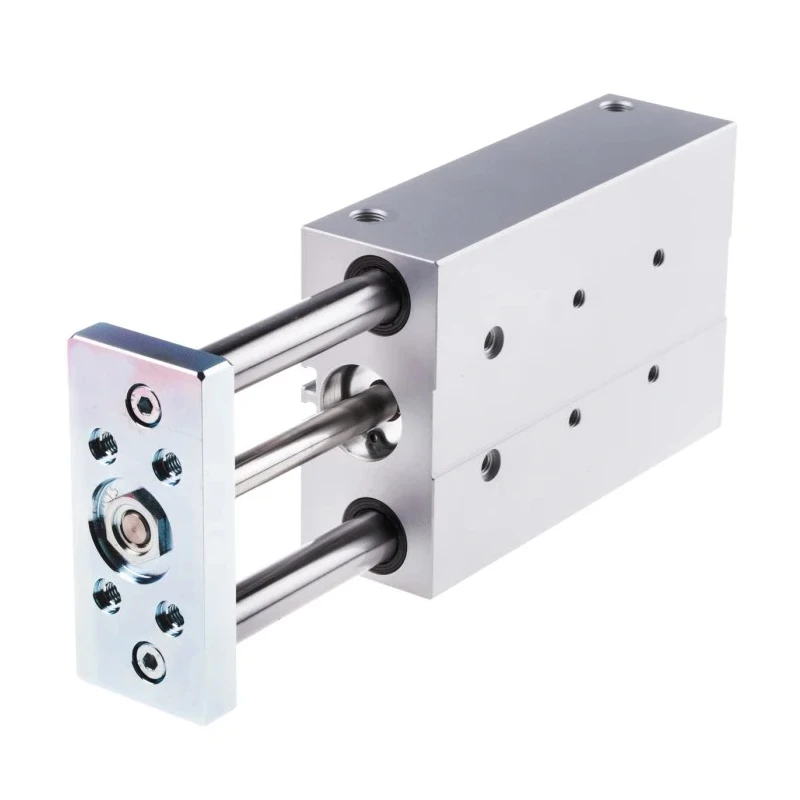

Festo Pneumatic Guided Cylinder DFM Series 25mm Bore 100mm Stroke Double Acting Through Hole Mount DFM-25-100-P-A-KF

Festo DFM-25-100-P-A-KF Pneumatic Guided Cylinder from the DFM series features an integrated drive and guide unit within a single compact housing. This cylinder is designed for double acting operation with a 25mm bore diameter and 100mm stroke length, suitable for high load pneumatic applications.

The device incorporates recirculating ball bearings to handle torque loads efficiently, making it ideal for industrial tasks such as clamping components, stopping loads, lifting, and material handling. The aluminium construction is sturdy, rigid, and maintenance free, offering high resistance against torque and lateral external forces.

Flexible cushioning plates incorporated in the design reduce noise levels during operation and contribute to an increased service life. The cylinder supports operation between -5°C and 60°C and withstands a maximum pressure of 10 bar. It features single rod type and through hole mounting for ease of integration.

For flexible positioning, air supply ports are available on both the top and side of the cylinder body. Integrated slots allow for proximity sensor installation to accurately measure piston linear motion.

The Festo DFM-25-100-P-A-KF meets ISO 228-1, RoHS, and ISO 1179-1 standards, originating from Germany. Weighing 2.1kg, and measuring 183mm in length, 95mm in width, and 44mm in height.

Equipped with recirculating ball bearings for torque load resistance. Compact, robust aluminium construction ensures high durability. Flexible cushioning plates reduce noise and extend service life. Operates effectively within -5°C to 60°C temperature range.

Maximum operating pressure of 10 bar for high load applications. Suitable for clamping, stopping, lifting, and material handling tasks. Multiple air supply ports offer flexible installation options. Maintenance free design reduces downtime and associated costs.

Compliant with ISO 228-1, RoHS, and ISO 1179-1 standards.

Ideal for industrial, manufacturing, and automation applications requiring reliable pneumatic guiding solutions. Browse Festo products and pneumatic cylinders on EnvMart for industry-grade quality and performance.
