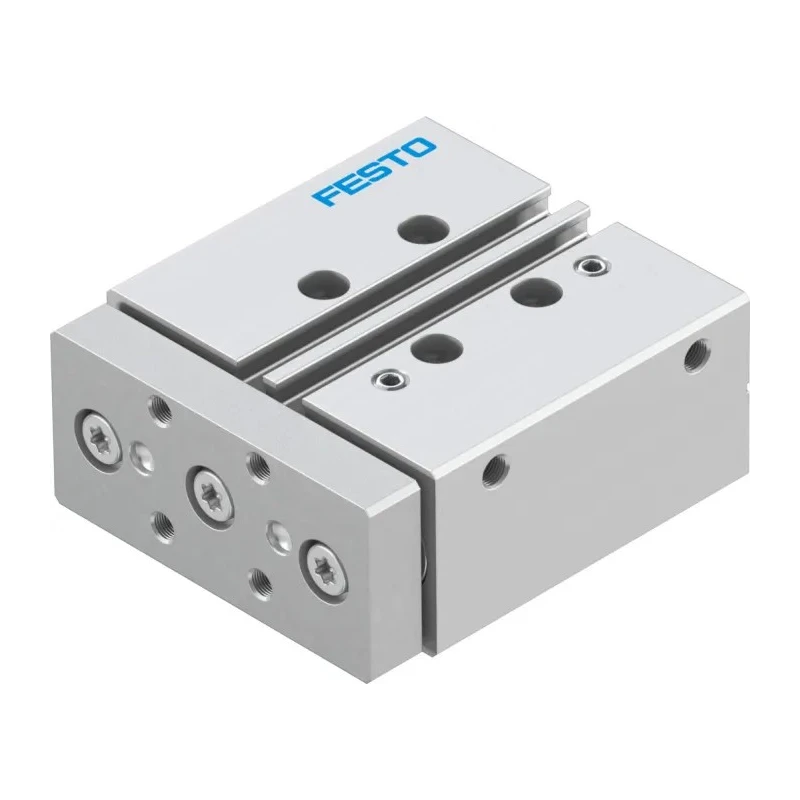

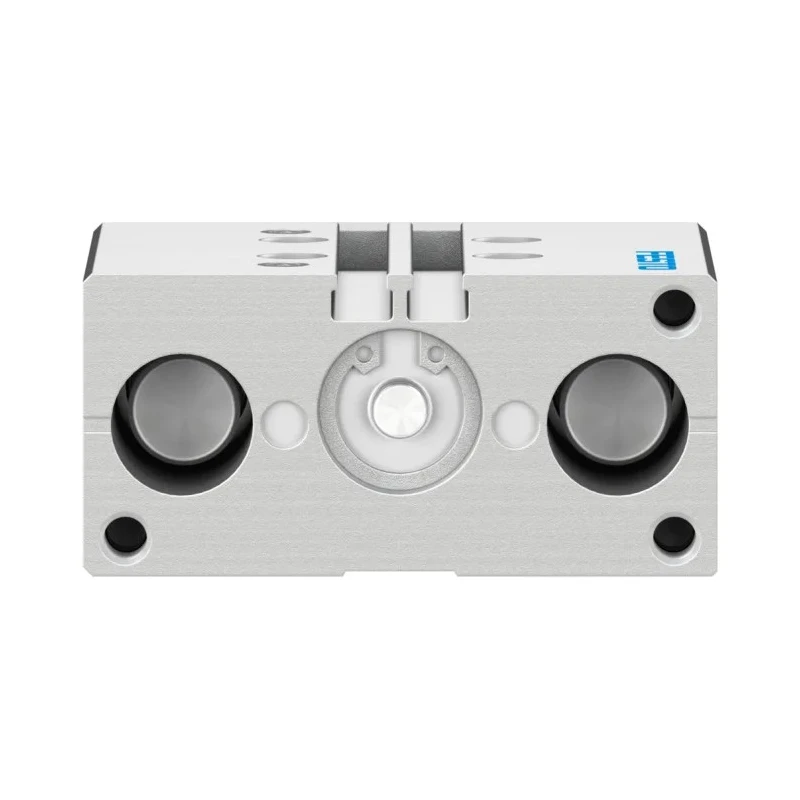

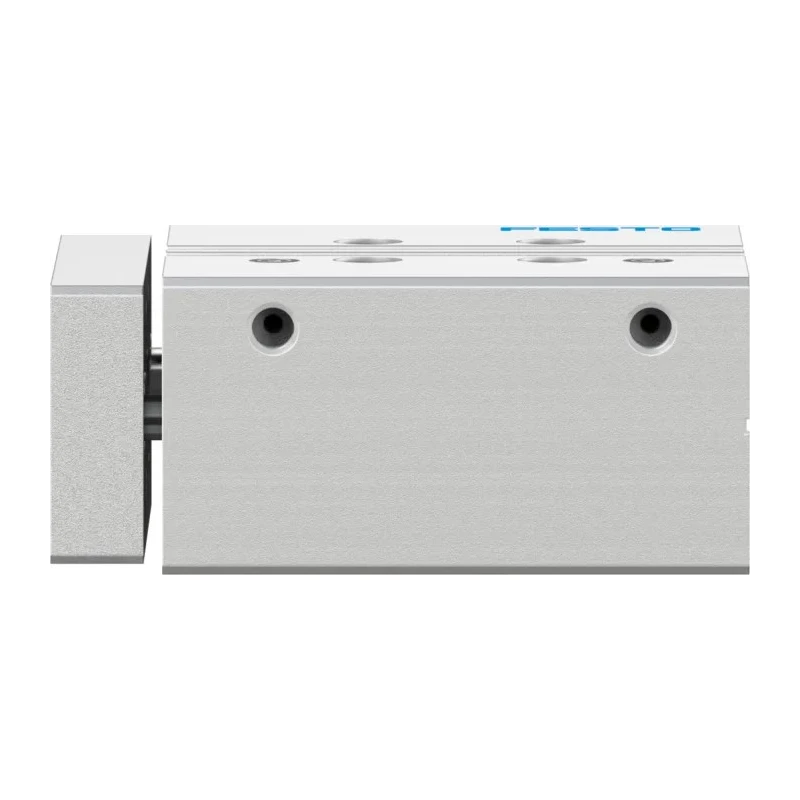

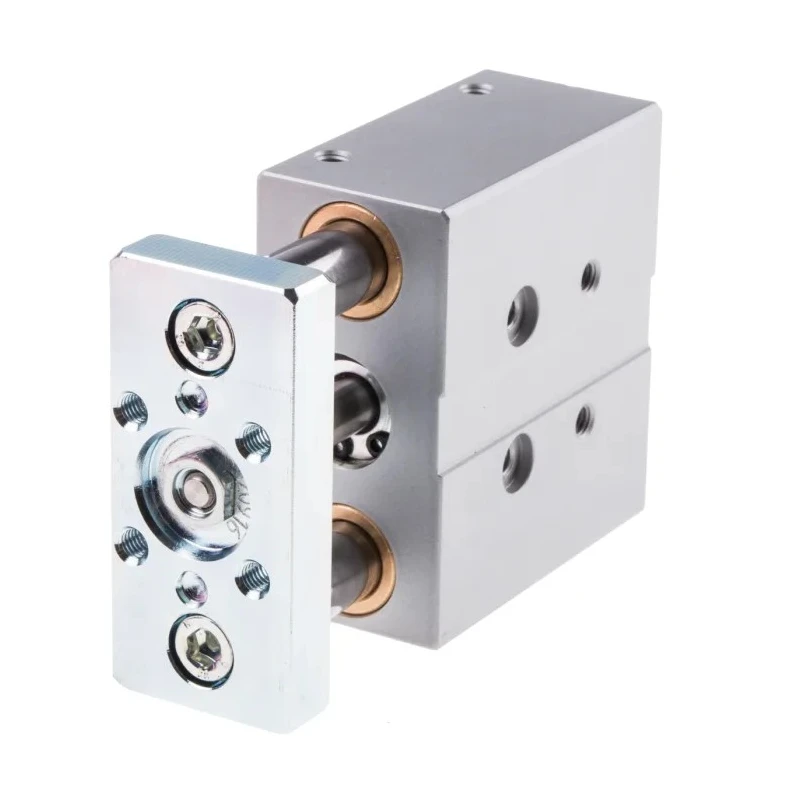

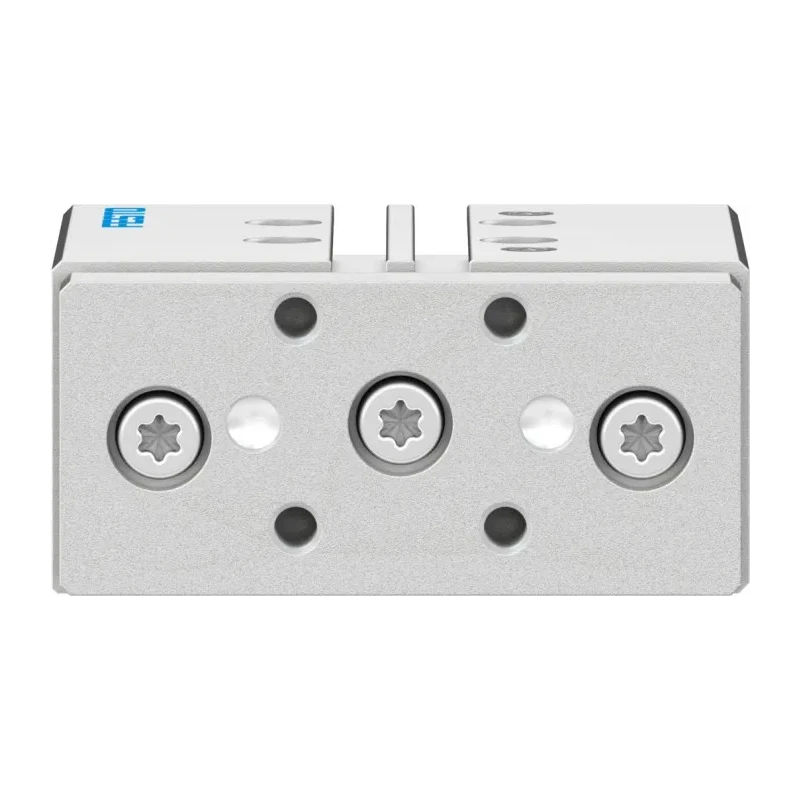

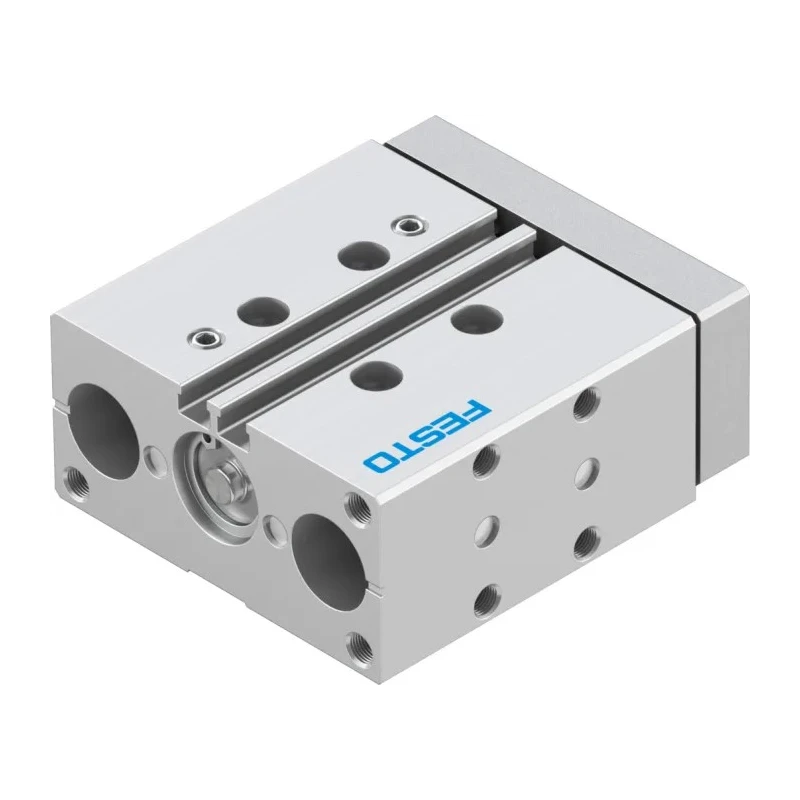

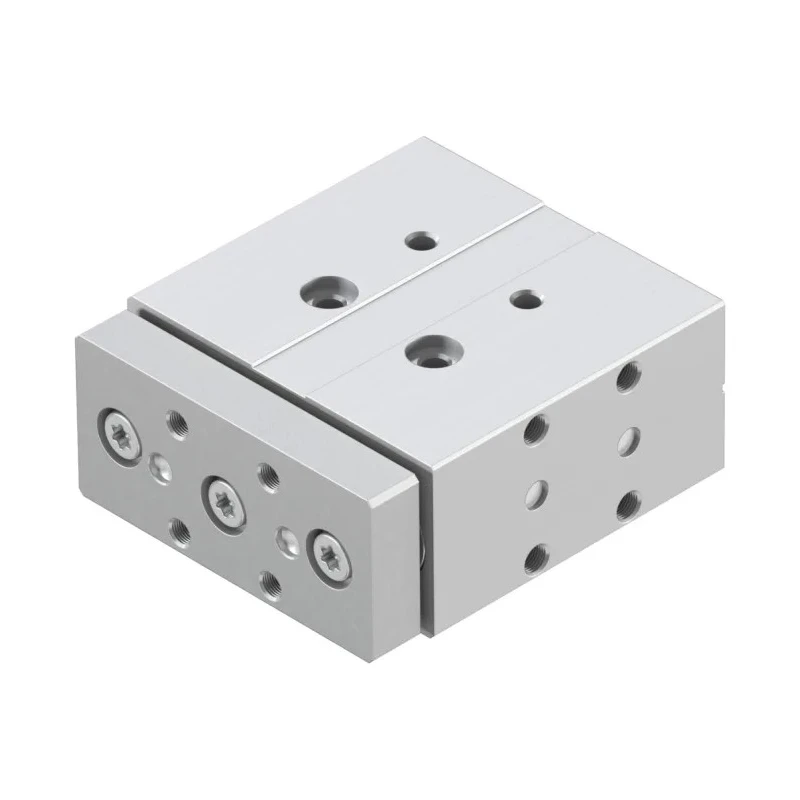

Festo Pneumatic Guided Cylinder Double Acting 16mm Bore 25mm Stroke Through Hole Mount DFM-16-25-P-A-GF

Festo DFM-16-25-P-A-GF pneumatic guided cylinder is a precision-engineered automation component featuring a 16mm bore and 25mm stroke with double acting operation, suitable for various industrial tasks requiring controlled linear motion.

The cylinder is constructed from durable wrought aluminium alloy providing a lightweight yet robust body. Its through hole mount design allows straightforward and secure integration into existing industrial systems.

This unit operates efficiently under a maximum pressure of 10 bar and supports piston speeds up to 0.8 m/s, enhanced by elastic cushioning rings that absorb shocks to minimize wear and extend operational lifespan. The plain bearing guide ensures smooth piston movement, crucial for precision applications.

Operating from -20°C to +80°C, this pneumatic guided cylinder accommodates environments ranging from cold storage to warmer manufacturing conditions. The M5 piston rod thread size facilitates broad compatibility with pneumatic fittings.

With compact dimensions of 75 mm length, 67 mm width, and 32 mm height, along with a weight of 534 grams, this cylinder fits well into tight spaces commonly found in assembly lines, robotics, and material handling equipment.

Constructed with wrought aluminium alloy body for durability and lightweight. Double acting operation for enhanced machining control. Elastic cushioning rings reduce impact load and wear. Maximum operating pressure of 10 bar for robust use.

Wide operating temperature range from -20°C to 80°C. Plain bearing guide type for stable and smooth piston movement. Through hole mounting type for reliable installation. Compact dimensions enabling easy system integration.

Weight optimized for easy handling in industrial applications. Suitable for assembly line automation, robotics, and material handling.

This pneumatic guided cylinder is manufactured in Germany adhering to standards including Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), and RoHS compliant, ensuring quality, reliability, and environmental sustainability. It is designed for repairability by end users, facilitating maintenance in industrial contexts.
