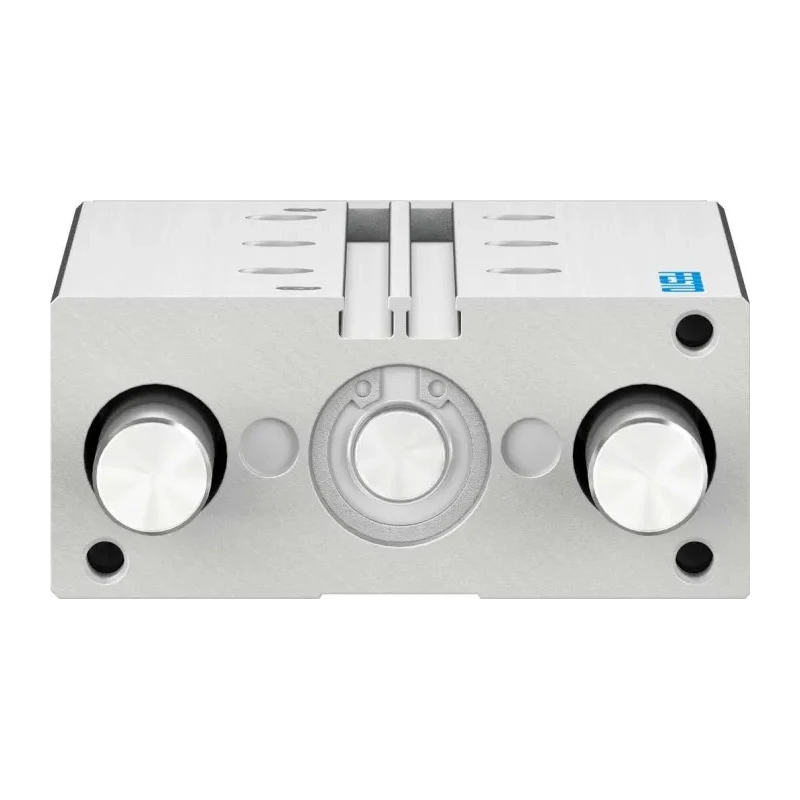

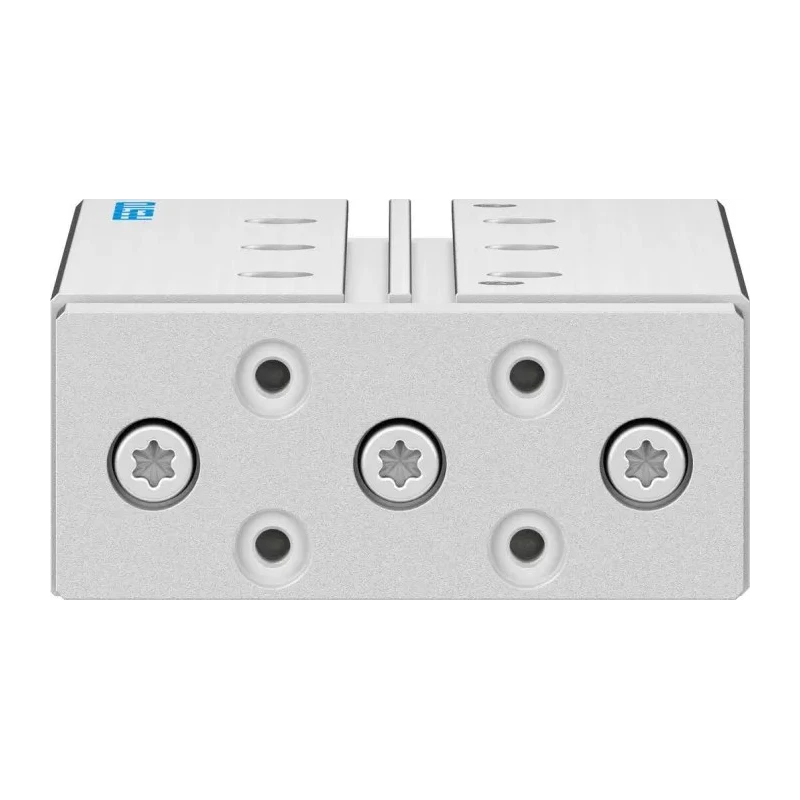

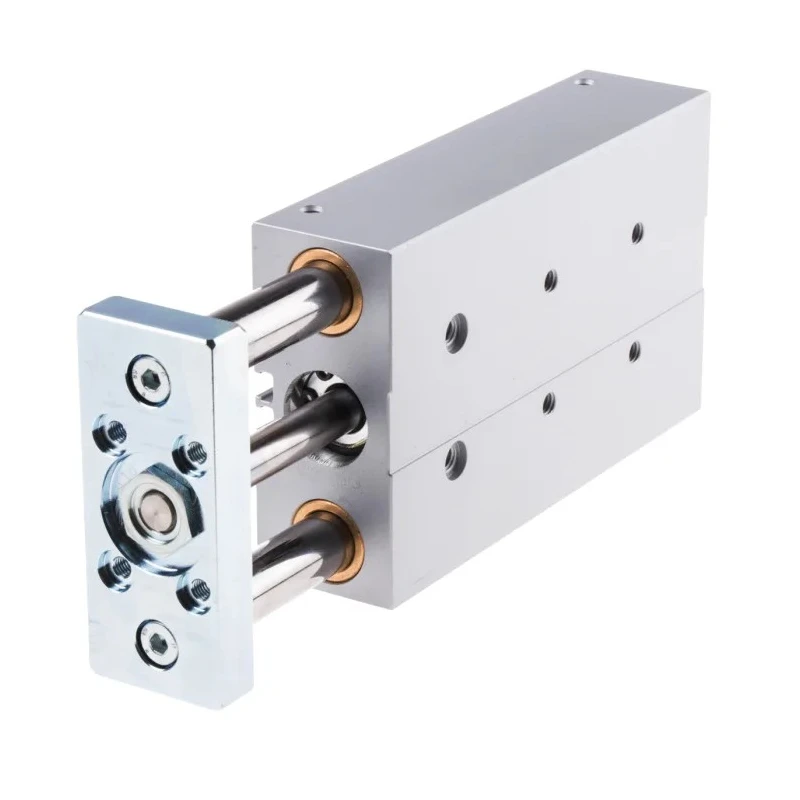

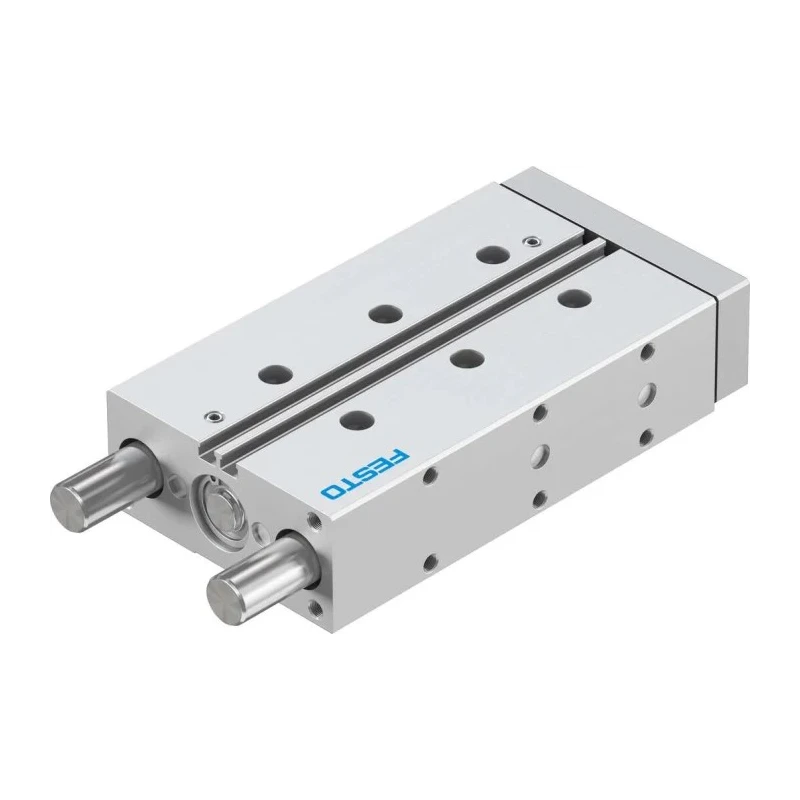

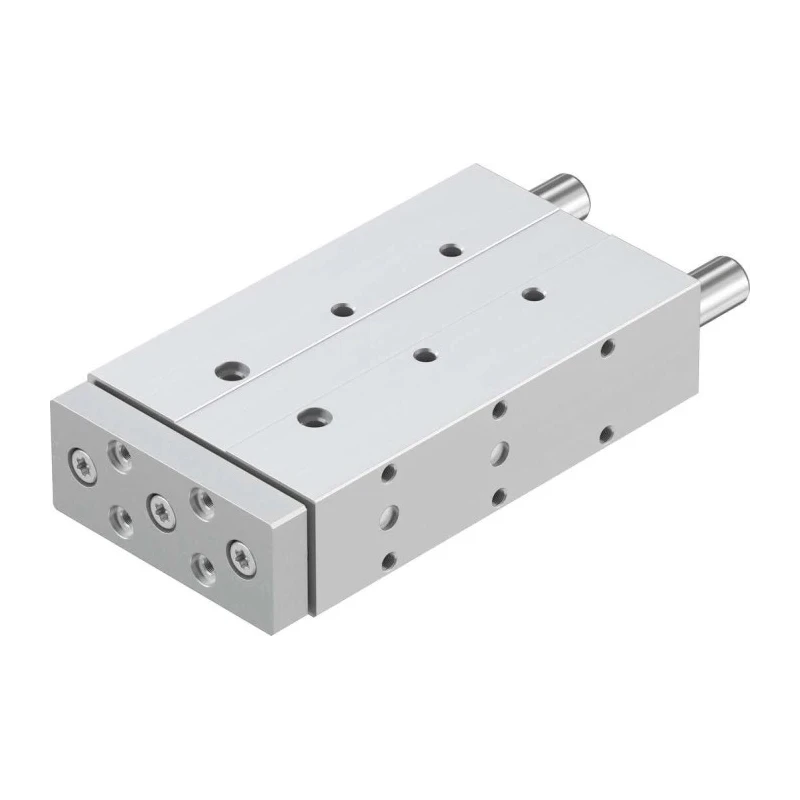

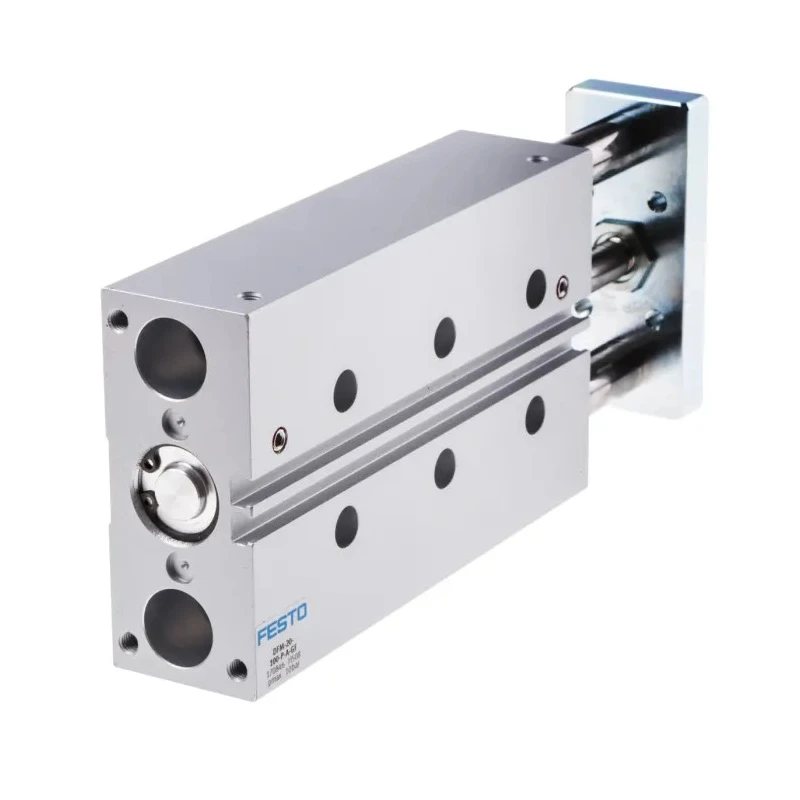

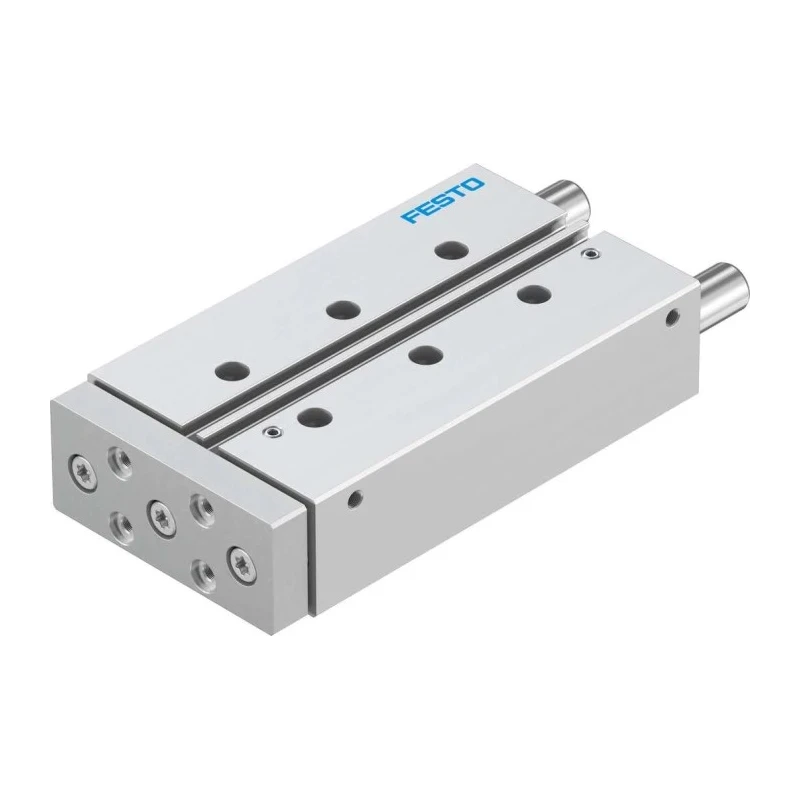

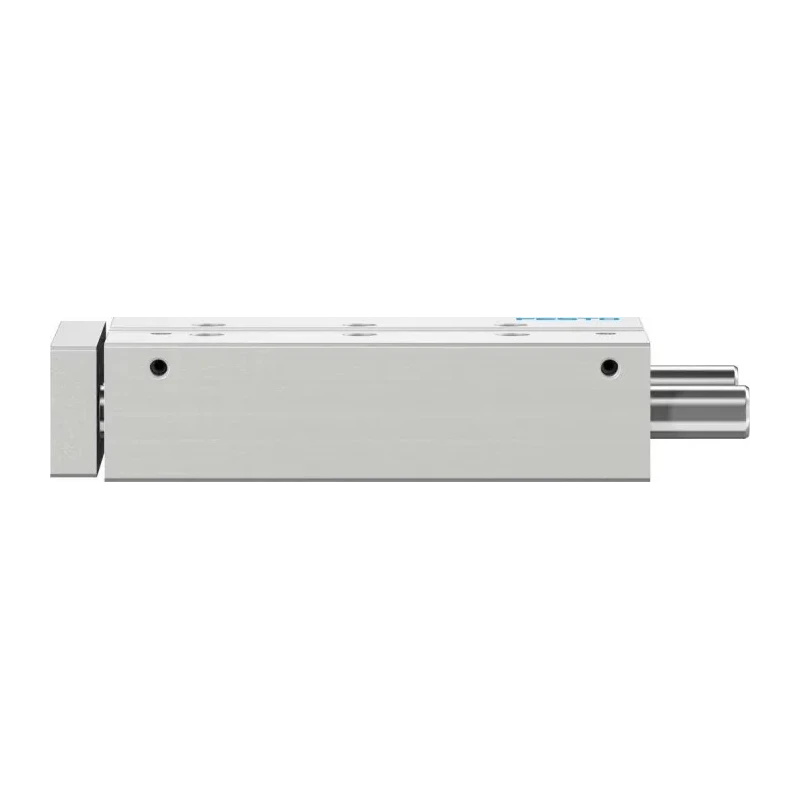

Festo Pneumatic Guided Cylinder 20mm Bore 100mm Stroke Double Acting Through Hole Mount Elastomer DFM-20-100-P-A-GF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 10 bar |
| Height | 36mm |
| Length | 181mm |
| Model | DFM-20-100-P-A-GF |
| Gross Weight | 1.6kg |
| Width | 83mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 100mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
| Piston Rod Thread Standard | ISO 1179-1 and ISO 228-1 |
| Piston Rod Thread Size | M5 |
| Standards/Approvals ISO 1179-1, ISO 228-1, ISO 8573-1 | 2010 (7:4:4), RoHS |
Key Features
- Compact 20mm bore diameter suitable for limited space installations.
- 100mm stroke length provides reliable movement range.
- Double acting cylinder ensures precise piston control in both directions.
- Through hole mount type allows flexible and sturdy mounting options.
- Elastomer cushioning reduces impact and noise for extended cylinder life.
- Operating pressure up to 10 bar for robust pneumatic applications.
- Wide temperature range from -20°C to +80°C for harsh environments.
- Integrated ball bearing guide type for enhanced lateral stability.
Product Description
Festo DFM-20-100-P-A-GF pneumatic guided cylinder features a 20mm bore and a 100mm stroke length, designed for double acting operation to provide precision and reliability in various industrial tasks.
Constructed with durable aluminum and equipped with elastomer cushioning, this cylinder absorbs impacts and noise, prolonging service life and maintaining workplace comfort. The through-hole mounting allows secure installation suited for automated manufacturing lines, medical equipment, and aerospace technology.
Its ball bearing guide type ensures excellent lateral force control needed when stopping, clamping, or lifting heavy loads. The cylinder operates at a maximum pressure of 10 bar and functions effectively within temperatures ranging from -20°C to +80°C, making it suitable for diverse hazardous environments.
The single rod cylinder with an M5 piston rod thread (ISO 1179-1 and ISO 228-1 standards compliant) ensures compatibility for easy integration into existing pneumatic systems. The lightweight design at 1.6 kg supports ease of installation without compromising durability.
20mm bore diameter fits compact pneumatic system requirements. Double acting for controlled piston movement in both extend and retract actions. Through-hole mounting ensures stable and flexible fixtures. Elastomer cushioning provides shock absorption and noise reduction.
Maximum operating pressure of 10 bar suits demanding applications. Wide operating temperature range from -20°C to +80°C for versatility. Ball bearing guides maintain precise lateral positioning. Compliance with ISO and RoHS standards guarantees quality and safety.
Lightweight aluminum construction for durability with minimal weight. Manufactured in Germany for high-quality engineering assurance.
This Pneumatic Guided Cylinder from Festo is ideal for industrial, laboratory, manufacturing, construction, aerospace, and medical device applications where precision and durability are critical. Explore EnvMart’s extensive pneumatic tools and accessories catalog for complementary components and system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar, making it suitable for robust pneumatic applications.
This pneumatic guided cylinder features a stroke length of 100mm, providing a reliable movement range for various applications.
The dimensions of this unit are 181mm in length, 83mm in width, and 36mm in height.
The bore diameter of this pneumatic guided cylinder is 20mm, suitable for compact pneumatic system requirements.
It utilizes elastomer cushioning, which helps absorb impacts and reduce noise, extending the service life of the cylinder.
The operating temperature range for this model is from -20°C to +80°C, allowing it to function effectively in harsh environments.
This unit features a through hole mount type, allowing for flexible and sturdy mounting options.
This pneumatic guided cylinder has a gross weight of 1.6 kg, supporting ease of installation.
It is a double acting cylinder, ensuring precise piston control in both extend and retract actions.
This pneumatic guided cylinder complies with ISO 1179-1, ISO 228-1, and RoHS standards, ensuring quality and safety.
It is equipped with a ball bearing guide type, which enhances lateral stability and control when stopping or lifting loads.
The piston rod thread size is M5, compliant with ISO 1179-1 and ISO 228-1 standards for easy integration into existing systems.
