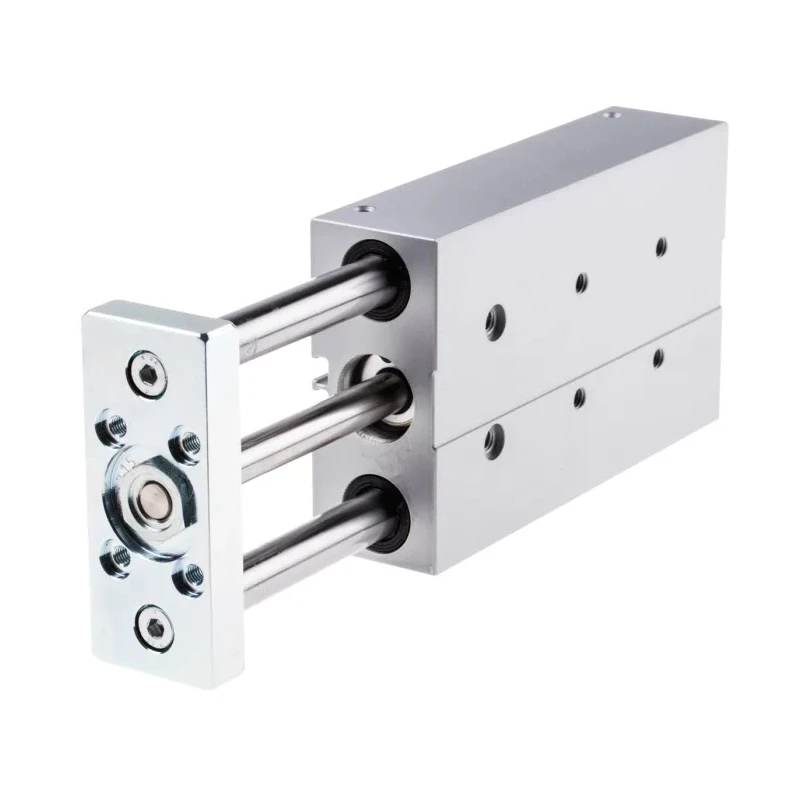

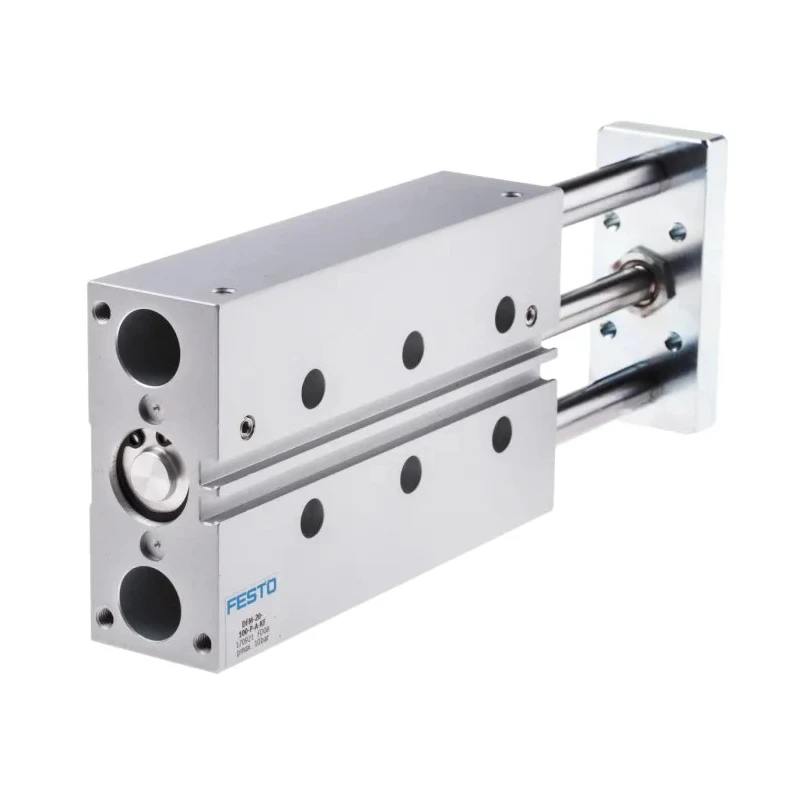

Festo Pneumatic Guided Cylinder 20mm Bore 100mm Stroke Double Acting Through Hole Mount Elastomer DFM-20-100-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy, Anodised/Tempered Steel/High Alloy Stainless Steel |
| Maximum Operating Pressure | 10 bar |
| Height | 36mm |
| Length | 181mm |
| Model | DFM-20-100-P-A-KF |
| Gross Weight | 1.3kg |
| Width | 83mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 100mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 1179-1 / ISO 228-1 / RoHS |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
Key Features
- Double acting guided cylinder combining drive and guide in a single unit.
- Constructed with wrought aluminium alloy, anodised, tempered steel, and high-alloy stainless steel body for durability.
- Equipped with recirculating ball bearings to handle torque loads efficiently.
- Flexible mounting options via through hole mount and supply ports on top and side.
- Elastomer cushioning plates reduce operational noise and increase service life.
- Operates within temperature range -5°C to 60°C and pressure up to 10 bar.
- Compact and rigid design ensures resistance to lateral forces and torque.
- Ideal for clamping, lifting, stopping, and material handling industrial processes.
Product Description
Festo DFM-20-100-P-A-KF pneumatic guided cylinder features a 20mm bore diameter and 100mm stroke length. This double acting cylinder integrates both driving and guiding functions in a robust single housing, making it suitable for industrial pneumatic applications requiring precise motion control and high load handling.
Its body is made of wrought aluminium alloy, anodised, along with tempered steel and high alloy stainless steel to provide durability and resistance against torque and lateral external forces. The cylinder includes recirculating ball bearings, enabling it to withstand applications involving torque loads effectively.
The design includes flexible mounting options with a through hole mount type and air supply ports located on both the top and side of the cylinder for versatile positioning. Elastomer cushioning ensures noise reduction during operation and extends the service life of the unit.
This guided cylinder operates safely within temperatures from -5°C to 60°C and a maximum operating pressure of 10 bar. Its compact rigid construction with integrated piston rod guides and precise aluminium manufacturing make it maintenance-free and reliable.
Typical industrial applications include clamping components for processing, dynamic and powerful lifting of loads, and safe stopping of weights up to 150 kg, suited for automation and manufacturing environments.
Double acting drive and guide combined in a single housing. Recirculating ball bearings ideal for torque load applications. Top and side air supply ports for flexible mounting. Compact and rigid aluminium construction. Maintenance free with resistance to external torques and lateral forces.
Elastomer cushioning plates reduce noise and improve longevity. Temperature range -5°C to 60°C, maximum pressure 10 bar. Suitable for clamping, lifting, stopping, and material handling. This Festo Pneumatic Guided Cylinder is manufactured in Germany and complies with ISO 1179-1, ISO 228-1, and RoHS standards, ensuring industrial quality and environmental safety.
Explore the Festo range of pneumatic cylinders and actuators on EnvMart for advanced fluid power and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 100mm.
This pneumatic guided cylinder can operate at a maximum pressure of 10 bar.
The body of this cylinder is constructed from wrought aluminium alloy, anodised tempered steel, and high alloy stainless steel.
The bore diameter of this pneumatic guided cylinder is 20mm.
The dimensions of this unit are 181mm in length, 83mm in width, and 36mm in height.
It operates within a temperature range of -5°C to 60°C.
This model features a through hole mount type for flexible mounting options.
It is equipped with elastomer cushioning plates that help reduce operational noise and increase service life.
This is a double acting cylinder, which means it can exert force in both directions.
This model uses a ball bearing guide type, which is effective for handling torque loads.
It complies with ISO 1179-1, ISO 228-1, and RoHS standards, ensuring industrial quality and environmental safety.
This pneumatic guided cylinder is suitable for applications such as clamping, lifting, stopping, and material handling in industrial processes.
