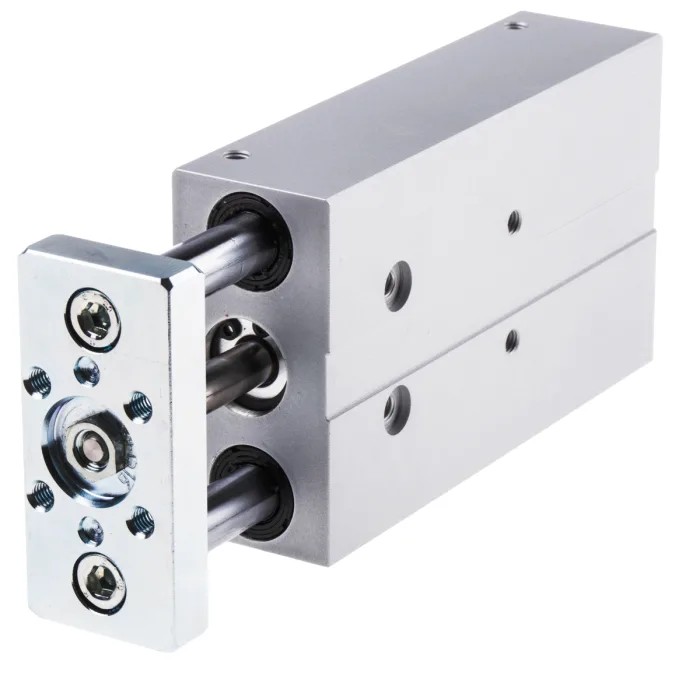

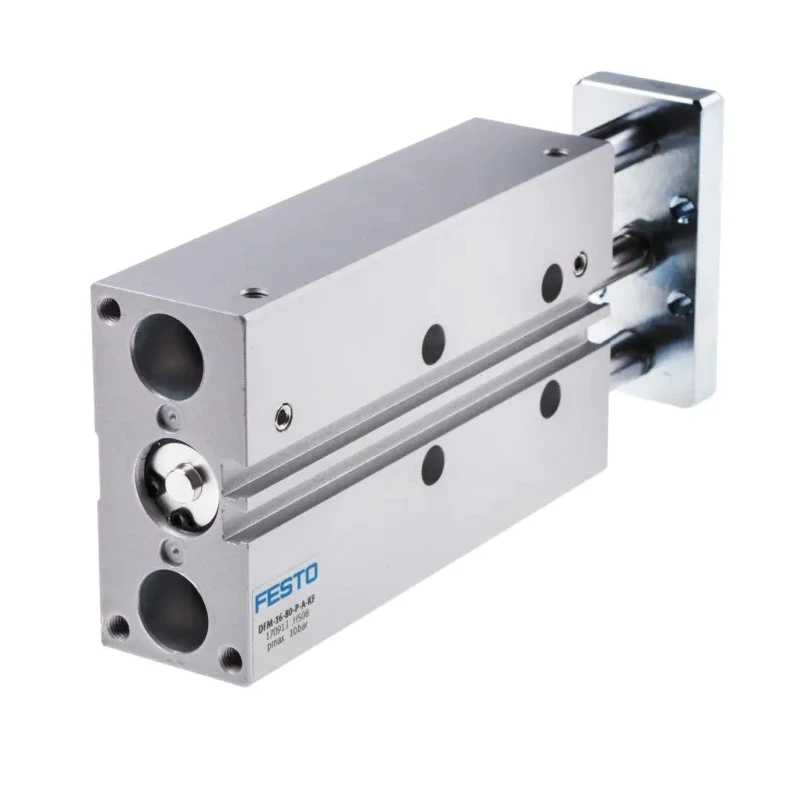

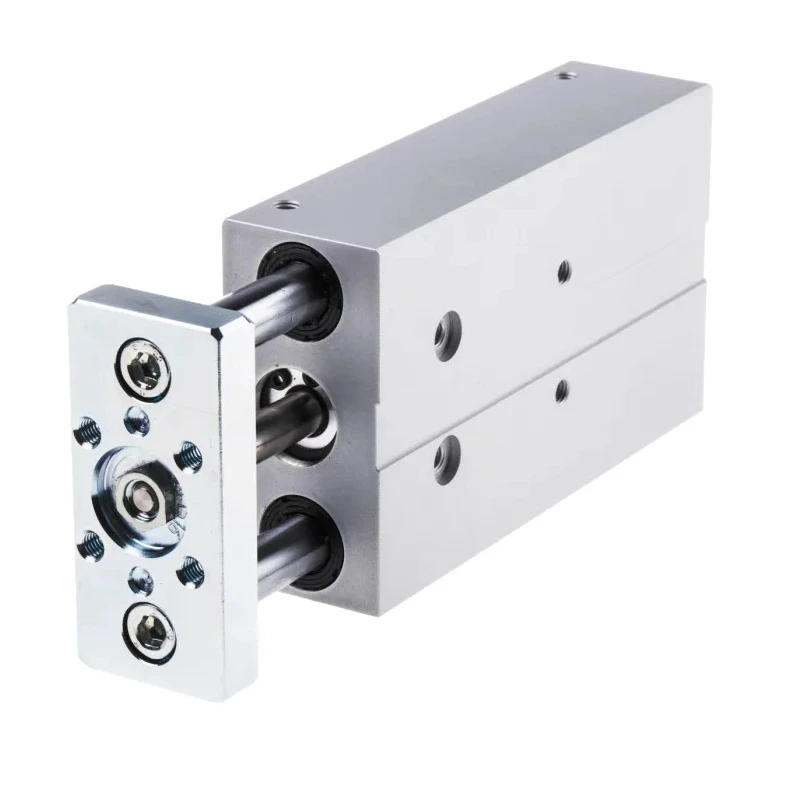

Festo Pneumatic Guided Cylinder 16mm Bore Double Acting Through Hole Mount 10 bar Maximum Pressure DFM-16-80-P-A-KF
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Wrought Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Height | 32mm |
| Length | 147mm |
| Model | DFM-16-80-P-A-KF |
| Gross Weight | 878g |
| Width | 67mm |
| Mount Type | Through Hole |
| Series | DFM |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Stroke Length | 80mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
| Cushioning Type | Elastomer |
| Guide Type | Ball Bearing |
| Maximum Piston Speed | 0.8m/s |
| Piston Rod Thread Size | M5 |
| Standards/Approvals Cleanroom Class 6, ISO 8573-1 | 2010 (7:4:4), RoHS, VDMA24364-B1/B2-L |
Key Features
- The cylinder features a through hole mount for secure installation.
- It operates with a maximum pressure of 10 bar and a maximum piston speed of 0.8 m/s.
- Elastomer cushioning reduces noise and increases service life.
- The guiding system uses ball bearing recirculating bearings for torque resistance.
- Operating temperatures range from -5°C to 60°C ensuring versatile industrial use.
- The compact 147 mm length and 80 mm stroke length allow for efficient integration.
- Its lightweight construction weighing 878 grams ensures easy handling and mounting.
- Designed for applications such as clamping, lifting, and stopping in pneumatic systems.
Product Description
Festo DFM-16-80-P-A-KF pneumatic guided cylinder features a 16 mm bore diameter and double acting piston, housed in a sturdy wrought aluminium alloy body designed for high resistance to torque and lateral external forces.
This pneumatic guided cylinder integrates the drive and guide unit with recirculating ball bearings ensuring longevity and precision, making it ideal for demanding industrial uses like clamping, material handling, and lifting.
The cylinder includes elastomer cushioning plates to minimize operational noise and extend service life. With a maximum operating pressure of 10 bar and piston speed capped at 0.8 m/s, it provides reliable performance in pneumatic automation setups.
It supports flexible mounting with supply ports on the top and side, and includes integrated slots for proximity sensor installation. Its operating temperature range from -5°C to 60°C accommodates diverse industrial environments.
The compact size (length 147 mm, width 67 mm, height 32 mm) and single rod design provide a compact and maintenance-free solution. The piston rod thread size is M5. This model is manufactured in Germany and complies with Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, and VDMA24364-B1/B2-L standards.
The cylinder efficiently manages torque loads and lateral forces due to its ball bearing guided rods. Its aluminium construction ensures lightweight yet robust operation. Dual position air supply ports enhance installation versatility.
Flexible cushioning increases noise reduction and durability during rapid cycling. Application examples include industrial clamping, lifting, and stopping tasks.
This Pneumatic Guided Cylinder is suitable for use in industrial automation, manufacturing, construction, and fluid power hydraulic systems. It offers robust and maintenance-free operation for high load pneumatic requirements.
Use EnvMart to explore more Festo pneumatic components and advanced pneumatic automation solutions for your industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure for this model is 10 bar.
The stroke length of this cylinder is 80 mm.
The bore diameter of this model is 16 mm.
It is constructed from a wrought aluminium alloy, providing a lightweight yet sturdy design.
The maximum piston speed is capped at 0.8 m/s.
The dimensions are 147 mm in length, 67 mm in width, and 32 mm in height.
It utilizes elastomer cushioning to minimize noise and enhance service life.
The operating temperature range is from -5°C to 60°C.
This model features a through hole mount for secure installation.
It complies with Cleanroom Class 6, ISO 8573-1:2010 (7:4:4), RoHS, and VDMA24364-B1/B2-L standards.
This cylinder operates as a double acting unit.
The gross weight of this model is 878 grams.
