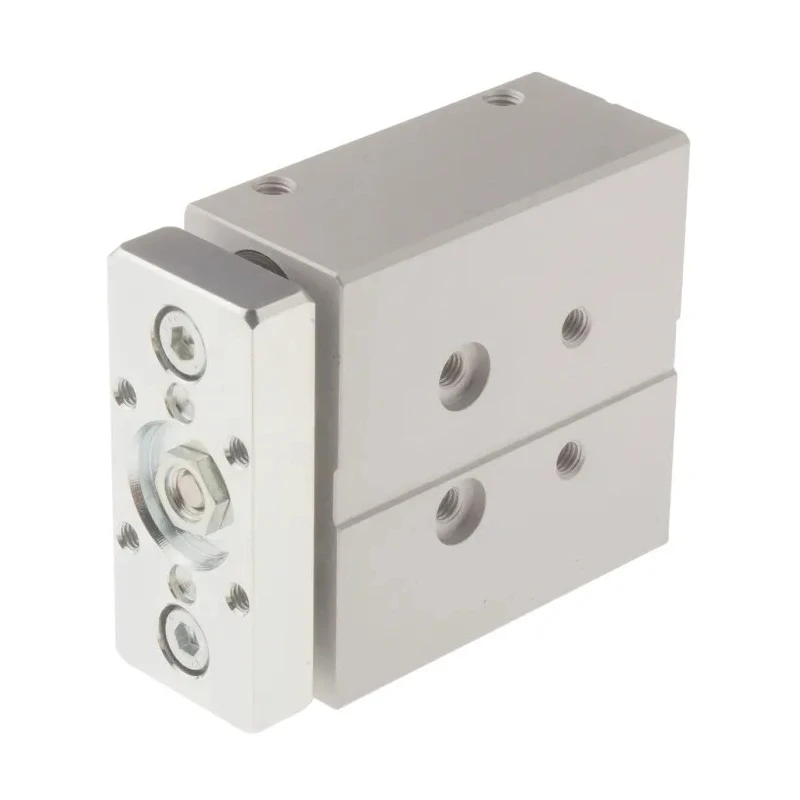

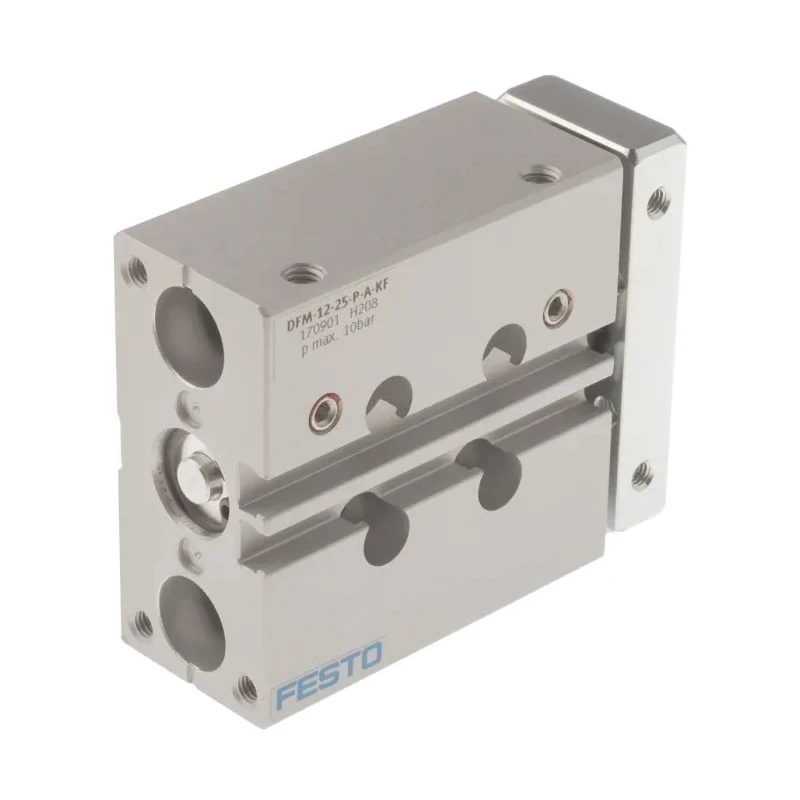

Festo Pneumatic Guided Cylinder 12mm Bore 25mm Stroke Double Acting Through Hole Mount DFM-12-25-P-A-KF

Festo DFM-12-25-P-A-KF pneumatic guided cylinder features a 12mm bore and 25mm stroke with double acting functionality mounted via through holes. It is crafted from wrought aluminium alloy providing a sturdy yet lightweight construction suitable for industrial use in pneumatic actuation.

This guided cylinder incorporates recirculating ball bearings that drive the guide rods, making the unit highly suitable for applications involving torque and lateral external forces. With flexible cushioning plates to reduce operational noise and increase durability, it is highly maintenance free, ensuring reliable and long-lasting performance.

The cylinder operates efficiently under pressures up to 10 bar and piston speeds up to 0.8 m/s within a temperature range from -5°C to 60°C. The slide bearing guide and single rod type design incorporate a piston rod thread size of M5 which supports flexible installation and sensor integration.

Its compact dimensions of 74mm length, 60mm width, and 28mm height combine with a gross weight of 377g, enabling easy integration into pneumatic systems. The dual supply ports positioned on top and side allow versatile mounting options for various industrial needs.

Typical applications include clamping components for further processing, powerful lifting and transportation of loads, and secure stopping of loads up to 150 kg. The DFM series is particularly suited for manufacturing, material handling, and automation sectors requiring precise and reliable guided pneumatic actuation.

Double acting pneumatic cylinder with 12mm bore diameter. Stroke length of 25mm for precise linear motion. Constructed with wrought aluminium alloy for durability. Maximum operating pressure up to 10 bar for robust performance.

Elastomer cushioning reduces noise and extends service life. Compact design with integrated piston rod guide. Operating temperature range from -5°C to 60°C. Slide bearing guide type with recirculating ball bearings for torque load resistance.

Flexible mounting with supply ports on top and side. Ideal for industrial applications such as clamping, lifting, and stopping. Explore more Pneumatic Guided Cylinders and pneumatic components in the Festo category on EnvMart for robust industrial fluid power and automation solutions.
