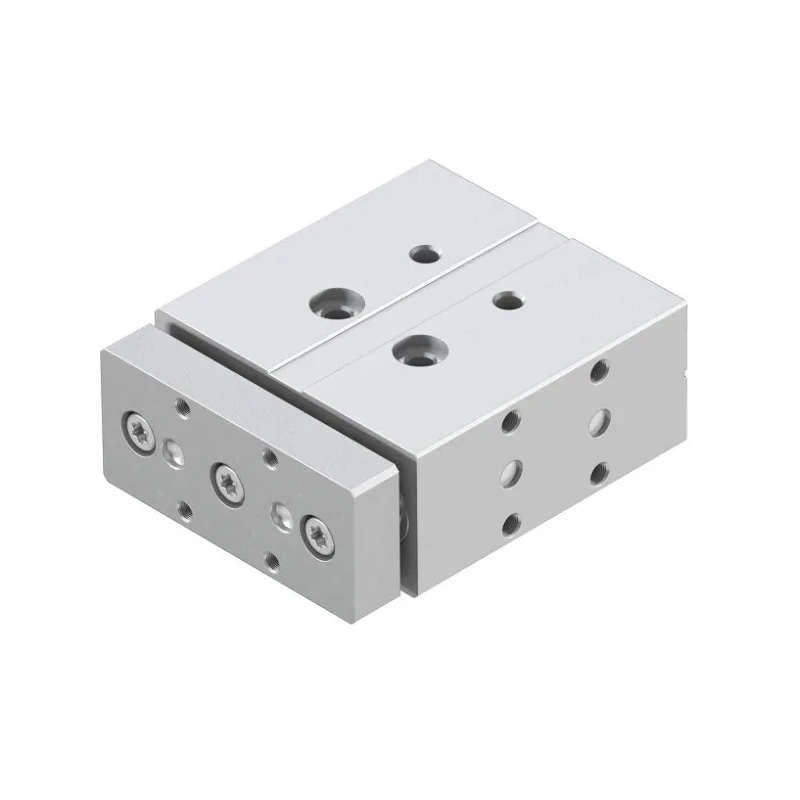

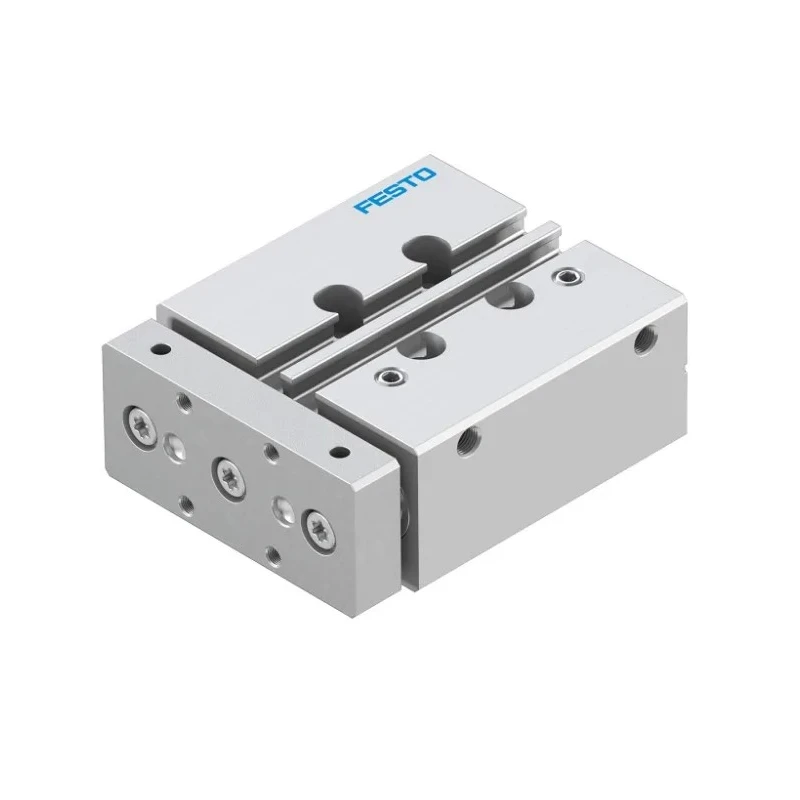

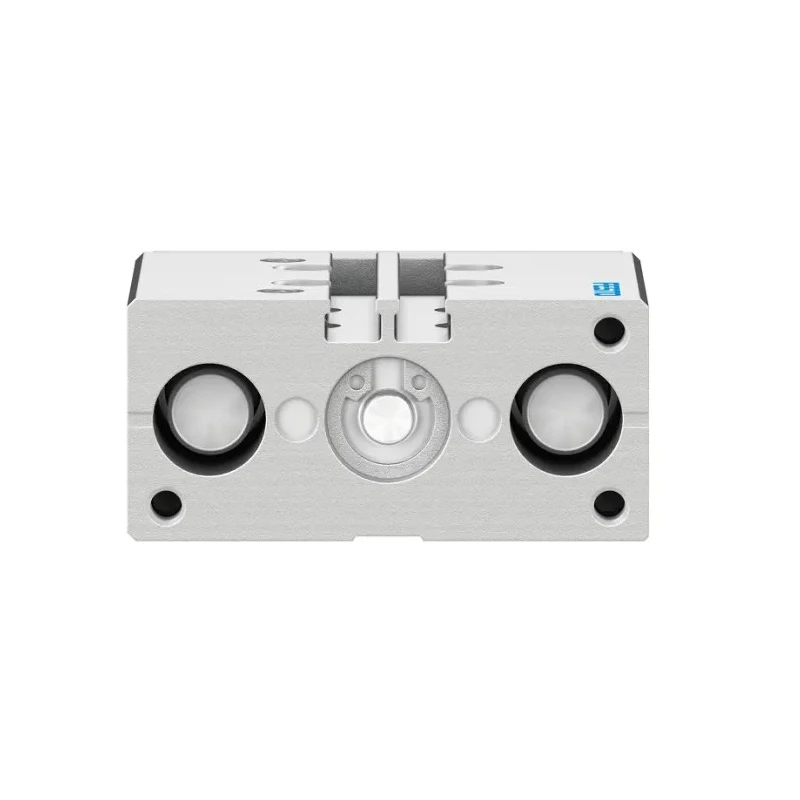

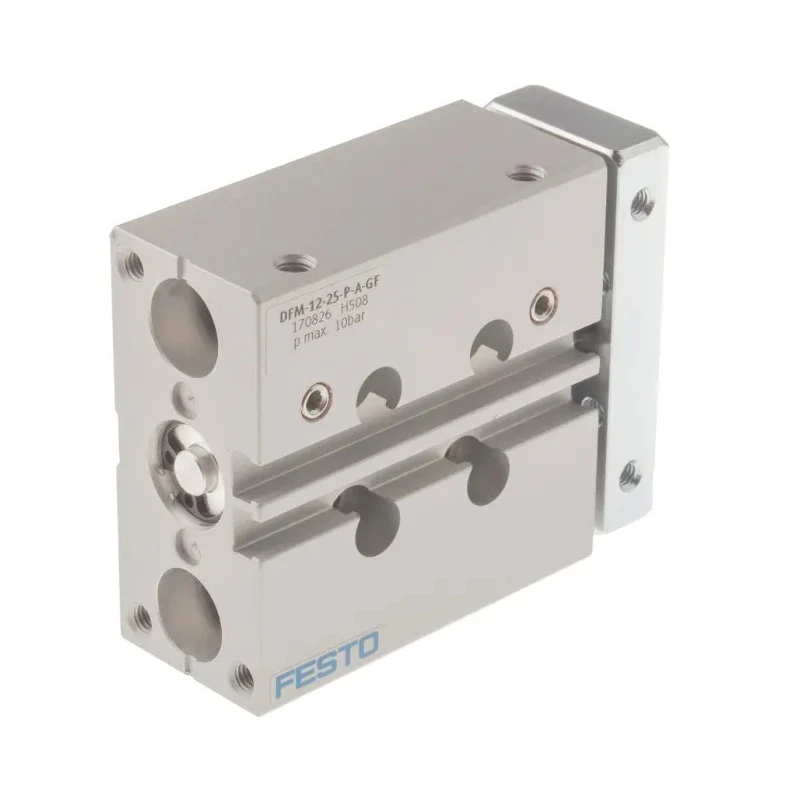

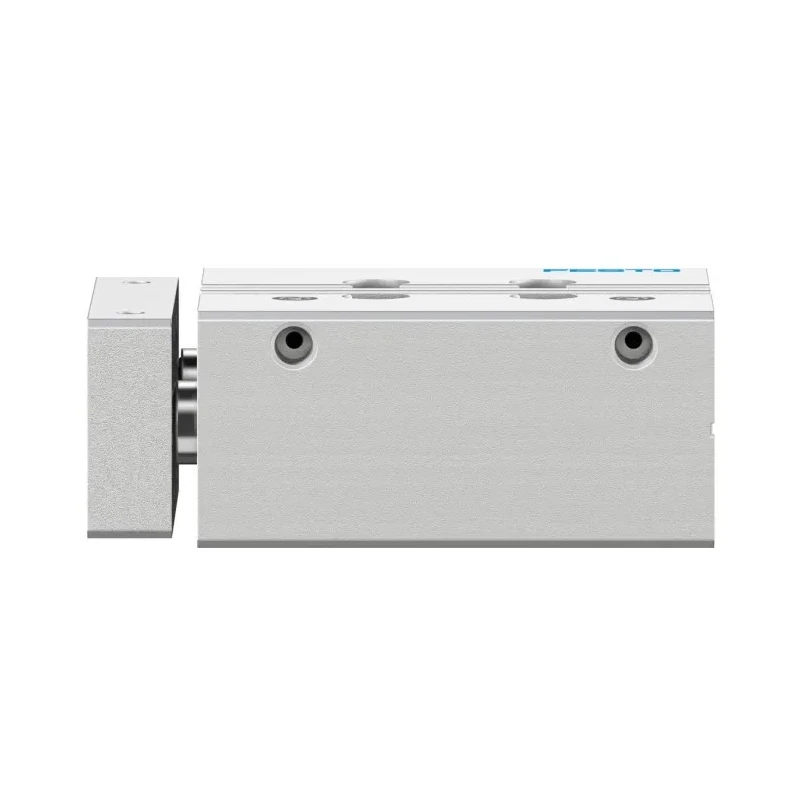

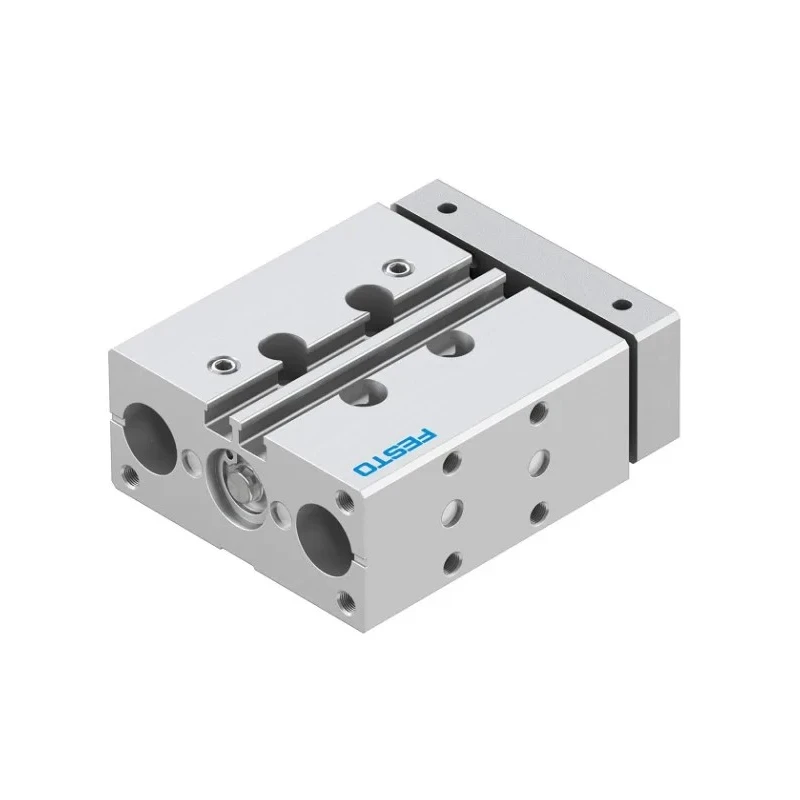

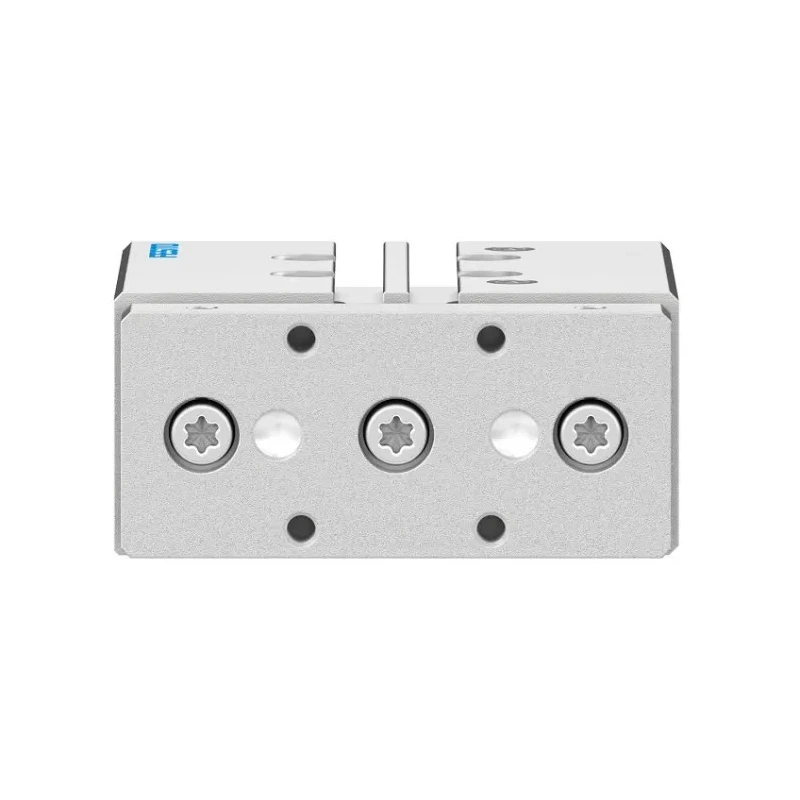

Festo Pneumatic Guided Cylinder 12mm Bore 25mm Stroke Double Acting Through Hole Mount DFM Series DFM-12-25-P-A-GF

Festo DFM-12-25-P-A-GF pneumatic guided cylinder is designed for precise lateral load movement in industrial automation equipment. It features a 12mm bore diameter and a 25mm stroke length within the compact DFM series. This double acting cylinder utilizes a through hole mount for straightforward installation in tight spaces.

Its wrought aluminium alloy body provides strength and corrosion resistance while maintaining a light weight of 405 grams. The guided cylinder operates at a maximum pressure of 10 bar and maximum piston speed of 0.8 meters per second. It can function effectively within a temperature range of -20°C to 80°C, making it well-suited to challenging environmental conditions.

The slide bearing guide type reduces noise and friction during operation, contributing to smooth linear piston movement. Elastomer cushioning at both ends reduces vibrations, extending the component's service life. The single rod type has an M5 piston rod thread size, facilitating easy integration with other mechanical parts.

This cylinder's compact dimensions (74 mm length, 60 mm width, and 28 mm height) enable installation where space is limited. The guided cylinder delivers an advance stroke force of approximately 68 Newtons, making it appropriate for light to medium duty applications such as bottle pushers, material handling, and conveyor systems.

Durable pneumatic guided cylinder with 12mm bore and 25mm stroke. Double acting action ensures effective bidirectional piston movement. Constructed with wrought aluminium alloy body for lightweight and corrosion resistance.

Maximum operating pressure of 10 bar and piston speed up to 0.8 m/s. Operates reliably in temperature range from -20°C to 80°C with elastomer cushioning. Slide bearing guide reduces noise and friction for smooth motion. Compact dimensions of 74mm length, 60mm width, and 28mm height.

Equipped with M5 piston rod thread size and single rod type for simple integration. Lightweight at 405g and repairable by the end user for long service life. Suitable for industrial automation applications including bottle pushers and conveyor systems.

This pneumatic guided cylinder is ideal for use in industrial manufacturing, material handling, packaging, conveyor automation, and other pneumatic actuation applications requiring reliable, low-noise precise piston guidance. It supports sustainable manufacturing principles by being repairable, with RoHS compliance and several quality standards.
