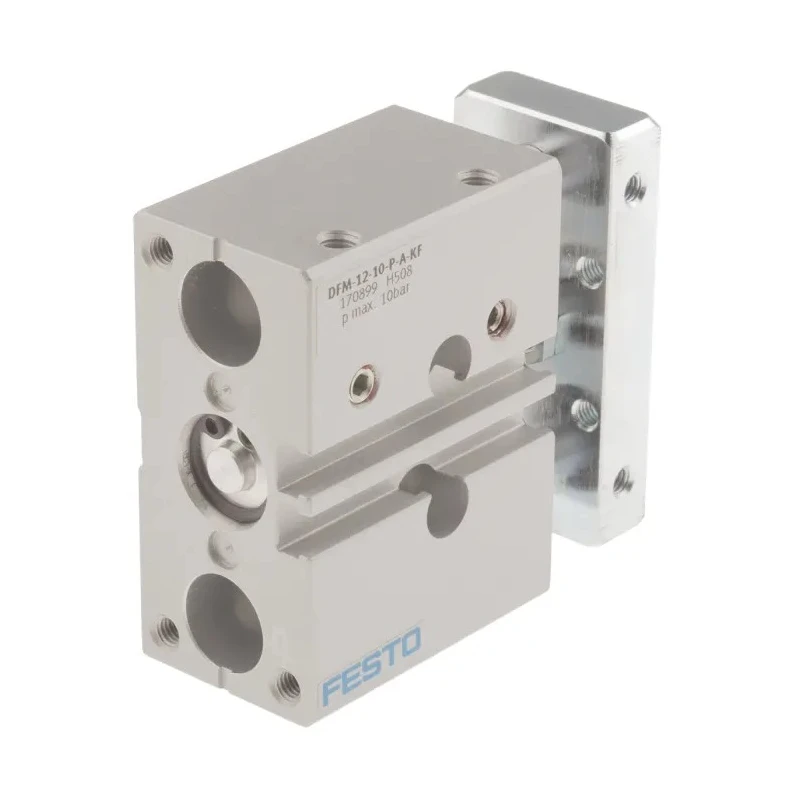

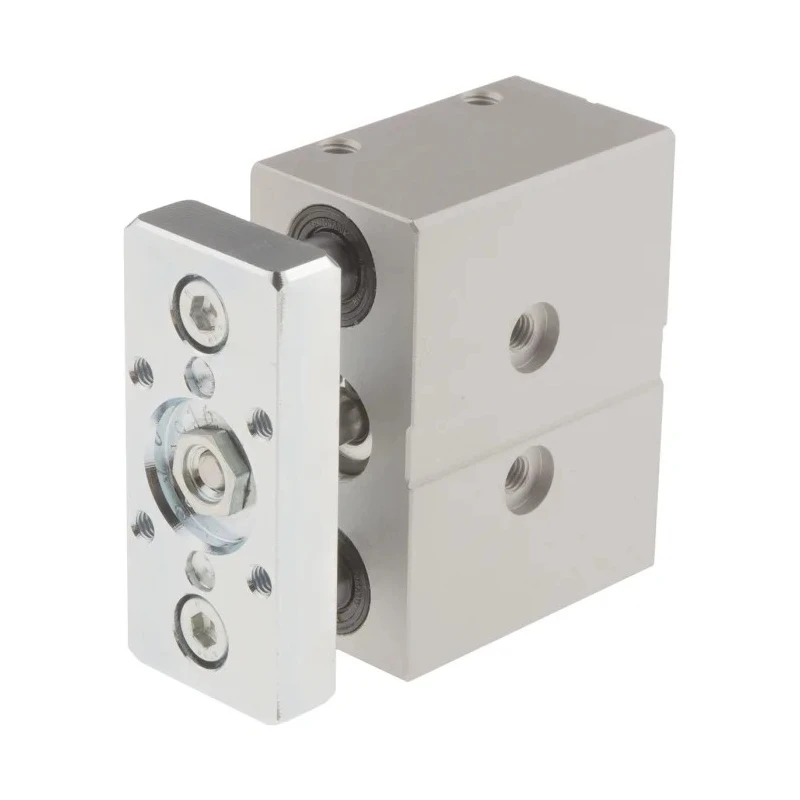

Festo Pneumatic Guided Cylinder 12mm Bore Double Acting 10mm Stroke Through Hole Mount DFM-12-10-P-A-KF

Festo DFM-12-10-P-A-KF pneumatic guided cylinder features a 12mm bore diameter with double acting functionality and a 10mm stroke length designed for precision and durability. Built with wrought aluminium alloy, this guided actuator integrates the drive and guiding unit into a single, compact housing that provides high resistance against torque and lateral external forces. Ideal for demanding pneumatic industrial applications such as material handling, clamping, lifting, and stopping.

The use of recirculating ball bearings in the guide rods allows for smooth linear motion and excellent handling of torque loads, while the flexible cushioning plates minimize operational noise and improve longevity. The cylinder includes versatile air supply ports located on both the top and side, enabling flexible installation options to suit various machinery designs.

Operating within a maximum pressure of 10 bar and temperature range from -5°C to 60°C, this pneumatic guided cylinder is engineered to withstand challenging working environments. The compact and lightweight design, measuring 60mm in width, 59mm in length, and 28mm in height, weighing only 320 grams, makes it suitable for precise automation tasks.

Integrated slots on the actuator body support the mounting of proximity sensors to facilitate accurate piston position measurements, enhancing control and monitoring in industrial processes. The DFM series guided cylinders are maintenance-free, offering reliable performance with minimal upkeep requirements.

Typical applications include industrial clamping, stopping loads up to 150 kg reliably and safely, dynamic lifting operations, and precise material handling tasks in sectors such as manufacturing, automation, HVAC, and laboratory machinery.

Combines drive and guide unit in a single rigid aluminium housing. Recirculating ball bearings allow for torque load applications. Flexible cushioning plates reduce noise and increase service life. Multiple air supply ports for versatile mounting.

Compact and lightweight design enhances automation precision. Maintenance-free construction for long-lasting operation. Integrated sensor slots for position monitoring. Suitable for clamping, lifting, and stopping in industrial use.
