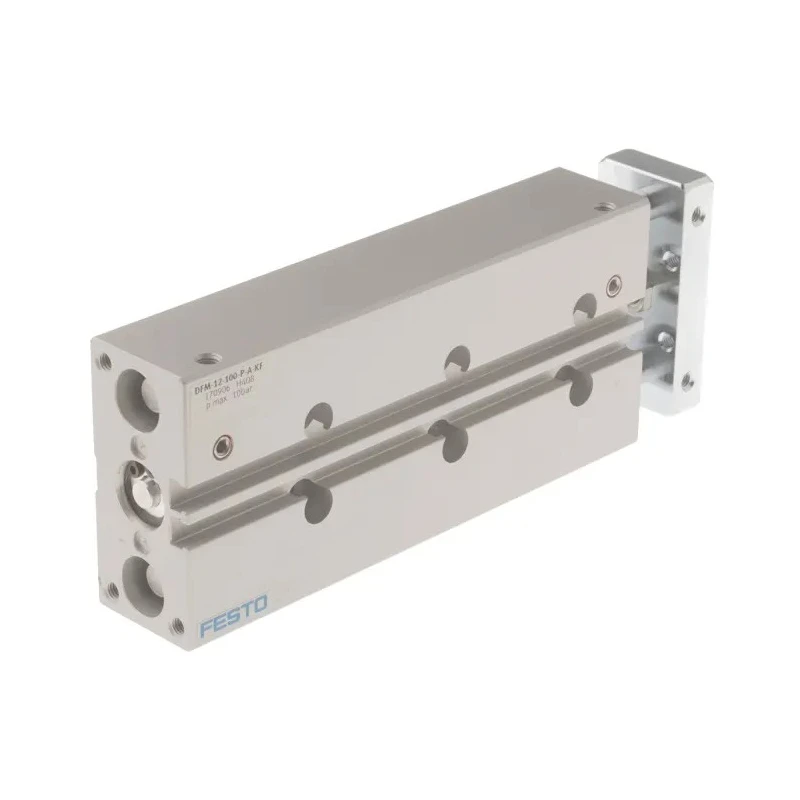

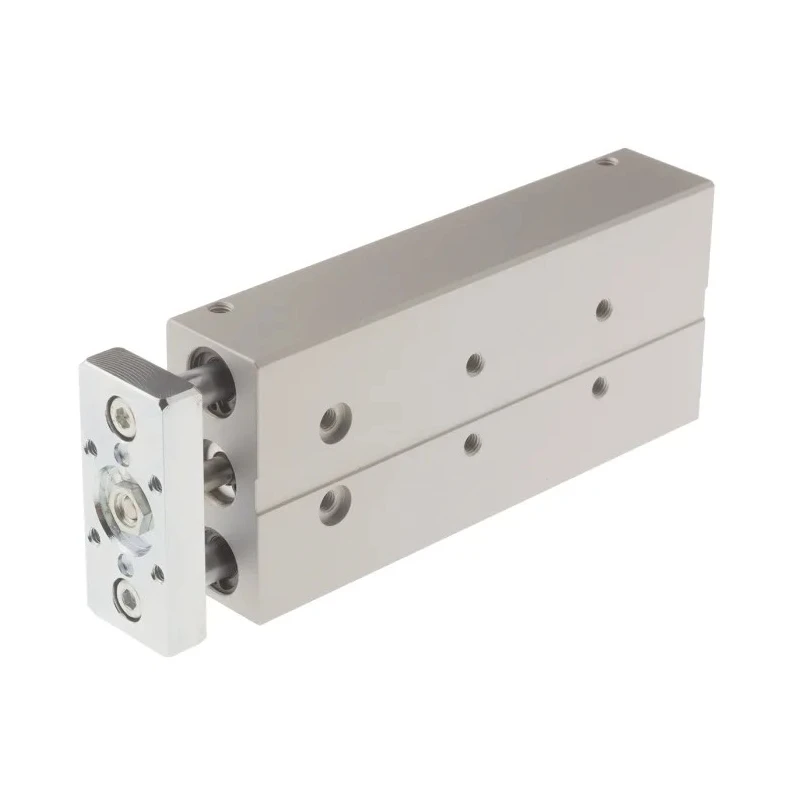

Festo Pneumatic Guided Cylinder, DFM Series, 12mm Bore, 100 mm Stroke, Double Acting, Through Hole Mount DFM-12-100-P-A-KF

Festo DFM-12-100-P-A-KF Pneumatic Guided Cylinder from the DFM Series features a 12 mm bore and a 100 mm stroke in a double acting configuration. This guided cylinder integrates the drive and guide unit within a single housing, utilizing recirculating ball bearings on guide rods ideal for applications involving high torque loads.

The cylinder's robust wrought aluminium alloy construction offers a lightweight yet rigid design with high resistance to torques and lateral forces, requiring no maintenance. Flexible elastomer cushioning plates onboard reduce operational noise and extend the cylinder's service life.

Manufactured for demanding pneumatic applications such as clamping, stopping, material handling, and lifting, the cylinder offers flexible mounting options with ports available on both top and side, and through-hole mounting for easy installation.

It operates reliably within a temperature range of -5°C to 60°C and supports a maximum piston speed of 0.8 m/s at operating pressures up to 10 bar. The slide bearing guide and single piston rod with M5 thread enhance precision and stability during linear motion.

The compact dimensions (155 mm length, 60 mm width, 28 mm height) and lightweight design (723 g) make it suitable for industrial, manufacturing, laboratory, material handling, and automation uses where precise guided actuation is critical.

Double acting actuator with integrated guidance for precise linear motion. Constructed from wrought aluminium alloy for durability and lightweight. Maximum operating pressure of 10 bar ensuring robust performance. Equipped with elastomer cushioning plates to reduce noise and extend service life.

Through hole mount type providing flexible installation options. Maximum piston speed of 0.8 m/s suitable for dynamic industrial use. Operating temperature range from -5°C to 60°C for versatile environments. Slide bearing guide type with single piston rod and M5 thread size.

Compact dimensions: length 155 mm, width 60 mm, height 28 mm. Compliant with ISO 8573-1:2010, Cleanroom Class 6, VDMA24364-B1/B2-L, and RoHS standards. This Festo Pneumatic Guided Cylinder is an excellent choice for applications requiring high load bearing guided actuation with maintenance-free operation and noise reduction.
