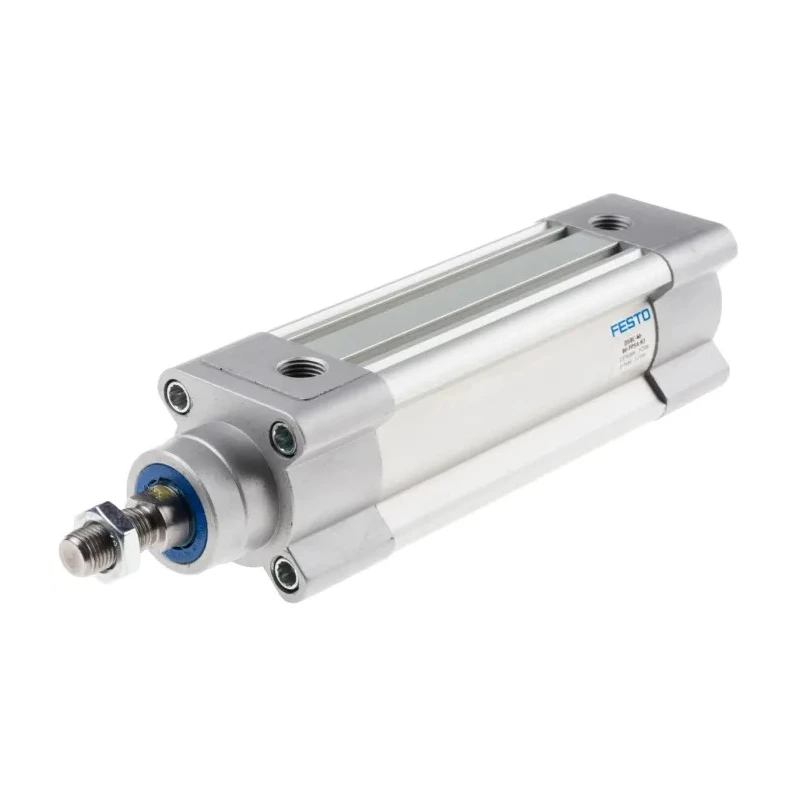

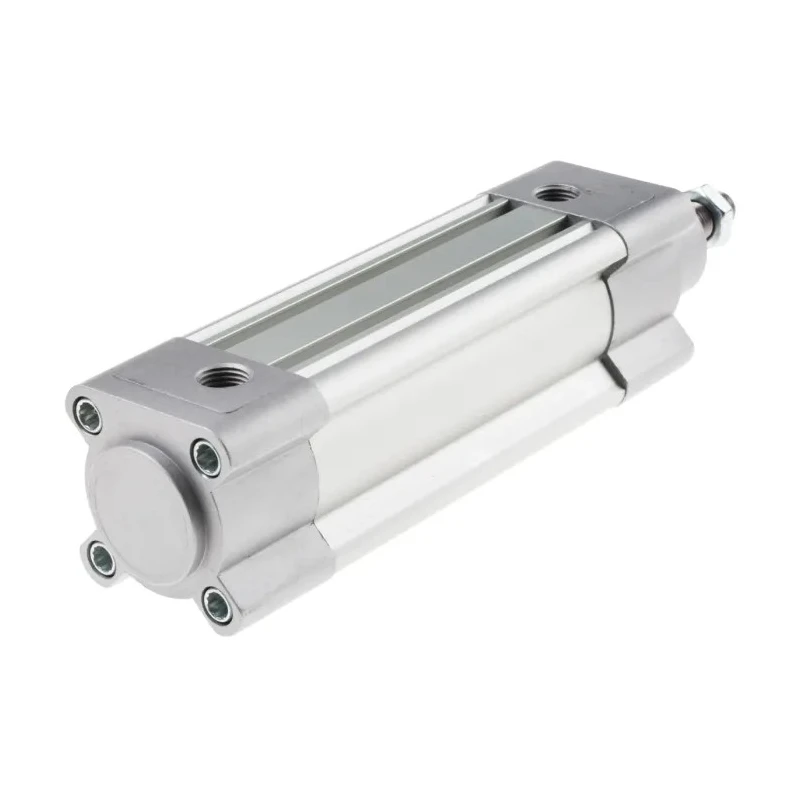

Festo Pneumatic Piston Rod Cylinder 40mm Bore 80mm Stroke Aluminium Body Double Acting DSBC-40-80-PPSA-N3

Festo DSBC-40-80-PPSA-N3 Pneumatic Piston Rod Cylinder features a 40mm bore and 80mm stroke length in a lightweight aluminium body, supporting double acting pneumatic actuation with air cushioning. Designed with a high-alloy steel piston rod, this cylinder ensures excellent running performance and mechanical durability essential for industrial and manufacturing applications. Its double acting mechanism allows compressed air to advance and retract the piston rod, providing linear motion with precision and control.

The self adjusting pneumatic cushioning at both cylinder ends offers gentle and dynamic travel into the end position without requiring manual adjustments. This mechanism adapts to changing load and speed conditions, reducing noise and vibration while increasing operational lifespan. The actuator includes slots for mounting proximity sensors enabling contactless piston position detection, enhancing automation system feedback.

Compliant with ISO 15552, the DSBC series cylinders feature standardized metric mounting dimensions, allowing installation in multiple orientations and easy integration with various industrial equipment. The aluminium body construction balances durability with low weight, weighing only 740 grams, which helps reduce mechanical stress on supporting structures and machinery.

The cylinder’s working temperature range from -20°C to 80°C and maximum operating pressure of 12 bar make it suitable for diverse industrial environments including mechanical, fluid power, manufacturing, and automation sectors. The piston rod is male-threaded with a 1/4 inch G thread size for compatibility with a wide range of fittings and end effectors.

These pneumatic cylinders find application in automation systems requiring reliable linear actuation, such as assembly automation, packaging machines, robotics, and material handling equipment. Their robust design and precision operation improve efficiency, system responsiveness, and reduce maintenance efforts.

Constructed with high-alloy steel piston rod for excellent running performance. Features self adjusting pneumatic cushioning for smooth end position travel without manual adjustments. Complies with ISO 15552 standards allowing flexible mounting options.

Includes slots for proximity sensors enabling contactless piston position detection. Operates efficiently in temperatures from -20°C to 80°C with maximum 12 bar pressure. Lightweight aluminium body ensures longevity and reduces wear.

Double acting pneumatic cylinder suitable for industrial automation tasks. Rod thread size 1/4 in G and male piston rod for versatile connection. Explore more pneumatic and hydraulic tools to optimize your industrial processes with reliable components from leading brands available at EnvMart.
