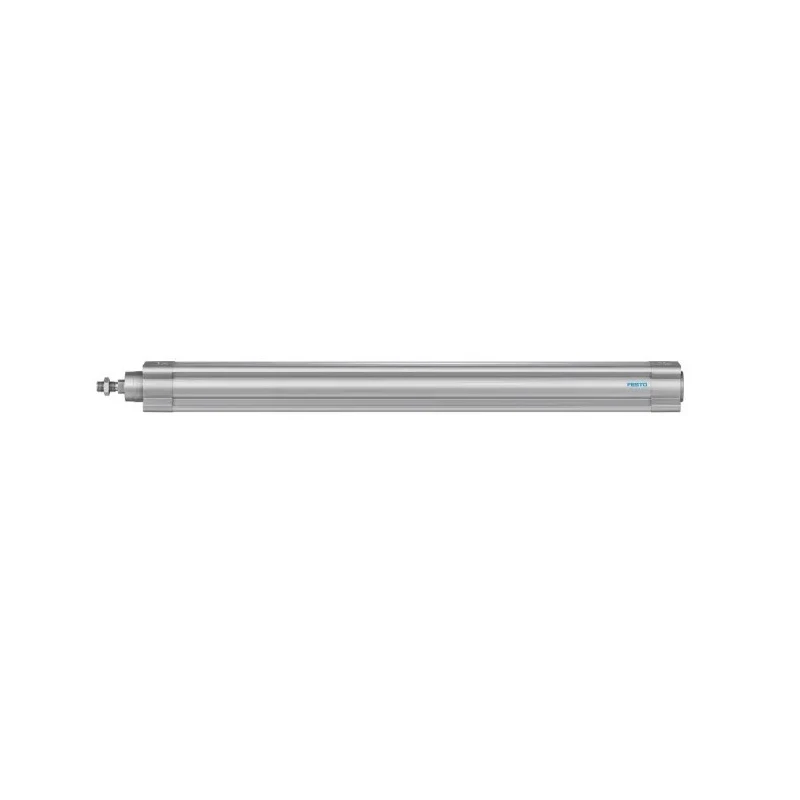

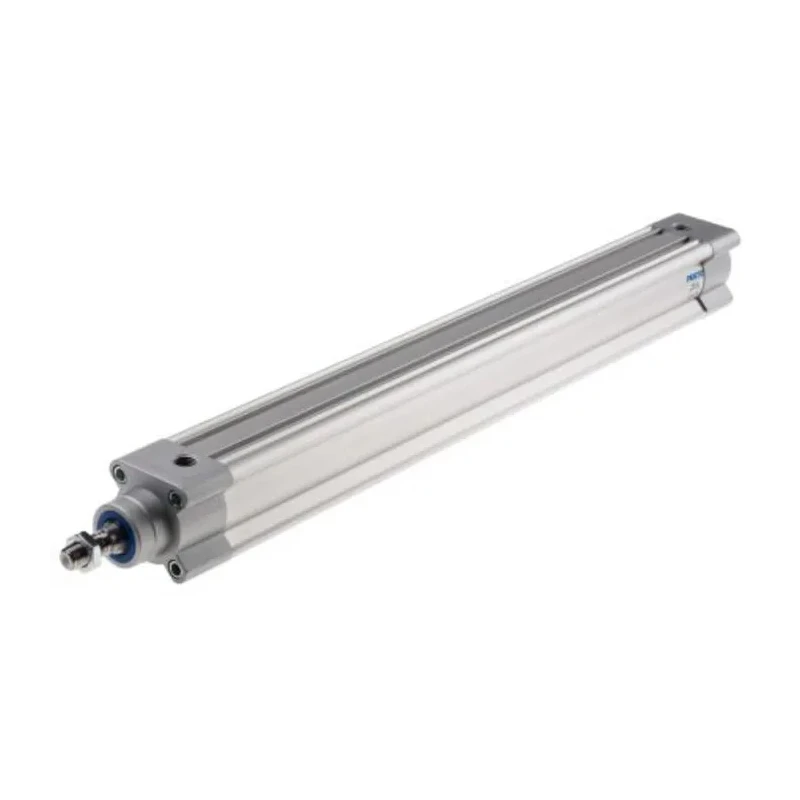

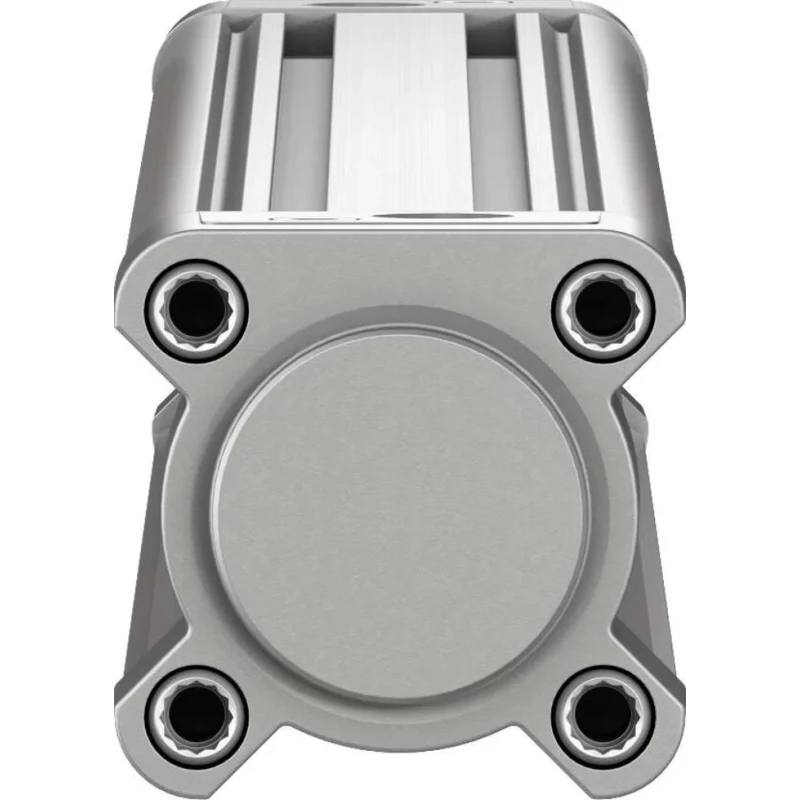

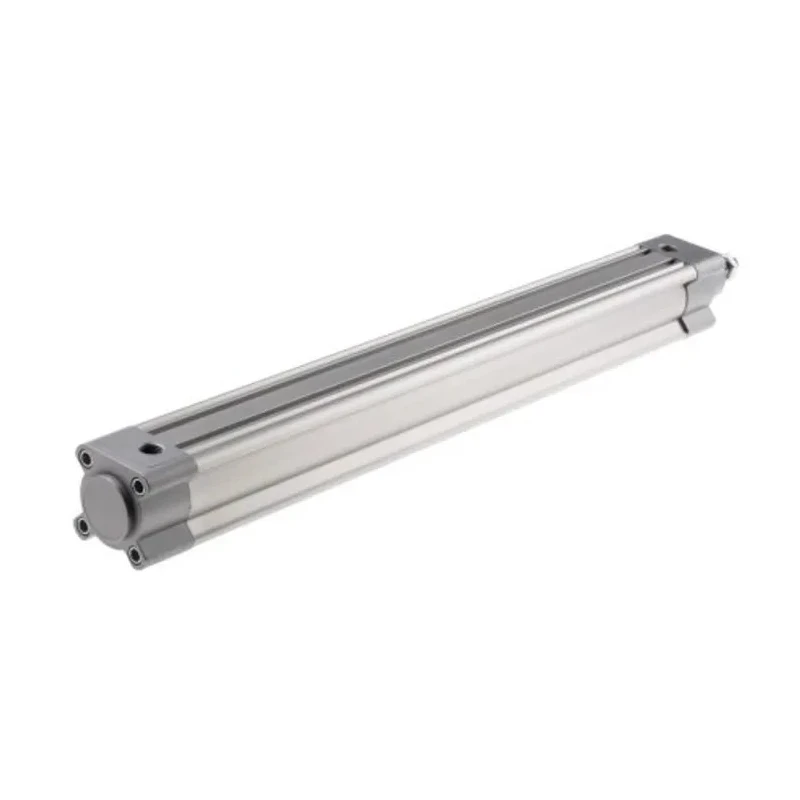

Festo Pneumatic Piston Rod Cylinder 40mm Bore 500mm Stroke Aluminium Body Double Acting DSBC-40-500-PPVA-N3

Festo DSBC-40-500-PPVA-N3 pneumatic piston rod cylinder features a 40mm bore diameter and a 500mm stroke length, with an aluminium body that ensures a lightweight yet robust design. This double acting cylinder is equipped with an air cushion for smooth operation and extended service life, designed to withstand maximum operating pressure of 12 bar. It offers excellent performance in industries requiring precise linear motion such as manufacturing, food and beverage processing, and packaging systems.

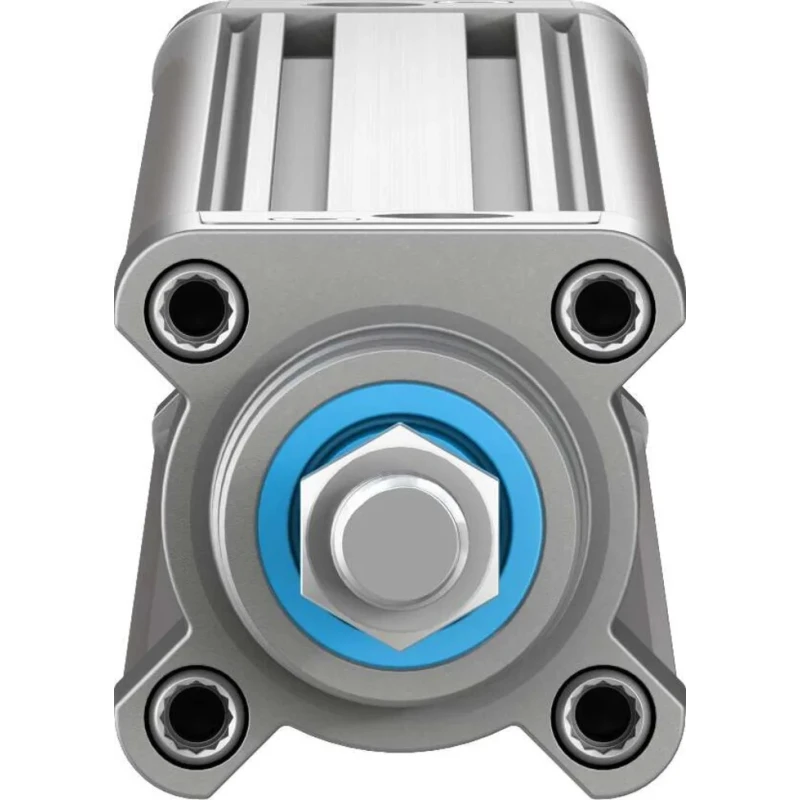

This pneumatic actuator supports operation in extreme temperatures ranging from -20°C to +80°C and complies with ISO 15552 standards. The cylinder includes a male piston rod with M12x1.25 thread size and allows for magnetic piston rods to facilitate non-contact position sensing through proximity switches. The mounting is facilitated by a through-hole mount type, allowing integration in compact and complex systems easily.

The design prioritizes low friction operation with adjustable pneumatic cushioning at both ends, which builds up an air cushion to absorb kinetic energy in end strokes, thus reducing wear on moving parts and increasing reliability in medium to heavy load applications. Its dimensions of 54mm width, 54mm height, and 661.9mm length ensure compatibility within constrained spaces while delivering powerful motion control.

This versatile Pneumatic Piston Rod Cylinder is ideal for tasks such as opening and closing doors, lifting and lowering platforms, and other automated linear movements requiring durability and precision. The cylinder’s compatibility with accessories like rod clevises, rod eyes, and self-aligning rod couplers further enhances its utility in custom pneumatic system setups.

Double acting operation for pushing and pulling loads. 500mm stroke length suitable for large-scale linear movements. Lightweight aluminium body construction. Maximum operating pressure of 12 bar ensures strong performance.

Air cushioning provides smooth movement and extended component life. Wide operating temperature range from -20°C to +80°C. Compliant with ISO 15552 standard for pneumatic cylinders. Magnetic piston rod enables contactless position sensing.

Through-hole mounting facilitates easy installation. Ideal for manufacturing, food and beverage, and packaging applications. Explore our wide range of pneumatic cylinders and actuators at EnvMart for reliable automation components.
