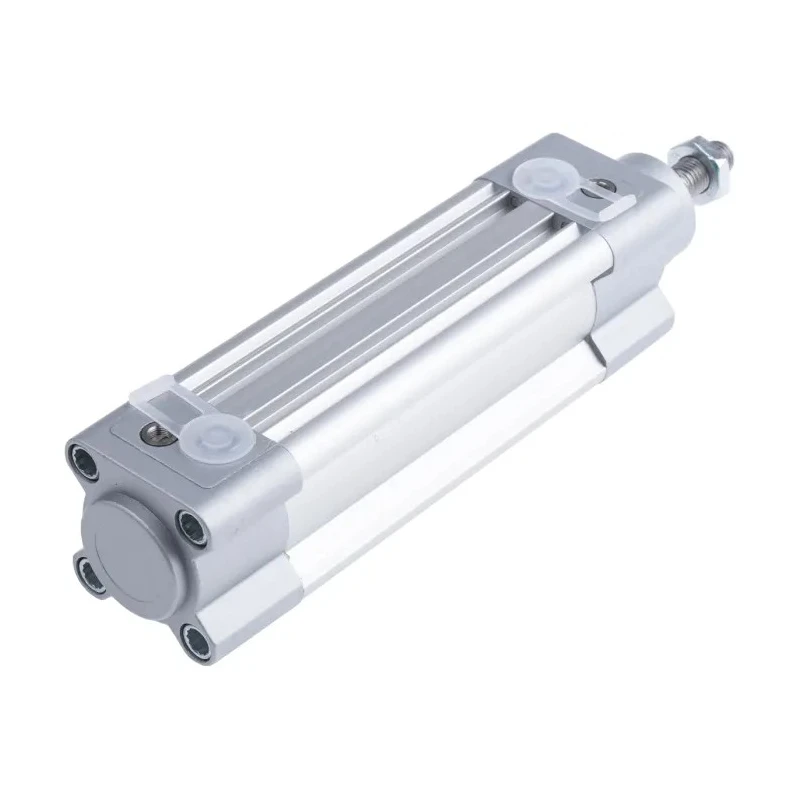

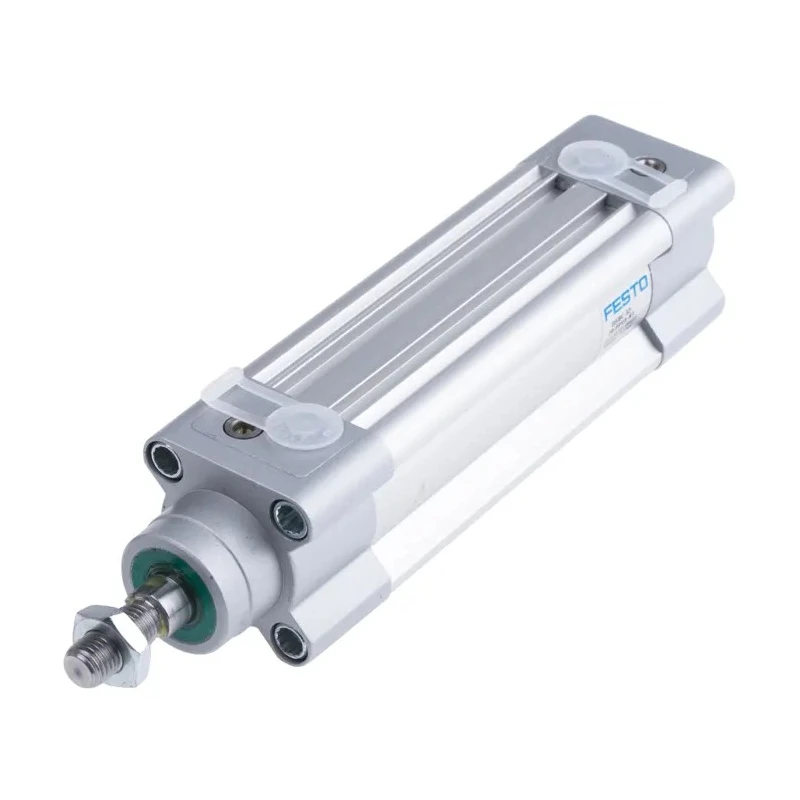

Festo Pneumatic Piston Rod Cylinder 32mm Bore 70mm Stroke Double Acting Aluminium Body DSBC-32-70-PPVA-N3
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 12 bar |
| Height | 45mm |
| Length | 215.1mm |
| Model | DSBC-32-70-PPVA-N3 |
| Gross Weight | 465g |
| Width | 45mm |
| Mount Type | Through Hole |
| Series | DSBC |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 70mm |
| Bore Diameter | 32mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 15552, RoHS |
| Cushioning Type | Air Cushion |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/8 in G |
Key Features
- DSBC series cylinder complies with ISO 15552 standards for mounting and interchangeability.
- Double acting operation allows linear motion in advance and retract using compressed air.
- Adjustable pneumatic cushioning reduces noise and vibration during end-of-stroke positions.
- High-alloy steel piston rod provides durability and excellent running performance.
- Suitable for medium to heavy loads and high speed industrial applications.
- Through hole mount type with slots for flush mounting proximity sensors.
- Operating temperature range from -20°C to 80°C.
Product Description
Festo DSBC-32-70-PPVA-N3 pneumatic piston rod cylinder is a high-quality industrial actuator designed for precise linear motion control in mechanical and fluid power applications. Featuring a 32mm bore diameter and 70mm stroke length, this double acting cylinder provides bidirectional force generation with compressed air. The aluminium body ensures lightweight construction while maintaining strength and corrosion resistance.
Compliant with ISO 15552 standards, the DSBC series enables easy mounting in various industrial environments including manufacturing, automation, HVAC systems, and material handling. The cylinder incorporates adjustable pneumatic cushioning at both ends, utilizing a special cushioning piston that builds and releases air cushions to absorb energy during end positions. This reduces mechanical noise and vibration, enhancing reliability and service life in medium to heavy load applications.
The piston rod is made of high-alloy steel with a male 1/8 inch G thread, optimized for durability and precise operation. Slots for flush mounting proximity sensors are provided for non-contact position detection, facilitating integration with control systems. Operating temperature ranges from -20°C to 80°C accommodate diverse industrial settings.
With dimensions measuring 215.1mm in length and a footprint of 45mm width and height, this compact actuator suits tight spaces. Its maximum operating pressure is 12 bar, making it suitable for robust pneumatic systems requiring accurate motion control.
DSBC series pneumatic actuator compliant with ISO 15552 standard. Double acting operation with adjustable air cushioning. Aluminium body ensures lightweight strength and corrosion resistance. High-alloy steel piston rod with threaded connector for mounting.
Slots for flush mounting of proximity sensors enable position detection. Wide operating temperature range from -20°C to 80°C for versatility. Compact dimensions fit diverse installation requirements. Ideal for industrial, manufacturing, automation, and HVAC applications.
This Festo Pneumatic Piston Rod Cylinder offers reliable performance and flexibility across many industrial sectors. EnvMart customers can explore additional pneumatic components and accessories in our Hydraulics & Pneumatics category for complete system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Festo DSBC-32-70-PPVA-N3 features a bore diameter of 32mm and a stroke length of 70mm.
This pneumatic cylinder has a maximum operating pressure of 12 bar.
The operating temperature range for this model is from -20°C to 80°C.
The body of the cylinder is made from aluminium, and the piston rod is constructed from high-alloy steel.
This cylinder incorporates adjustable pneumatic cushioning at both ends, which uses a special cushioning piston to absorb energy during end positions, reducing noise and vibration.
The DSBC-32-70-PPVA-N3 utilizes a through hole mount type.
The dimensions of this model are 215.1mm in length, 45mm in width, and 45mm in height.
This model complies with ISO 15552 standards and is RoHS approved.
The gross weight of this pneumatic cylinder is 465g.
Yes, this model is suitable for medium to heavy load applications and high-speed industrial use.
Yes, it includes slots for flush mounting proximity sensors, allowing for non-contact position detection.
The Festo DSBC-32-70-PPVA-N3 operates as a double acting cylinder, providing bidirectional force generation.
