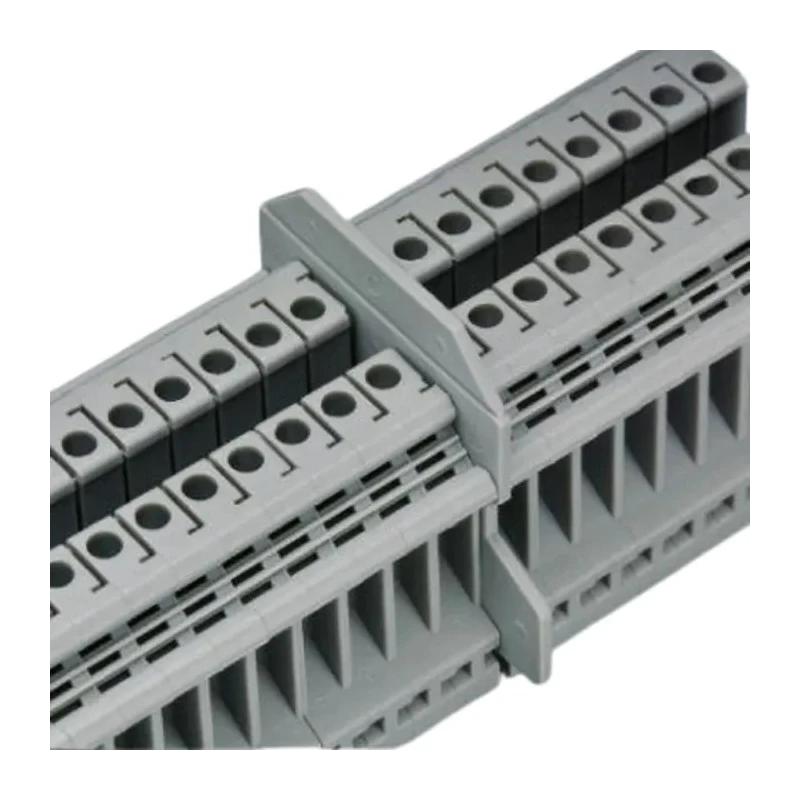

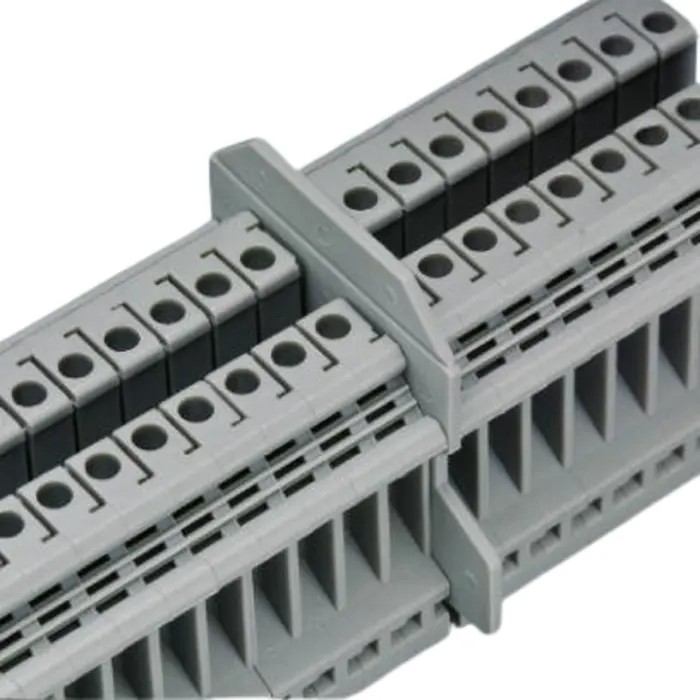

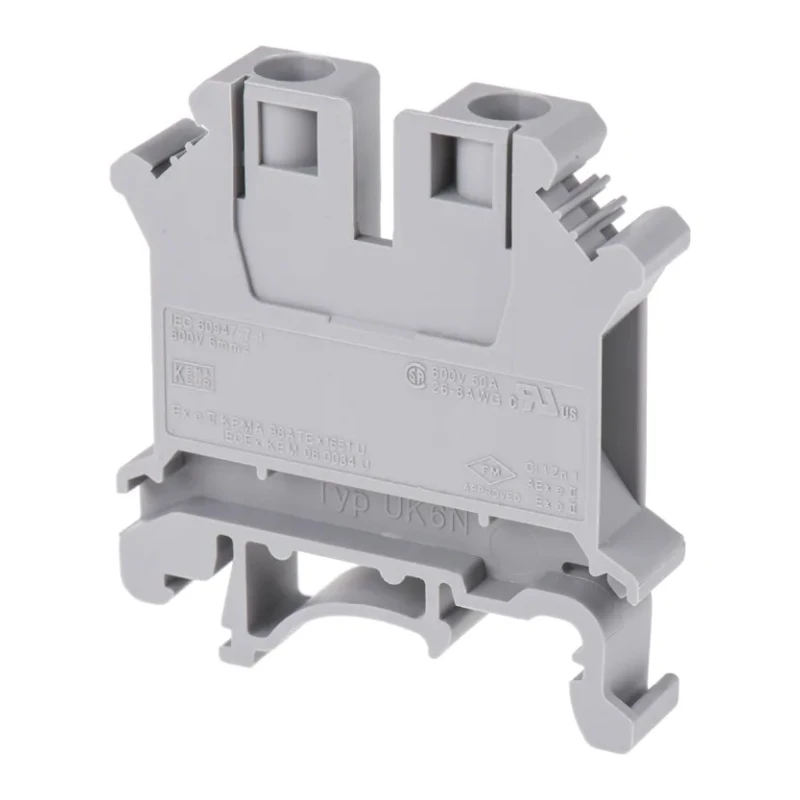

Phoenix Contact UK 6 N Series Feed Through Terminal Block Grey, 0.2mm² to 6 mm², 1-Level, Screw Termination, 800V 3004524
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3004524 |
| Series | UK 6 N |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Minimum Operating Temperature | -60°C |
| Pitch | 8mm |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | IEC 60947-7-1 |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 8AWG |
| Cable CSA | 0.2, 6mm² |
| Terminal Block Current | 41A |
Key Features
- Supports operating voltages up to 800V and currents up to 41A for reliable power transmission.
- Designed for single-level connections with 2 positions on an 8mm pitch for compact DIN rail mounting.
- Constructed with polyamide insulating material ensuring durability and compliance with IEC 60947-7-1.
- Capable of withstanding operating temperatures from -60°C to 105°C suitable for harsh industrial environments.
- Certified with ATEX hazardous area approval ensuring safe use in explosive atmospheres.

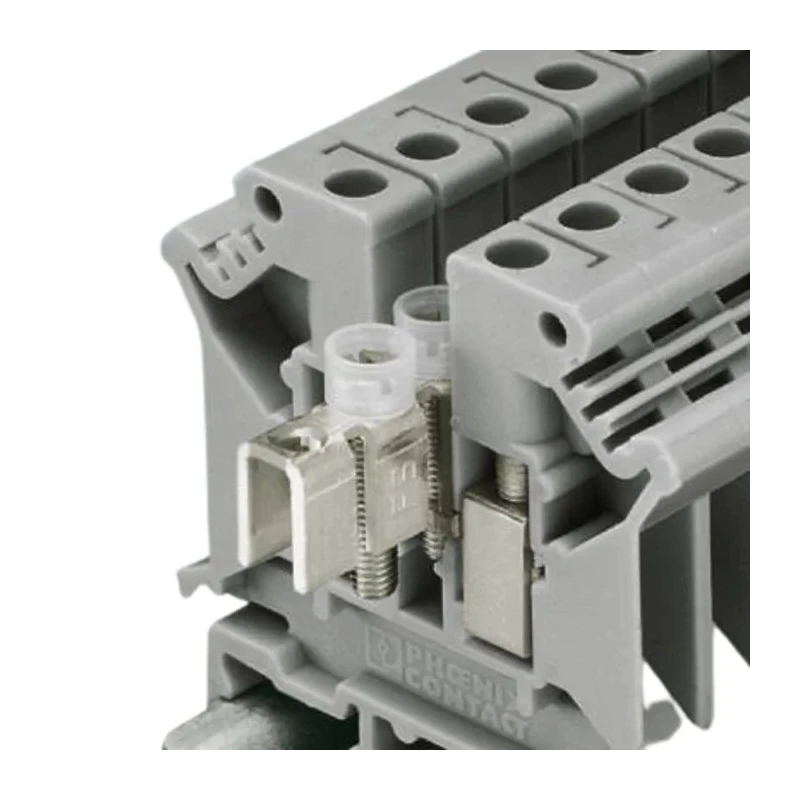

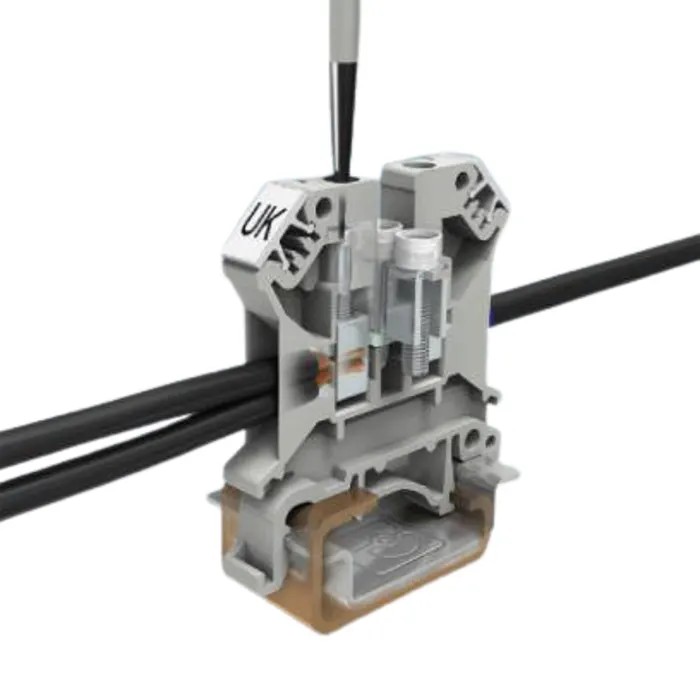

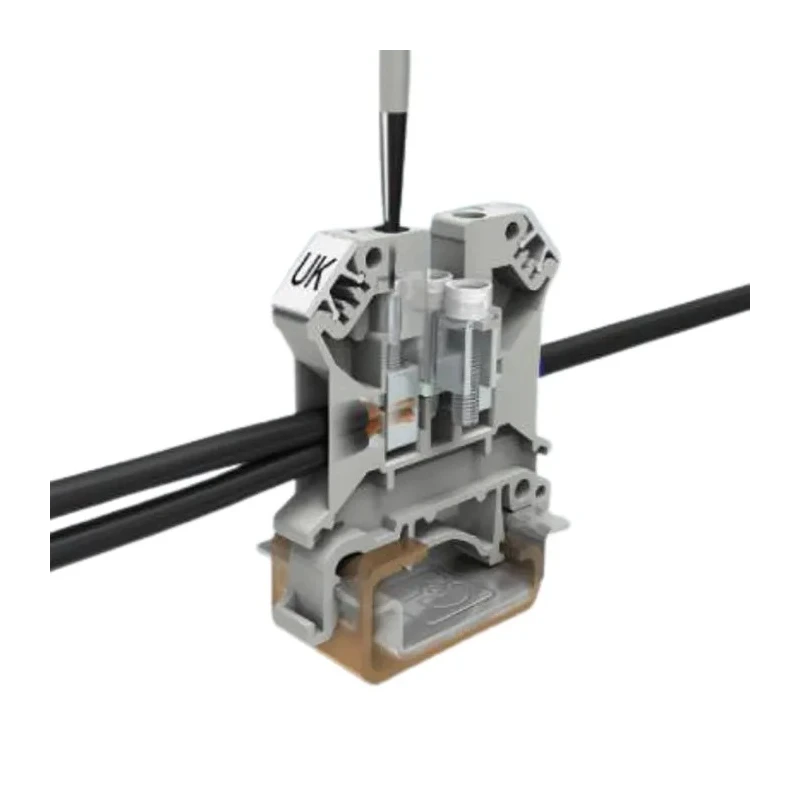

- Equipped with universal screw terminals engineered for maintenance-free connections using the Reakdyn principle.
- Compatible with NS 35 and NS 32 DIN rail profiles offering versatile installation options.
- Individually labelable terminals aid clear identification and management of circuits.
Product Description
Phoenix Contact 3004524 is a high-quality UK 6 N Series Feed Through Terminal Block designed for robust electrical connections in industrial and automation applications. It offers reliable current carrying capacity of 41A at a voltage rating of 800V with screw termination technology.
The terminal block features a grey polyamide insulating housing and supports wire sizes from 0.2 mm² up to 6 mm² (equivalent to AWG 24 to AWG 8). It has a single connection level with two positions spaced on an 8 mm pitch, fitting standard DIN rail mounting systems (NS 35 and NS 32).
This device is engineered for demanding environments with operating temperatures ranging from -60°C up to 105°C, making it suitable for industrial machinery, automation systems, and control panels. The block incorporates the Reakdyn principle enabling maintenance-free connections without the need for re-tightening screws.
Certified for ATEX hazardous-area compliance, it is safe for use in areas with explosive atmospheres. The product meets international standards including IEC 60947-7-1 for terminal blocks and electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 to prevent damage from electrostatic discharge.
Supports single-level screw terminations for easy conductor securing. Polyamide construction ensures electrical insulation and robustness. Compatible with multiple DIN rail profiles for flexible mounting. Reliable conductor acceptance ranging from fine to medium wire sizes.
Individual terminal labeling facilitates circuit identification. Approved under hazardous area certification category II 2 GD EEx e II with KEMA ATEX certificate KEMA 98ATEX1651U.
This terminal block is ideal for use in industrial automation, manufacturing control panels, signaling equipment, and other electrical installations requiring safe and durable feed-through connection blocks. Its features promote efficient wiring, safety, and longevity in critical industrial environments.
Explore more from the Phoenix Contact range at EnvMart, your trusted partner for quality industrial electrical components and terminals.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a maximum voltage rating of 800V.
It has a current carrying capacity of 41A.
This terminal block accommodates wire sizes from 0.2 mm² to 6 mm², which is equivalent to AWG 24 to AWG 8.
It utilizes screw termination for securing conductors.
The operating temperature range is from -60°C to 105°C, making it suitable for harsh industrial environments.
It is compatible with NS 35 and NS 32 DIN rail profiles.
Yes, it is certified with ATEX hazardous area approval, ensuring safe use in explosive atmospheres.
It complies with IEC 60947-7-1 standards for terminal blocks.
This model features two positions on an 8mm pitch for compact mounting.
It is constructed with polyamide insulating material, ensuring electrical insulation and robustness.
Yes, the terminal block has individually labelable terminals for clear identification and management of circuits.
The Reakdyn principle enables maintenance-free connections without the need for re-tightening screws.
