ABB Auxiliary Contact 2 Contact 2 NO Front Mount 6 A 240 V dc 500 V ac GJL1201330R0007 CAF6-20M

Free Delivery in India | Lowest Global Shipping Charges

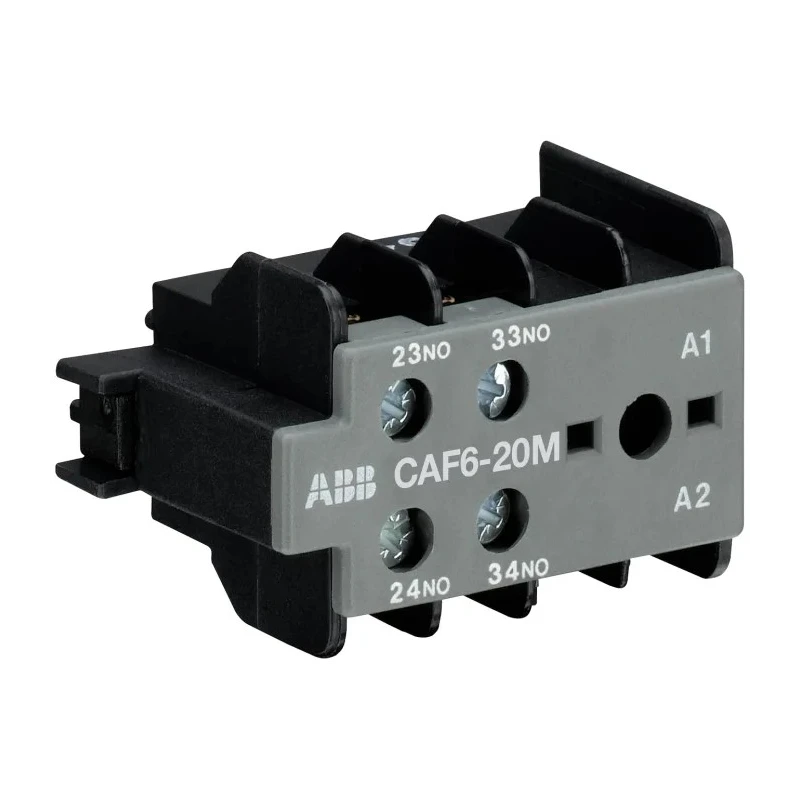

ABB Auxiliary Contact 2 Contact 2 NO Front Mount 6 A 240 V dc 500 V ac GJL1201330R0007 CAF6-20M



Category Auxiliary Contact Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Model	GJL1201330R0007 CAF6-20M
Mount Type	Front
Series	CAF6
Maximum Operating Temperature	55°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Mounting Location	Front Side
Number of Contacts	2
Contact Voltage	240, 500V dc
Normal State Configuration	2 NO
Contact Current	6A
Operational Current Ie	4A
Pole and Throw Configuration	2P
Rated Insulation Voltage Ui	690V

Key Features

Provides two normally open auxiliary contacts for control and signalling tasks.
Front mount design extends switching logic and status feedback in electrical panels.
Supports operational current of 4 A for reliable control-circuit switching.
Screw terminals ensure secure conductor fixation with 0.8 to 1.1 N·m tightening torque.
Rated insulation voltage of 690 V for high-voltage separation.
Operates within temperature range of -25°C to 55°C suitable for industrial environments.
Conforms to IEC/EN 60947 and UL standards for safety and performance.
Terminals accept flexible conductors with ferrules from 1/2x1 to 2.5 mm² and rigid conductors up to 4 mm².

Product Description

ABB GJL1201330R0007 CAF6-20M Auxiliary Contact is a robust front-mount add-on component designed to provide two normally open (2 NO) auxiliary contacts. It operates reliably at 6 A contact current, suitable for both 240 V dc and 500 V ac auxiliary circuits.

This device extends the switching capabilities and status feedback of compatible mini contactors in automation and electrical control panels. Its 2P contact configuration simplifies contact expansion, enabling versatile applications in control circuits and monitoring systems.

The auxiliary contact features screw terminal connections that provide secure and stable conductor fixation. Tightening torque ranges between 0.8 and 1.1 N·m ensure consistent contact pressure, while the terminals accommodate flexible conductors with ferrules and rigid conductors up to 4 mm². This enhances installation reliability and safety.

Its rated insulation voltage of 690 V supports high-voltage separation, ensuring operational safety in demanding industrial environments. The unit is designed for ambient operating temperatures between -25°C and 55°C, making it suitable for a wide range of industrial, manufacturing, and electrical distribution applications.

The product complies with major international electrical standards such as IEC/EN 60947-1, 60947-4-1, 60947-5-1, and corresponding UL equivalents, verifying its safety and performance credentials.

Typical uses include extending control contacts on mini contactors, motor control circuits requiring front-mounted auxiliaries, status signalling to PLCs and monitoring equipment, retrofit auxiliary functionality in distribution panels, and interlock logic in machine-control cabinets.

Provides two normally open (2 NO) contacts for auxiliary control. Front mounting facilitates easy installation on compatible contactors. Rated for 6 A contact current and 690 V insulation voltage. Screw terminal connection with secure conductor clamping.

Suitable for flexible and rigid wire terminations. Compliant with IEC/EN and UL standards for industrial use. Operational temperature range of -25°C to 55°C.

This ABB Auxiliary Contact is an essential component in automation, electrical panels, manufacturing sites, and control gear assemblies. It ensures reliable contact expansion and status feedback to improve system performance and monitoring.

Explore more automation and control gear components for your industrial applications on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a 2P contact configuration with two normally open (2 NO) contacts for auxiliary control tasks.

The maximum operating temperature for this auxiliary contact is 55°C.

It has a rated insulation voltage of 690 V, which supports high-voltage separation.

The operational current rating for this auxiliary contact is 4 A.

The terminals accept flexible conductors with ferrules from 1/2x1 to 2.5 mm² and rigid conductors up to 4 mm².

This unit is designed for front mounting, making it easy to install on compatible contactors.

It is rated for a contact current of 6 A, suitable for both 240 V dc and 500 V ac auxiliary circuits.

The auxiliary contact complies with IEC/EN 60947-1, 60947-4-1, 60947-5-1, and corresponding UL standards for safety and performance.

The minimum operating temperature for this model is -25°C, making it suitable for various industrial environments.

The tightening torque for the screw terminals ranges from 0.8 to 1.1 N·m, ensuring secure conductor fixation.

This model is suitable for extending control contacts on mini contactors, motor control circuits, status signaling to PLCs, and interlock logic in machine-control cabinets.

The brand is ABB, and the model is GJL1201330R0007 CAF6-20M.
