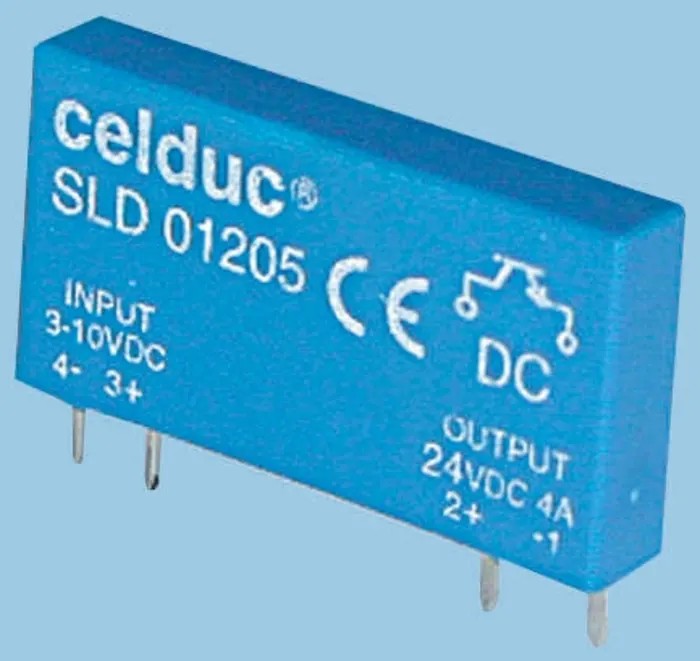

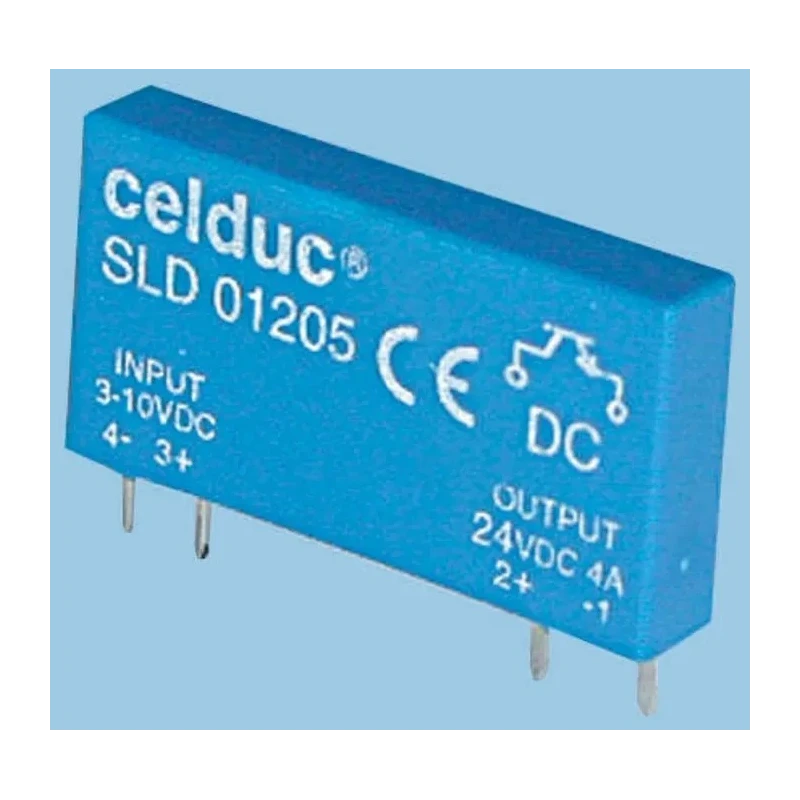

Celduc SLD0x205 Series Solid State Relay PCB Mount 4 A Load 32 V Load 10V dc Control SLD0x205

Free Delivery in India | Lowest Global Shipping Charges

Celduc SLD0x205 Series Solid State Relay PCB Mount 4 A Load 32 V Load 10V dc Control SLD0x205

Name: Celduc SLD0x205 Series Solid State Relay PCB Mount 4 A Load 32 V Load 10V dc Control SLD0x205
Brand: Celduc
SKU: 186145
Price: 28.91 USD
Availability: InStock



Category Solid State Relay Brand Celduc Condition New

Specifications

Country of Origin	France
Brand	Celduc
Height	15mm
Length	28mm
Model	SLD0x205
IP Rating	IP20
Width	5mm
Mount Type	PCB
Output type	MOSFET
Series	SLD0x205
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-20°C
Terminal type	PCB Pin
Maximum Load Current	4A
Standards/Approvals	UL FILE Nr. E69913, IEC60947-5-1 & IEC60947-1
Maximum Load Voltage	32V
Minimum Load Voltage	0V
Minimum Control Voltage	5V
Maximum Control Voltage	10V dc
Off State Leakage Current	1mA
On State Resistance	120mΩ

Key Features

Compact PCB mount design 5 mm thick for space saving.
Rated for maximum load current of 4 Amperes with MOSFET output type.
Supports load voltages up to 32 V with low on-state resistance of 120 milliohms.
Operates reliably in temperatures from -20°C to 80°C.
Compliant with UL FILE Nr. E69913, IEC60947-5-1 and IEC60947-1 standards.
Offers built-in surge clipper for enhanced performance and safety.
IP20 rated protection ensuring basic environmental safeguards.
Features PCB pin terminal type for reliable circuit integration.

Product Description

The Celduc SLD0x205 Series Solid State Relay is engineered for efficient and reliable switching in industrial automation and electrical control applications. This PCB mount relay supports a maximum load current of 4 Amperes and can handle load voltages up to 32 Volts. Designed with a MOSFET output type, it ensures fast switching with low on-state resistance of 120 milliohms, minimizing power loss and heat generation.

Its compact dimensions of 5 mm width, 15 mm height, and 28 mm length allow for seamless integration in dense PCB layouts. The relay’s operating temperature range from -20°C to 80°C makes it suitable for varied environmental conditions.

Built to high-quality standards, the SLD0x205 conforms to UL FILE Nr. E69913, IEC60947-5-1, and IEC60947-1, further ensuring safety and performance compliance. The relay includes essential features like a built-in surge clipper, offering protection against voltage spikes, thereby enhancing durability and reliability.

With an IP20 rating, it provides basic protection against solid objects while maintaining an easy-to-mount PCB pin terminal interface. The relay's control voltage ranges from 5 to 10 V DC, enabling efficient control signal compatibility in automation systems.

Compact PCB mounting saves installation space and supports dense circuitry configurations. High load current capacity suits a variety of electrical switching needs in industrial equipment. MOSFET output ensures rapid switching with energy-efficient operation.

Wide operating temperature range allows use in diverse climatic and industrial environments. Complies with stringent international standards for electrical safety and performance. Built-in surge clipper secures the relay and connected circuitry from transient surges.

IP20 protection rating safeguards against accidental contact with internal components. Reliable PCB pin terminals facilitate easy and durable connections on printed circuit boards.

This solid state relay is ideal for applications in industrial automation, electrical control systems, and process control environments, offering robust switching and protection features. Its French origin guarantees precise engineering and manufacturing quality.
