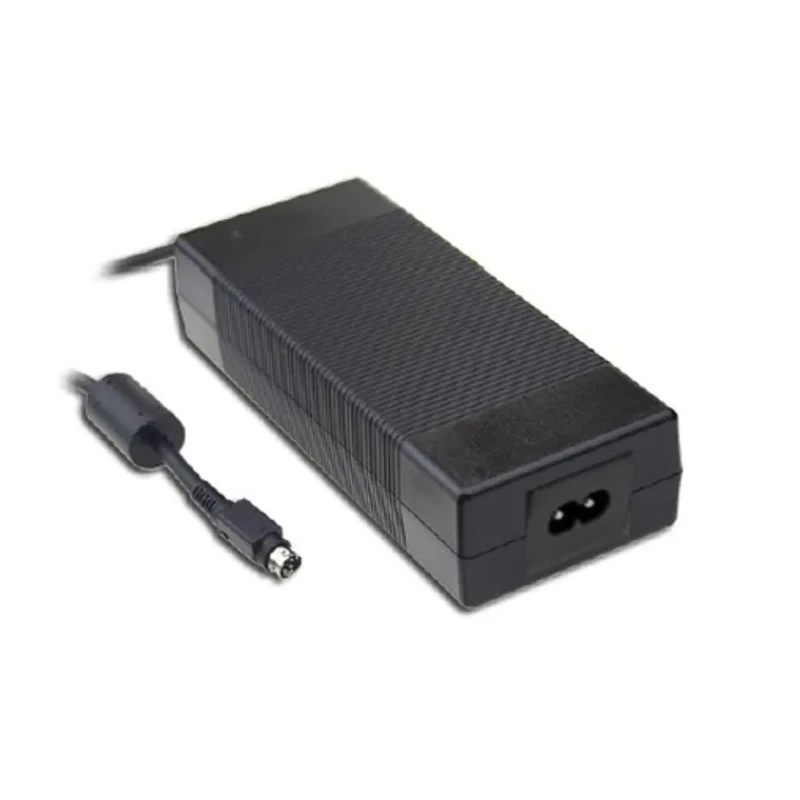

MEAN WELL 220 W Medical Grade AC/DC Adapter 264 V AC Input 9.2 A Output 24 V DC GSM220B24-R7B
Specifications
| Country of Origin | China |
|---|---|
| Brand | MEAN WELL |
| Model | GSM220B24-R7B |
| Cable Length | 1000mm |
| Overall Length | 210mm |
| Series | GSM220B |
| Overall Width | 72mm |
| Maximum Operating Temperature | 70°C |
| Maximum Input Voltage | 264V ac |
| Maximum Output Current | 9.2A |
| Standards/Approvals | UL 60950-1, IEC 60950-1, CE |
| Minimum Input Voltage | 80V ac |
| Overall Depth | 35mm |
| Minimum Output Voltage | 24V dc |
| Input Connector Type | IEC 320-C8 |
| Better World Verification | UL Energy Verified |
Key Features
- Medical safety approved power supply designed for reliable clinical and industrial applications.
- Wide input voltage range from 80 V AC to 264 V AC ensures versatile operation.
- Fanless design supports operation in temperatures from -30°C to 70°C.
- Equipped with multiple protective features including short circuit, overload, overvoltage, and overtemperature protections.
- High efficiency rating up to 94.5% reduces energy consumption and heat generation.
- IEC 320-C8 3-pole AC input connector for standard compliance and ease of use.
- Constructed with fully enclosed casing meeting 94V-0 flame retardant standards.
- LED power status indicator allows quick visual confirmation of operation.
Product Description
MEAN WELL GSM220B24-R7B AC/DC Adapter is a high reliability, medical grade desktop power supply delivering 220 W output power with a DC output voltage of 24 V and maximum output current of 9.2 A. Designed for a wide input voltage range from 80 V AC up to 264 V AC, this power supply facilitates flexible use in demanding industrial, medical, and laboratory environments.
The GSM220B series features a fanless, fully enclosed casing engineered to meet 94V-0 flame retardant standards, ensuring safe operation. The 3-pole IEC320-C8 AC inlet connection is industry standard, allowing straightforward integration. Its active power factor correction (PFC) and Class 2 power design provide efficient and clean power without the need for an earth pin.
This adapter is certified to UL 60950-1, IEC 60950-1, and CE standards and carries the UL Energy Verified mark, reinforcing its compliance with strict energy efficiency and safety criteria. It supports operation in ambient temperatures from -30°C to +70°C without a cooling fan, and includes comprehensive protection circuits against short circuits, overloads, overvoltage, and overtemperature. An LED indicator provides clear power status feedback during operation.
Typical applications include use in mobile clinical workspaces, breath machines, medical computer monitors, oral irrigators, and portable hemodialysis equipment, reflecting its suitability for critical medical and industrial scenarios.
Its high efficiency of up to 94.5% and low no-load power consumption (.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a DC output voltage of 24 V and a maximum output current of 9.2 A.
The overall dimensions are 210 mm in length, 72 mm in width, and 35 mm in depth.
It is certified to UL 60950-1, IEC 60950-1, and CE standards, and it carries the UL Energy Verified mark.
The maximum operating temperature is 70°C, enabling it to function effectively in high-temperature environments.
Yes, it includes comprehensive protection circuits against short circuits, overloads, overvoltage, and overtemperature.
It features a 3-pole IEC 320-C8 AC inlet connection, which is an industry standard for ease of use.
It has a high efficiency rating of up to 94.5%, which reduces energy consumption and heat generation.
The cable length is 1000 mm, providing flexibility in installation and setup.
The casing is fully enclosed and meets the 94V-0 flame retardant standards, ensuring safe operation.
It includes active power factor correction (PFC) for efficient and clean power delivery without the need for an earth pin.
