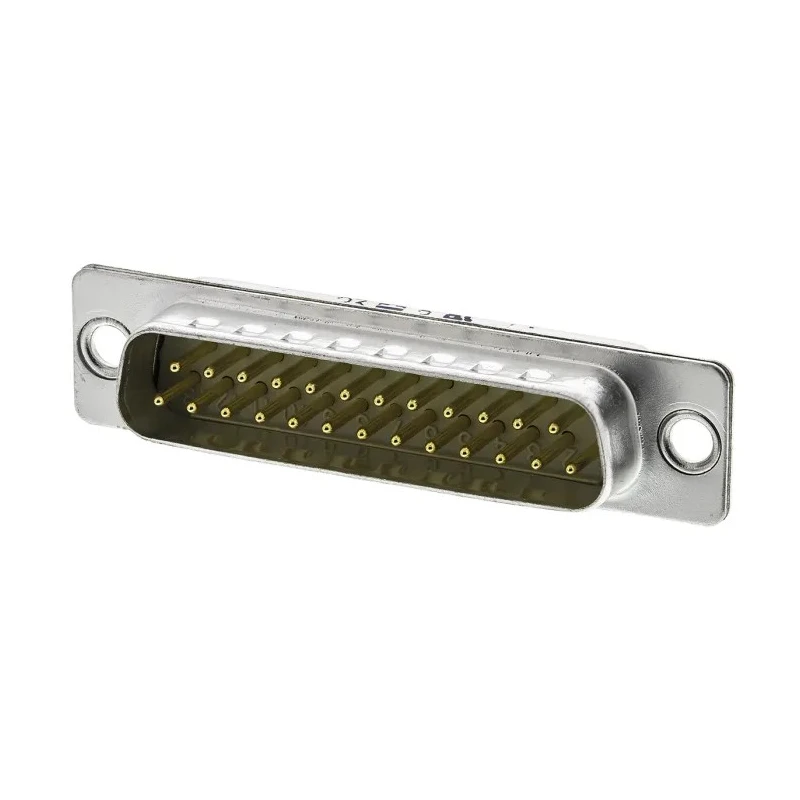

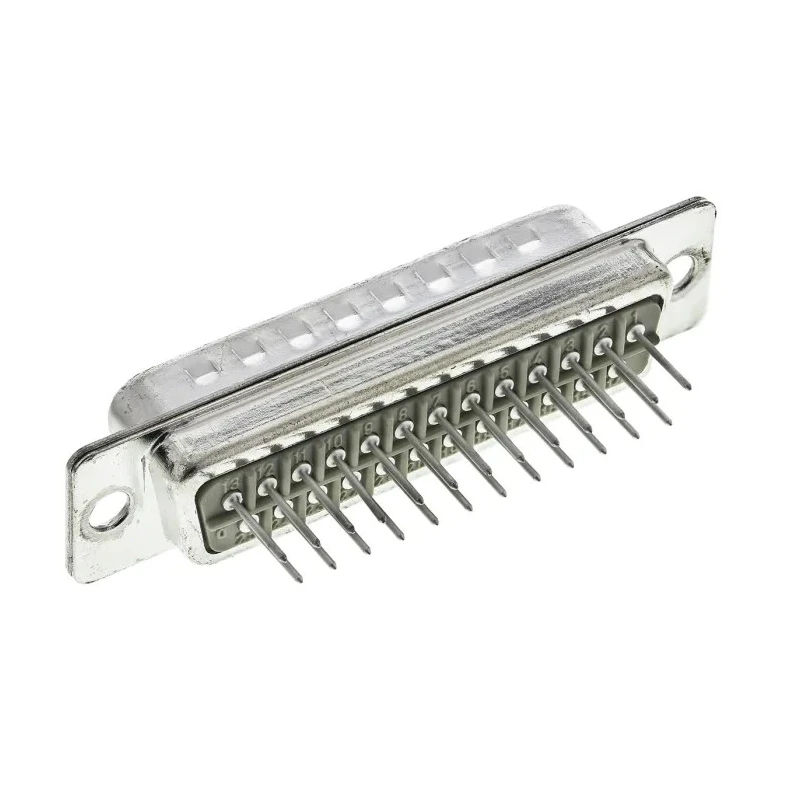

HARTING D-Sub Standard 25 Way Straight 2.76 mm Pitch Through Hole Metal Housing Male Connector 09670255654
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub Standard |
| Mounting Hardware | 3.05 mm Mount Hole |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
| RS PRO 25 Way Straight 2.77 mm Pitch Through Hole D-Sub Connector MaleBrand | RS PRO |
Key Features
- The connector features 25 contacts and supports a current rating of 7A.
- It has a straight orientation with through-hole mounting and a 3.05 mm mounting hole.
- Housing is made of robust metal with gold-plated copper alloy contacts for durability.
- Operates safely up to 1kV voltage and temperature range from -55°C to 125°C.
- Termination type is solder, suitable for printed circuit board assembly.
- Compatible with standard D-Sub shell size D and male contact gender.
- Ideal for industrial electronics requiring secure and high-quality connections.
Product Description
HARTING 09670255654 is a D-Sub Standard 25 Way Straight Male Connector designed to provide reliable electrical connectivity with a pitch of 2.76 mm and a sturdy metal housing. It supports through-hole mounting with a 3.05 mm mount hole and is intended for solder termination onto PCBs in industrial and electronic applications.
The connector accommodates 25 contacts capable of carrying currents up to 7A, ensuring robust signal integrity and power delivery. The gold-plated copper alloy contacts enhance corrosion resistance and longevity. Its operating voltage reaches up to 1kV, and it withstands temperature extremes from -55°C to 125°C, making it suitable for harsh environments.
This connector complies with recognized standards like NFC 93425 type HE 5, DIN 41652, and MIL-C-24308, assuring quality and interoperability. The standard D shell size and male contact configuration ensure easy integration with complementary connectors.
Common applications include industrial manufacturing systems, electronics assemblies, communication hardware, and other demanding environments requiring durable and precise connector solutions.
The connector offers 25 male contacts rated for 7A current. It is designed for through-hole PCB mounting with a 3.05 mm hole. Metal housing provides structural strength and durability. Gold-plated copper alloy contacts improve electrical performance and corrosion resistance.
Voltage rating up to 1kV and operating temperature range from -55°C to 125°C. The connector is ideal for industrial, electronic, and communication equipment. Explore a wide range of industrial connectors and components on EnvMart for reliable solutions.
Explore more products in our D-Sub Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports a current rating of 7A.
It operates safely at a voltage rating of up to 1kV.
The connector can operate within a temperature range from -55°C to 125°C.
This model features 25 male contacts.
It uses solder termination for printed circuit board assembly.
This connector is designed for through-hole mounting with a 3.05 mm mounting hole.
The housing is made of robust metal, and the contacts are made of gold-plated copper alloy.
It is compatible with the standard D shell size D.
The pitch of this connector is 2.76 mm.
It is suitable for industrial manufacturing systems, electronics assemblies, and communication hardware.
It complies with recognized standards like NFC 93425 type HE 5, DIN 41652, and MIL-C-24308.
The connector has a straight orientation.
