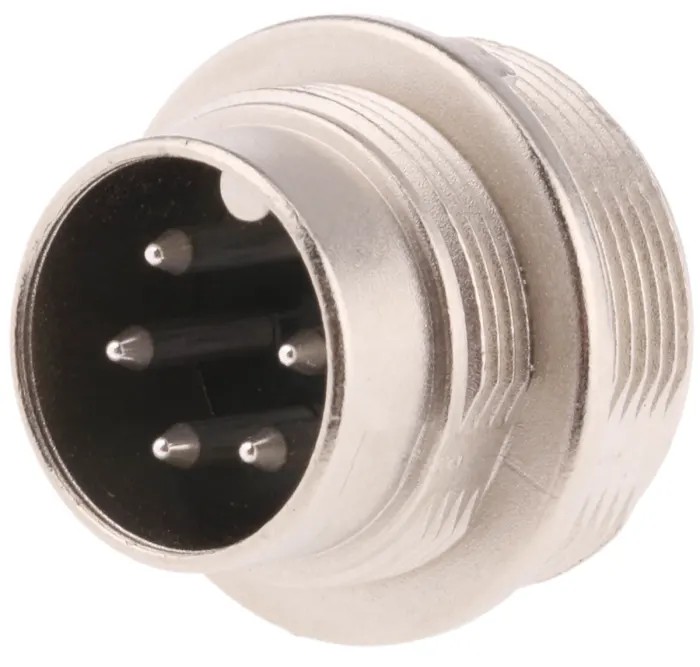

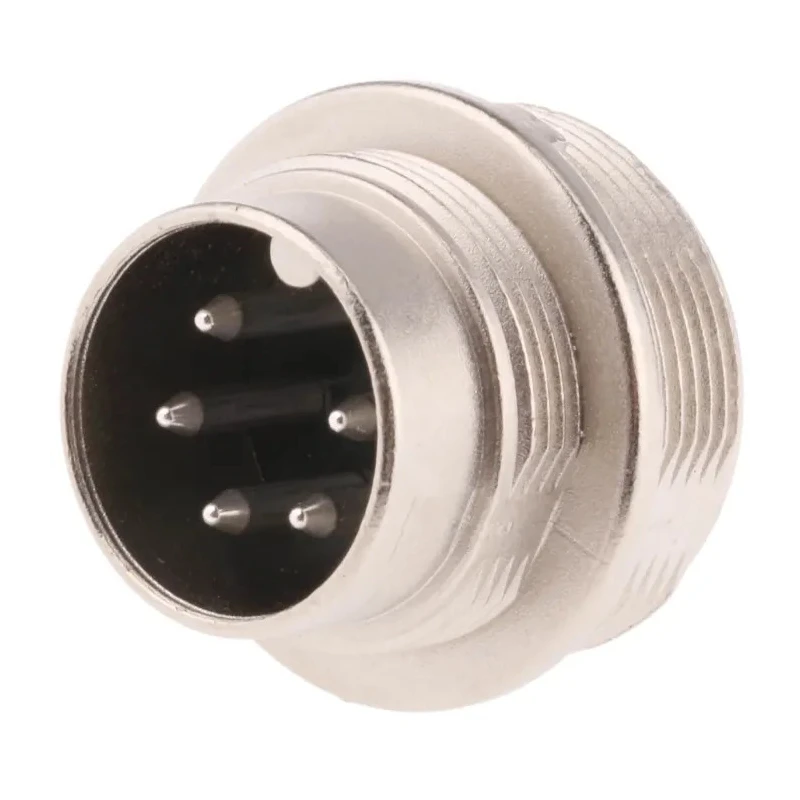

binder Circular Connector 5 Contacts Panel Mount M16 Plug Male IP40 680 Series 09-0315-00-05
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 6A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 18.5 mm |
| Connector Size | M16 |
| Plug/Socket | Plug |
Key Features
- The panel mount connector features a straight body and is constructed with die cast zinc housing for durability.
- It utilizes solder termination with silver-plated brass contacts to resist oxidation and ensure reliable conductivity.
- Rated for 250V and operating temperatures from -40°C to +85°C, it suits harsh industrial environments.
- This male plug connector has a shell size of 18.5 mm and supports 5 contact points for secure signal or power connections.
- The compact M16 connector size is ideal for precise mounting in medical equipment, machine tool control, and automation.
- The 680 Series provides simple assembly and long service life under demanding conditions.
Product Description
binder 09-0315-00-05 Circular Connector 5 Contacts Panel Mount M16 Plug Male IP40, 680 Series offers a miniature yet robust solution for industrial and electronic applications requiring secure and reliable connections.
The connector's straight panel mount design features a die cast zinc housing that provides mechanical strength and protection. It supports a nominal voltage of 250V and a current rating of 6A, suitable for a range of signal and power applications.
Equipped with five contacts using silver-plated brass, the connector ensures electrical reliability with reduced oxidation and enhanced durability. Its solder termination type facilitates straightforward assembly and maintenance.
This series operates efficiently in temperature ranges from -40°C to +85°C, making it appropriate for harsh industrial, medical equipment, machine tool control, and industrial automation environments.
The 18.5 mm shell size and M16 connector dimension allow compact installation in panels while assuring secure cable connections. The panel mount connector features a straight body and robust die cast zinc housing. Silver-plated brass contacts prevent corrosion and extend connector life.
Rated for 250V, 6A current with operating temperatures from -40°C to 85°C. Solder termination design provides reliable connection and ease of assembly. Ideal for industrial automation, medical, machine tool control, and instrumentation applications.
Compact M16 size facilitates easy panel mounting and cable management.
The binder 680 Series is recognized for high reliability and simple assembly, making it a preferred choice in demanding industrial electronic connector applications. This 5-contact male plug connector ensures consistent performance under extended use in various commercial and industrial settings.
Explore more industrial quality circular connectors and related components on EnvMart for your professional and technical equipment needs.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a nominal voltage of 250V.
It has a current rating of 6A, making it suitable for various signal and power applications.
This model operates efficiently within a temperature range of -40°C to 85°C.
The housing is made of die cast zinc, and the contacts are silver-plated brass to resist oxidation.
The shell size of this connector is 18.5 mm.
It features 5 contacts for secure signal or power connections.
The connector utilizes solder termination, which facilitates straightforward assembly and maintenance.
This model has an IP40 rating, indicating it is protected against solid objects larger than 1 mm but not against water.
It is ideal for industrial automation, medical equipment, machine tool control, and instrumentation applications.
The connector features a straight orientation, suitable for panel mounting.
The country of origin for this connector is Germany.
This connector is part of the 680 Series, recognized for its high reliability and simple assembly.
