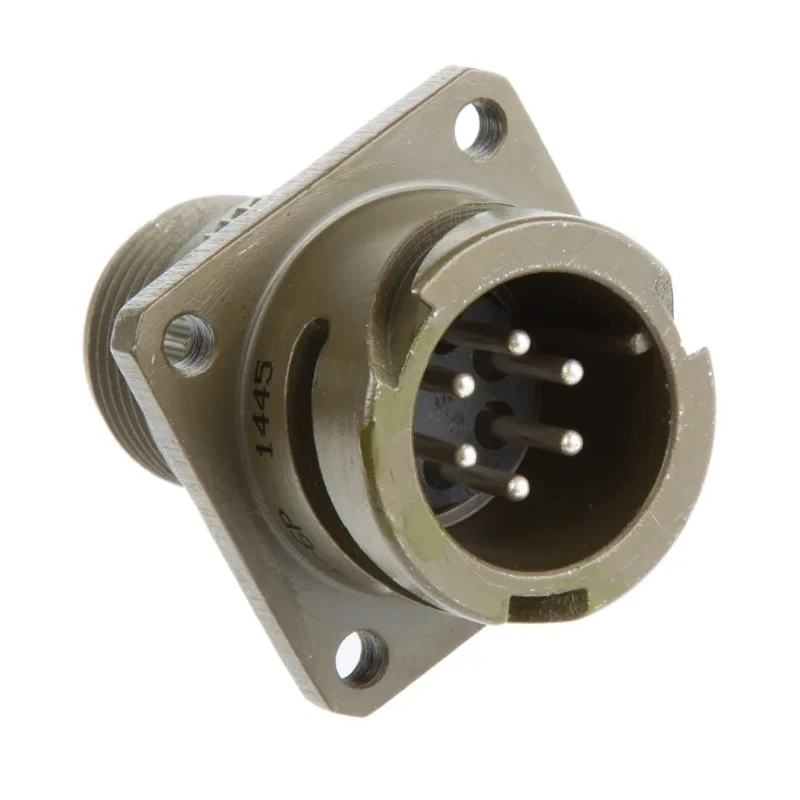

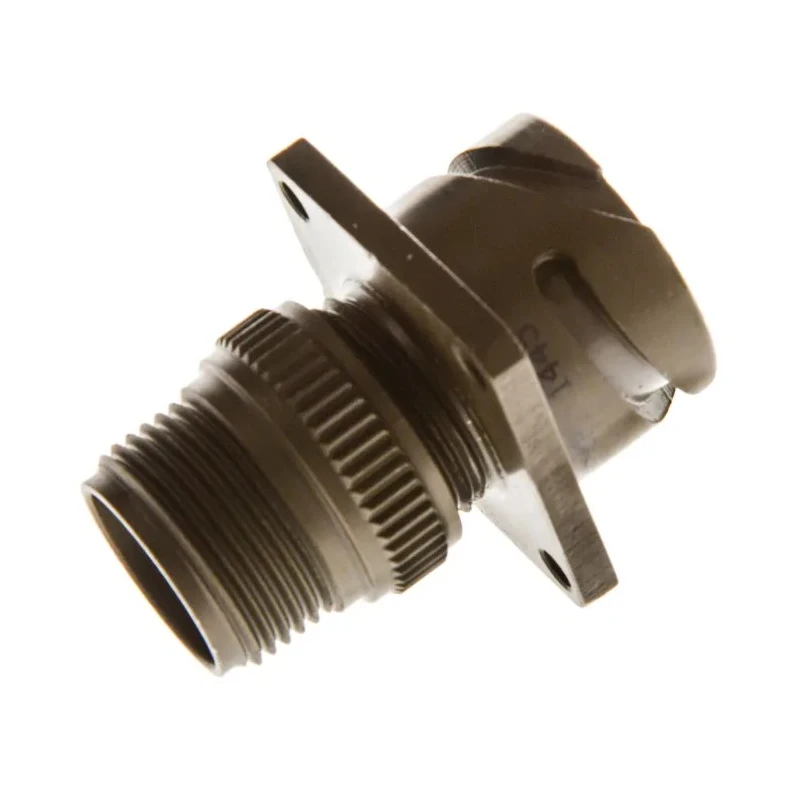

Amphenol Limited MIL Spec Brass Straight 6 Way Wall Mount Circular Connector 200V AC 13A Bayonet Mount 97B-3100A-14S-6P

Amphenol Limited 97B-3100A-14S-6P MIL Spec Circular Connector is a high-performance brass straight circular connector designed for wall mount applications in demanding industrial and military environments. This connector features 6 male contacts rated for 13 amperes of current and supports voltages up to 200V AC.

It incorporates a bayonet mating type for secure, quick coupling and decoupling. The connector's shell size is 14S, with a durable aluminium alloy housing finished in olive drab cadmium plating for corrosion resistance. The brass contacts are silver-plated to ensure excellent electrical conductivity and durability.

The connector is designed to operate within a wide temperature range from -55°C to 125°C, making it suitable for harsh environments encountered in aerospace, defense, transportation, and industrial automation.

Termination is done via solder contacts, ensuring a firm, reliable electrical connection. The straight orientation and bayonet mount type simplify installation and maintenance. Additionally, the connector incorporates strain relief features to maintain mechanical stability.

This connector series adheres to MIL-DTL-5015 military standards and is interconnectable with BS 9522 F0032 specification connectors, making it an industry-standard solution for circular connections.

Designed with 6 male contacts supporting a current rating of 13A. Operates at a voltage of 200V AC with a bayonet-style mating mechanism. Constructed with aluminium alloy housing and brass contact material with silver plating for enhanced conductivity.

Suitable for wall mount applications with strain relief and straight orientation. Operates reliably within temperature range from -55°C to 125°C. Meets MIL-DTL-5015 military specification and BS 9522 F0032 standards for rugged use.

Termination is via solder type contacts designed for secure and dependable connections. Olive drab cadmium plating ensures corrosion resistance in harsh environments. Ideal for electronics, aerospace, military, and industrial applications requiring robust connectors.

Choose Amphenol Limited 97B-3100A-14S-6P for reliable and robust circular connector solutions that meet stringent military and industrial standards. Browse more products in the Mil Spec Circular Connector category to find complementary parts and accessories.
