Omron Plastic Fibre Optic Sensor NPN Output 24V DC IP50

Free Delivery in India | Lowest Global Shipping Charges

Omron Plastic Fibre Optic Sensor NPN Output 24V DC IP50

Name: Omron Plastic Fibre Optic Sensor NPN Output 24V DC IP50
Brand: Omron
SKU: 185365
Price: 246.3 USD
Availability: InStock



Category Fibre Optic Sensor Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Dimensions	10 x 67.3 x 31.6 WDH mm
Response time	20s
Light Source	Red LED
Length	67.3mm
Model	IP50
Depth	31.5mm
IP Rating	IP50
Width	10mm
Mount Type	DIN Rail
Housing Material	Polybutylene Terephthalate
Output type	NPN
Series	E3X
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Switching Frequency	60Hz
Terminal type	Cable
Maximum Supply Voltage	24V dc
Fibre Optic Type	Plastic
Omron Amplifier, For Use With E3X SeriesBrand	Omron
Switching Current (mA)	50
Sensing Distance is typically	150mm (DC200) 400mm (TC200)
Omron Plastic Fibre Optic Sensor, NPN Output, IP50 250VBrand	Omron

Key Features

Red LED light source for reliable sensing.
Plastic fibre optic type with polybutylene terephthalate housing.
Durable with IP50 ingress protection and operating temperature ranging -25°C to 50°C.
Compact dimensions of 10 x 67.3 x 31.6 mm (W x L x D).
Switching frequency up to 60 Hz for fast response.
Sensing distance typical of 150mm (DC200) and 400mm (TC200).

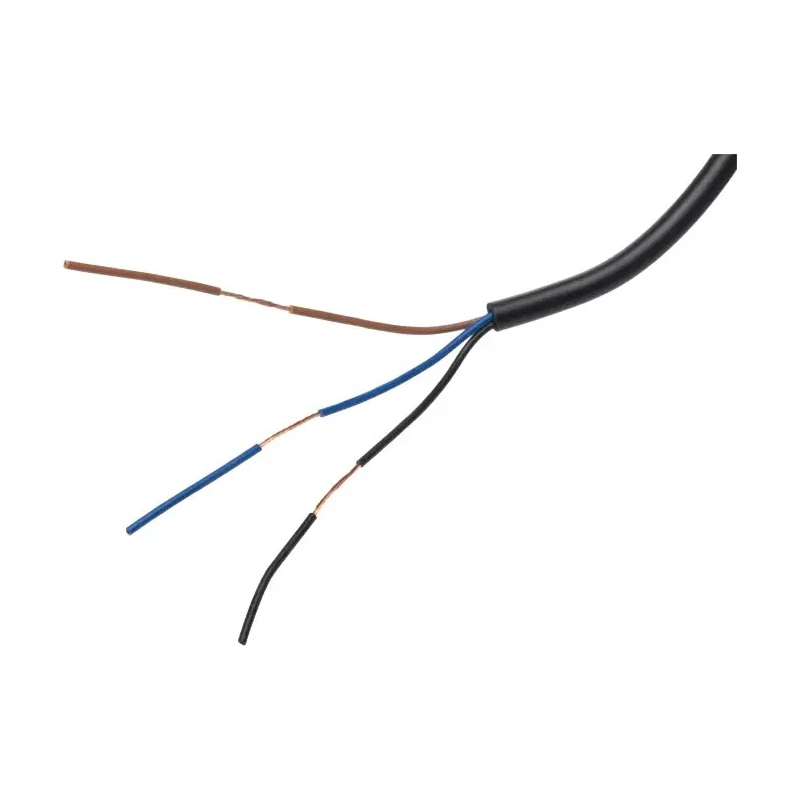

Equipped with cable terminal type for easy installation.
Short circuit and reverse polarity protection for safe operation.

Product Description

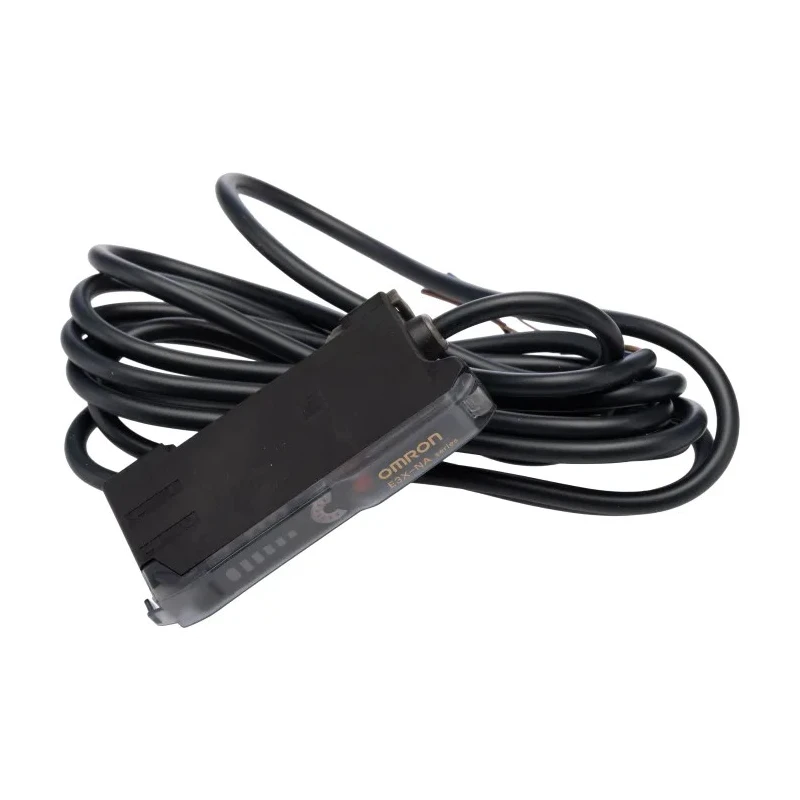

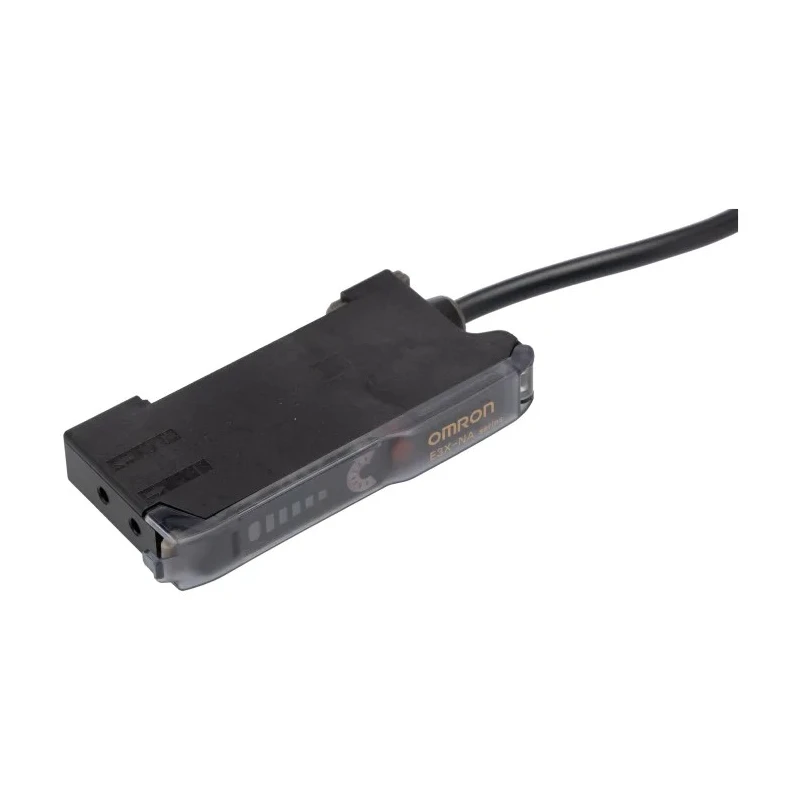

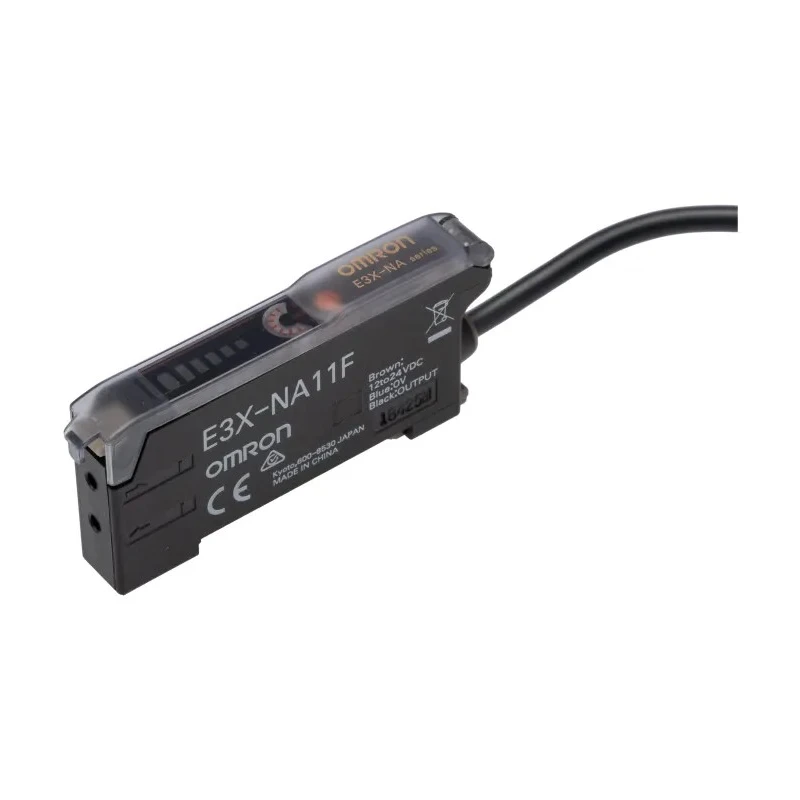

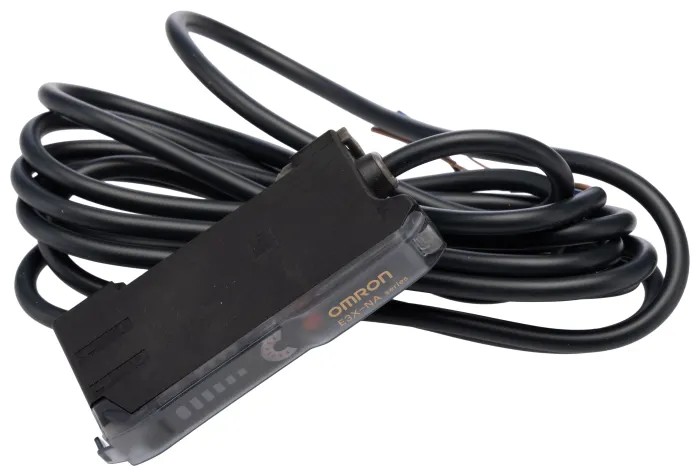

Omron E3X-NA11F 2M plastic Fibre Optic Sensor features a high-performance design with an NPN output and IP50 protection. Operating at 24V DC, this sensor utilizes a red LED light source and plastic fibre optic technology to detect objects reliably in demanding environments.

Constructed with a polybutylene terephthalate housing and a polycarbonate cover, the sensor is robust and suitable for industrial automation applications including labelling and production line controls. Its compact size measures 10 mm width, 67.3 mm length, and 31.6 mm depth, facilitating easy DIN rail mounting.

The sensor supports a switching frequency of 60 Hz and includes short circuit and reverse polarity protection. It features a simple potentiometer adjustment for sensitivity and LEDs to visually indicate alignment and optimal settings. The Light On/Dark On selectable function and 40 ms off delay timer help tailor the operation to specific process requirements.

With a typical sensing distance of 150 mm (DC200) and 400 mm (TC200), this sensor is ideal for precise detection in industrial, manufacturing, automation, and laboratory environments. Suitable for integration with Omron E32 fibre optic cables and compatible amplifiers enhancing system flexibility.

Red LED light source for reliable sensing. Plastic fibre optic type with polybutylene terephthalate housing. Durable with IP50 ingress protection and operating temperature ranging -25°C to 50°C. Compact dimensions of 10 x 67.3 x 31.6 mm (W x L x D).

Switching frequency up to 60 Hz for fast response. Sensing distance typical of 150mm (DC200) and 400mm (TC200). Equipped with cable terminal type for easy installation. Short circuit and reverse polarity protection for safe operation.

Supports Light On/Dark On switching and has a fixed 40 ms off delay timer. This sensor meets multiple international standards including UL VW1, IEC 60332-2-2, RoHS, and CSA approvals, ensuring quality and compliance. Explore the full range of Omron sensors and fibre optic components at EnvMart for industrial automation and control solutions.
