STMicroelectronics STM32F7 Series 32 bit ARM Cortex M7 Microcontroller 216 MHz, 2.048MB FLASH, 512kB RAM STM32F769NIH6

STMicroelectronics STM32F769NIH6 is an advanced 32 bit ARM Cortex M7 microcontroller from the STM32F7 series, designed for high-performance embedded applications. Operating at a clock frequency of up to 216 MHz, it integrates 2.048MB FLASH program memory and 512kB RAM, including tightly-coupled memories for optimized data and instruction processing.

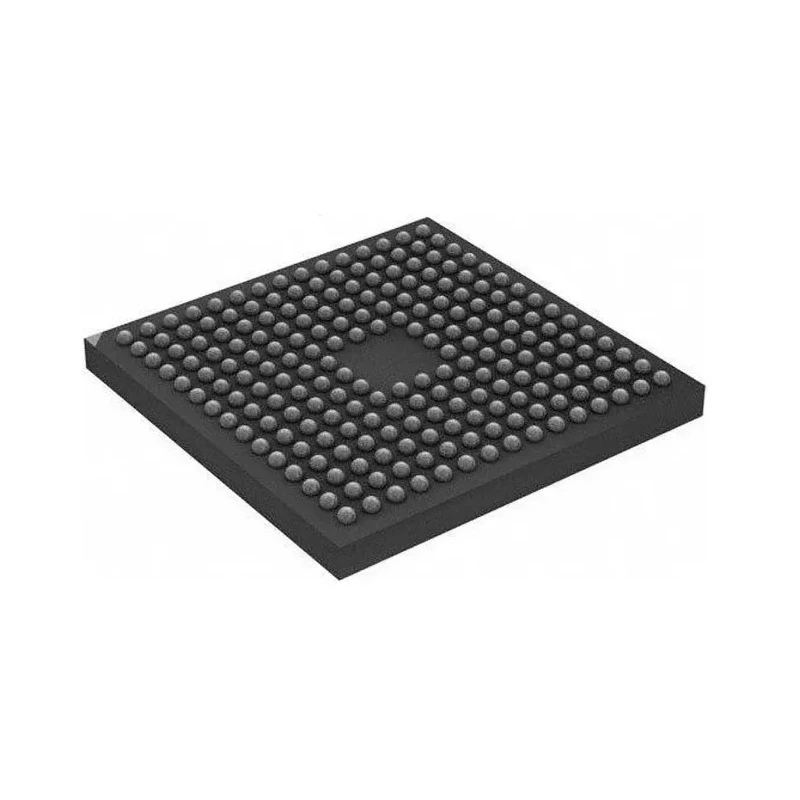

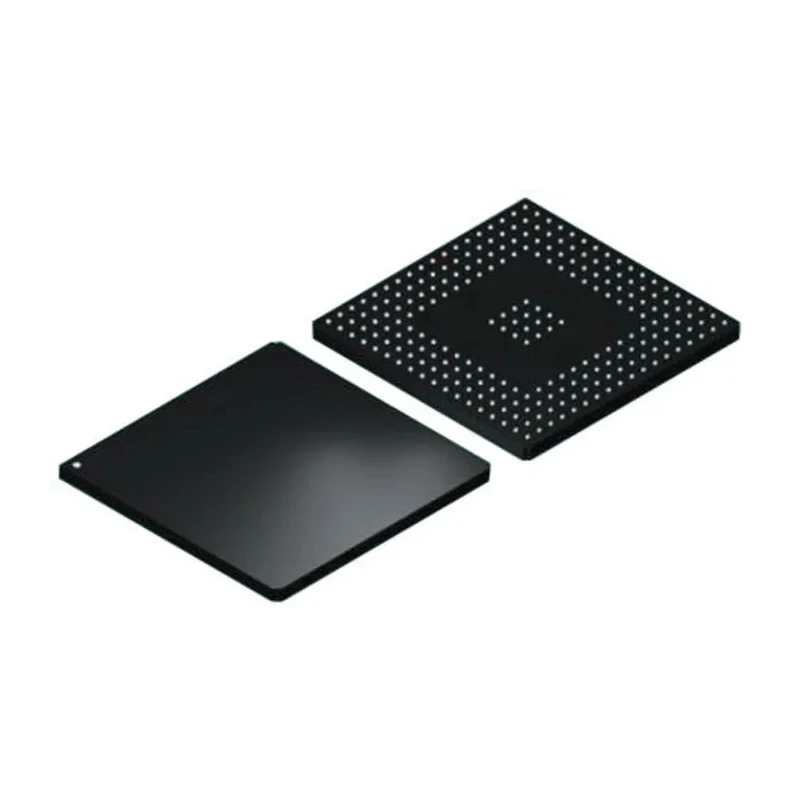

This microcontroller features a 216-pin TFBGA package suitable for surface mounting, offering a compact footprint of 13.15mm by 13.15mm and a height of 950μm. Its 168 programmable I/Os provide flexible interfacing options, supported by 24 ADC channels (12-bit resolution) and 2 DACs (12-bit), along with 12 timers for precise timing control.

The STM32F769NIH6 operates over a wide supply voltage range from 1.7V to 3.6V and functions reliably across a temperature span of -40°C to +85°C. With a maximum power dissipation of 690mW, it ensures efficient energy consumption for demanding industrial, automotive, and consumer electronics applications.

The microcontroller supports Harvard and RISC architecture instruction sets, enhanced by ST’s ART Accelerator™ and L1 cache, delivering up to 1082 CoreMark and 462 DMIPS performance benchmarks. It also provides low power modes with data retention in backup SRAM and features to protect code execution in some variants.

Ideal for sophisticated embedded systems in sectors such as industrial automation, consumer electronics, aerospace, and automotive control, the STM32F7 series offers robust performance and flexibility.

Features ARM Cortex M7 core architecture for advanced processing. Operates at a maximum clock frequency of 216 MHz. Includes 2.048MB of FLASH program memory with read-while-write capability. Equipped with 512kB RAM including tightly-coupled memories.

Has 168 programmable I/Os and 24 x 12 bit ADCs for versatile interfacing. Supports 2 x 12 bit DACs and 12 timers for complex control. Operates within supply voltage range: 1.7V to 3.6V. Package: 216-Pin TFBGA surface mount, 13.15mm x 13.15mm size.

Wide operating temperature range: -40°C to +85°C. Maximum power dissipation: 690mW for energy efficiency. Explore more Microcontrollers and semiconductor components for embedded systems at EnvMart.
