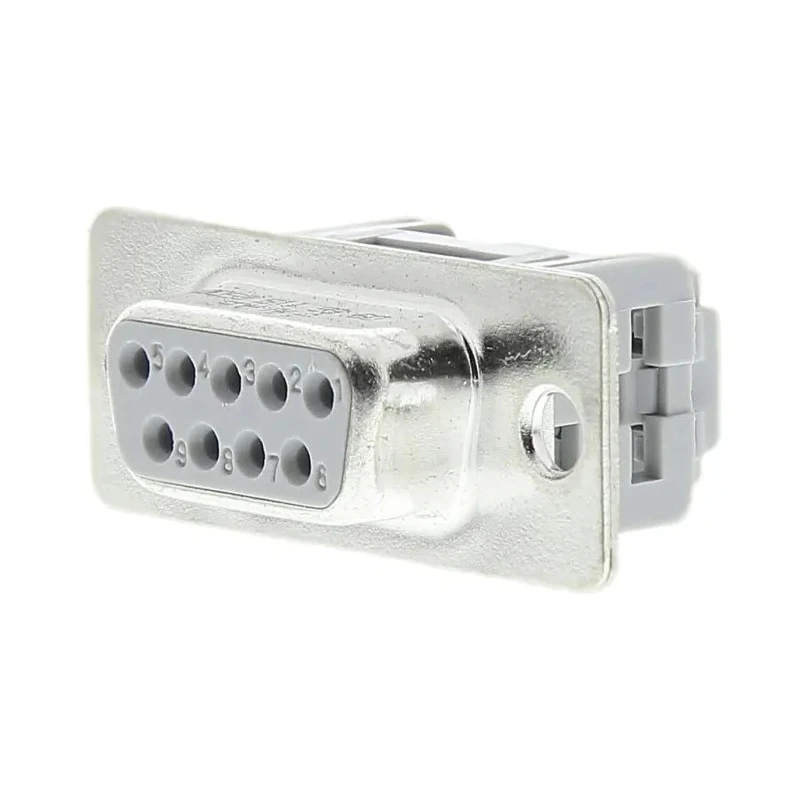

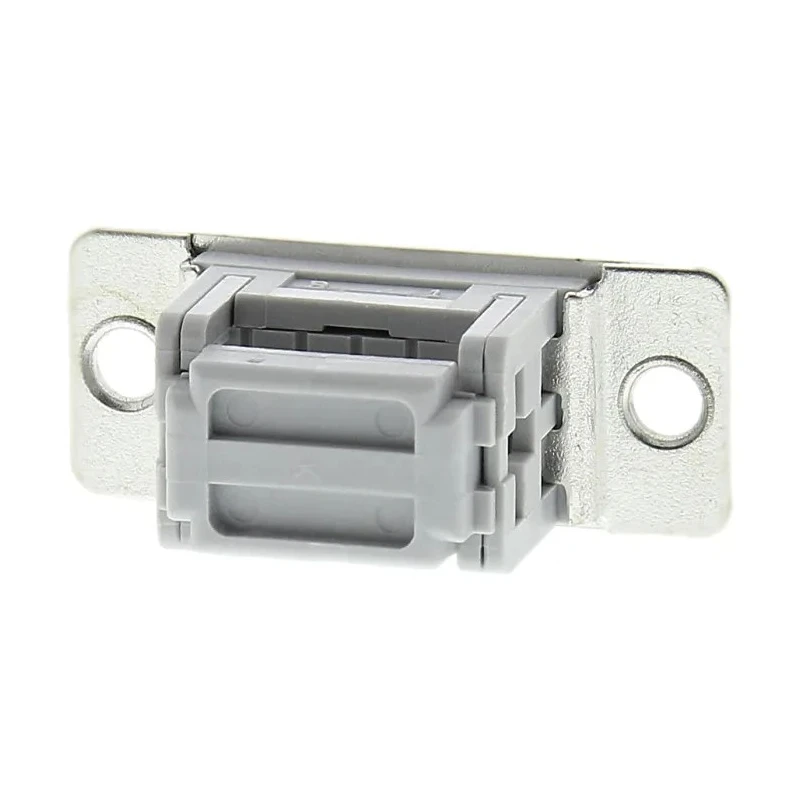

HARTING D-Sub 9 Way Right Angle 2.77 mm Pitch Cable D-Sub Connector Female 09661186500
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 2A |
| Mount Type | Cable |
| Housing Material | Metal |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.77mm |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
| D-Sub Shell Size | DS-1 |
| HARTING D-Sub 9 Way Straight 2.77 mm Pitch Cable D-Sub ConnectorBrand | HARTING |
Key Features
- The connector features 9 contacts designed for reliable connectivity.
- Current rating for each contact is 2A.
- Its orientation is right angle, facilitating space-saving cable arrangements.
- Constructed with metal housing for durability and shielding.
- Termination type is IDC for ease of installation.
- Operating temperature range is from -40°C up to 85°C.
- Contact material is copper alloy ensuring conductivity and resistance to corrosion.
- The pitch between contacts is 2.77 mm following DIN 41652 standards.
Product Description
The HARTING 09661186500 is a high-quality D-Sub Connector, featuring 9 female contacts arranged in a right angle orientation with a 2.77 mm pitch. This cable mount connector is designed for industrial and electronic applications requiring reliable and robust connections.
Its metal housing offers mechanical protection and EMI shielding which is essential in environments with electrical noise. The connector supports a current rating of 2A per contact and a voltage withstand of 1kV, making it suitable for a range of power and signal transmission uses.
The IDC termination simplifies installation by enabling cable connection without soldering, ideal for field assembly. Operating temperature ranges from -40°C to 85°C, ensuring dependable performance in harsh environments.
Manufactured to conform with DIN 41652 standards, this connector's copper alloy contacts provide excellent conductivity and resistance to corrosion. The pitch of 2.77 mm complies with the industry standard for D-Sub Connectors.
This component is widely used in electronic, communication, industrial automation, and manufacturing equipment for signal and power interfacing. Its right angle design aids in saving space and reducing strain on cables in tight assemblies.
The connector features 9 contacts designed for reliable connectivity. Current rating for each contact is 2A. Its orientation is right angle, facilitating space-saving cable arrangements. Constructed with metal housing for durability and shielding.
Voltage rating of 1kV supports industrial electronic applications. Termination type is IDC for ease of installation. Operating temperature range is from -40°C up to 85°C. Contact material is copper alloy ensuring conductivity and resistance to corrosion.
The pitch between contacts is 2.77 mm following DIN 41652 standards. This product is manufactured in China and maintains strict industrial quality. Explore EnvMart's extensive range of connectors for your industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating for each contact in this D-Sub connector is 2A.
The voltage rating of this model is 1kV, making it suitable for various industrial electronic applications.
This D-Sub connector features a right angle orientation, which helps in space-saving cable arrangements.
The operating temperature range for this connector is from -40°C to 85°C.
This model uses IDC termination, which simplifies installation by allowing cable connection without soldering.
The housing is made of metal for durability and EMI shielding, while the contacts are made of copper alloy for excellent conductivity and corrosion resistance.
This D-Sub connector has 9 female contacts.
The pitch between contacts in this connector is 2.77 mm, conforming to DIN 41652 standards.
The shell size of this D-Sub connector is DS-1.
This connector is manufactured in China.
This connector is suitable for electronic, communication, industrial automation, and manufacturing equipment for signal and power interfacing.
This model has a female connector gender.
