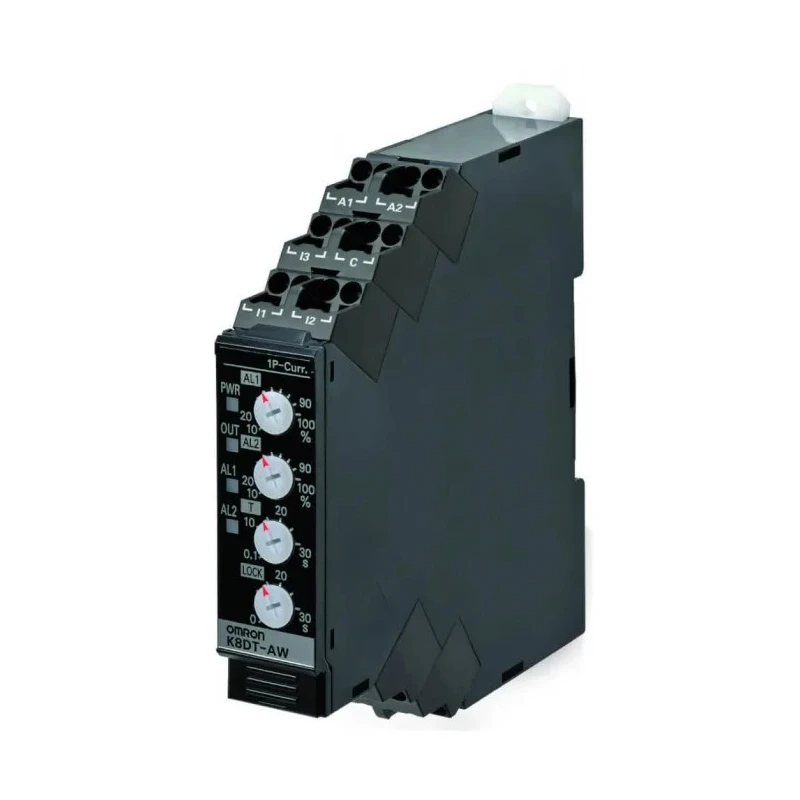

Omron Single Phase Monitoring Relay 1 Phase SPDT DIN Rail Mount 240V AC 2mA to 500mA Current Sensitivity K8DT-AW1CA

Free Delivery in India | Lowest Global Shipping Charges

Omron Single Phase Monitoring Relay 1 Phase SPDT DIN Rail Mount 240V AC 2mA to 500mA Current Sensitivity K8DT-AW1CA

Name: Omron Single Phase Monitoring Relay 1 Phase SPDT DIN Rail Mount 240V AC 2mA to 500mA Current Sensitivity K8DT-AW1CA
Brand: Omron
SKU: 184706
Price: 170.32 USD
Availability: InStock



Category Monitoring Relay Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	90mm
Length	90mm
Model	K8DT-AW1CA
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Series	K8DT-AW
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Time Delay	250 ms
Minimum Operating Temperature	+60°C
Terminal type	Push-in
Electrical Phase	1
Supply AC Voltage	240V ac
Minimum Current Sensed	2mA
Maximum Current Sensed	500mA
Current Sensitivity	Overcurrent, Undercurrent
Relay Contact Current	2, 500mA

Key Features

Operates on a wide 240V AC supply voltage for versatile industrial use.
Provides 250 ms time delay to prevent false trips from transient currents.
Push-in terminals enable fast and tool-free wiring installation.
Compact 17.5mm width reduces space usage on DIN rails.
Suitable for motor protection and auxiliary circuit monitoring in control panels.
Built-in detection of both overcurrent and undercurrent conditions.
Rated for reliable operation between -20°C and 60°C ambient temperatures.
Ingress Protection rating IP20 protects against solid object ingress in electrical enclosures.

Product Description

Omron K8DT-AW1CA is a robust single phase monitoring relay designed for industrial control and automation applications. It monitors current levels between 2mA and 500mA, detecting both overcurrent and undercurrent conditions with high reliability. This monitoring relay is equipped with a single pole double throw (SPDT) contact configuration and is intended for DIN rail mounting within control panels, ensuring compact integration in dense industrial installations.

Powered by a universal AC supply voltage of 240V, the device is compatible with various industrial power systems. A 250 millisecond time delay feature helps prevent nuisance tripping caused by transient current spikes, improving system stability. The relay’s push-in terminal design supports quick, screwless wiring, enhancing ease of installation and maintenance while reducing downtime.

The narrow 17.5 mm profile preserves valuable DIN rail space, allowing multiple units to be installed efficiently in automation racks or motor protection circuits. The relay functions effectively under environmental conditions ranging from -20°C to 60°C, suitable for unheated enclosures and factory settings. Its IP20 ingress protection rating safeguards internal components from accidental contact and solid particles in industrial environments.

This model is ideal for monitoring auxiliary circuits, load drop detection, and supply loss in diverse applications such as industrial manufacturing systems, HVAC control panels, and automation setups. The relay complies with RoHS directives and meets standards EN 60947-5-1 and UL 60947-5-1, ensuring quality and safety.

Operates on 240V AC supply voltage for flexible use. Monitors current range from 2mA to 500mA with overcurrent and undercurrent detection. SPDT single switch output for reliable control circuit integration. DIN rail mount offers space-efficient installation.

Push-in terminals simplify and speed up wiring tasks. 250 ms delay prevents false trips from transient conditions. Compact 17.5mm width conserves panel space. IP20 protection suitable for controlled environments. Operates reliably from -20°C to 60°C ambient temperature.

Package includes the Omron K8DT-AW1CA monitoring relay ready for industrial applications requiring sensitive and reliable current monitoring. Explore more in our Monitoring Relay category for compatible components and accessories at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model monitors current levels between 2mA and 500mA, capable of detecting both overcurrent and undercurrent conditions.

It operates on a universal AC supply voltage of 240V, making it suitable for various industrial power systems.

This relay includes a 250 millisecond time delay to prevent nuisance tripping caused by transient currents.

The K8DT-AW1CA has an IP20 ingress protection rating, which safeguards against solid object ingress in electrical enclosures.

It features a single pole double throw (SPDT) contact configuration for reliable control circuit integration.

It operates reliably within an ambient temperature range of -20°C to 60°C, suitable for various industrial environments.

This model has a compact width of 17.5mm, allowing for efficient use of DIN rail space.

It is equipped with push-in terminals, enabling quick and tool-free wiring installation.

This monitoring relay is ideal for monitoring auxiliary circuits, load drop detection, and supply loss in industrial manufacturing systems and HVAC control panels.

The K8DT-AW1CA measures 90mm in height and length, with a width of 17.5mm.

Yes, it complies with RoHS directives and meets the standards EN 60947-5-1 and UL 60947-5-1, ensuring quality and safety.

The maximum current that can be sensed by this unit is 500mA, allowing for effective monitoring of electrical loads.
