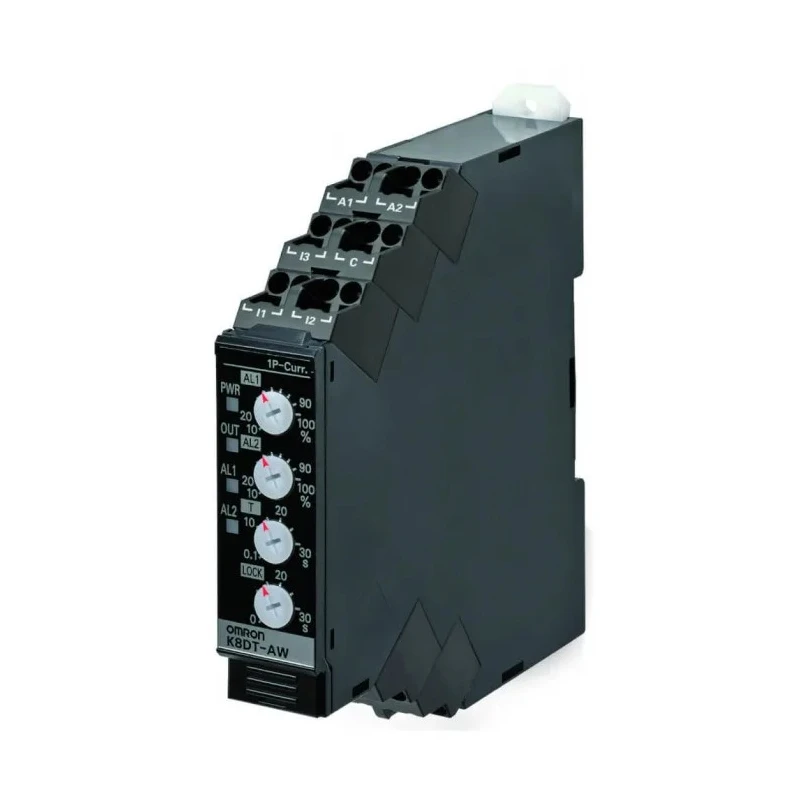

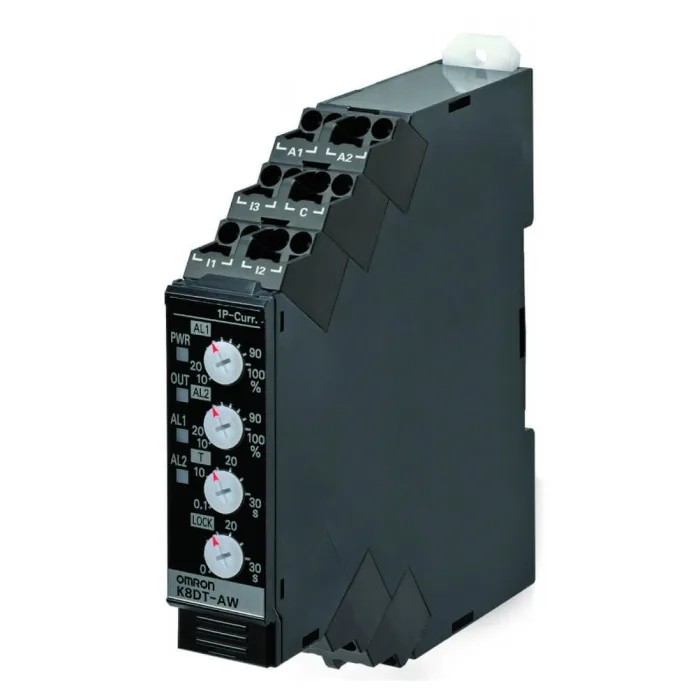

Omron Monitoring Relay 1 Phase SPST DIN Rail Mount 20.4–26.4 V dc 26.4 V ac 2 mA to 500 mA K8DT-AW1TD

Free Delivery in India | Lowest Global Shipping Charges

Omron Monitoring Relay 1 Phase SPST DIN Rail Mount 20.4 - 26.4 V dc 26.4 V ac 2 mA to 500 mA K8DT-AW1TD

Name: Omron Monitoring Relay 1 Phase SPST DIN Rail Mount 20.4 - 26.4 V dc 26.4 V ac 2 mA to 500 mA K8DT-AW1TD
Brand: Omron
SKU: 184705
Price: 174.09 USD
Availability: InStock



Category Monitoring Relays Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Height	90mm
Length	90mm
Model	K8DT-AW1TD
IP Rating	IP20
Width	17.5mm
Mount Type	DIN Rail
Series	K8DT-AW
Maximum Operating Temperature	60°C
Contact Configuration	SPST
Time Delay	250 ms
Minimum Operating Temperature	+60°C
Terminal type	Push-in
Electrical Phase	1
Supply DC Voltage	20.4 → 26.4 V dc
Supply AC Voltage	26.4V ac
Minimum Current Sensed	2mA
Maximum Current Sensed	500mA
Current Sensitivity	Undercurrent, Overcurrent
Relay Contact Current	2, 500mA

Key Features

Detects currents ranging from 2 mA to 500 mA for accurate overcurrent and undercurrent monitoring.
Operates with supply voltage between 20.4 and 26.4 V dc and 26.4 V ac.
Push-in terminals allow tool-free, rapid wiring.
Compact DIN rail mounting simplifies panel installation.
Low power consumption reduces electrical load.
250 ms response time filters transient faults from actual events.
IP20 protection rating for panel use.
Complies with EN 60947-5-1, UL 60947-5-1, RoHS.

Product Description

Omron K8DT-AW1TD is a single-phase monitoring relay designed for precise control and monitoring in industrial automation systems. It features an SPST contact configuration with a DIN rail mount type suitable for compact electrical panel installations. This relay supports current detection from 2 mA to 500 mA, providing reliable undercurrent and overcurrent sensing capabilities essential for motor-run detection, HVAC control systems, and process equipment monitoring.

The device operates within a supply voltage range of 20.4 to 26.4 V dc and 26.4 V ac, enabling flexible power options. Push-in terminals facilitate rapid and secure wiring without the need for tools, improving maintenance efficiency. A 250 millisecond time delay helps to distinguish transient load variations from actual fault conditions.

Additional features include a low power draw of 1.8 VA to reduce power consumption, and an IP20 enclosure rating that protects internal circuitry from dust ingress in controlled panel environments. Physical dimensions are compact at 90 mm high, 17.5 mm wide, and 90 mm long, making it suitable for dense panel arrangements.

Omron's K8DT-AW1TD meets international safety and performance standards, including EN 60947-5-1 and UL 60947-5-1, and complies with RoHS environmental regulations, ensuring both reliability and sustainability in industrial applications.

Common applications include monitoring single-phase lines for preventive maintenance alerts, detecting line-loss and leakage in process plants, and supporting motor run detection in control cabinets. Its quick installation and robust monitoring capabilities make it an essential component in automation, electrical enclosure, manufacturing, and HVAC systems.

Set contains one Omron K8DT-AW1TD monitoring relay unit. Explore more monitoring and signal conditioning relays in EnvMart’s Electricals category for comprehensive industrial automation solutions. Detects currents ranging from 2 mA to 500 mA for accurate overcurrent and undercurrent monitoring.

Operates with supply voltage between 20.4 and 26.4 V dc and 26.4 V ac. Push-in terminals allow tool-free, rapid wiring. Compact DIN rail mounting simplifies panel installation. Low power consumption reduces electrical load.

250 ms response time filters transient faults from actual events. IP20 protection rating for panel use. Complies with EN 60947-5-1, UL 60947-5-1, RoHS.

Explore more products in our Monitoring Relays category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model detects currents ranging from 2 mA to 500 mA, allowing for accurate overcurrent and undercurrent monitoring.

It operates with a supply voltage between 20.4 and 26.4 V dc and 26.4 V ac, providing flexibility for various applications.

This unit features push-in terminals, which allow for tool-free and rapid wiring, enhancing maintenance efficiency.

It has a response time of 250 milliseconds, which helps to filter transient faults from actual events.

The relay has an IP20 protection rating, which safeguards the internal circuitry from dust ingress in controlled environments.

It has a compact size of 90 mm in height, 17.5 mm in width, and 90 mm in length, making it suitable for dense panel arrangements.

The K8DT-AW1TD is designed with an SPST contact configuration, suitable for single-phase applications.

The maximum operating temperature is 60°C, while the minimum operating temperature is +60°C.

It complies with EN 60947-5-1, UL 60947-5-1, and RoHS environmental regulations, ensuring safety and sustainability.

Common applications include monitoring single-phase lines for preventive maintenance, detecting line-loss and leakage in process plants, and supporting motor run detection in control cabinets.

The 250 ms time delay feature helps to filter out transient load variations, allowing for accurate fault detection.

It has a low power draw of 1.8 VA, which reduces overall electrical load in the system.
