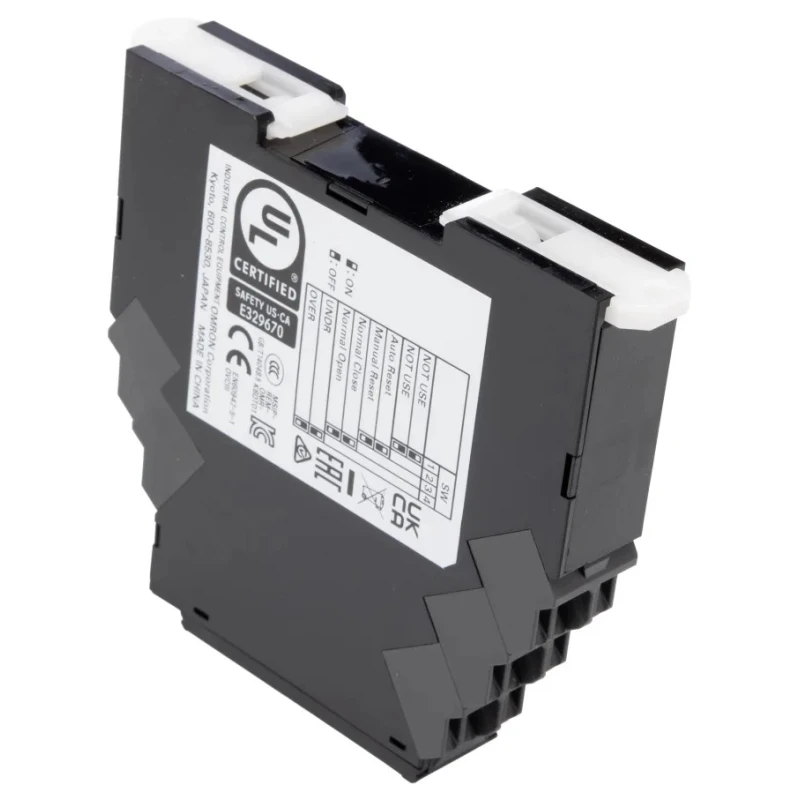

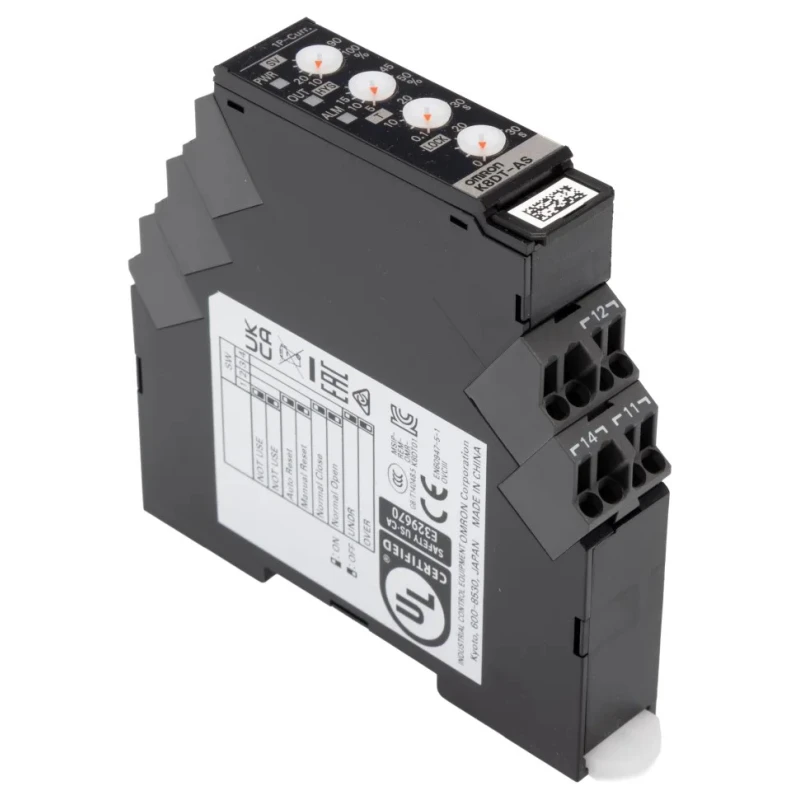

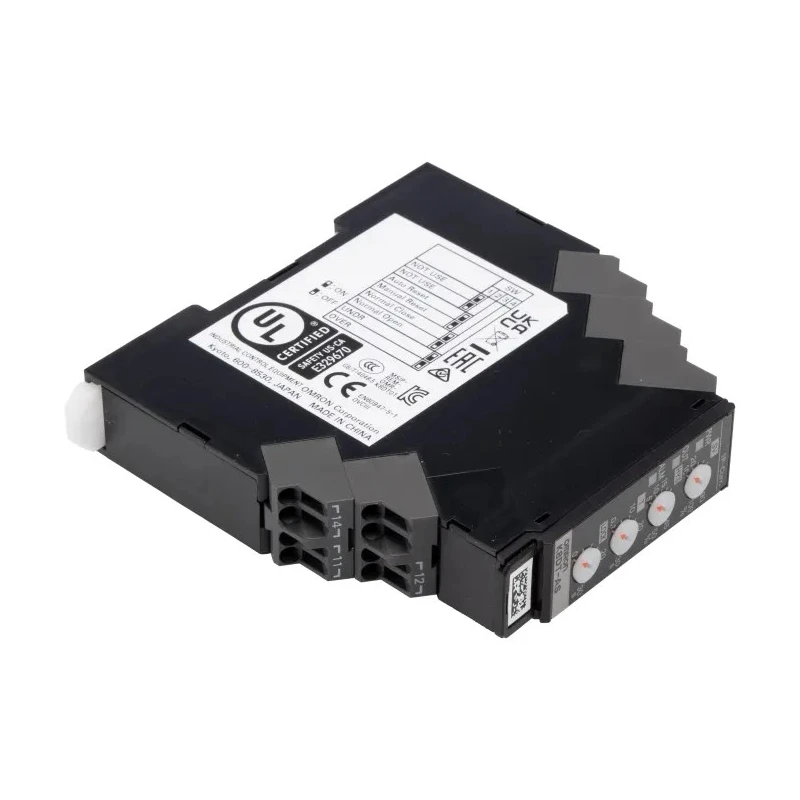

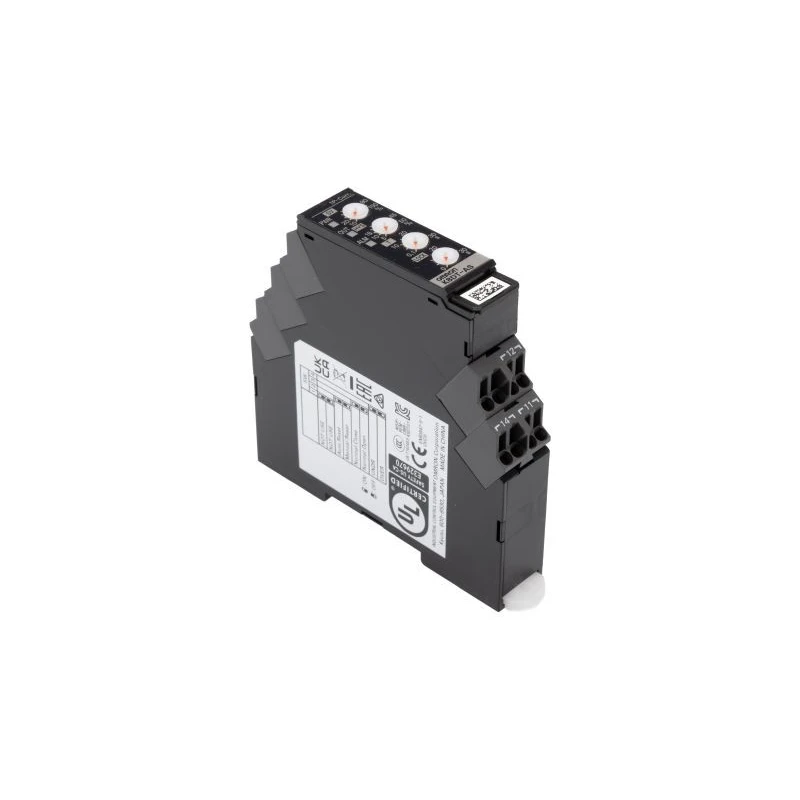

Omron Single Phase Monitoring Relay 1 Phase SPDT Push-in Terminals DIN Rail Mount 0.1A to 5A K8DT-AS2CA

Omron K8DT-AS2CA is a new single phase monitoring relay that provides precise current supervision for industrial control systems. It features a SPDT contact configuration and mounts easily on DIN rails with push-in terminals for tool-free installation.

The relay accurately detects current levels between 0.1A and 5A, suitable for overcurrent and undercurrent monitoring. An adjustable 250 ms time delay filters transient spikes, reducing unwanted tripping events and ensuring reliable operation. With a low power consumption of 2.5 VA, it minimizes auxiliary supply load.

Designed for ambient temperatures from -20 °C to 60 °C and an IP20 protection rating, this model is compliant with EN 60947-5-1, UL 60947-5-1, and RoHS standards, making it well suited for a wide range of industrial environments.

The compact dimensions of 90 mm in height, 90 mm length, and 17.5 mm width enable space-saving panel installation. Push-in terminal types reduce wiring time and maintenance efforts. The relay’s SPDT contacts can switch control currents from 0.1 A up to 5 A, enabling direct interfacing with small loads and contactors.

Typical applications include motor supply current monitoring, phase loss and load imbalance detection, and process equipment current verification in manufacturing and workshop settings. The relay clips onto standard DIN rails, facilitating quick panel mounting and repositioning without extra hardware.

This relay supervises overcurrent and undercurrent conditions accurately on industrial control circuits. It features an adjustable 250 ms time delay to prevent nuisance tripping from transient spikes. The compact DIN rail mount design allows easy installation and repositioning in control panels.

Push-in terminal type enables quick tool-free wiring and maintenance. Low power consumption of 2.5 VA reduces auxiliary power burden. Operates within an ambient temperature range of -20 °C to 60 °C for versatile use environments.

IP20 rated housing provides basic ingress protection compliant with EN and UL standards. The SPDT contact supports switching currents between 0.1 A and 5 A for control of small loads. Ideal for monitoring motor supply current and phase loss detection on production lines.
