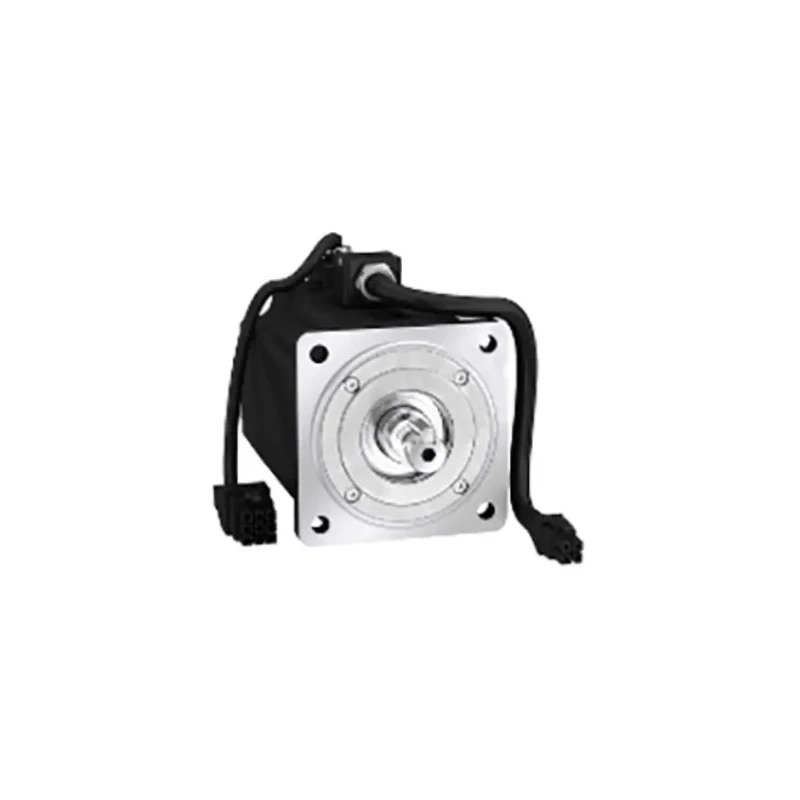

Schneider Electric 220V DC 3kW Servo Motor 3000rpm 42.97Nm Max Output Torque 35mm Shaft Diameter BCH2MR3023CA6C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Length | 281mm |
| Model | BCH2MR3023CA6C |
| Depth | 245mm |
| Width | 180mm |
| Mount Type | Flange, Screw |
| Current Rating | 53.9Arms |
| Series | Lexium |
| Power Rating | 3kW |
| Output Speed | 3000rpm |
| Shaft Diameter | 35mm |
| Shaft Length | 79mm |
| Supply Voltage | 220V dc |
| Standards/Approvals | RoHS |
| Maximum Output Torque | 42.97Nm |
| Stall Torque | 14.32Nm |
| Rotor Inertia | 53.56kg.cm² |
Key Features
- The motor features a 35mm shaft diameter and a shaft length of 79mm.
- It has a current rating of 53.9 Arms and a stall torque of 14.32Nm.
- The motor is equipped with a flange and screw mount type for secure installation.
- Part of the Lexium series, it includes a high resolution 20-bit single-turn absolute encoder for precise control.
- Its robust design makes it suitable for industrial automation and control applications.
- Approval to RoHS standards ensures compliance with environmental safety requirements.
- Rotor inertia is 53.56 kg.cm², aiding in smooth operation and control.
Product Description
Schneider Electric BCH2MR3023CA6C is a 220V DC Servo Motor designed for precision and high performance in industrial automation and control environments. With a power output rating of 3kW and an operating speed of 3000rpm, this motor delivers a maximum output torque of 42.97Nm, suitable for demanding applications requiring reliable motion control.
This servo motor features a 35mm diameter shaft and a 79mm length shaft, mounted using flange and screw types for optimal stability and ease of installation. The motor's stall torque is rated at 14.32Nm, ensuring robust holding capabilities during operation.
Part of Schneider Electric's Lexium series, the BCH2MR3023CA6C includes a high resolution 20-bit single-turn absolute encoder to provide precise position feedback, essential for applications like printing, packaging, winding, unwinding, and materials handling. The motor has a current rating of 53.9 Arms and rotor inertia of 53.56 kg.cm², which contribute to smooth and responsive control.
Compliant with RoHS standards, this servo motor meets environmental safety regulations. Its physical dimensions are 281mm in length, 180mm in width, and 245mm in depth, with a country of origin noted as China.
The motor is ideally used in industrial automation, manufacturing machinery, robotics, and other precision control systems requiring reliable servo motion with high torque and speed capabilities.
The motor features a 35mm shaft diameter and 79mm shaft length for robust mechanical interfacing. Mounting is achieved through flange and screw types ensuring secure installation. High resolution 20-bit absolute encoder provides precise position feedback.
Robust torque capabilities up to 42.97Nm support heavy load applications. Complies with RoHS standards promoting environmental safety. Dimensions of 281mm x 180mm x 245mm suit a variety of installation environments. Rotor inertia of 53.56 kg.cm² enhances motion smoothness and control stability.
Choose Schneider Electric BCH2MR3023CA6C servo motor for advanced industrial servo drive applications. Browse more motors and servo solutions on EnvMart.
Explore more products in our Servo Motors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this servo motor is 3kW.
This model has a maximum output torque of 42.97Nm.
The motor has dimensions of 281mm in length, 180mm in width, and 245mm in depth.
It uses flange and screw mounting types for secure installation.
The shaft diameter is 35mm and the shaft length is 79mm.
The current rating is 53.9 Arms.
The operating speed of this motor is 3000rpm.
Yes, it complies with RoHS standards, ensuring environmental safety.
The stall torque is rated at 14.32Nm.
The rotor inertia is 53.56 kg.cm².
This motor is part of Schneider Electric's Lexium series.
It is suitable for industrial automation, manufacturing machinery, robotics, and precision control systems.
