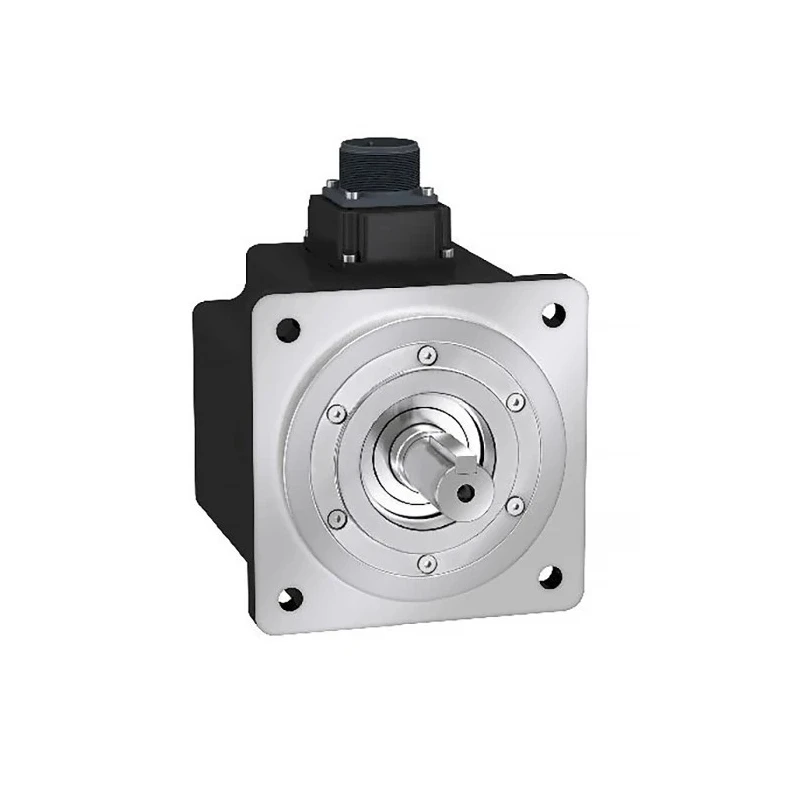

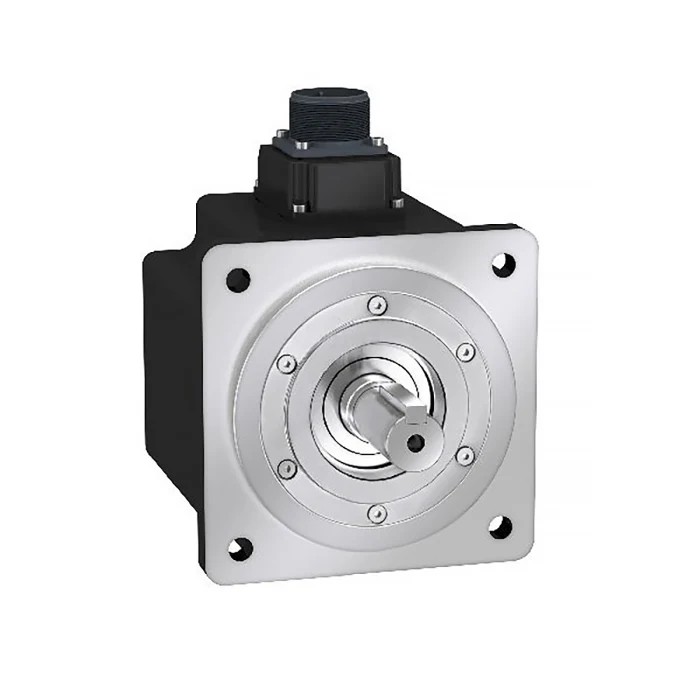

Schneider Electric 220V DC 750W Brushless Servo Motor, 5000 RPM, 7.16 Nm Max Output Torque, 19 mm Shaft BCH2LF0733CA5C

Free Delivery in India | Lowest Global Shipping Charges

Schneider Electric 220V DC 750W Brushless Servo Motor, 5000 RPM, 7.16 Nm Max Output Torque, 19 mm Shaft BCH2LF0733CA5C

Name: Schneider Electric 220V DC 750W Brushless Servo Motor, 5000 RPM, 7.16 Nm Max Output Torque, 19 mm Shaft BCH2LF0733CA5C
Brand: Schneider Electric
SKU: 184625
Price: 918.42 USD
Availability: InStock



Category Servo Motors Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Length	173mm
Model	BCH2LF0733CA5C
Depth	95mm
Width	80mm
Mount Type	Screw, Flange
Current Rating	13.23Arms
Series	Lexium
Power Rating	750W
Output Speed	5000rpm
Shaft Diameter	19mm
Shaft Length	35mm
Supply Voltage	220V dc
Standards/Approvals	RoHS
Maximum Output Torque	7.16Nm
Stall Torque	2.39Nm
Rotor Inertia	1.19kg.cm²

Key Features

Brushless servo motor with a continuous power rating of 750 Watts.
Maximum output torque of 7.16 Nm ensures effective mechanical drive.
Features 19 mm diameter shaft with 35 mm shaft length for robust coupling.
Equipped with a 20-bit single-turn absolute encoder for precision feedback.
IP50 and IP65 rated for protection against dust and water ingress.
Compatible with Lexium 28 and Lexium 26D servo drives.
Current rating of 13.23 Arms supports stable operation.
Mount type includes screw and flange for secure installation.

Product Description

Schneider Electric BCH2LF0733CA5C is a brushless 220V DC servo motor delivering 750 Watts continuous power with a maximum mechanical speed of 5000 RPM and a maximum output torque of 7.16 Nm. This motor is part of the Lexium 28 series designed for high performance industrial motion control applications including printing, packaging, winding, unwinding, and materials handling.

The motor includes a 20-bit single-turn absolute encoder optimized for effective speed feedback and precision. The shaft measures 19 mm in diameter and 35 mm in length, mounted on screw and flange types for stability. It holds an IP50 rating in IM V3 mounting and IP65 rating in IM B5 and IM V1 mountings, offering protection in harsher environments.

The motor dimensions are 173 mm length, 80 mm width, and 95 mm depth, with a rotor inertia of 1.19 kg.cm². It supports a continuous stall current of 4.01 A and a typical current rating of 13.23 Arms under operation conditions. This servo motor is compatible with Lexium 28 and Lexium 26D servo drives, making it an efficient component for automation and control gear systems.

Schneider Electric BCH2LF0733CA5C servo motors are built to meet RoHS standards, facilitating eco-friendly manufacturing processes while ensuring durability. The motor is suitable for industrial automation, laboratory equipment, HVAC systems, manufacturing machines, and water treatment systems requiring precise rotational control.

Brushless servo motor with continuous 750W power. Maximum torque output at 7.16 Nm for demanding applications. 19 mm diameter shaft length 35 mm with IP65 protection rating. Compatible with Lexium 28 and Lexium 26D servo drives.

20-bit absolute encoder ensures position accuracy and speed feedback. Screw and flange mount types for flexible installation options. Meets RoHS compliance for reduced environmental impact. Dimensions: 173 mm (L) x 80 mm (W) x 95 mm (D) for compact footprint.

Rotor inertia of 1.19 kg.cm² promoting stable motor performance. Current rating of 13.23 Arms supports efficient motor operation. This servo motor represents a reliable and energy efficient choice for motion control needs. Discover more motors and automation solutions in the Servo Motors category at EnvMart.
