Wieland GST18i3 Series Cable Mini Connector Male Clamp 3-Pole 16A 250V IP40 GST18i3

Free Delivery in India | Lowest Global Shipping Charges

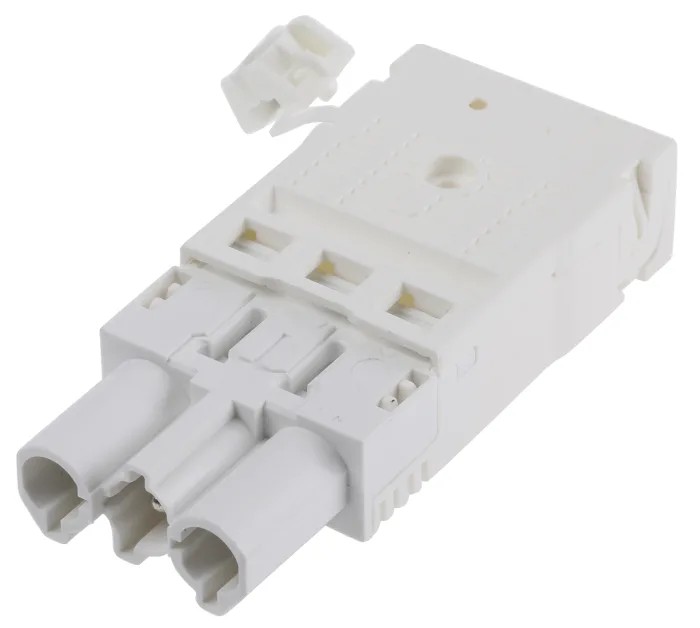

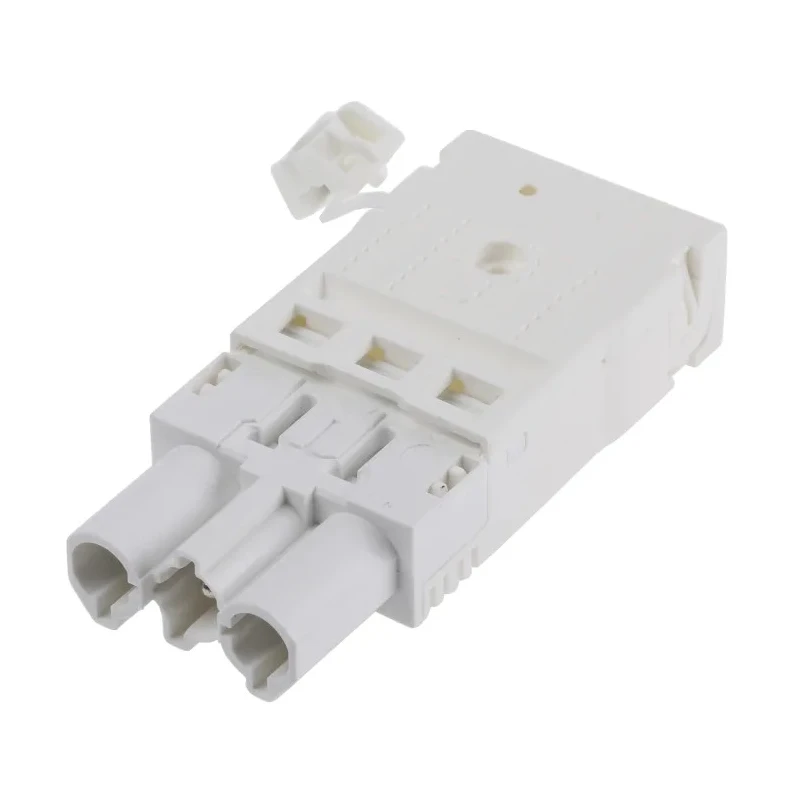

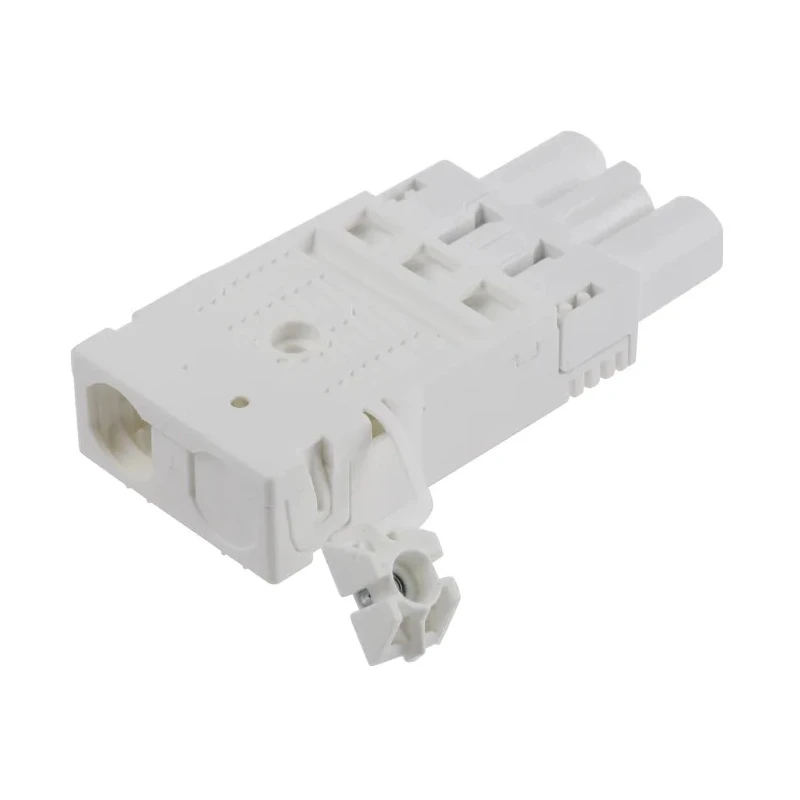

Wieland GST18i3 Series Cable Mini Connector Male Clamp 3-Pole 16A 250V IP40 GST18i3

Name: Wieland GST18i3 Series Cable Mini Connector Male Clamp 3-Pole 16A 250V IP40 GST18i3
Brand: Wieland
SKU: 184508
Price: 9.87 USD
Availability: InStock



Category Lighting Connectors Brand Wieland Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Diameter	10.3mm
Brand	Wieland
Colour	White
Model	GST18i3
IP Rating	IP40
Mount Type	Cable
Contact Material	Copper Zinc Alloy
Termination Type	Clamp
Sub Type	Mini Connector
Wire size	0.5, 1.5mm²
Pole Format	3
Contact Plating	Tin
Contact Gender	Male
Connector Gender	Male
Lighting Connector Current	16A
Wieland GST18 Series Cable Connector Male Screw, 3-Pole, 20A, IP20Brand	Wieland

Key Features

Designed with top cover strain relief for secure cable mounting.
Made from brass tin-plated contact material for excellent conductivity.
Suitable for lighting and factory-assembled equipment applications.
Operates safely up to 100°C with thermoplastic insulation.
Provides mechanical and colour coding to prevent mismating errors.
Complies with DIN VDE 0628 and EN/IEC 61535 standards.
Features a leading earth contact and optional locking device for safety.
Supports wire sizes from 0.5 to 2.5 mm².

Product Description

Wieland GST18i3 Series Cable Mini Connector Male Clamp is a high-quality, 3-pole lighting connector designed for industrial and commercial lighting applications. It operates at 250V and 16A with IP40 ingress protection, ensuring safe and reliable connections on construction sites, shop displays, exhibition wiring, and factory-assembled equipment.

The connector utilizes a top cover strain relief for secure cable fixation, and its contacts are made of tin-plated brass, ensuring excellent electrical performance and durability. An operating temperature of 100°C is supported thanks to its thermoplastic insulating material.

Mechanical and colour coding enable easy identification and prevent mismating, enhancing operational safety. The connector features a leading earth contact and an optional locking device to maximize connection safety. Wire sizes accommodated range from 0.5 to 2.5 mm², with the connector rated for 50 to 100 connection cycles at full load.

These connectors comply with DIN VDE 0628 and EN/IEC 61535 standards, and UL 1977 approval confirms their suitability for use in data, signal, control, and power applications. Top cover strain relief ensures secure cable mounting.

Brass contacts with tin plating provide corrosion resistance. Color and mechanical coding prevent misconnections. Rated for 16A current and 250V voltage applications. Operating temperature up to 100°C with thermoplastic insulation.

Suitable for lighting, construction sites, and factory equipment. Allows 50 to 100 connection cycles at full load. Optional locking device enhances connection safety. Compliant with DIN VDE and EN/IEC standards.

This Wieland GST18i3 series connector is an essential component for secure and safe electrical connections in industrial lighting and other commercial electrical systems. Browse EnvMart's Electrical Components category for additional compatible connectors and accessories.
