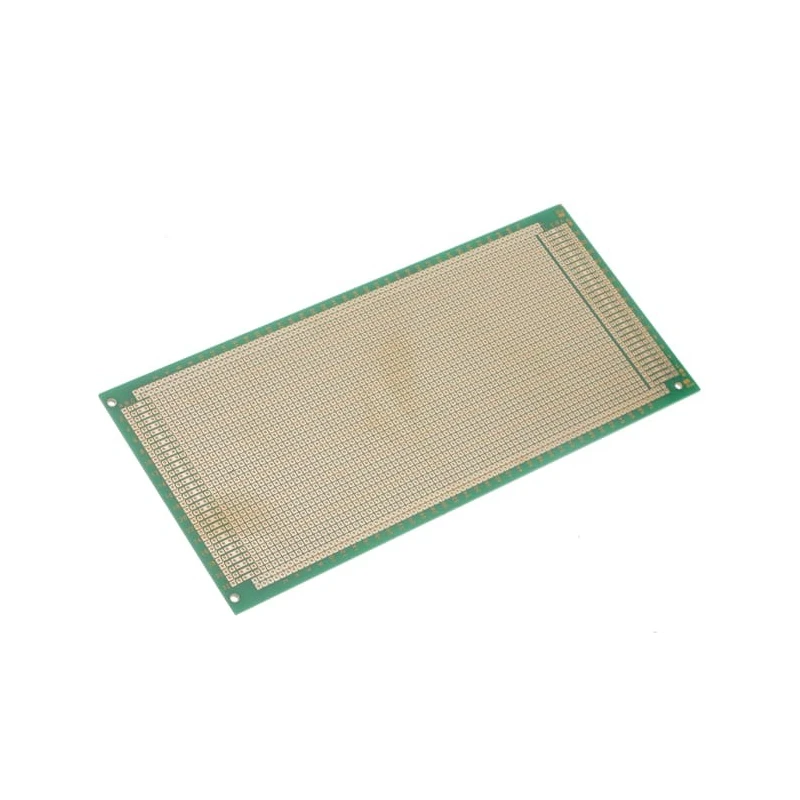

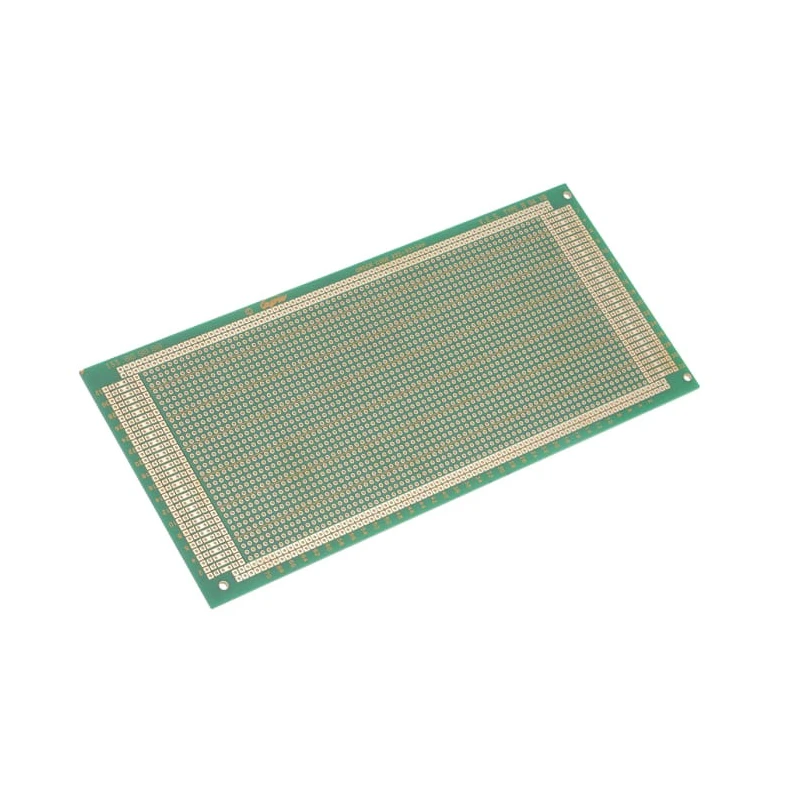

RS PRO 2 Matrix Board FR4 with Square Pad 1.02 mm Holes, 2.54 mm Pitch, 220 mm Length, 100 mm Width 110-2494
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Length | 220mm |
| Model | 110-2494 |
| Width | 100mm |
| Hole Diameter | 1.02mm |
| Board Material | Epoxy Glass Fabric Laminate |
| Standards/Approvals | DIN 41612, DIN 41494 |
| Number of Sides | 2 |
| FR Material Grade | FR4 |
| Hole Layout | Square Pad |
| Hole Pitch | 2.54mm |
| Copper Thickness | 35μm |
Key Features
- The board measures 220 mm in length and 100 mm in width, suitable for various electronic component mounting.
- Manufactured using durable epoxy glass fabric laminate with FR4 grade material.
- Features square pad hole layout for secure soldering and excellent connectivity.
- Copper thickness of 35μm enhances reliable circuit conductivity.
- Complies with DIN 41612 and DIN 41494 standards for industrial applications.
- Two-sided board allowing double-layer prototyping flexibility.
- Holes have a diameter of 1.02 mm, compatible with most standard through-hole components.
- Includes supply rails along the length for easy power distribution.
Product Description
RS PRO 110-2494 matrix board FR4 with square pad is a high-quality prototyping board designed for electronic development and manufacturing. Featuring 1.02 mm diameter holes on a 2.54 mm pitch, this 220 mm by 100 mm board offers robust construction using epoxy glass fabric laminate and FR4 grade material for superior durability and electrical insulation.
The two-sided board's square pad layout enables secure soldered connections by allowing wires and component tails to share the same holes, ensuring excellent electrical performance. Copper thickness of 35μm enhances conductivity and reliability during industrial and laboratory applications.
Conforming to DIN 41612 and DIN 41494 standards, this matrix board is suitable for advanced prototyping needs including assembly of DIN 41612 connectors with 96 / 96 contacts at each end, along with conveniently integrated supply rails along the board length for power distribution.
Its precise hole diameter and layout make it compatible with various standard electronic components, offering versatility across multiple sectors such as electronics prototyping, manufacturing, water treatment instrumentation, HVAC control boards, and educational laboratories.
The board measures 220 mm in length and 100 mm in width for expanded circuit design flexibility. Epoxy glass fabric laminate composition provides excellent electrical insulation and mechanical strength. Square pad hole layout facilitates secure mechanical and electrical connections.
35μm copper thickness improves electrical trace durability and conductivity. Compliant with industry standards DIN 41612 and DIN 41494, ensuring compatibility and reliability. The two-sided construction doubles available wiring and circuit placement options.
Provides integrated supply rails for power distribution along the board. Holes sized at 1.02 mm diameter support a wide range of component pins.
This RS PRO Matrix Board model 110-2494 is a trusted choice for engineers, technicians, and manufacturers requiring a robust and precise prototyping platform. Manufactured in the United Kingdom, it guarantees high manufacturing standards and reliability.
Explore the Electronics Components category at EnvMart for other prototyping solutions and RS PRO products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The board measures 220 mm in length and 100 mm in width, providing ample space for circuit design.
The holes have a diameter of 1.02 mm and are arranged with a pitch of 2.54 mm, making it compatible with most standard through-hole components.
It is constructed from epoxy glass fabric laminate, which provides excellent electrical insulation and mechanical strength.
The copper thickness is 35μm, enhancing the board's electrical conductivity and reliability.
Yes, it complies with DIN 41612 and DIN 41494 standards, ensuring compatibility for industrial applications.
This is a two-sided board, allowing for double-layer prototyping flexibility.
The board features a square pad hole layout, which facilitates secure soldering and excellent connectivity.
Yes, the board includes supply rails along its length for easy power distribution.
It is suitable for electronics prototyping, manufacturing, water treatment instrumentation, HVAC control boards, and educational laboratories.
This model is manufactured in the United Kingdom, ensuring high manufacturing standards.
FR4 is a fire-resistant grade of material that provides durability and electrical insulation, making it ideal for electronic applications.
The model number is 110-2494, which identifies this specific board in the RS PRO range.
