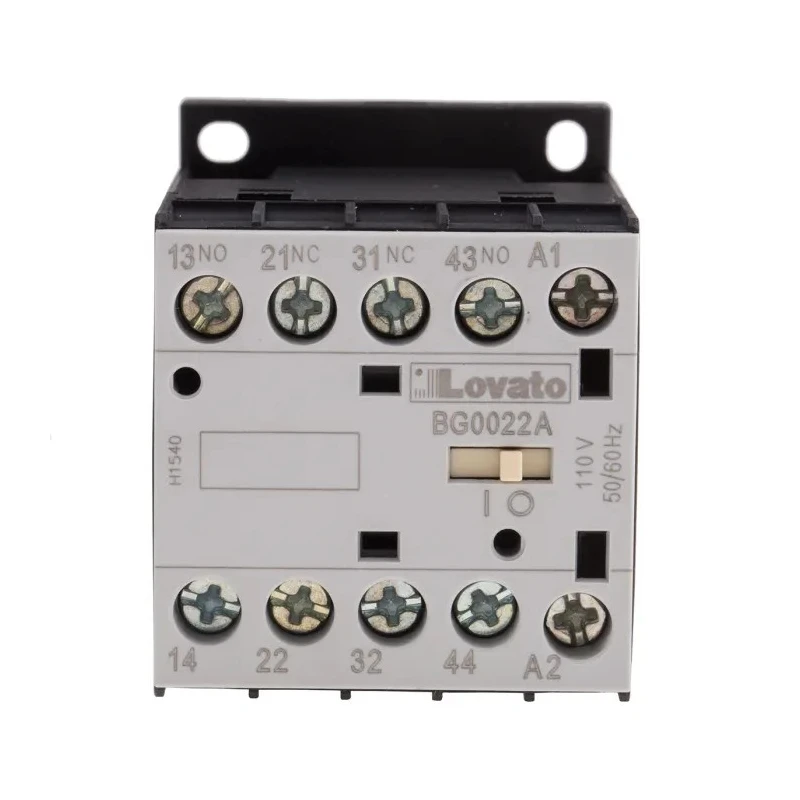

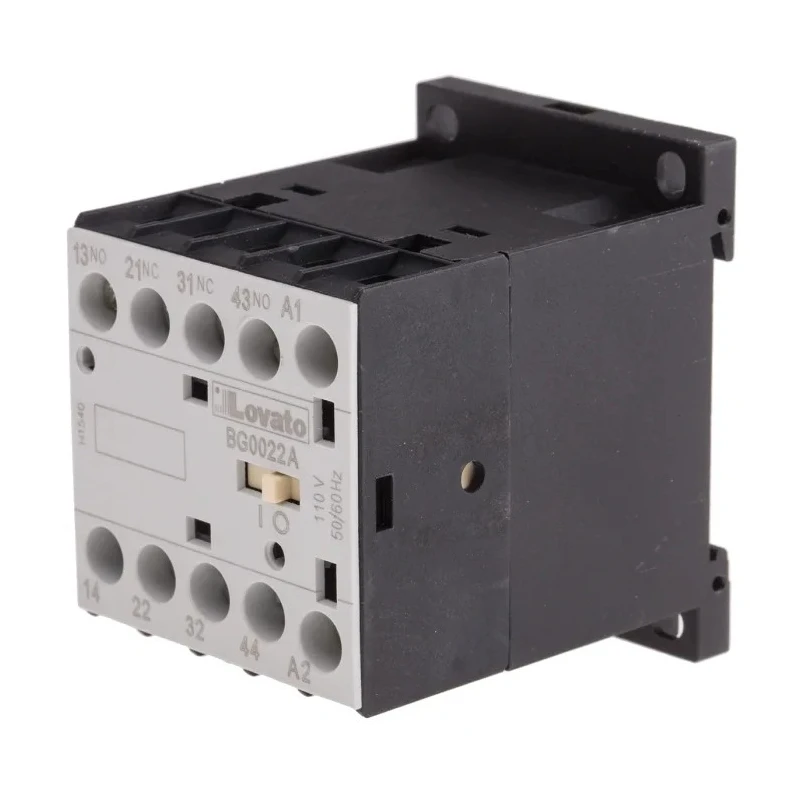

Lovato Electric BG Contactor Relay 110V AC Coil 4-Pole 10A 2 NO/2 NC 690V AC 11BG0022A110

Lovato Electric 11BG0022A110 Contactor Relay is a 4-pole control relay designed for industrial and commercial electrical automation.

With a coil voltage of 110V AC and a contact current rating of 10A, this device reliably manages high-voltage switching up to 690V AC, making it suitable for demanding control applications.

The relay incorporates 2 normally open (NO) and 2 normally closed (NC) contacts, delivering flexibility for diverse circuit configurations and control logic.

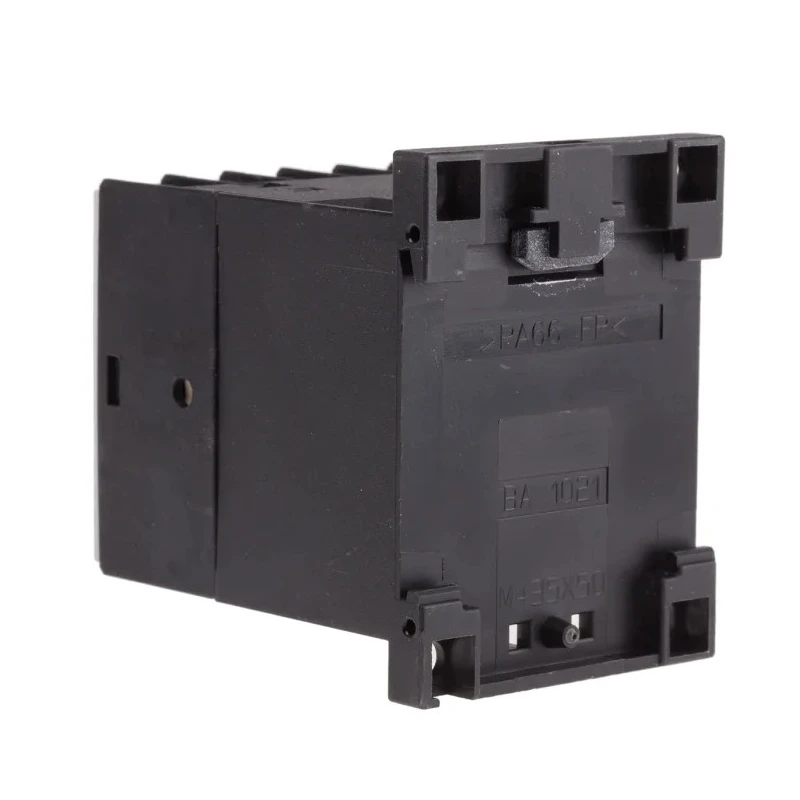

Mounting is facilitated via a standard 35mm DIN rail, ensuring quick and secure installation in distribution or control panels. The screw terminal connections provide robust and reliable wiring possibilities, complemented by IP20 finger-safe protection to enhance operator safety.

Operational current Ie rating of 630A supports heavy switching loads common in industrial environments. The relay functions efficiently in ambient temperatures from -40°C to 60°C, ensuring stable performance under variable environmental conditions.

Compact dimensions measuring 58mm in length, 44mm in width, and 57mm in depth allow for space-saving panel designs.

Successfully certified to multiple international electrical standards, including CSA C22.2, IEC/EN 60947 series, UL 60947, and recognized by cULus and EAC marks, this contactor relay meets stringent safety and performance criteria required in global markets.

Manufactured in Italy, the Lovato Electric BG series ensures premium European quality and durability for control and auxiliary contactor applications across industrial, electrical automation, HVAC, manufacturing, and commercial sectors.

This contactor relay includes 2 normally open and 2 normally closed contacts. It supports a contact voltage rating of 690V AC. The relay is mountable on a 35mm DIN rail for easy installation. Designed for auxiliary contactor and control relay applications.

Operational current Ie is rated at 630A, suitable for heavy-duty switching. It features screw-type terminals and IP20 finger-safe terminal protection. Operating temperature ranges from -40°C to 60°C, ensuring reliability under varying conditions.

Compact dimensions: length 58mm, width 44mm, depth 57mm. Conforms to multiple international standards including CSA C22.2, IEC/EN 60947, UL 60947, and cULus. Manufactured in Italy, ensuring high-quality European production standards.

This Lovato Electric Contactor Relay is ideal for use in electrical automation, industrial control panels, HVAC systems, manufacturing process control, and commercial electrical distribution.
