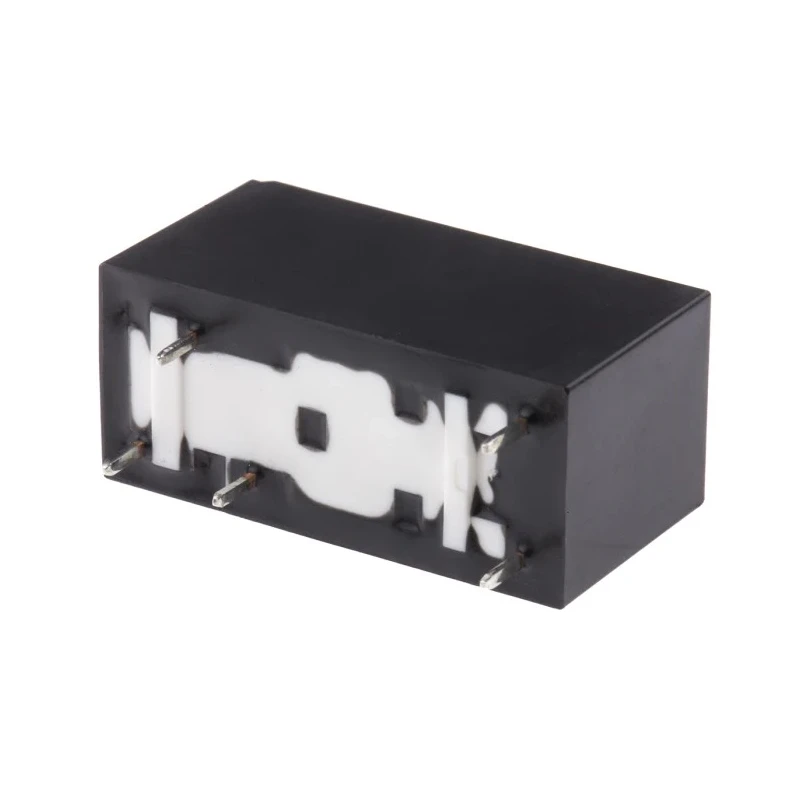

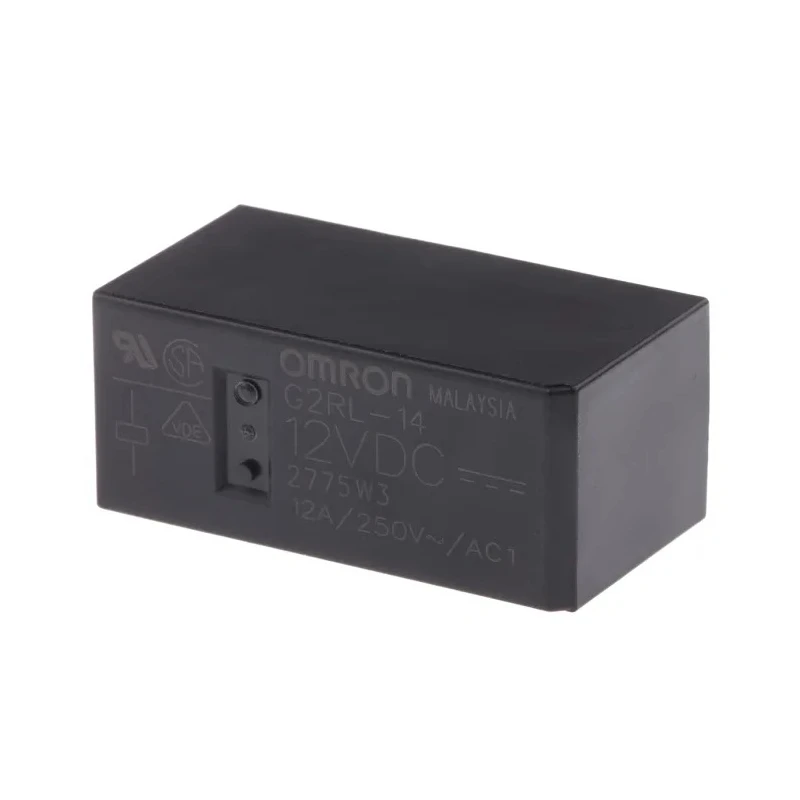

Omron PCB Power Relay 12V DC Coil, 12A Switching Current, SPDT Contact Configuration G2RL-14 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-14 DC12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | VDE, UL, RoHS, IEC, EN, CSA |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 400mW |
Key Features
- This power relay is designed for PCB mounting with solder terminals.
- It offers a compact form factor with dimensions 15.7mm height, 12.7mm width, and 29mm length.
- The relay supports switching AC voltage up to 250V AC and switching power of 3kVA.
- It operates reliably in temperatures from -40°C to 85°C.
- Constructed with silver alloy contacts ensuring low resistance and durability.
- The coil resistance is 360 ohms with coil power consumption of 400mW.
- Complies with safety standards UL, VDE, CSA, IEC, RoHS, and EN certifications.
- It features excellent tracking resistance with comparative tracking index (CTI) greater than 250.
Product Description
Omron G2RL-14 DC12 PCB Power Relay is a high-quality electromagnetic relay optimized for use in electrical automation and signal conditioning. The relay features a 12V DC coil voltage that energizes the device, allowing switching of up to 12A current with a SPDT (Single Pole Double Throw) contact configuration for flexible circuit control.
Designed for printed circuit board (PCB) mounting, this relay has solder type terminals and a low profile height of 15.7mm, with a width of 12.7mm and length of 29mm. It supports a switching AC voltage rating up to 250V AC and a switching power capacity of 3kVA, making it suitable for a broad range of industrial and commercial applications.
The relay operates efficiently with a coil resistance of 360 ohms and coil power consumption of 400mW. It functions reliably across a wide ambient temperature range of -40°C to 85°C, ensuring stability under harsh environmental conditions.
Contact materials use silver alloy for enhanced conductivity and durability. The relay also offers excellent safety and quality assurance, complying with international standards including UL, VDE, CSA, IEC, RoHS, and EN. Its tracking resistance surpasses the CTI 250 rating, providing high reliability where insulation integrity is critical.
This relay is commonly used in industrial control systems, power management circuits, machinery automation, HVAC control panels, and electric power applications requiring robust and efficient switching solutions.
It is suited for applications requiring reliable switching in industrial, laboratory, commercial, and manufacturing environments. The small size and PCB mounting configuration facilitate easy integration into complex electronic control boards.
Its compliant certifications allow for usage in diverse markets and regulated industrial environments.
Choose Omron Power Relays for dependable and tested relay performance, delivering safety, durability, and precise control. Explore more options in the Power Relays category at EnvMart for comprehensive procurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay supports a switching current of up to 12A.
The coil voltage for this model is 12V DC.
The relay has a height of 15.7mm, a width of 12.7mm, and a length of 29mm.
It can switch AC voltage up to 250V AC.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 360 ohms.
The coil power consumption is 400mW.
It operates reliably in temperatures ranging from -40°C to 85°C.
The contacts are made of silver alloy, which enhances conductivity and durability.
It complies with several safety standards including UL, VDE, CSA, IEC, RoHS, and EN.
This relay is designed for PCB mounting with solder terminals.
This relay is commonly used in industrial control systems, power management circuits, and HVAC control panels.
