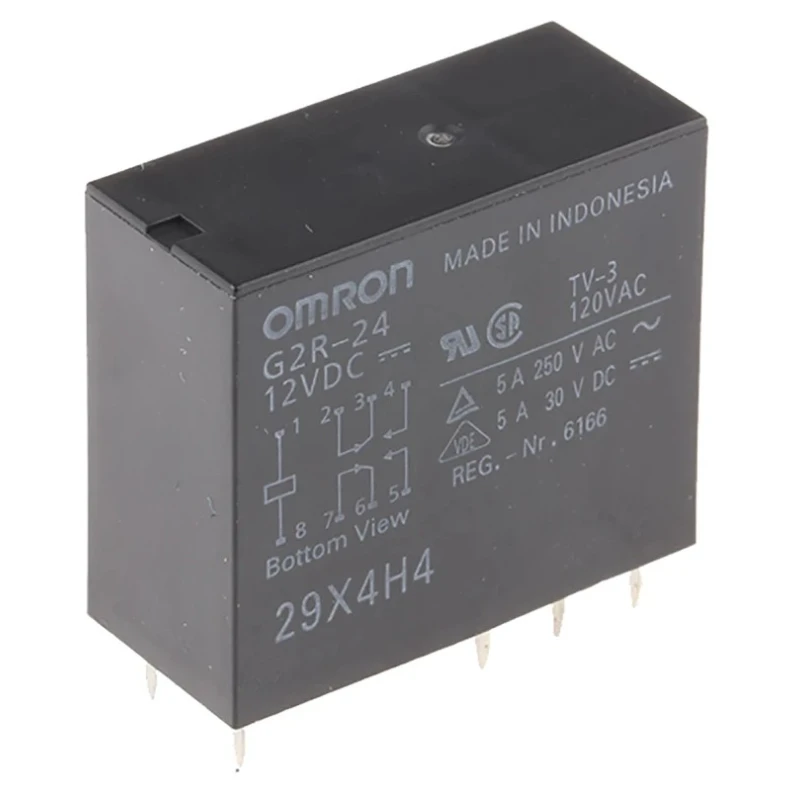

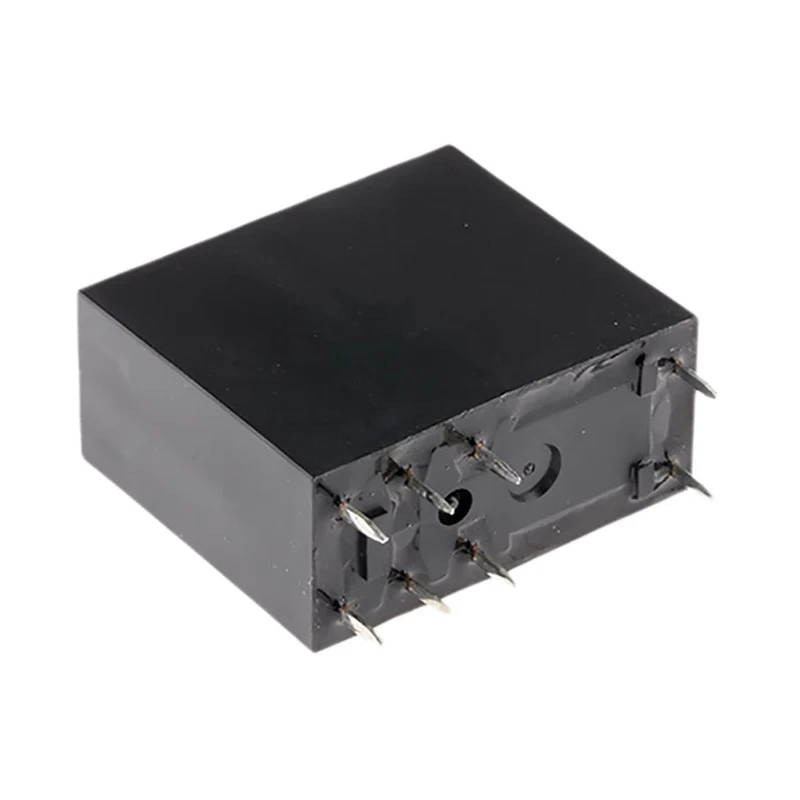

Omron PCB Power Relay 12V DC Coil 4A Switching Current DPDT G2R-24 DC12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 25.5mm |
| Length | 29mm |
| Model | G2R-24 DC12 |
| Width | 13.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 4A |
| Terminal type | Solder |
| Standards/Approvals | CSA, RoHS, UL, VDE |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 0.53W |
Key Features
- General purpose PCB power relay suitable for both domestic and commercial use.
- Features a 12V direct current coil voltage for efficient activation.
- Double Pole Double Throw (DPDT) contact configuration enables flexible circuit control.
- Capable of switching up to 4 amperes current with silver alloy contacts for reliable connectivity.
- Compact size with dimensions approximately 25.5mm height, 13.5mm width, and 29mm length.
- Operates effectively in temperature range from -40°C to 70°C.
- Low coil power consumption rated at 0.53 watts enhances energy efficiency.
- Meets international standards with certifications including CSA, RoHS, UL, and VDE.
Product Description
Omron G2R-24 DC12 PCB Power Relay is a general purpose power relay designed with a 12V DC coil and a DPDT contact configuration. It exhibits a compact form factor with precise dimensions of 25.5mm height, 13.5mm width, and 29mm length, making it suitable for integration in various PCB applications.
This relay is capable of switching a current of up to 4 amperes, supporting both AC and DC voltages of 380V AC and 125V DC respectively, using silver alloy contacts to ensure durable and low resistance switching. The coil exhibits a resistance of 275 ohms and requires only 0.53 watts of power, promoting low energy consumption.
Engineered for robust performance, it operates reliably across a broad temperature range from -40°C to 70°C and includes 8mm creepage and clearance, which enhance the safety against electrical arcs or surges. The relay complies with major industrial standards such as CSA, RoHS, UL508, VDE, SEV, and SEMKO approvals, ensuring quality and reliability for industrial and commercial applications including automation, control systems, and electrical signal conditioning.
General purpose PCB power relay suitable for domestic and commercial applications. 12V DC coil voltage with 275 ohms coil resistance ensures efficient operation. DPDT contact configuration provides dual pole double throw switching capability.
4A switching current capability with silver alloy contacts for durability. Compact physical size facilitates easy integration into circuit boards. Wide operating temperature range from -40°C to 70°C for versatile usage. Low coil power consumption of 0.53W allows energy-efficient design.
Conforms to CSA, RoHS, UL, and VDE standards for safety and compliance. Includes 8mm creepage and clearance for electrical safety.
This Omron Power Relay is ideal for industrial automation, electrical control panels, HVAC systems, and various manufacturing and laboratory applications that require dependable switching performance on PCB mounted devices.
Explore more Power Relays and other electrical components within the Electronics & Electricals category on EnvMart for your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC, which allows for efficient activation in various applications.
This model can switch a maximum current of 4 amperes, making it suitable for a range of electrical applications.
The relay has dimensions of approximately 25.5mm in height, 13.5mm in width, and 29mm in length, allowing for compact integration into circuit boards.
It features a Double Pole Double Throw (DPDT) contact configuration, which enables flexible circuit control.
The coil resistance for this relay is 275 ohms, which contributes to its efficient operation.
This relay operates effectively within a temperature range from -40°C to 70°C, making it versatile for various environments.
The contacts are made of silver alloy, ensuring reliable connectivity and low resistance during operation.
It meets several international standards, including CSA, RoHS, UL, and VDE, ensuring its quality and safety for industrial applications.
The coil has a power consumption of 0.53 watts, promoting energy efficiency in its operation.
This model is designed for PCB mounting, making it suitable for integration into printed circuit boards.
It is capable of switching AC voltages up to 380V and DC voltages up to 125V, accommodating various electrical systems.
This relay is ideal for applications in industrial automation, electrical control panels, HVAC systems, and other manufacturing processes that require reliable switching performance.
