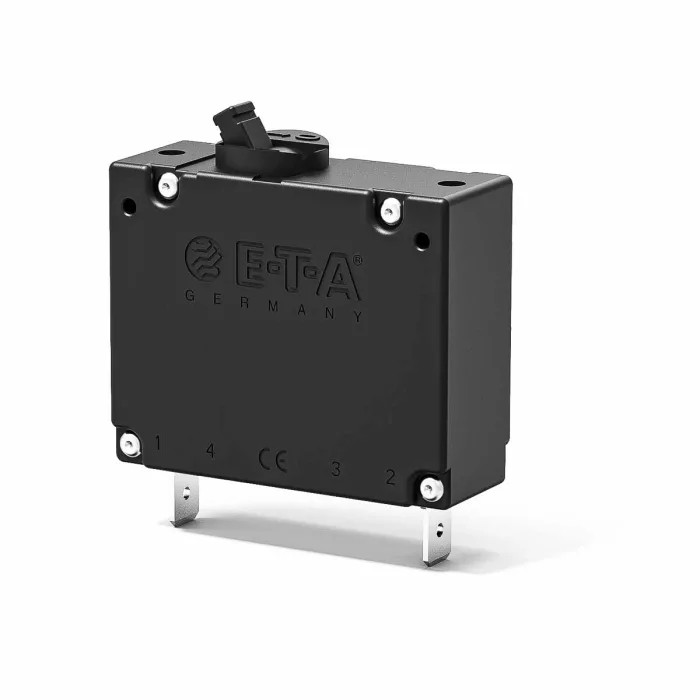

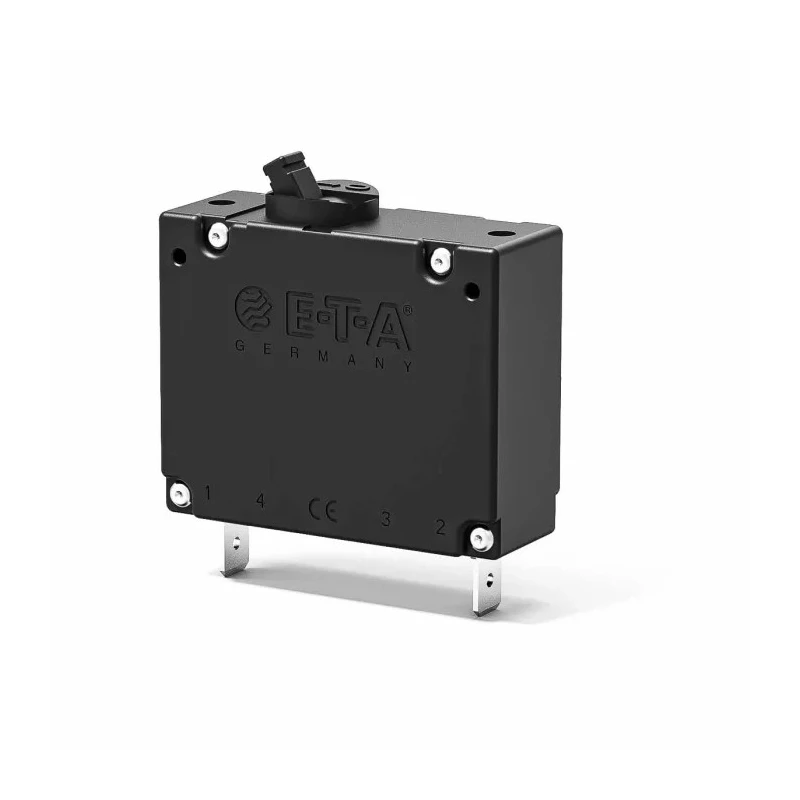

ETA Magnetic and Hydraulic-Magnetic Thermal Circuit Breaker 40A Current Rating 1-Pole Flange Mount 8340-F410-P1M1-A3H0-40A
Specifications
| Country of Origin | Germany |
|---|---|
| Range | Magnetic and Hydraulic-Magnetic Circuit Breaker |
| Brand | ETA |
| Height | 66mm |
| Model | 8340-F410-P1M1-A3H0-40A |
| Depth | 54mm |
| Width | 19mm |
| Mount Type | Flange |
| Current Rating | 40A |
| Series | 8340 |
| Terminal type | Blade |
| Breaking Capacity | 1200A |
| Number of Poles | 1 |
| Standards/Approvals | IEC, VDE, CSA, EN, UL, BV |
| Rated AC Voltage | 415V ac |
| Rated DC Voltage | 80V dc |
| Tripping Mechanism | Magnetic |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | M4 |
Key Features
- Single pole magnetic hydraulic circuit breaker with trip free snap action mechanism.
- Designed for panel mounting with industry standard dimensions.
- Rated AC voltage of 415V and rated DC voltage of 80V suitable for control equipment and power supplies.
- Breaking capacity of 1200A with medium delay for versatile applications.
- Features toggle switch reset actuator and blade type terminals for reliable connections.
- Complies with IEC, VDE, CSA, EN, UL, and BV standards ensuring high safety and quality.
- Compact size with dimensions 66mm height, 19mm width, and 54mm depth.
- Suitable for use in communication systems, transportation (rail), and various industrial automation tasks.
Product Description
ETA 8340-F410-P1M1-A3H0-40A magnetic and hydraulic-magnetic thermal circuit breaker offers a reliable single-pole protection solution with a current rating of 40A. Designed for flange mounting, this circuit breaker features a magnetic trip free snap action mechanism with toggle switch reset actuator, ensuring prompt and dependable operation.
The breaker delivers a breaking capacity of 1200A and is suitable for rated voltages up to 415V AC and 80V DC, making it ideal for a wide range of industrial and control equipment, communication systems, transportation, and power supply applications.
Constructed to meet international standards including IEC, VDE, CSA, EN, UL, and BV, the device guarantees operational safety and compliance. With industry standard dimensions (66mm height, 19mm width, 54mm depth) and blade terminals offering insulation resistance over 100MΩ, the breaker suits demanding electrical environments.
Its medium delay characteristic provides selective tripping ensuring coordination in complex electrical circuits. The flange mount with M4 hole size enables secure panel installation. Its robust mechanical build and toggle switch actuator enhance usability and maintenance convenience.
Single pole with magnetic trip free snap action mechanism. Flange mounting with M4 hole size for panel integration. Rated AC voltage: 415V, Rated DC voltage: 80V. Breaking capacity: 1200A for high fault current interruptions.
Complies with multiple international standards such as IEC and UL. Compact dimensions suitable for various industrial control panels. Blade terminals with high insulation resistance ensure electrical safety.
This ETA Thermal Circuit Breaker is manufactured in Germany, reflecting high-quality engineering and manufacturing proficiency. It is primarily used in industrial automation, electrical control panels, communication infrastructure, transportation systems, and power distribution networks.
Explore our range of circuit protection devices for enhanced industrial safety and reliability.
