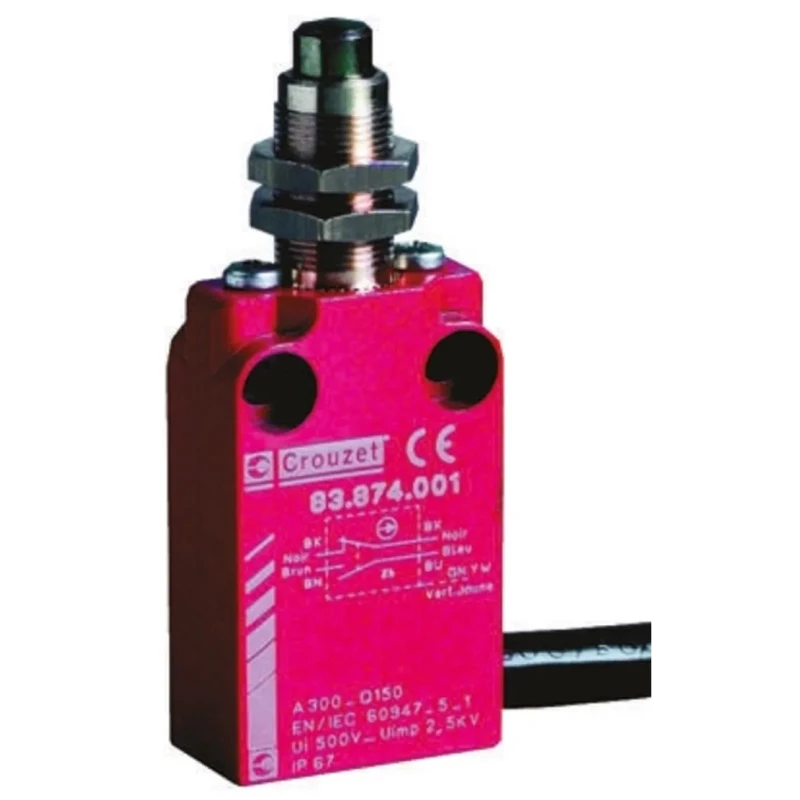

Crouzet Metal Housing Plunger Limit Switch, 1 NO/1 NC, IP66 IP67, 240V AC, 6A, Series 83874 83874101

Crouzet 83874101 Plunger Limit Switch with metal housing is a compact, robust device designed for reliable position detection and limit sensing in industrial and automation applications. It features a plunger actuator and a snap action contact configuration with 1 normally open (NO) and 1 normally closed (NC) contact. Operating at 240V AC and 6A switching current, this limit switch is suited for demanding electrical environments.

The unit offers IP66 and IP67 ingress protection, ensuring resistance to dust and water jets or temporary immersion, making it suitable for harsh industrial and outdoor use. Its rugged metal housing enhances durability against mechanical stress and environmental factors.

The switch is supplied with a fitted 5-core 0.75mm² cable of 1 metre length and has compact dimensions of 74.8 mm length, 30 mm width, and 16 mm depth. It requires an operating force of 10 Newtons and is designed for vertical mounting orientation.

Withstanding impulse voltages up to 2500V and insulation voltage of 500V, the switch ensures electrical safety and reliability. The operating temperature range extends from -25°C to 70°C, allowing functionality in varied climatic conditions. It boasts a mechanical life of 10 million operations, ensuring long service life and minimal maintenance.

This Crouzet 83874 series plunger limit switch finds application in industrial automation, production lines, conveyor systems, and other equipment requiring precise end-of-travel detection or position feedback. Its IEC and UL approvals attest to its compliance with international safety and quality standards.

Robust metal housing ensures durability in industrial environments. Rated IP66 and IP67 protection for excellent ingress resistance. Snap action contact type provides reliable switching performance. Operating temperature range from -25°C to 70°C accommodates varied conditions.

Cable terminal type with 1 metre 5-core 0.75 mm² cable for easy installation. Compact dimensions of 74.8mm length, 30mm width, and 16mm depth. High mechanical life with up to 10 million operations for extended usage. Impulse voltage withstand up to 2500V and insulation voltage of 500V.

Designed for vertical mounting orientation with a 10N operating force. Suitable for industrial automation applications requiring precise position detection.

This product is supplied new and originates from Morocco. Explore the variety of Limit Switches and industrial automation components in EnvMart's comprehensive catalog for reliable and high-quality electrical control solutions.
