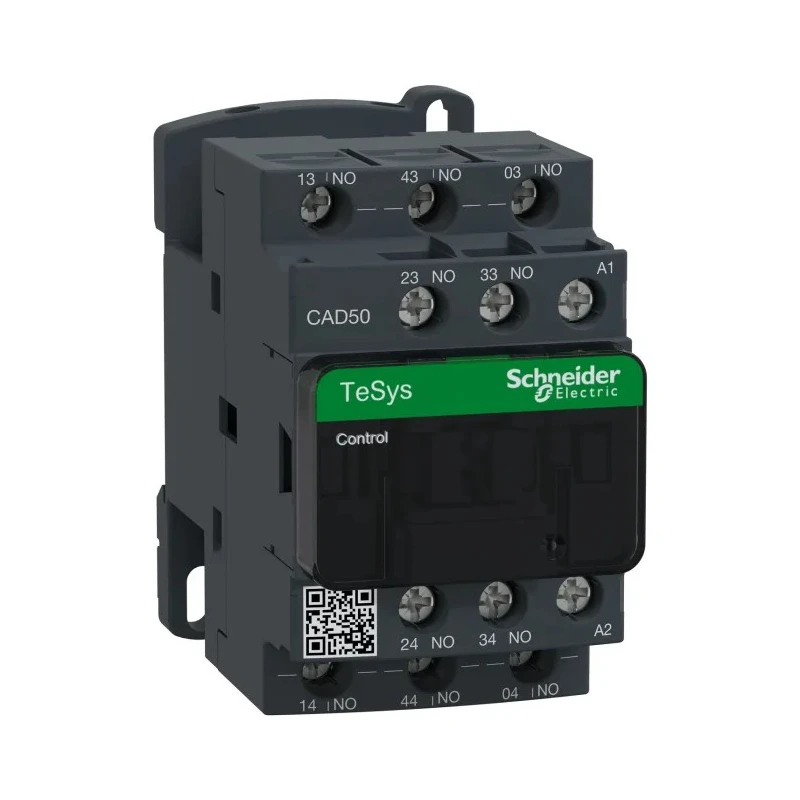

Schneider Electric CAD5 Contactor, 230V Coil, 5-Pole, 10 A 230V, 5 NO, 690V AC CAD5

Schneider Electric CAD5 Contactor, model CAD5, is a high-quality 5-pole contactor designed for control circuit switching applications. It operates with a 230V AC coil voltage and supports an operational current of 10A with contact voltages up to 690V AC. This contactor is ideal for industrial and automation system control panels requiring reliable and compact multi-pole switching devices.

The device is designed to be mounted on DIN rails or plates, enabling flexible and secure installation within distribution assemblies. Its screw clamp terminals accept conductors from 1 to 4mm², providing stable and secure electrical connections within control circuits.

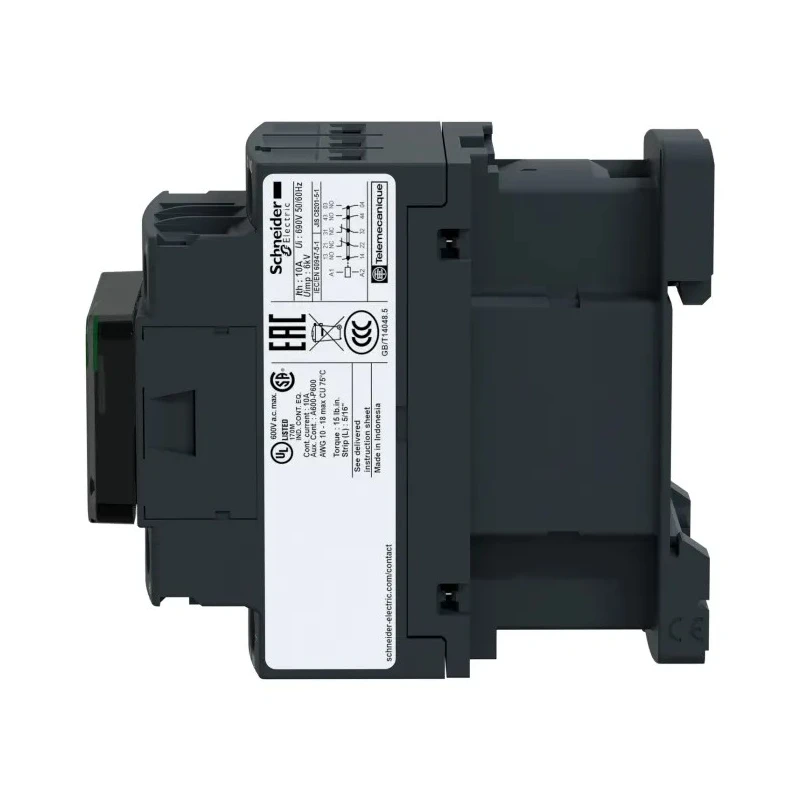

This contactor features five normally open auxiliary contacts, facilitating multi-point control and allowing for complex automation and motor control schemes. It withstands ambient operating temperatures from -5°C up to 60°C, making it suitable for various industrial environments. The compact design, with dimensions 77mm in length, 45mm in width, and 86mm in depth, enables fitting in space-constrained control panels.

Schneider Electric's CAD5 contactor complies with international standards such as EN/IEC 60947-5-1 and UL 60947-5-1, ensuring quality, safety, and reliability in automation and control gear applications. The coil energisation time ranges from 12 to 22 milliseconds, ensuring prompt switching response, and the coil power characteristics include 8 VA hold-in power consumption and 70 VA inrush current for effective power budgeting.

This contactor is suited for controlling contactor coils, relay logic in automation racks, interfacing control panels to high-voltage distribution feeders, and switching auxiliary circuits in motor control and protection schemes. The robust design allows short-duration fault current withstand capability up to 100A for 1 second.

The product is designed for disassembly in line with sustainability goals. It is manufactured in France, ensuring high-quality production standards. The contactor is a dependable choice for industrial, manufacturing, electrical automation, and HVAC applications requiring compact and efficient control switching solutions.

Equipped with 5 poles and 5 normally open auxiliary contacts. Rated for contact voltage up to 690V AC and operational current of 10A. DIN rail or plate mounting for versatile installation. Screw clamp terminals suitable for 1 to 4mm² conductors.
