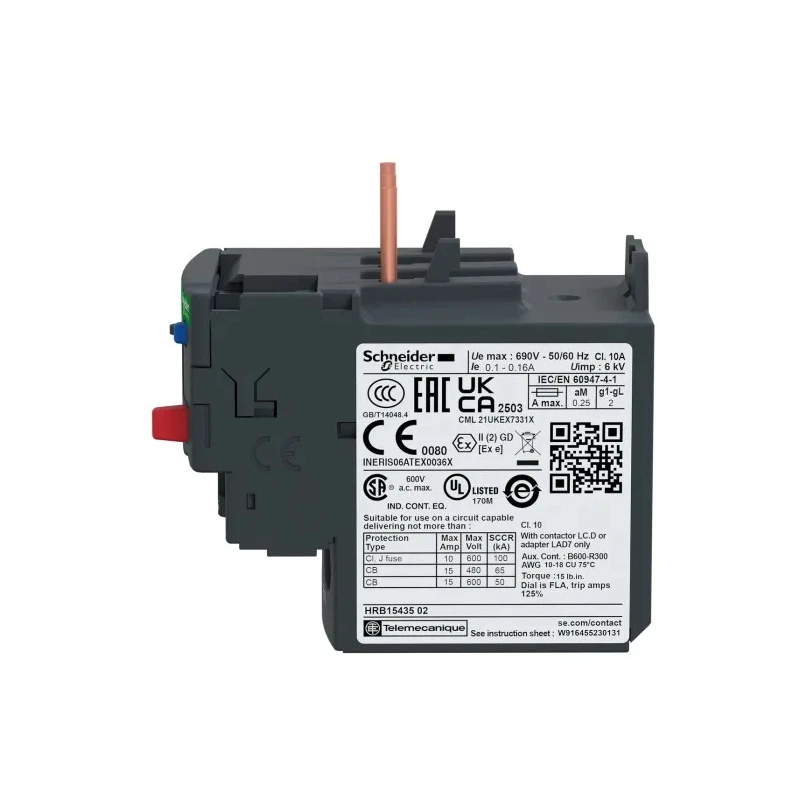

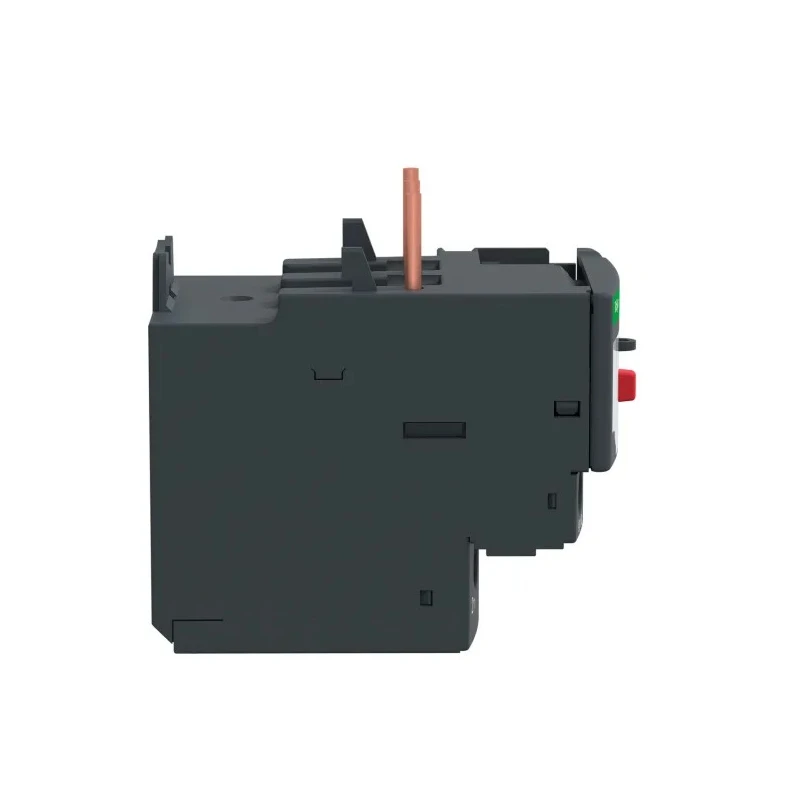

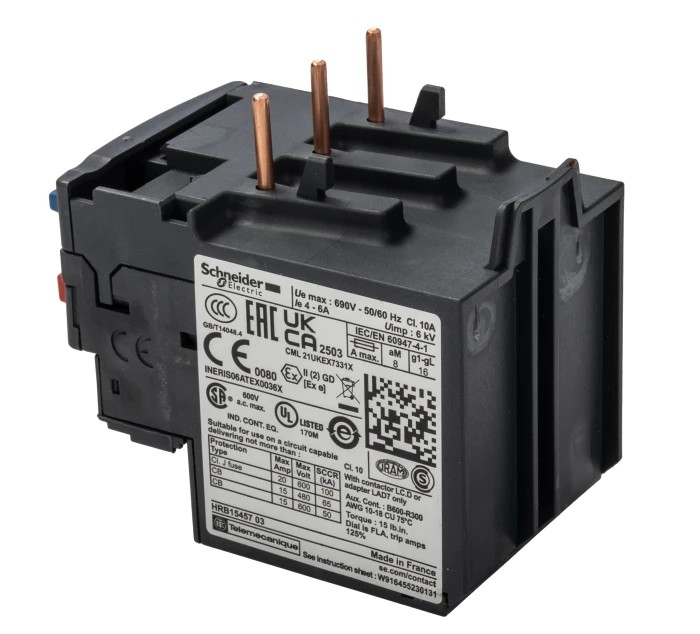

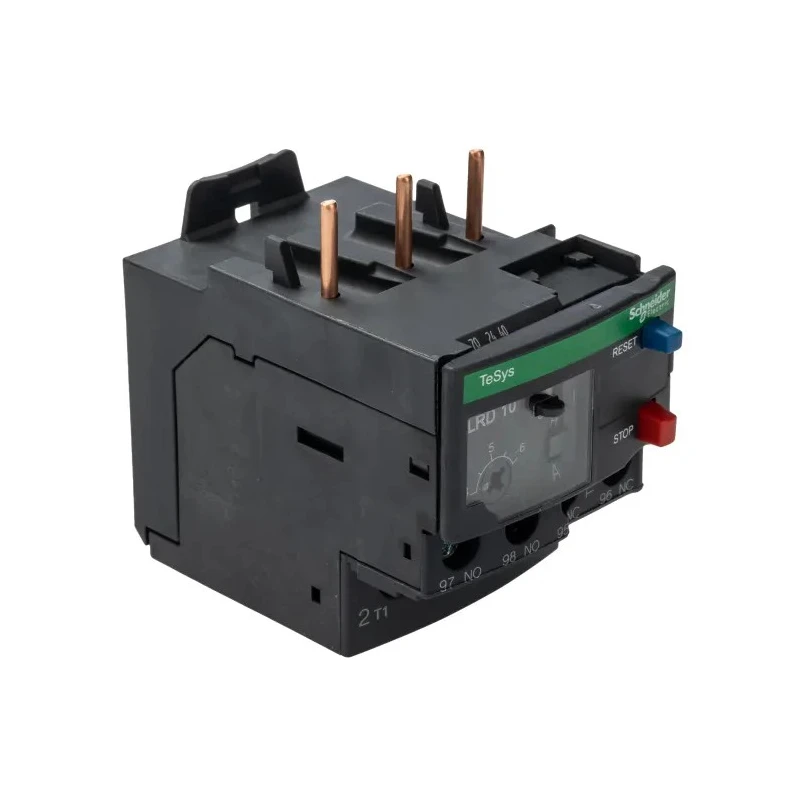

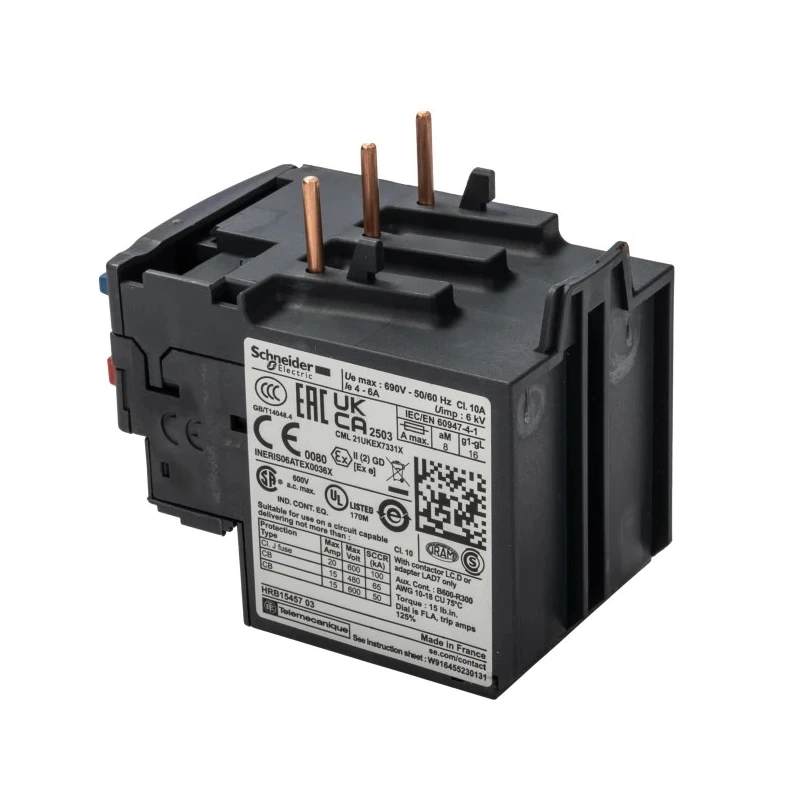

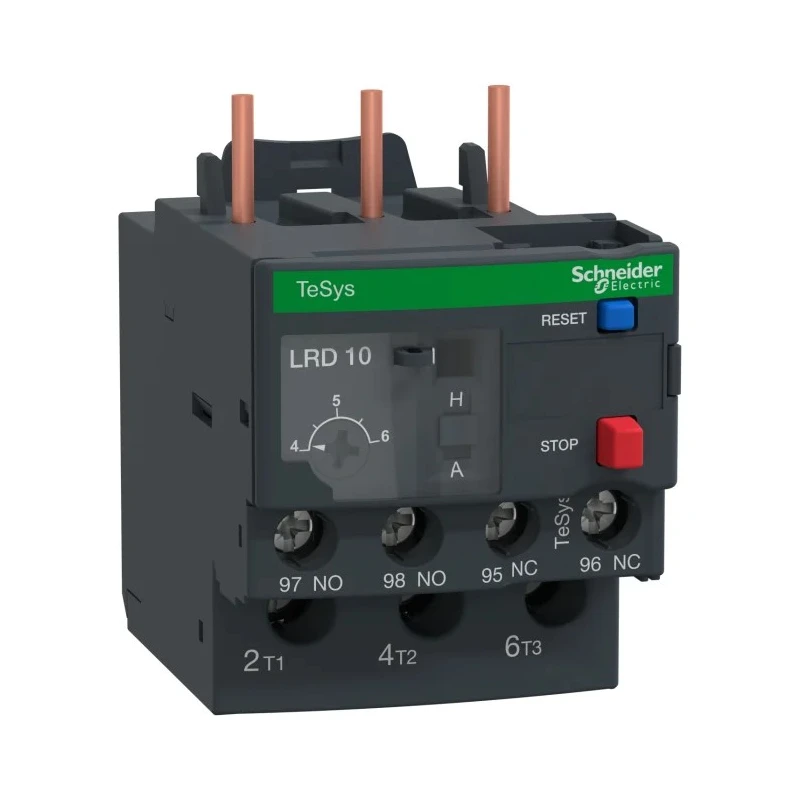

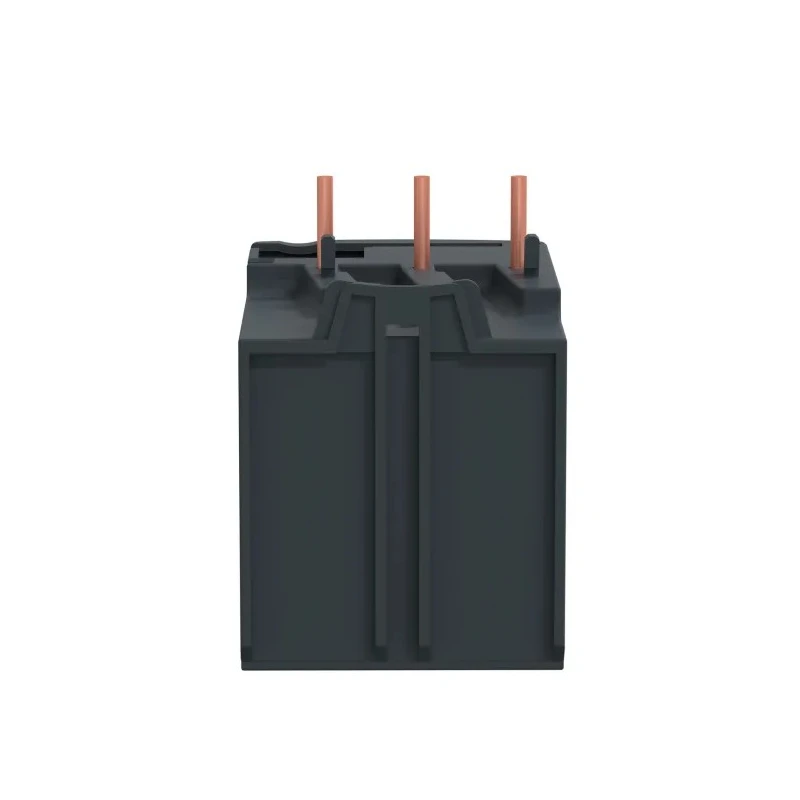

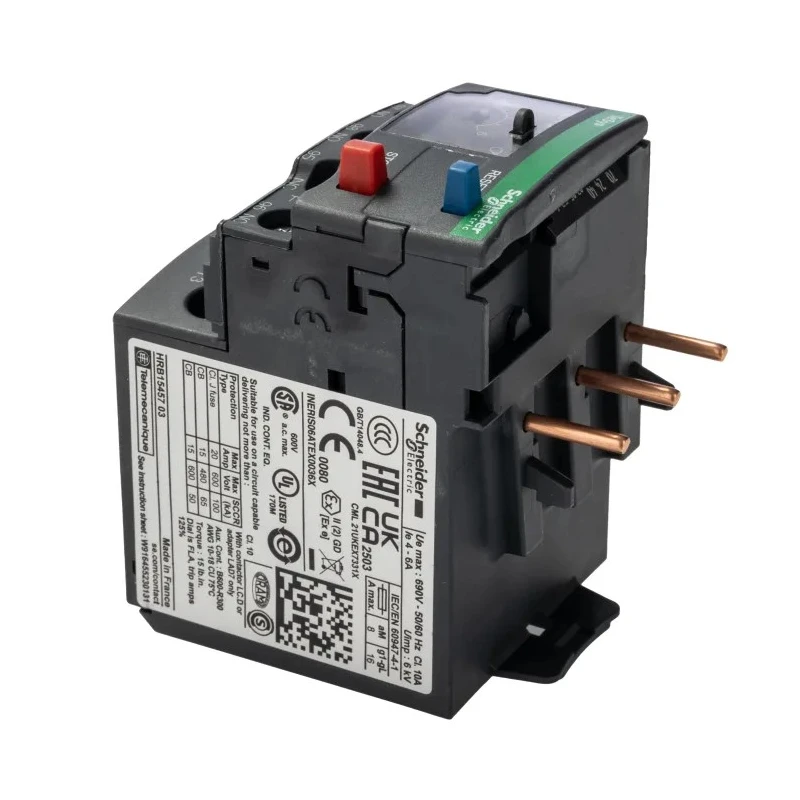

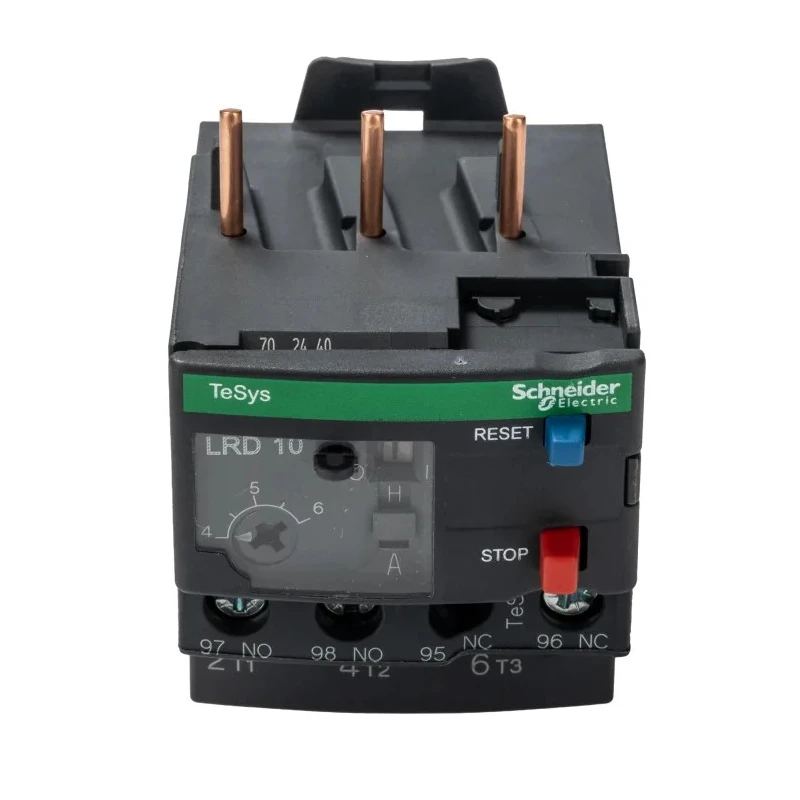

Schneider Electric LRD Overload Relay 1 NO/1 NC, 4A to 6A FLC Motor Rating, 6A Contact Rating, 2.2 kW Power, 690V AC LRD10
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD10 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 2.2kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 6A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 4, 6A |
| Adjustable Current Range | 4 → 6 A |
| Telemecanique Overload Relay, 4 → 6 A F.L.C, 6 A Contact Rating, 15 kWBrand | Telemecanique |
| Schneider Electric LRD1 Overload Relay, 4 → 6 A Contact Rating, TeSysBrand | Schneider Electric |
Key Features
- Motor full load current rating adjustable between 4 to 6 amperes.
- Equipped with 1 Normally Open and 1 Normally Closed auxiliary contact.
- Thermal overload class 10A for reliable motor protection.
- Automatic and manual reset options enhance operational flexibility.
- Suitable for direct mounting with 3 poles configuration.
- Designed for industrial applications operational from -20°C to 60°C ambient temperature.
- Screw terminals provide secure electrical connections.
- Rated for 690V AC supply voltage and contact voltage.
Product Description
Schneider Electric LRD10 is a high-quality overload relay designed for reliable motor protection with adjustable full load current ratings from 4 to 6A. It features 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts, supporting 6A relay contact current at 690V AC, catering to motors rated up to 2.2 kW. The device supports both automatic and manual reset methods, providing operational flexibility in diverse industrial environments.
The relay's robust design includes a 3-pole direct mount configuration, ensuring easy integration within motor control centers. Its operating ambient temperature range from -20°C to 60°C makes it suitable for various industrial, manufacturing, and automation settings where temperature extremes might be encountered.
With screw type terminals, the relay guarantees secure electrical connections suitable for continuous industrial use. This overload relay conforms to several international safety and quality standards, including UL 60947-4-1, EN/IEC 60947-5-1, EC and CSA approvals.
Adjustable thermal overload current settings between 4A and 6A for precise motor protection. Includes 1 NO and 1 NC auxiliary contact for fail-safe and operational signaling. Thermal overload class 10A for high reliability.
Automatic and manual reset methods for ease of use. Rated for operation at 690V AC supply and contact voltage. Compact form factor with dimensions 66mm x 70mm x 45mm. Operating temperature range from -20°C to +60°C. Compliant with UL, EN/IEC, EC, EAC, DNV-GL, CSA standards.
Ideal for industrial motor protection, automation controls, and manufacturing systems.
The Schneider Electric LRD10 Overload Relay provides robust, precise thermal protection to motors and integrates seamlessly with TeSys contactors for streamlined motor control solutions. It is a reliable component in electrical automation and control gear applications in industrial, manufacturing, and commercial electrical systems.
Explore our extensive range of electrical relays and contactors at EnvMart for efficient motor control and protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable full load current rating of this overload relay is between 4A and 6A.
This model is rated for a maximum supply voltage of 690V AC.
It includes 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contact.
The power rating of the LRD10 overload relay is 2.2 kW.
The operating temperature range for this model is from -20°C to 60°C.
The relay supports both automatic and manual reset methods for operational flexibility.
The dimensions of this overload relay are 66mm in length, 70mm in depth, and 45mm in width.
It features screw type terminals for secure electrical connections.
The thermal overload class of this relay is 10A, providing reliable motor protection.
This model has a 3-pole configuration for direct mounting.
It complies with several international standards, including UL 60947-4-1, EN/IEC 60947-5-1, EC, and CSA approvals.
This overload relay is suitable for industrial motor protection, automation controls, and manufacturing systems.
