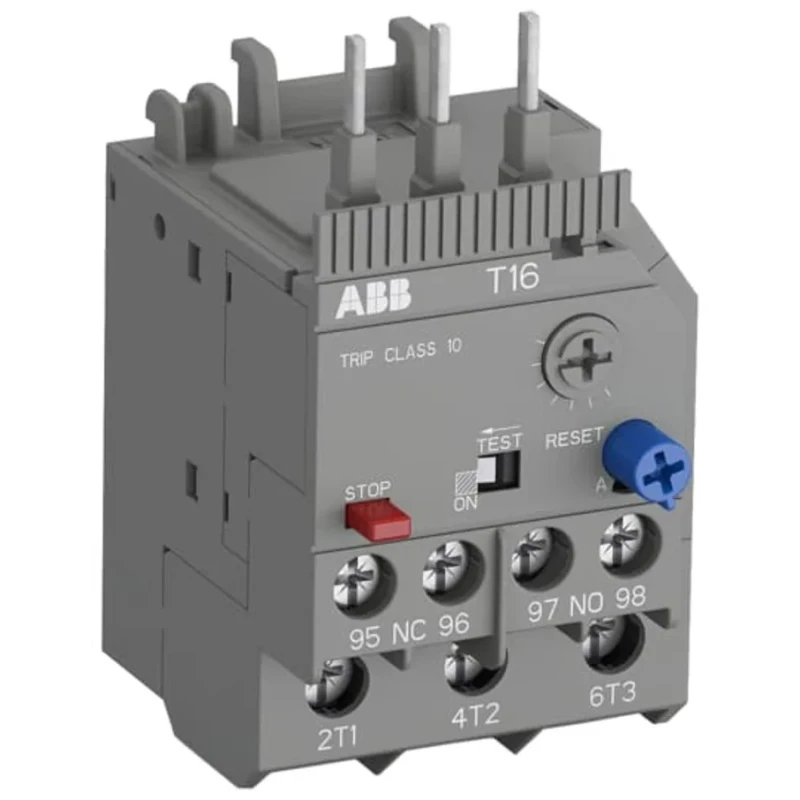

ABB T16 Thermal Overload Relay 3 Pole 1 NO/1 NC 6A FLC, 170mA Contact Rating, 600V DC 1SAZ711201R1008 T16-0.17



Category Thermal Overload Relay Brand ABB Condition New

Specifications

Country of Origin	Germany
Brand	ABB
Length	76.7mm
Model	1SAZ711201R1008 T16-0.17
Depth	53.5mm
IP Rating	IP20
Width	45mm
Series	T16
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-50°C
Contact Voltage	690V
Reset Method	Automatic & Manual
Normal State Configuration	1 NO/1 NC
Relay Contact Current	170mA
Number of Auxiliary Contacts	2
Pole and Throw Configuration	3
Control Voltage	600V dc
FLC Motor Rating	6A
Adjustable Current Range	22 → 28 A

Key Features

Supports a full load current (FLC) rating of 6 amperes.
Features a relay contact current rating of 170 mA for enhanced safety.
Compatible with control voltage of 600 V DC and contact voltage of 690 V.
Includes adjustable current range from 22 to 28 amperes for flexible settings.
Equipped with automatic and manual reset methods for operational convenience.
Built with IP20 protection rating suitable for controlled environments.
Operates reliably within a temperature range of -50°C to 80°C.
Complies with UL and IEC/EN standards ensuring industrial safety and reliability.

Product Description

ABB 1SAZ711201R1008 T16-0.17 Thermal Overload Relay is an electromechanical protection device designed to safeguard motors against overloads and phase failures. This 3-pole overload relay integrates a reliable fast-acting mechanism with a temperature compensation feature and a trip class 10 rating, ensuring precise motor protection.

The relay includes 1 normally open (NO) and 1 normally closed (NC) contact with a relay contact current of 170 mA, suitable for industrial applications requiring dependable contact ratings at up to 600 V DC control voltage and a main circuit voltage rating of 690 V AC. The adjustable current range of 22 to 28 A allows fine tuning to fit varied motor protection requirements.

Its robust design incorporates IP20 ingress protection, making it suitable for indoor environments with controlled exposure to dust and finger-safe protection. The device supports both automatic and manual reset functions along with a trip-free mechanism and stop feature ensuring user-friendly operation and safety.

With operating temperatures ranging from -50°C up to 80°C, this thermal overload relay is well suited for a broad spectrum of industrial, manufacturing, automation, and control gear environments. Compliance with international standards such as UL 60947-4-1 and IEC/EN 60947 series guarantees quality and safety assurance.

The compact form factor of length 76.7 mm, width 45 mm, and depth 53.5 mm facilitates easy integration into control panels and contactors setups. Manufactured in Germany, the product upholds high manufacturing standards suitable for demanding industrial conditions.

Supports a full load current (FLC) rating of 6 amperes. Relay contact current rating of 170 mA. Control voltage of 600 V DC with main circuit voltage of 690 V. Adjustable current range of 22 to 28 amperes. Automatic and manual reset methods.

IP20 ingress protection rating. Operating temperature from -50°C to 80°C. Compliance with UL and IEC/EN standards. Compact size: 76.7 mm length, 45 mm width, 53.5 mm depth. Manufactured in Germany.

This ABB Thermal Overload Relay is ideal for use in electrical automation, motor protection in industrial machinery, manufacturing plants, HVAC systems, and other commercial electrical applications.
