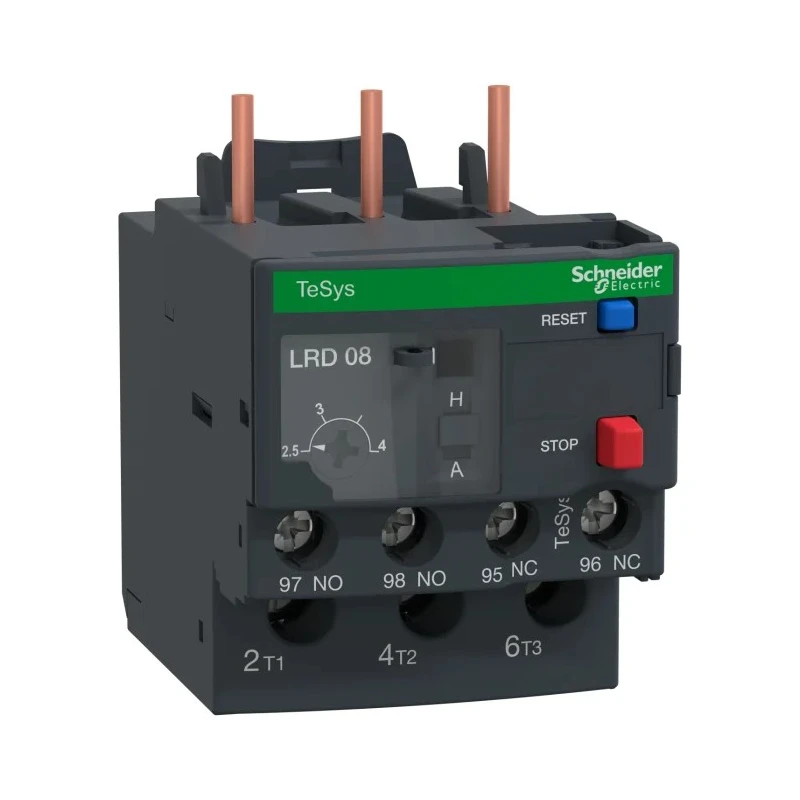

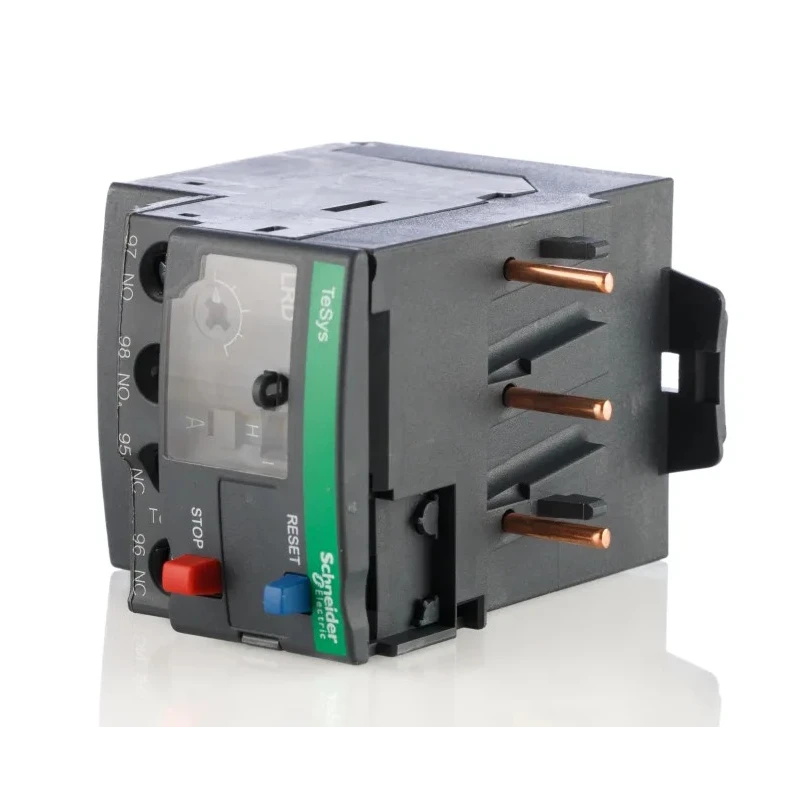

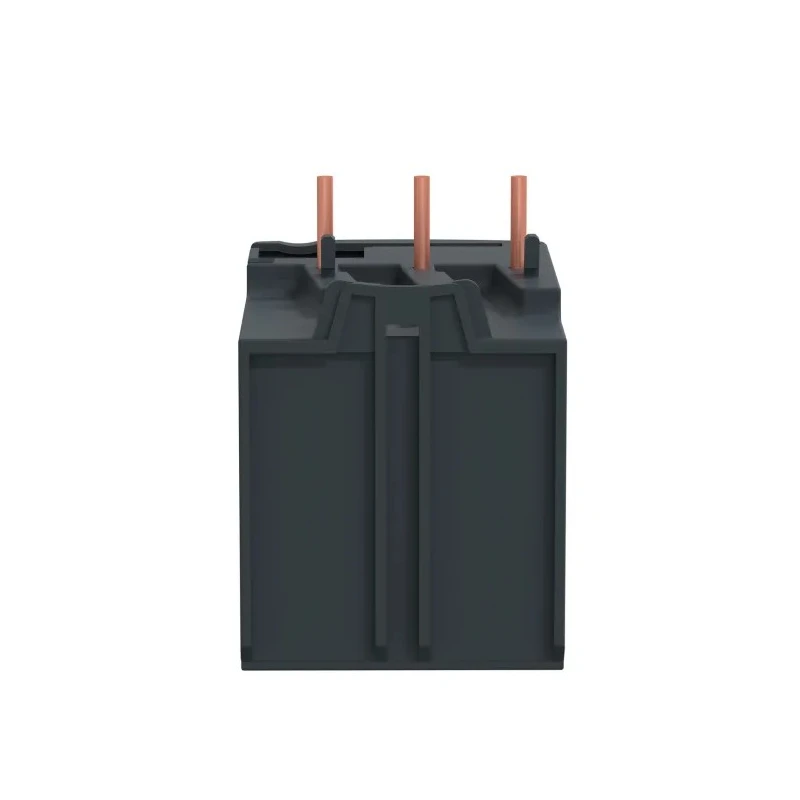

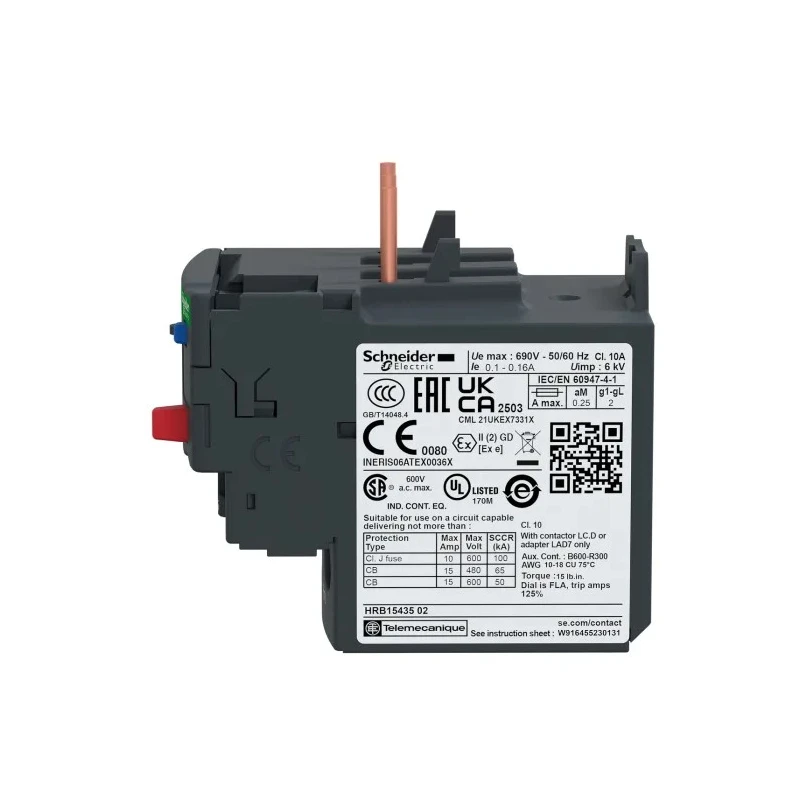

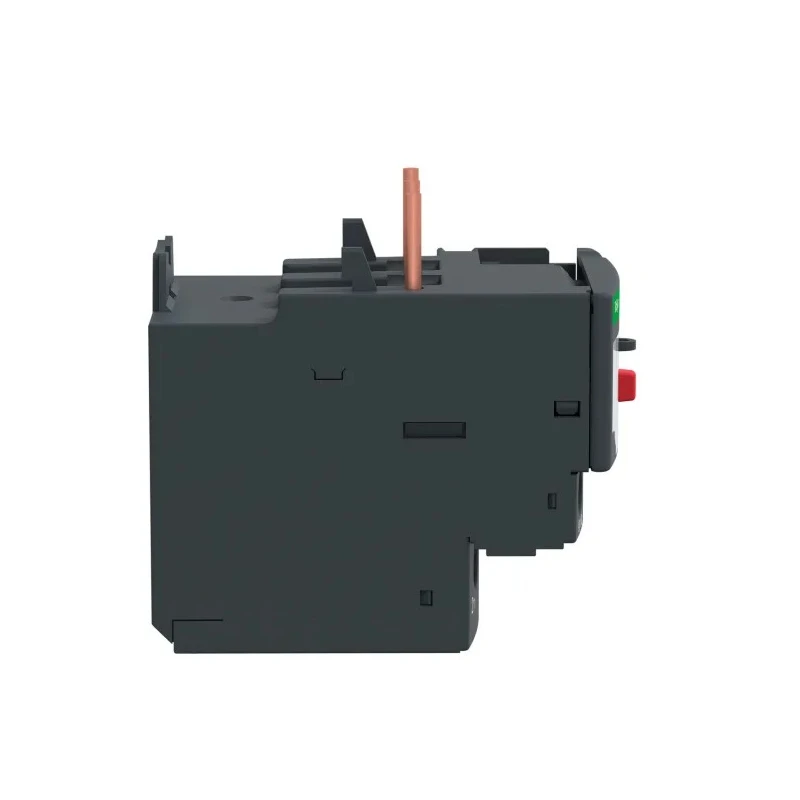

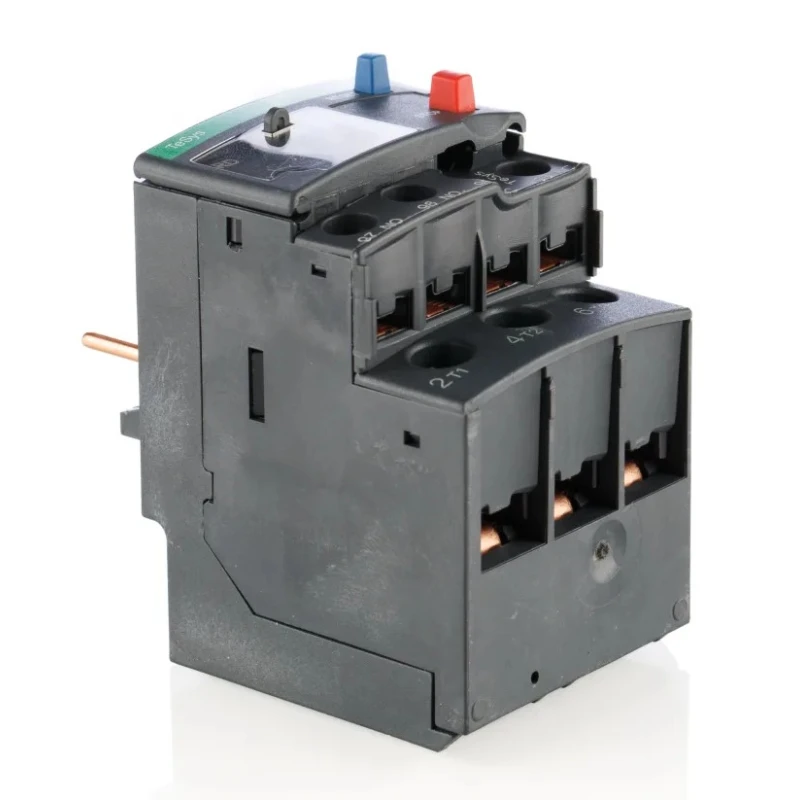

Schneider Electric LRD Overload Relay 1 NO/1 NC 2.5-4 A F.L.C 4 A Contact Rating 1.5 kW 3P LRD08
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 66mm |
| Model | LRD08 |
| Depth | 70mm |
| IP Rating | IP20 |
| Width | 45mm |
| Mount Type | Direct |
| Series | LRD |
| Power Rating | 1.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Supply Voltage | 690V |
| Contact Voltage | 690V ac |
| Reset Method | Automatic & Manual |
| Normal State Configuration | 1 NO/1 NC |
| Relay Contact Current | 4A |
| Number of Auxiliary Contacts | 2 |
| Pole and Throw Configuration | 3 |
| FLC Motor Rating | 2.5, 4A |
| Adjustable Current Range | 2.5 → 4 A |
| Telemecanique Overload Relay, 2.5 → 4 A F.L.C, 4 A Contact Rating, 15 kWBrand | Telemecanique |
| Schneider Electric TeSyS D Parallel Bars for use with Reversing ContactorsBrand | Schneider Electric |
Key Features
- The relay features a 1 NO/1 NC contact configuration for versatile control functions.
- Adjustable current range from 2.5 to 4 A accommodates various motor sizes.
- Equipped with automatic and manual reset methods for flexible operation.
- Supports screw terminal connections for secure and reliable wiring installation.
- Compact design measuring 66 mm length, 45 mm width, and 70 mm depth for easy panel integration.
- Rated for power up to 1.5 kW and contact voltage up to 690 V AC for robust motor safeguarding.
- Suitable for industrial automation and motor protection applications in AC and DC networks.
- Operating temperature range from -20°C to 60°C ensures stable performance in typical environments.
Product Description
Schneider Electric LRD08 Overload Relay is an industrial-grade thermal protection device engineered to guard motors against overload damage. With a rated adjustable current range between 2.5 and 4 A full load current (F.L.C), it delivers optimal protection for motors up to 1.5 kW power rating. The relay features a 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration facilitating flexible control and signaling functions in motor circuits.
Designed for durability and performance, the relay offers screw-type terminals for secure wiring and easy maintenance. Its compact dimensions of 66 mm length, 45 mm width, and 70 mm depth enable seamless integration into standard control panels. The relay operates efficiently within a temperature range from -20°C to +60°C, making it suitable for a wide range of industrial and commercial environments.
Key safety and performance standards are met including UL 60947-5-1, EN/IEC 60947-4-1, EC, EAC, DNV-GL, and CSA approvals, assuring quality and reliability. The unit supports a contact voltage rating up to 690 V AC and current rating of 4 A for reliable motor circuit protection. It provides both automatic and manual reset functions enhancing operational convenience.
This overload relay is widely used in electrical panels, industrial automation systems, manufacturing setups, and motor control applications to protect against thermal overloads and prevent motor damage. The IP20 enclosure grade is suitable for dry, indoor electrical environments, ensuring protection against solid foreign objects larger than 12 mm.
The relay supports FLC motor ratings from 2.5A to 4A. Features robust 3-pole construction for effective protection reliability. Offers flexible installation with screw clamp terminal connections. Includes two auxiliary contacts for advanced signaling and control options.
Choose Schneider Electric LRD08 Overload Relay for efficient, dependable motor protection in industrial, manufacturing, HVAC, and automation applications. Explore EnvMart’s catalog for more quality motor control and relay solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The overload relay has an adjustable current range from 2.5 A to 4 A, accommodating various motor sizes.
This model is rated for a power of up to 1.5 kW, making it suitable for protecting motors of that capacity.
The relay measures 66 mm in length, 45 mm in width, and 70 mm in depth, allowing for easy integration into control panels.
The maximum operating temperature for the overload relay is 60°C, ensuring stable performance in typical environments.
It features screw-type terminals for secure and reliable wiring installation.
The contact voltage rating for the Schneider Electric LRD08 is up to 690 V AC, providing robust motor circuit protection.
This overload relay includes two auxiliary contacts for advanced signaling and control options.
The relay has an IP20 enclosure rating, suitable for dry, indoor electrical environments.
It supports both automatic and manual reset methods for flexible operation.
The normal state configuration of the relay is 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
This overload relay is suitable for industrial automation and motor protection applications in AC and DC networks.
The minimum operating temperature for the relay is -20°C, allowing it to function in a wide range of environments.
