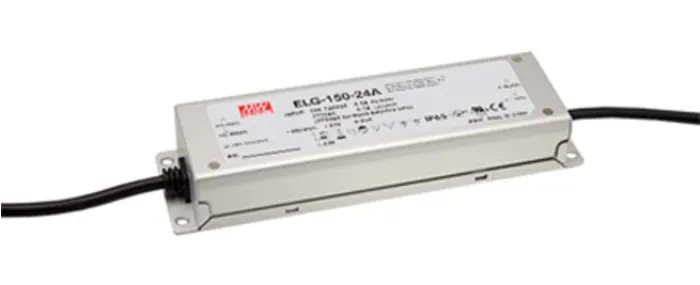

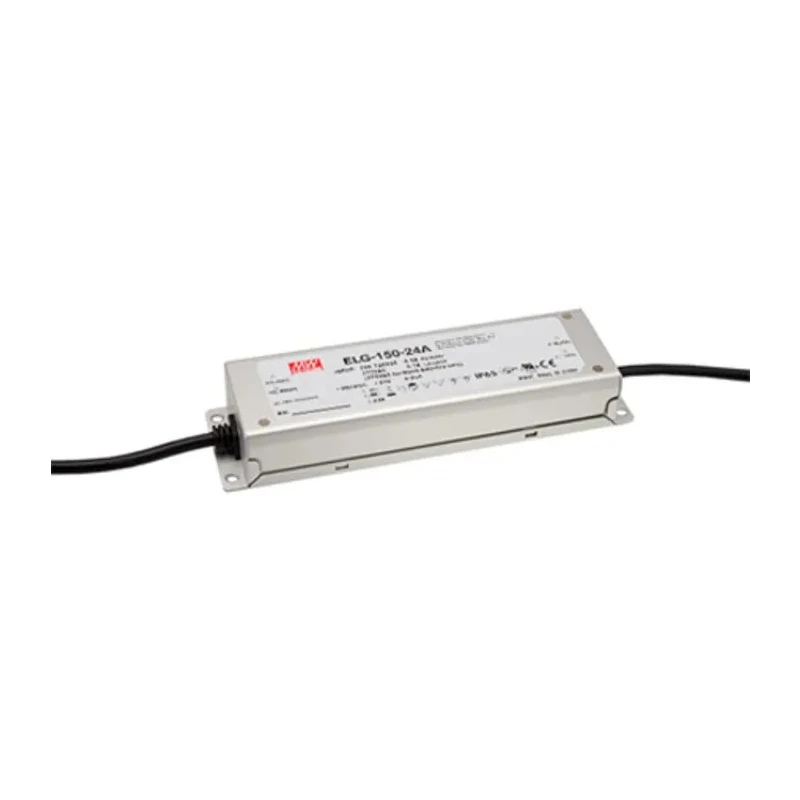

MEAN WELL IP65 1 Output 315V 150W Constant Current LED Driver with 900mA Potentiometer Dimming
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP65 |
| IP Rating | IP65 |
| Mount Type | Screw |
| Series | ELG-150-C |
| Configuration | Encapsulated |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Wire |
| Maximum Output Power | 150W |
| Input Voltage | 180, 295, 255, 417V ac |
| Output Voltage | 315V |
| Power Dissipation | 150W |
| Standards/Approvals | CB, CE:CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750 |
| Dimming Operation | Potentiometer |
| Primary Type | DC-DC, AC-DC |
| Driver Current | 900mA |
| Standards/ApprovalsCB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750 |
| CB, CE | CCC, cULus Recognized, EN61347-1, EN61347-2-13, ENEC, PFC, UL8750 |
Key Features
- Fan-less design delivering up to 91% efficiency for reliable operation.
- IP65 rated robust full metal housing ensures suitability for various environments.
- Wide input voltage range from 180V to 417V AC for flexible power supply.
- Supports constant current operating mode with potentiometer dimming control.
- Includes built-in active PFC for improved power quality and compliance.
- Designed for LED street lighting, architectural lighting, bay lighting and flood lighting applications.
- Screw mount type with wire terminal connections.
- Certified to CB, CE, CCC, cULus, EN61347-1, EN61347-2-13, ENEC and UL8750 standards.
Product Description
MEAN WELL ELG-150-C500A is a high-performance LED driver designed for industrial and commercial LED lighting applications. It offers a single output delivering 315V at a maximum power rating of 150W with a constant current of 900mA adjusted via a potentiometer dimming control. This driver features a fan-less design, resulting in quiet and efficient operation with efficiency levels reaching up to 91%.
The product is housed in a robust, fully encapsulated metal case rated at IP65, providing protection against dust and water ingress, making it suitable for both indoor and outdoor environments such as street lighting and architectural illumination.
With a wide AC input voltage range of 180V to 417V, the device accepts various power sources, accommodating fluctuating supply conditions. It complies with numerous international safety and performance standards including CB, CE, CCC, cULus, EN61347-1, EN61347-2-13, ENEC, and UL8750, ensuring dependable and safe operation.
The driver utilizes a screw mounting mechanism and wire terminals for straightforward installation. Its design includes built-in active power factor correction (PFC) enhancing electrical efficiency and lowering energy losses.
Typical applications for this LED driver include LED street lighting, architectural lighting, bay lighting, and floodlighting systems where a consistent high-output current and reliability are required.
Fan-less design delivering up to 91% efficiency for reliable operation. IP65 rated robust full metal housing ensures suitability for various environments. Wide input voltage range from 180V to 417V AC for flexible power supply.
Supports constant current operating mode with potentiometer dimming control. Includes built-in active PFC function for enhanced power quality. Certified to CB, CE, CCC, cULus, EN61347-1, EN61347-2-13, ENEC, and UL8750 standards.
Screw mount type with wire terminal connections. Encapsulated configuration providing durable protection. Ideal for LED street lighting, architectural lighting, bay lighting, and floodlighting applications. Part of the ELG-150-C series of dimmable LED drivers.
Explore the comprehensive range of MEAN WELL LED Drivers and power supplies at EnvMart for diverse industrial and commercial lighting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 150W.
It has a wide input voltage range from 180V to 417V AC.
The output voltage is 315V.
This model supports potentiometer dimming control for adjusting the output current.
It utilizes a screw mounting mechanism for installation.
It is certified to CB, CE, CCC, cULus, EN61347-1, EN61347-2-13, ENEC, and UL8750 standards.
The driver current is rated at 900mA.
This model has an IP65 rating, providing protection against dust and water ingress.
It features wire terminal connections for easy setup.
It is suitable for LED street lighting, architectural lighting, bay lighting, and flood lighting applications.
The configuration is encapsulated, providing robust protection.
Yes, it includes built-in active power factor correction (PFC) for improved power quality.
