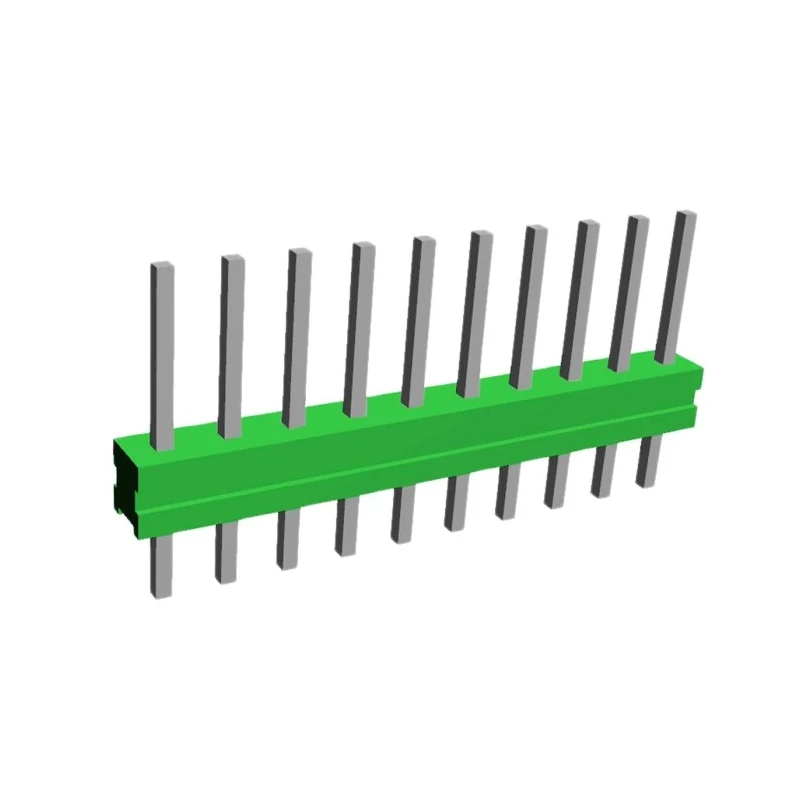

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 10 Contacts, 2.54 mm Pitch, 1 Row 1-825433-0

TE Connectivity 1-825433-0 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality single-row PCB header part featuring 10 male contacts arranged at a 2.54 mm pitch. Manufactured from phosphor bronze with gold plating, this connector ensures low resistance and reliable signal transmission. The housing is constructed from polybutylene terephthalate, providing excellent durability and stability in industrial and electronic environments.

This pin header is designed for through hole mounting and is unshrouded to facilitate versatile applications, allowing breakaway sections to achieve the required number of contacts. The tail pin length of 3.2 mm and mating pin length of 6.7 mm ensure robust mechanical and electrical connections.

Rated for an operating voltage of 750V and a current of 3A, this component functions reliably between -65°C and 105°C, making it suitable for demanding industrial, automotive, telecommunications, medical, and testing equipment applications. The AMPMODU Mod II interconnect system is widely recognized as a standard for automation and control, offering a compact and economical solution for board-to-board and wire-to-board connections.

Its design facilitates quick and efficient assembly while maintaining secure and stable electrical performance. The unshrouded configuration allows for flexibility in integration with various PCB designs and connector systems.

The pin header features a single row of 10 contacts with a 2.54 mm centreline pitch. Contacts are made of phosphor bronze with gold plating for optimal conductivity and corrosion resistance. Housing material provides robust durability suitable for industrial conditions.

Unshrouded configuration enables versatile breakaway use and customization of contact count. Suitable for use in automotive controls, industrial and test equipment, medical instruments, computers, telecommunications, and storage devices.

Through hole mount type ensures mechanical stability and ease of soldering. Operates effectively within a temperature range of -65°C to 105°C with 3A current rating. Designed to interface with board-to-board and wire-to-board connector systems efficiently.

Part of the reliable and economical TE Connectivity AMPMODU interconnect system standard. Explore the range of PCB Headers and connectors at EnvMart to find compatible components for industrial, laboratory, and manufacturing applications.
