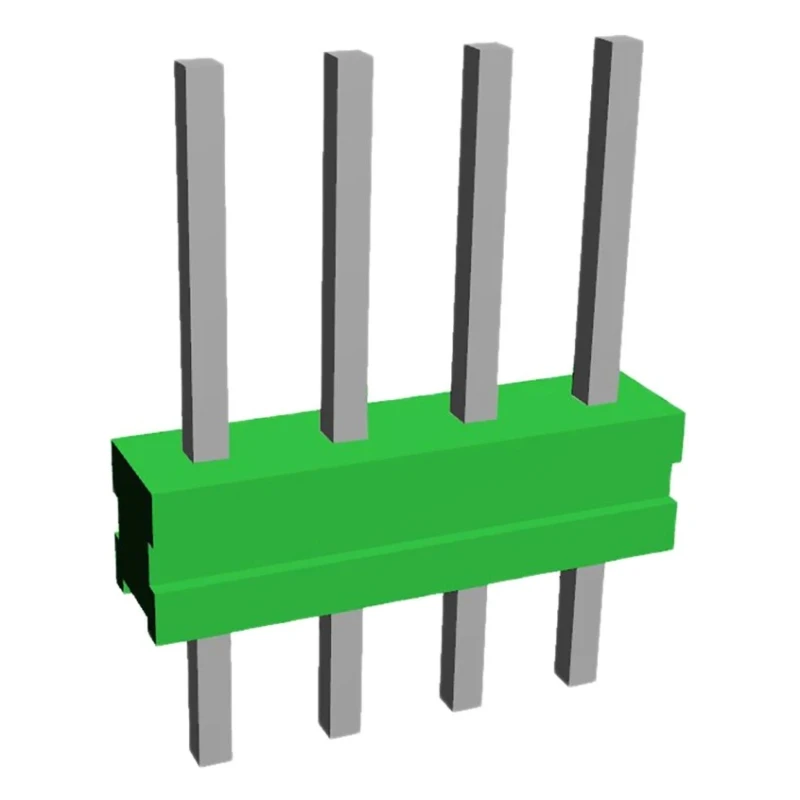

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 825433-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 825433-4 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Constructed with polybutylene terephthalate housing for durability.
- Male phosphor bronze contacts plated with gold ensure reliable connectivity.
- Operates reliably from -65°C to 105°C temperature range.
- Supports current rating of 3A at a voltage of 750V.
- Mount type is through hole suitable for solder termination.
- Tail pin length is 3.2 mm and mating pin length is 6.7 mm for secure connection.
- Versatile and breakaway design allows custom size adaptation.
- Ideal for automotive controls, industrial equipment, telecommunications, medical instruments, and computers.
Product Description
TE Connectivity 825433-4 AMPMODU MOD II Series Straight Through Hole Pin Header is designed for high-reliability board-to-board and wire-to-board connections. It features a single-row, 4-contact unshrouded pin header with 2.54 mm pitch, making it suitable for compact PCB assembly applications. The housing is made from polybutylene terephthalate providing durability and thermal stability over a wide operating temperature from -65°C to 105°C. The male contacts are formed from phosphor bronze and plated with gold to ensure excellent conductivity and resistance to corrosion. Rated for 3A current and 750V voltage, this connector supports demanding electronic applications.
The pin header has a tail length of 3.2 mm and a mating pin length of 6.7 mm, optimized for reliable soldered connections in through-hole mounting. The breakaway design allows users to easily customize the pin count to suit specific circuit requirements, simplifying installation and saving assembly time. This product is versatile and employed widely in automotive controls, industrial and test equipment, computer systems, telecommunications devices, medical instruments, storage equipment, and various appliances, ensuring dependable signal and power connections in challenging industrial environments.
Durable polybutylene terephthalate housing. Gold-plated phosphor bronze male contacts. Wide operating temperature range from -65°C to 105°C. 3A current rating at 750V voltage for reliable performance. Through-hole solder termination mount type.
Breakaway feature for customizable pin count. Suitable for board-to-board and wire-to-board connectivity. Applicable in automotive, industrial, medical, and telecommunication equipment.
Choose TE Connectivity AMPMODU MOD II pin headers for dependable, cost-effective interconnect solutions in diverse industrial and electronic assemblies. Browse our comprehensive range of PCB connectors and wire housing components for your projects at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 3A and a voltage rating of 750V, making it suitable for demanding electronic applications.
It operates reliably within a temperature range of -65°C to 105°C, ensuring performance in various environmental conditions.
The male contacts are made from phosphor bronze and are plated with gold to enhance conductivity and resistance to corrosion.
This pin header features a pitch of 2.54 mm and has 4 contacts in a single row configuration.
It is designed for through-hole mounting, which is suitable for solder termination.
The tail pin length is 3.2 mm, while the mating pin length is 6.7 mm, ensuring secure connections.
It is widely used in automotive controls, industrial equipment, telecommunications, medical instruments, and computers.
The housing is constructed from polybutylene terephthalate, providing durability and thermal stability.
Yes, it features a breakaway design that allows users to customize the pin count to meet specific circuit requirements.
This model supports both board-to-board and wire-to-board connectivity, making it versatile for various applications.
This pin header is unshrouded, which is suitable for compact PCB assembly applications.
The country of origin for this pin header is India.
